SPECIFICATIONS
(RoHS Compliant)
Model Number:
Part Number:
PQD24Z3A2
19039695A
Version: 00
Apr 19, 2017

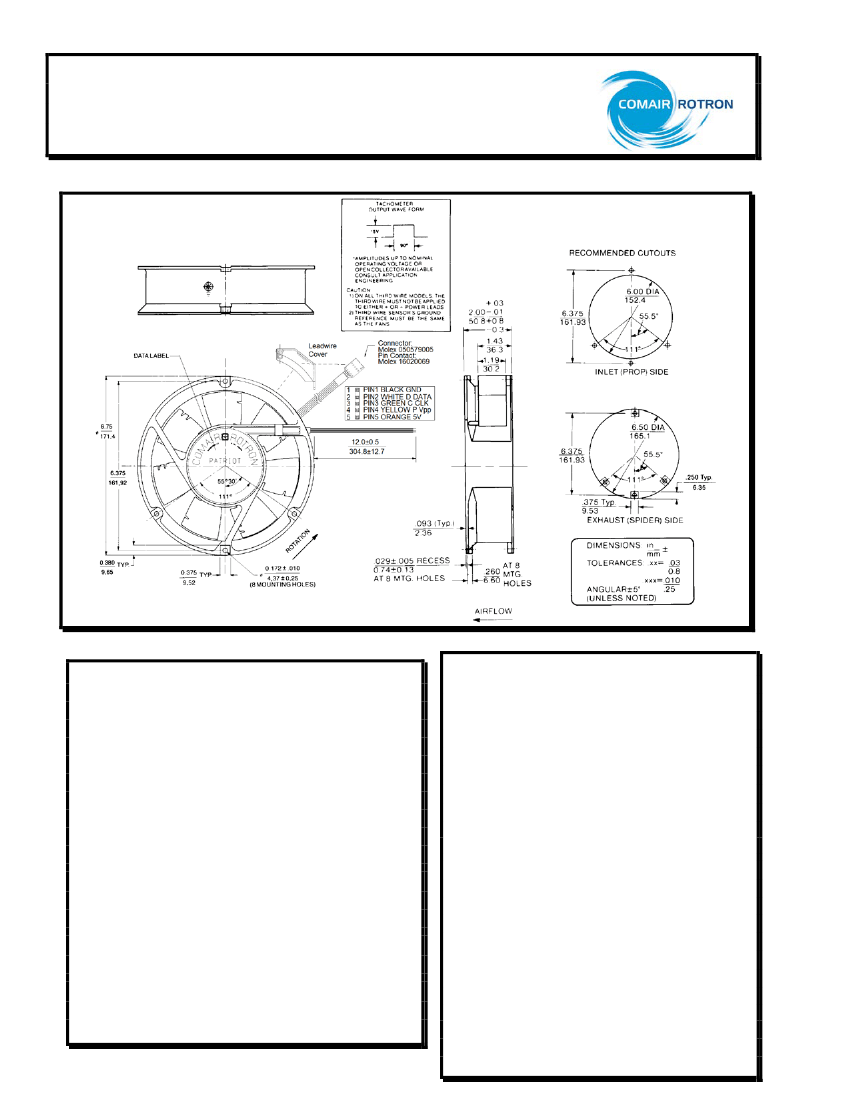

Mechanical Drawing:
Motor:
Nominal Voltage
Operating Voltage Range
Nominal Running Current
Locked Rotor Current
Running Power
Average Speed
Bearings
Air Flow
Static Pressure
Acoustic
= 24 vdc
= 12 – 32 vdc
= 1.450 amps
= 2.500 amps
= 35 watts
= 4450 rpm
= Ball
= 300 CFM
= 1.30” of Water
= 60.2 dBA
Additional Features:
Brushless DC Motor
Soft Start Inrush Current
Electronic Locked Rotor Protection
Polarity Protected
Automatic Restart Capability
Operating Temperature:
-40°C to 85°C
Storage Temperature:
-40°C to 85°C
Programmable:
PWM Input, 5 volt TTL
0% Duty:
100% Duty:
Off
4450 RPM
Construction:
Venturi: Die-Cast Aluminum, Black
Propeller: Polycarbonate, Black, UL 94V-0
Tachometer Specifications:
Output:
Ic:
5 volt TTL compatible
5 mA. Typ.
Agency Approvals:
UL, CE, UL 507
Pulses per Revolution: 2
Isolated:
No
Termination:
12” Leadwires, 22 AWG, UL 1061
Red - Power (+)
Black - Return (-)
Blue/White - Tachometer
Yellow - Program Lead
Life Expectancy:
This fan is designed for continuous duty life of 50,000
hours at 40°C.
2” Programmable harness,
Connector, Molex 050579005
Pin Contact, Moelx 16020069
