COMPONENTS PRODUCT INFORMATION
NEW
Board to Cable Connector Compatible to
High-Speed Differential Transmission
CONNECTOR
MB-0162-1
October 2006
FI-G Series
RoHS Compliant

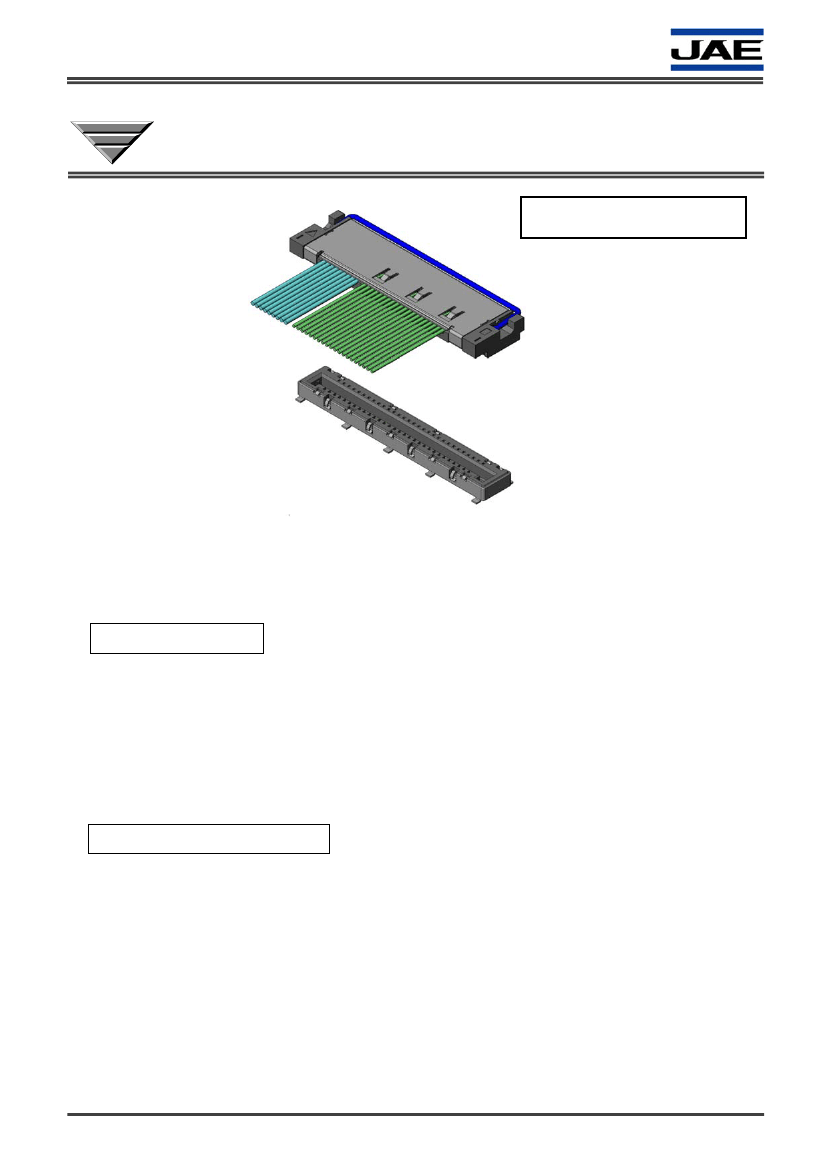

FI-G series is a high speed differential transmission connector for LCD panel
connection.
Features
•Terminal pitch: 0.5mm, Connector height: 2.4mm, suitable for handheld devices.
•High speed transmission area of cable is compatible to fine coaxial wire (AWG#40 to 42)
•Ground performance is enhanced by the shell to shell/ shell to board multipoint
connection established to improve EMI characteristics.
•With pull bar for easy connector removal
General Specification
No. of contacts: 30 pos.
Contact resistance: 60m ohm max.
Dielectric withstanding voltage: 500Vr.m.s. per minute
Insulation resistance: 100M ohm min.
Operating temperature: -40 Deg. C to +80 Deg. C
Rated current: 0.5A per contact
Life time: 30 times
Applicable cable: Contact No. 20 to 30(for signal) Coaxial (AWG#40 or #42)
Contact No. 1 to 20(for power and other use) Discrete wire(AWG#32 or #36)
1/ 7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0162-1

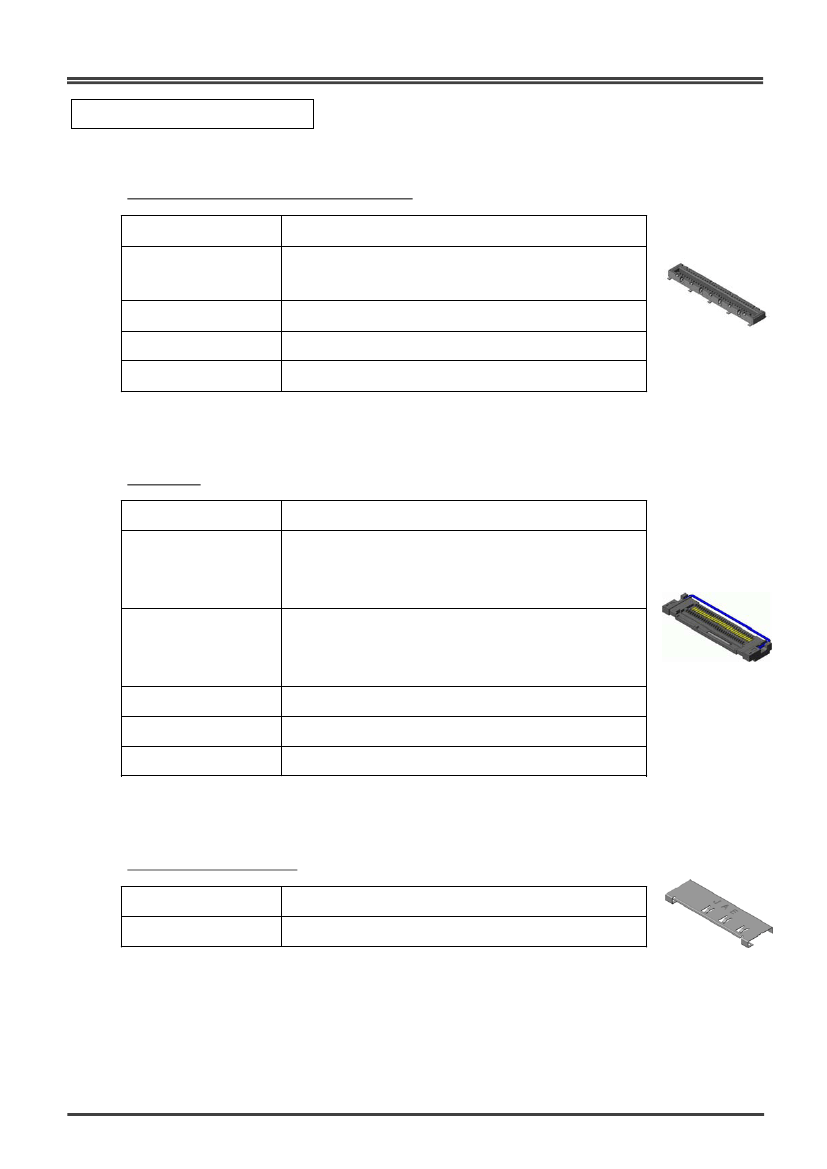

Materials and Finishes
Board side connector
FI-G30S-VF25, FI-G30S-VF25-R3000 (Board side connector)
Components
Contact
Insulator
Shell
Adsorption tape
Materials and Finishes
Copper alloy/ Contact area Au,
SMT Terminal area Sn plating
Heat resistant plastic/ None
Stainless/ Sn plating
Heat resistant tape/ None
Cable side connector
FI-G30C2 (Cable side connector)
Components
Contact1
Materials and Finishes
Copper alloy/
Contact area: 0.1um min. Au plating over Ni
Terminal area: Sn plating over Ni
Copper alloy/
Contact area: 0.1um min. Au plating over Ni
Terminal area: Sn plating over Ni
Heat resistant plastic/ None
Stainless/ Sn plating
Stainless/ None
Contact2
Insulator
Shell
Pull bar
FI-G30C2-SH-B2-8000 （Slide shell for Cable side connector）
Components
Slide shell
Materials and Finishes
Stainless/ Sn plating
2/ 7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0162-1

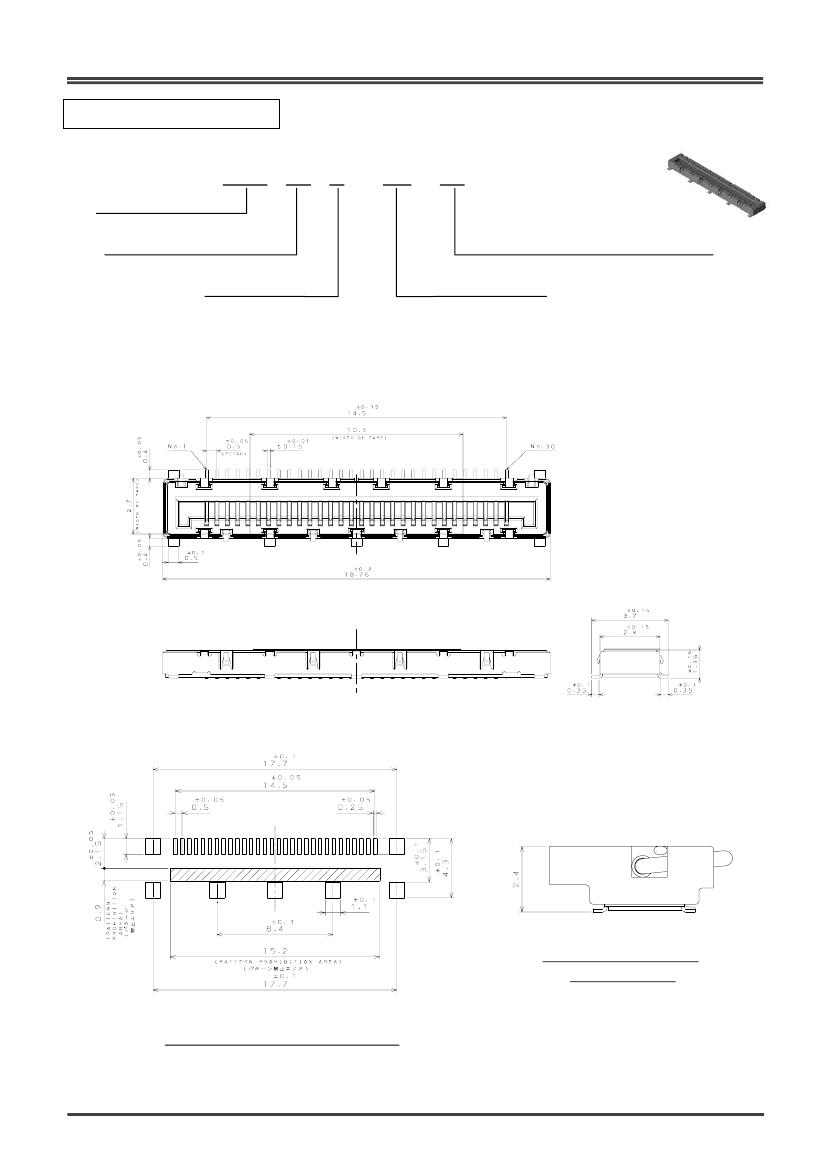

Ordering Information
Board side connector
Individual product (SJ104302）
FI-G 30 S - VF 25
Series
No. of contacts: 30pos.
Board side
Modification code 25: General
Straight type
Unit: mm
Drawing when mated
(for reference)
Recommend Board Dimensions
3/ 7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0162-1
Ordering Information
Board side connector

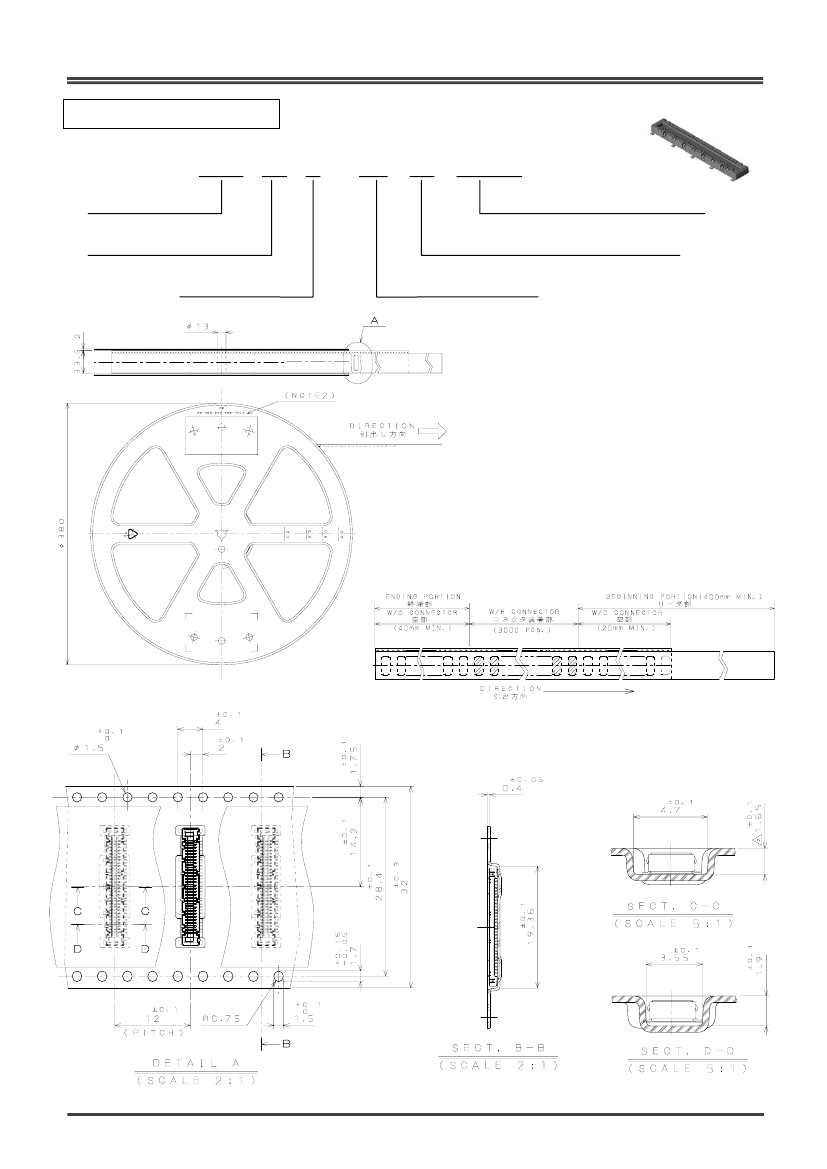

Embossed product (SJ1043023）
Emboss 3000pcs. per reel
Modification code 25: General
Straight type
FI-G 30 S - VF 25 R3000
Series
No. of contacts: 30pos.
Board side
Unit: mm
4/ 7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0162-1
Ordering Information
Cable side connector
Individual product (SJ104300）
FI-G
Series
30
C
2
Modification code 2: General
Cable side soldering type
No. of contacts: 30pos.
Unit: mm
Drawing when mated (for reference)
5/ 7
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
