F1892CAH1000 Overview

Discrete semiconductor modules 90a 380vac module scr/diode

F1892CAH1000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	FLANGE MOUNT, R-XUFM-X5
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G-GR
Description of screw terminals	2K-CA
Maximum holding current	300 mA
JESD-30 code	R-XUFM-X5
JESD-609 code	e3/e4
On-state non-repetitive peak current	1500 A
Number of components	1
Number of terminals	5
Maximum on-state current	90000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	141.3 A
Repeated peak reverse voltage	1000 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

F18 Series

•

Industry Standard Package and Circuits

•

Power Control Building Blocks

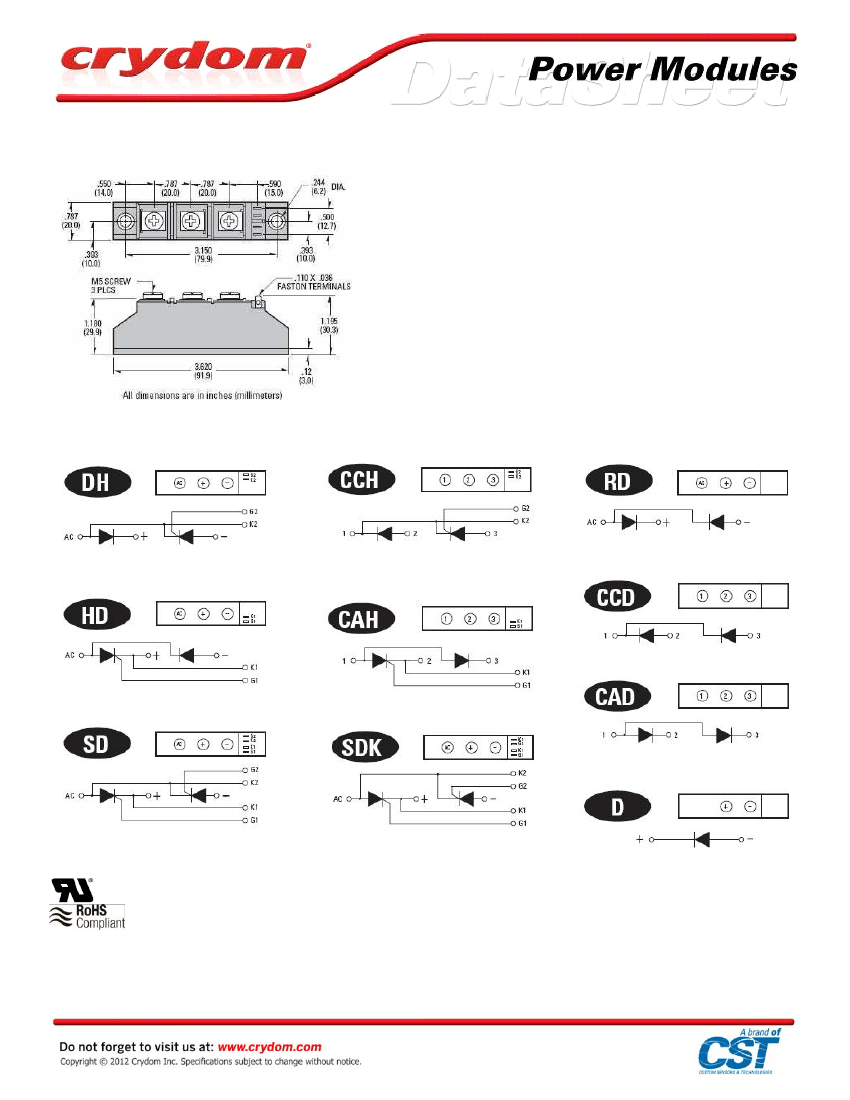

• Nine Circuits to Chose from

• UL Recognized E72445

AVAILABLE OPTIONS

ELECTRICAL SPECIFICATIONS

Description

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C [A/µs]

Critical Rate of Rise of Off-State Voltage [V/µs]

Symbol

di/dt

dv/dt

25 A

1.55V @ 75 A

-40 - 125°C

100

1000

40 A

1.4V @ 120 A

-40 - 125°C

100

1000

55 A

1.4V @ 165 A

-40 - 125°C

100

1000

400 (120 VAC)

600 (240 VAC)

800 (280 VAC)

1200 (480 VAC)

1400 (530 VAC)

1600 (600 VAC)

1500

9350

150

3.0

0.5

5.0

0.25

2500

90 A

1.4V @ 270 A

-40 - 125°C

100

1000

107 (2)

105 A

1.65V @ 300 A

-40 - 125°C

100

1000

Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]

RRM

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Maximum Required Gate Current to Trigger @ 25°C [mA]

Maximum Required Gate Voltage to Trigger @ 25°C [V]

Average Gate Power [W]

Maximum Peak Reverse Gate Voltage [V]

Maximum Thermal Resistance, Junction to Ceramic Base per

Chip [°C/W]

Isolation Voltage [Vrms]

TSM

G(AV)

ISOL

400

670

150

3.0

0.5

5.0

0.4

2500

1000

4150

150

3.0

0.5

5.0

0.28

2500

1950

15800

150

3.0

0.5

5.0

0.14

2500

2250

25000

150

3.0

0.5

5.0

0.135

2500

GENERAL SPECIFICATIONS

Description

Weight (typical)

Torque Required

4.75 oz (135g)

Terminal Stud Screw : 30 in. lbs. Mounting Screws : 20 in. lbs.

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

2) Available only in SD and SDK circuit configuration.
