2705-C2512A005000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2705-C2512A005000

2705-C2512A005000: Description2.5A, 250VAC, MALE, MAINS POWER CONNECTOR, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size161KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

2705-C2512A005000 Overview

2.5A, 250VAC, MALE, MAINS POWER CONNECTOR, PLUG, ROHS COMPLIANT

2705-C2512A005000 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	STANDARDS: IEC/EN 60320-1/A, UL 498; CSA C22.2
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	2.5A, 250VAC
Manufacturer's serial number	2705
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

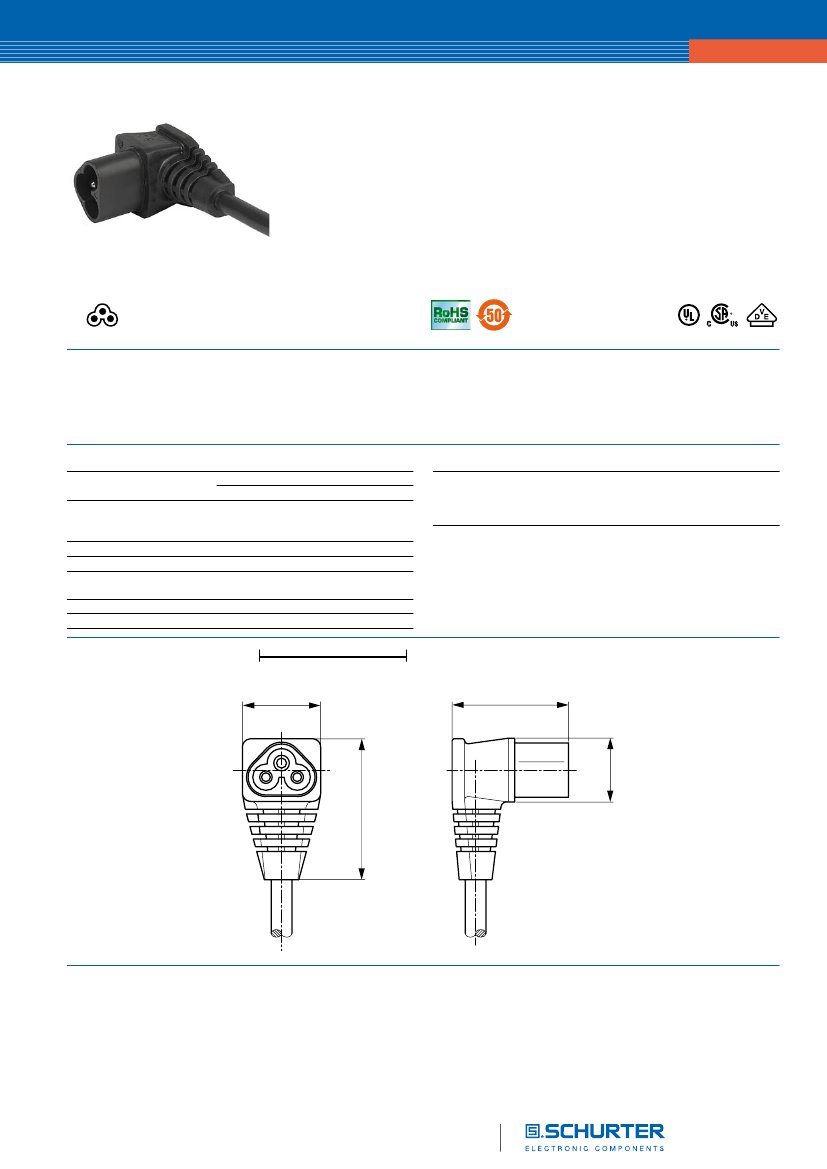

Cord Sets

www.schurter.com/pg07_2

Interconnection Cord with IEC Plug A, Angled

2705

70° C

Description

Approvals

Interconnection Cord, Protection class I, Pin temperature 70 °C, Cable

- VDE Certificate Number: 115739

- UL File Number: E45116

- CSA File Number: 1020530

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Terminal

Material: Housing

Dimensions

37.2 mm

Allowable Operation Temp.

Degree of Protection

Protection Class

2.5 A / 250 VAC; 50 Hz

2.5 A / 250 VAC; 60 Hz

> 4 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

moulded

PVC, black or grey

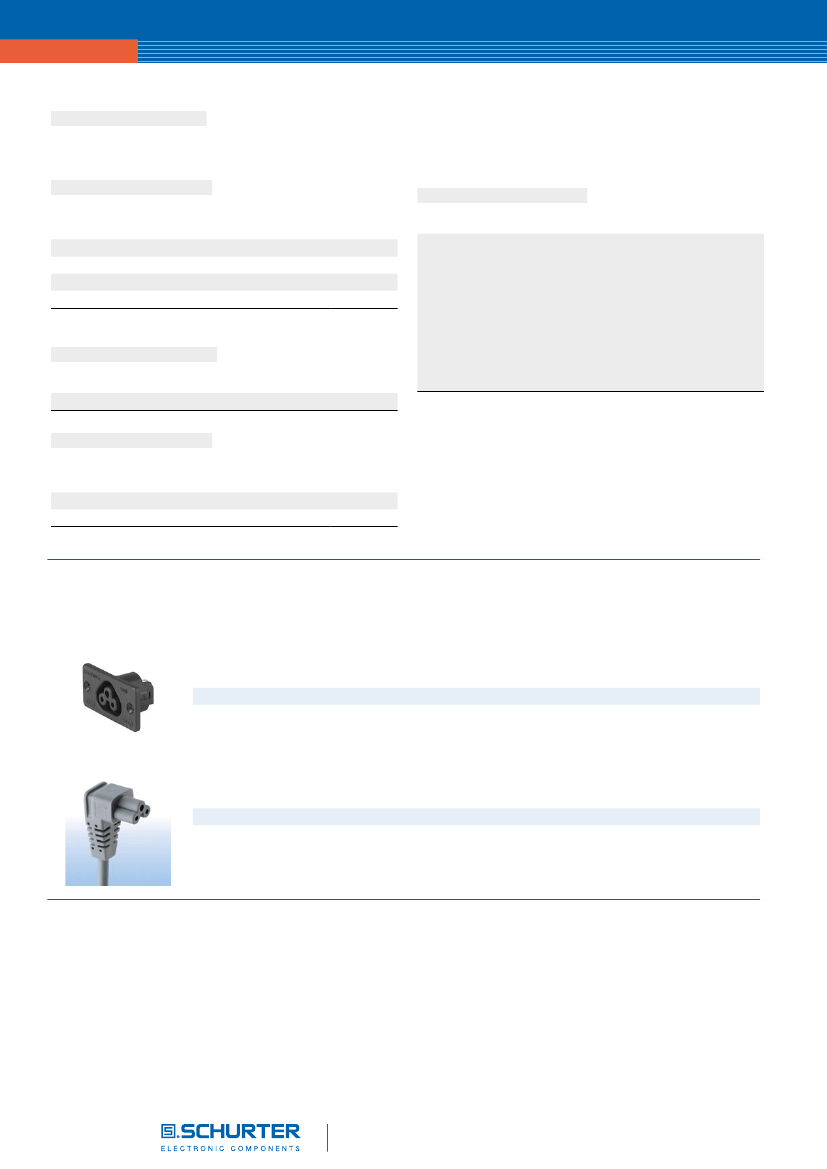

Connectors

20.4

-O

Weblinks

Plug

A acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C,

2.5 A, Protection Class 1

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product

37.2
