IP6131: DescriptionCovers, boxes and shell products 6.52 x 8.85 x 3.54 instrument case; CategoryTopical application Mechanical and electrical/engineering/automation; File Size43KB，1 Pages; ManufacturerBud Industries; Environmental Compliance

Download Datasheet Compare View All

IP6131 Overview

Covers, boxes and shell products 6.52 x 8.85 x 3.54 instrument case

Preview

Download Datasheet

View All

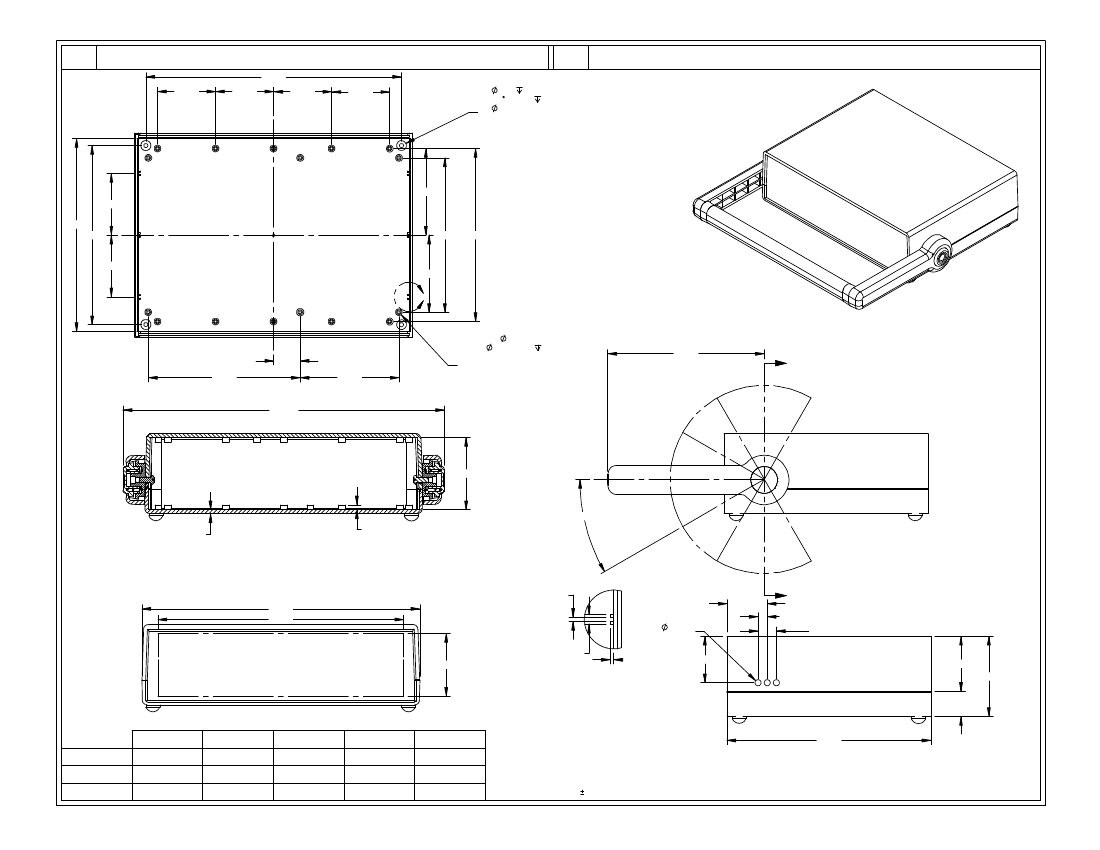

PART

NAME

PLASTIC INSTRUMENT CASE

8.146

1.850

PART

No.

BOTTOM COVER:

.248

.050

92 C-SINK

.665 (FROM INNER BOSS SURFACE)

.132 THRU

(FAR SIDE 4 PLCS.)

TOP COVER:

M3 BRASS INSERT (4 PLCS.)

IP-6130

&

IP-6131

2.756

1.968

6.150

5.710

4.922

5.512

1.968

2.461

B

.846

4.842

3.150

.218 BOSS

.090 HOLE .218

(16) PLCS. BOTH COVERS

BOSSES USE EITHER M2.5 METRIC

OR #4 STD. SHEET METAL SCREWS

(NOT SUPPLIED)

4.988

A

10.240

E

30.00°

.123

SECTION A-A

.156

.070

8.860

7.834

A

1.282

.293

.193

BOTH SIDES

.150

.055

DETAIL B

1.479

.586

D

B

A

C

HANDLE NOT SHOWN

TOTAL HEIGHT

PART No.

IP-6130

IP-6131

A

2.570

3.540

COVER HEIGHT

B

1.770

BASE HEIGHT

C

.800

1.770

USABLE

PANEL SPACE

D

2.012

2.982

INTERNAL

CLEARANCE

E

2.324

3.294

NOTES:

MATERIALS & FINISHES:

COVERS - ABS (LIGHT GREY)

UL94-HB FLAMMABILITY RATING

PANELS - ABS (BLACK)

UL94-HB FLAMMABILITY RATING

HANDLE SUPPORTS - ABS (GREY)

UL94-HB FLAMMABILITY RATING

HANDLE - ALUMINUM EXTRUSION (CLEAR ANODIZE)

HARDWARE INCLUDED:

HANDLE KIT AND (2) M4 x 10mm PAN HEAD MOUNTING SCREWS INCLUDED

(4) M3 x 25mm FLAT HEAD SCREWS

(4) RUBBER FEET

ALL DIMENSIONS HAVE

.015 TOLERANCE UNLESS OTHERWISE SPECIFIED

6.500

REV: 07/06/04
