Desk-top enclosures
Our desk-top cases are used to house PCBs (euroboards) or
individual components
The choice is yours:

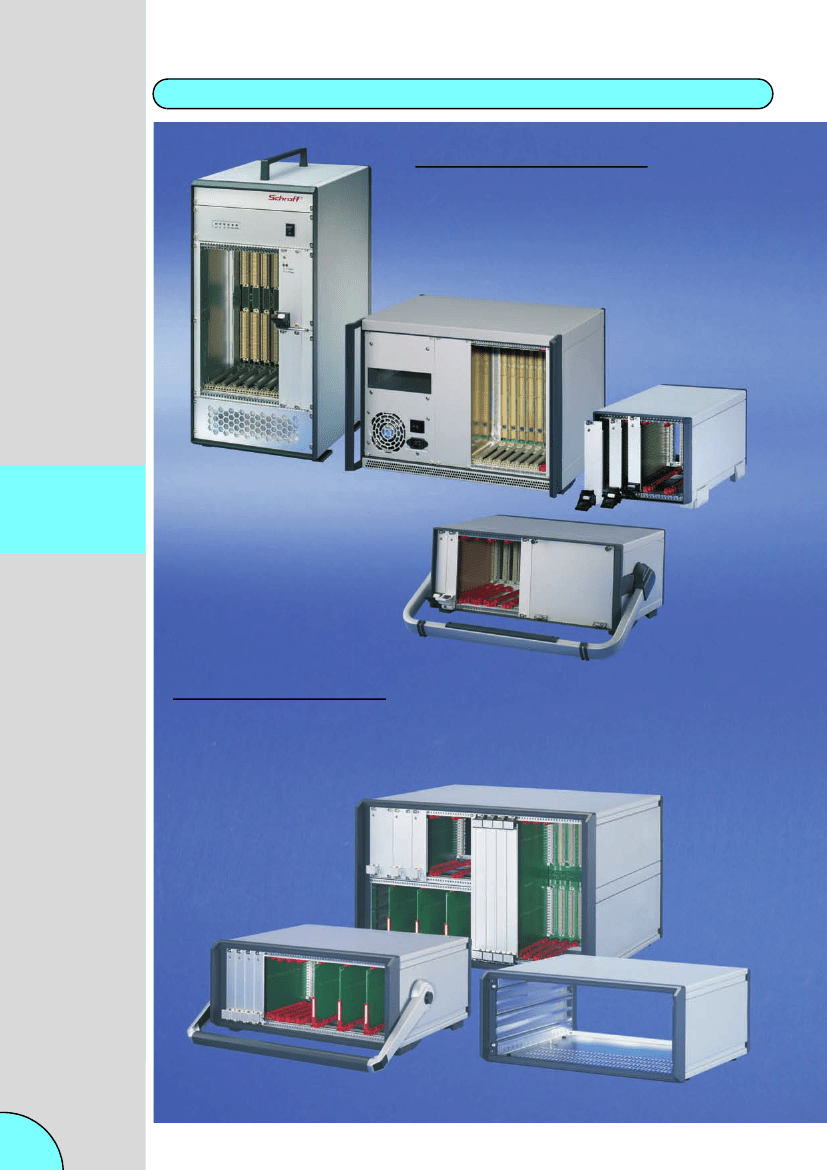

ratiopacPRO, the universal case with 19" compatible
dimensions and high EMC shielding,
e.g. for CompactPCI and VME64x applications
01810002
02202004
Desk-top enclosure,
ratiopacPRO
19" case, comptec
propacPRO, the robust case with high EMC shielding for
19"-compatible or custom electronics assemblies
compacPRO, Desk-top or portable case for unshielded
applications
19" cases
Our comptec cases are comparable with small cabinets and are
used to house 19" components such as subracks, 19" fan trays
or 19" front panels
All desk-top enclosures have a very low weight owing to the
materials used and are also suitable for mobile use
Applications for desk-top enclosures
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
The most important user domains for desk-top enclosures are:
Fitting with euroboards in accordance with IEC 60297
Fitting with individual electrical or mechanical components,
e.g.on mounting plates
02004079 05809004 05809004
Example above: for euroboards, below: for individual installation

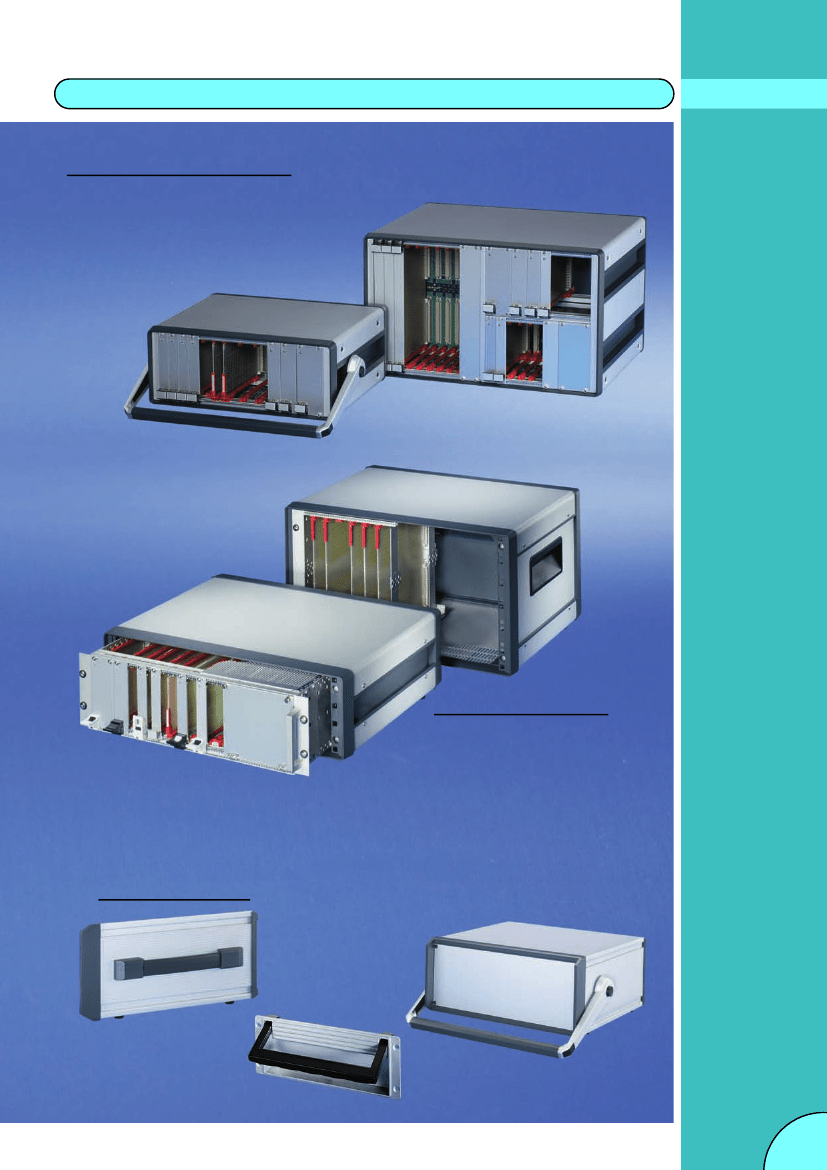

One product platform and extensive accessories
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
Practical technology without time-consuming assembly. The
modular product platform of these cases allows a wide range
of possible uses with only a small number of components.
The intelligent design of all components results in an
astonishingly quick and easy assembly of the components.
05806008
05806006
With our PRO product platform we offer you full compatibility
of all individual components and accessories, also with our
europacPRO subracks.
Standard desk-top enclosures can also be adapted easily and
with little effort for mobile applications.
02005003
02005006
5.2
Main Catalogue
E 10/2012
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Desk-top cases – Introduction
Forms of delivery for desk-top enclosures
IntroductionMain CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
Supplied in space-saving packs. Simply unpack parts and screw
together - done.
Depending on the kit chosen the threaded insert, the perforated rail
or the EMC gasket is pre-assembled on the horizontal rail.
We offer you three forms of delivery:
Pre-assembled kit for use with 160 mm deep euroboards,
frame fitted, cladding parts and guide rails supplied loose.
Pre-assembled kit for individual configuration, frame
assembled, cladding parts supplied loose.
Ready assembled cases to your specifications. With our
ServicePLUS option you can order ready-assembled cases,
with drilled holes and cut-outs and individual front panels -
if necessary even by express service.
06104001
Flat pack delivery to save space
Guide rail
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
Guide rails form the interface between the mechanics of the
case and the electronics assembled (PCBs, plug-in units, frame
type plug-in units, drive unit modules, etc.).
73
11
83
1
dB
120
100
80
60
40
20
0
30
400
800
Mhz
06108081
Shielding
Position of the ESD clip
Main Catalogue
E 10/2012
1
81
3
79
5
77
7
75
Robust snap-in fixings on the plastic rails assure that the
components are held securely, even when exposed to
vibrations.
Guide rails can also be screwed on.
9
06108084
EMC and ESD
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
Our case product platforms offer standard solutions for
achieving electromagnetic compatibility (EMC) and to avoid
electrostatic interference (ESD)
Shielding on the front and rear of the case is effected by front
panels with EMC gaskets
To prevent electrostatic discharge when inserting PCBs, ESD
contacts are clipped into the guide rails. These provide a
conductive connection between board and case earth/ground
Test reports are available on our website www.schroff.biz for
download
1200
1600
2000
04503050
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
