Photologic
®
Slotted Optical Switch
OPB960, OPB970, OPB980, OPB990 Series
Features:
•
•
•
•
•
Choice of logic and output driver circuits
Choice of aperture size, covered or open
Wire or PCB leads
Choice of mounting features
Direct TTL, LSTTL, CMOS Interface
Description:
The OPB960/ 970/ 980/ 990 series of non-contact Photologic
®
slotted optical switches provides flexibility in meeting application
specific requirements for the design engineer.
Building from a standard housing with a 0.125” (3.18mm) wide slot, the user can specify output logic state, output driver circuit,
aperture width, aperture surface and mounting tab locations. Furthermore, an option of wire or PCB leads allows electrical
interface flexibility.
The device body is an opaque plastic which minimizes sensitivity to both visible and near-infrared external light sources which
may impact operation. Aperture width choices provide different optical resolution for motion sensing. A covered aperture
provides dust protection, while an open aperture provides maximum protection against external light sources.
Electrical operation is over a wide supply voltage range. LED emissions are near-infrared (850—940nm).
Detector digital output logic choices of buffer or inverter with totem-pole or open-collector driver circuit simplify interface for
various electrical requirements.
Custom electrical, wire and cabling services are available.
Contact your local representative or OPTEK for more information. Compliant to EU RoHS Directive 2002/95/EC .
Applications:
•
Speed and direction indication
•
Rotary encoders
•
Mechanical switch replacement
•
Mechanical limit indication
For more information see Application notes 201, 213
•
Printers - Top of form, End of travel, Home position.
•
Sliding Door Automotive and Lift gate applications

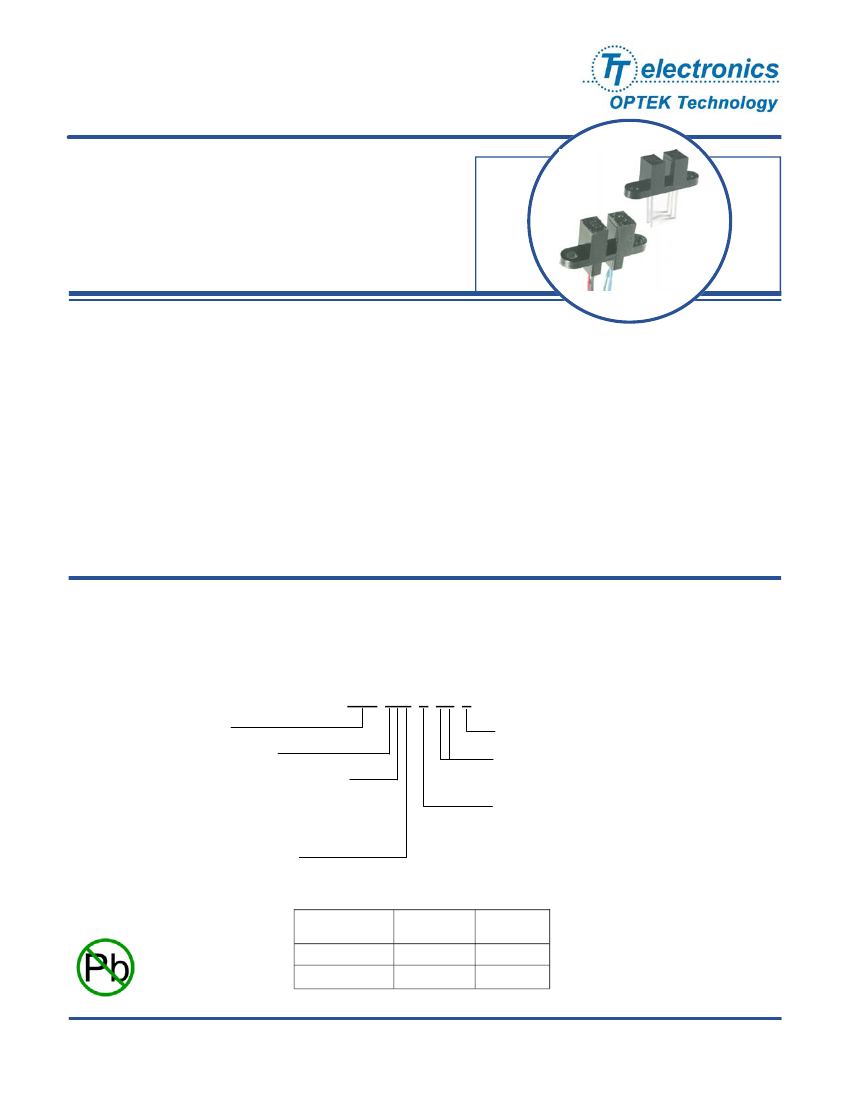

Part Number Guide
OPB 9XX X XX X
OPTEK Assembly
Photologic Sensor Family
Slot Aperture Surface and Lead Options:
6 —
Covered (apertures not visible), PCB leads
7 —
Open (apertures visible), PCB leads
8 —
Covered (apertures not visible), Wires
9 —
Open (apertures visible), Wires
Logic and Output Driver Types:
0 —
Buffer Totem-Pole
1 —
Buffer Open-Collector
2 —
Inverter Totem-Pole
3 —
Inverter Open-Collector
Logic Type
Buffer
Inverter
Input
LED
OFF
OFF
®
Z =
Wires only, None for PCB leads
Aperture Width Guide Options:
55, 51, 11 ( See Aperture Width Guide )
Mounting Tab Location:
L —
Emitter
N —
None
P —
Sensor
T —
Both (two mounting tabs)
Output
Logic State
LOW = 0
HIGH = 1
RoHS
OPTEK reserves the right to make any changes at any time in order to improve design and to supply the best product possible.
Issue C.1 1/10
Page 1 of 6
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Photologic Slotted Optical Switch
OPB960, OPB970, OPB980, OPB990 Series

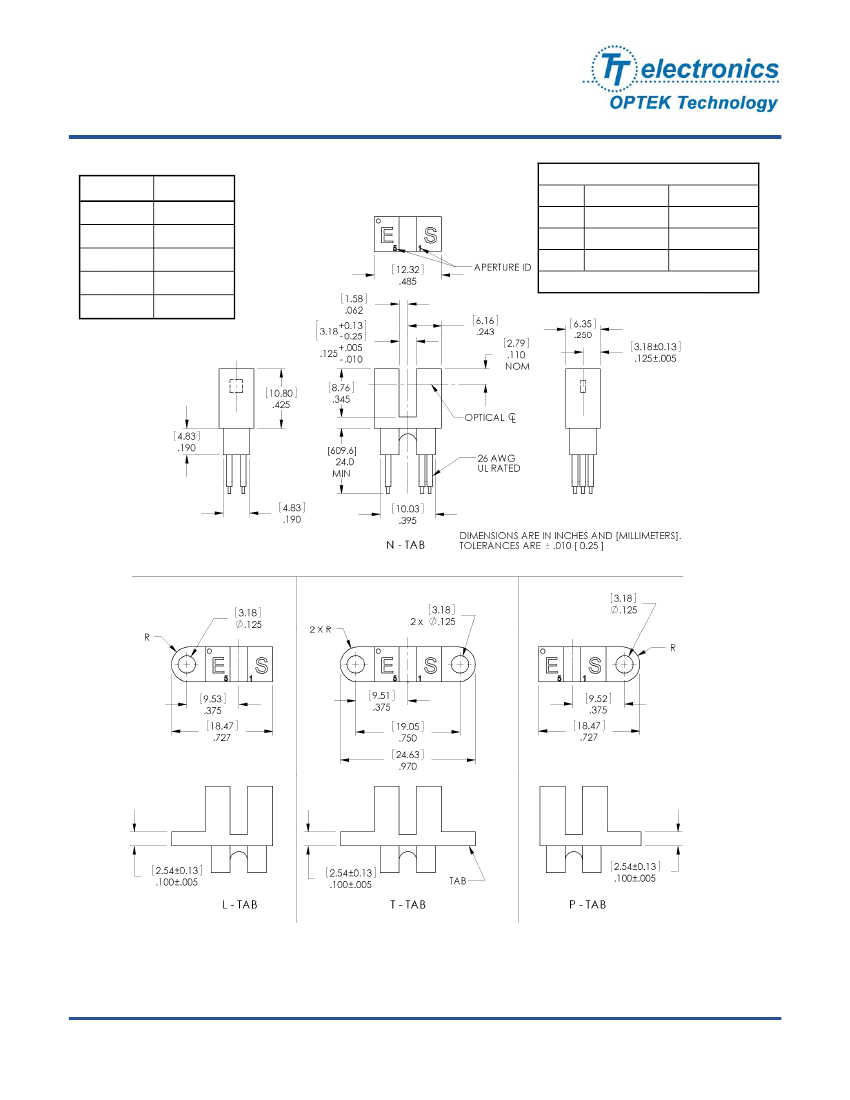

PACKAGE OUTLINE for OPB960 and OPB970 Series
TABLE 1
APERTURE WIDTH GUIDE
®
Lead No.
1
2
3
4
5
Function
Anode
Cathode
Vcc
Output
Ground
CODE
55
51
11
LED
.050” [1.27mm]
.050” [1.27mm]
.010” [0.25mm]
SENSOR
.050” [1.27mm]
.010” [0.25mm]
.010” [0.25mm]
Lengths are .050” [1.27mm]
Notes:
(1)
(2)
(3)
(4)
(5)
(6)
RMA flux recommended. Duration can be extended to 10 seconds max.
Feature controlled at body.
Highly activated water soluble fluxes may attack plastic. Recommend trial to verify application.
Maximum lead soldering temperature [1.6mm from case for 5 seconds with soldering iron] 260° C.
Cathode lead may be shorter.
Part number marking may be on any side.
OPTEK reserves the right to make any changes at any time in order to improve design and to supply the best product possible.
Issue C.1 1/10
Page 2 of 6
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Photologic
®
Slotted Optical Switch
OPB960, OPB970, OPB980, OPB990 Series

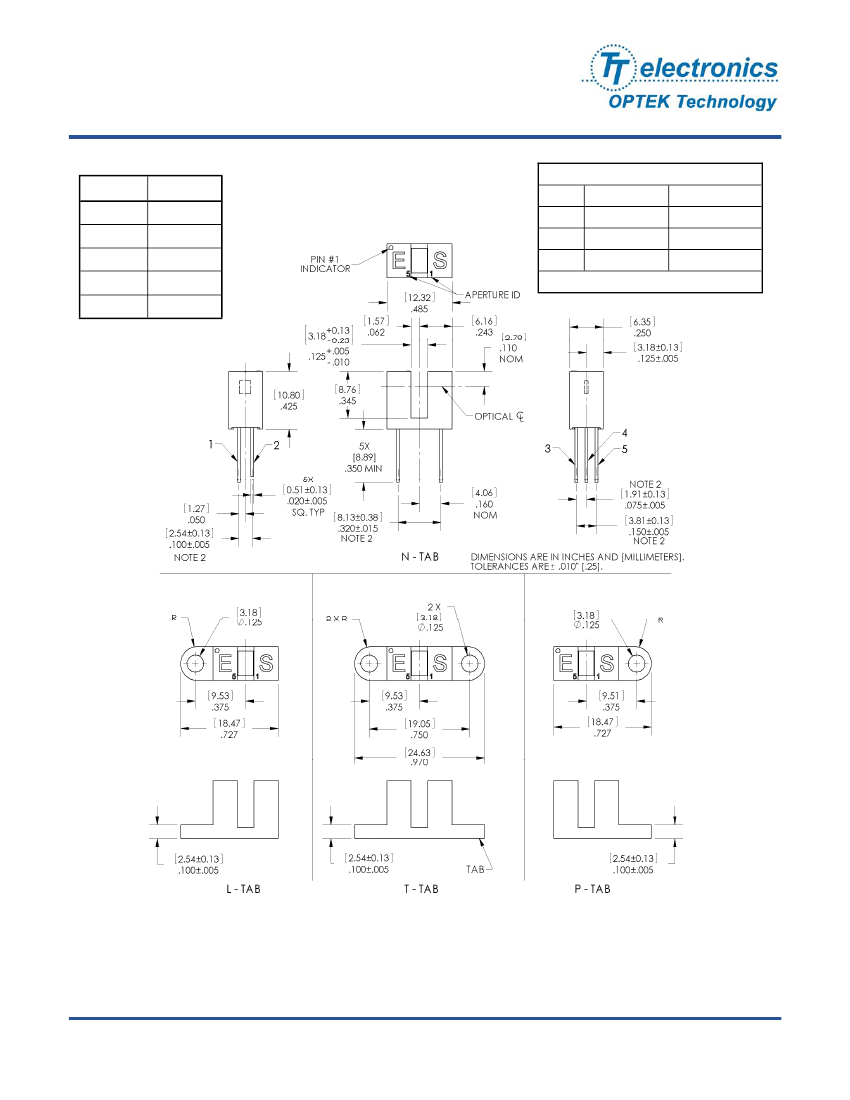

PACKAGE OUTLINE for OPB980 and OPB990 Series
TABLE 2
APERTURE WIDTH GUIDE
Wire Color
Red
Black
White
Blue
Green
Function
Anode
Cathode
Vcc
Output
Ground
CODE
55
51
11
LED
.050” [1.27mm]
SENSOR
.050” [1.27mm]
.050” [1.27mm] .010” [0.25mm]
.010” [0.25mm] .010” [0.25mm]
Lengths are .050” [1.27mm]
Notes:
(7)
(8)
(9)
(10)
Wire is 26AWG, UL Rated PVC insulation.
Ideal torque for bolt or screw 0,45 to 0,68 Nm ( 4 to 6 Lb-in ).
When using a thread lock compound, ND Industries ”ND Vibra-Tite
®
Formula 3” will avoid stress cracking plastic.
Plastic is soluble in chlorinated hydrocarbons and ketones. Methanol or isopropanol are recommended as cleaning agents.
OPTEK reserves the right to make any changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue C.1 1/10
Page 3 of 6
Photologic Slotted Optical Switch
OPB960, OPB970, OPB980, OPB990 Series
®
Absolute Maximum Ratings
Storage Temperature Range
Operating Temperature Range
Input Diode (E)
Input Diode Power Dissipation
Input Diode Forward D.C. Current, T
A
= 25°C
Input Diode Reverse D.C. Voltage, T
A
= 25°C
Sensor (S)
Supply Voltage (V
CC
to Ground)
Output Photologic Power Dissipation
Voltage at Output Lead (Open-Collector Output), T
A
= 25°C
Short Circuit Output Current to Ground (I
OS
) 1 sec Max.
Notes:
®
-40°C to +85° C
-40°C to +70° C
100 mW
( 11)
40 mA
( 14)
2V
18 V
( 13)
200 mW
( 12)
35V
30 mA
(11)
Derate linearly 2.22 mW / °C above 25° C.
(12) Derate linearly 4.44 mW / °C above 25° C.
(13) Prior to 2004 Vcc was limited to 5.5V maximum.
(14) Do not connect input diode directly to a voltage source without an external current limiting resistor.

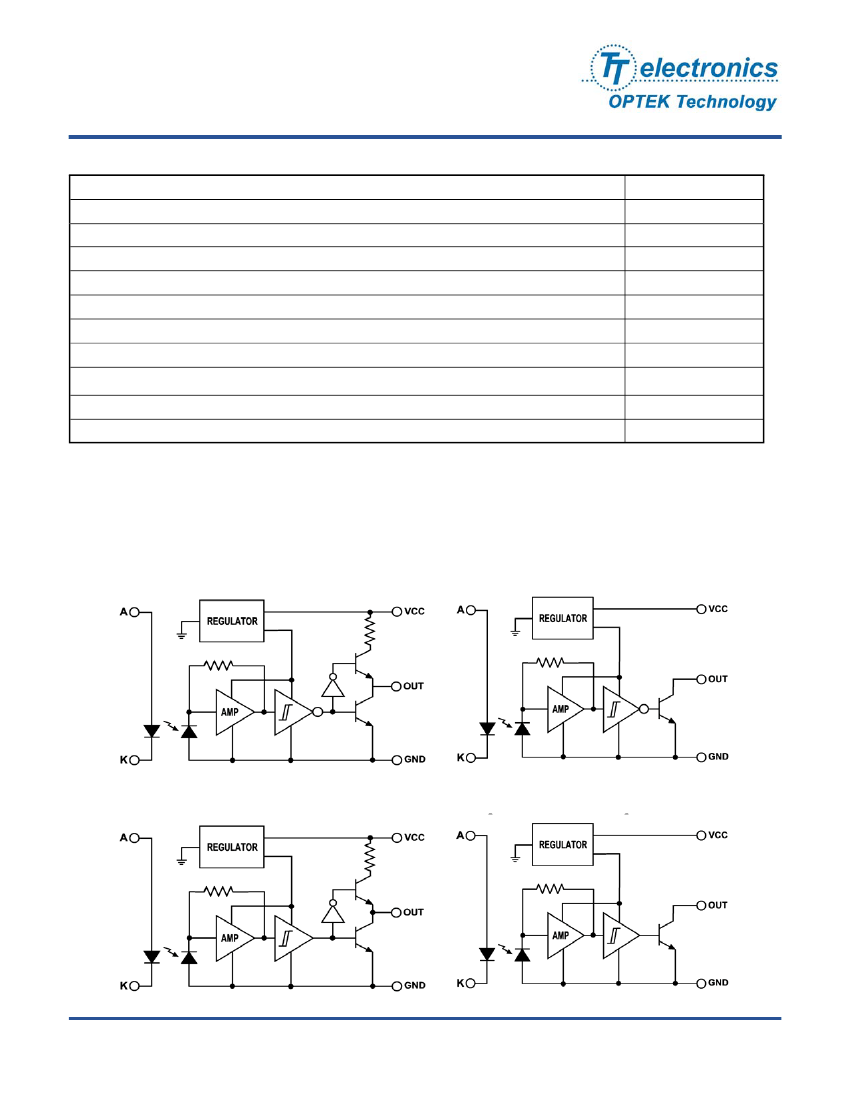

Block Diagram
Buffer Totem-Pole
OPB960/ OPB970/ OPB980/ OPB990
Buffer Open-Collector
OPB961/ OPB971/ OPB981/ OPB991
Inverter
Totem-Pole
OPB962/ OPB972/ OPB982/ OPB992
Inverter Open-Collector
OPB963/ OPB973/ OPB983/ OPB993
OPTEK reserves the right to make any changes at any time in order to improve design and to supply the best product possible.
Issue C.1 1/10
Page 4 of 6
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Photologic
®
Slotted Optical Switch
OPB960, OPB970, OPB980, OPB990 Series
Electrical Characteristics
(T
A
=
-40° C to +70° C
unless otherwise noted)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Input Diode
(See OP140 / OP240 LED for additional information)
V
F
I
R
Coupled
V
CC
I
CC
V
OL
Forward Voltage
Reverse Current
-
-
-
-
1.70
100
V
µA
I
F
= 20 mA, T
A
= 25° C
V
R
= 2.0 V, T
A
= 25° C
(See OPL560 Detector for additional information)
Operating D.C. Supply Voltage
Supply Current
Low Level Output Voltage:
Buffer Totem-Pole
Buffer Open-Collector
Inverter Totem-Pole
OPB960,OPB970
OPB980,OPB990
OPB961,OPB971
OPB981,OPB991
OPB962,OPB972
OPB982,OPB992
4.5
-
-
-
16
12
V
mA
V
CC
= 4.5V to 16V
V
CC
= 4.5V, I
OL
= 12.8mA
I
F
= 0 mA
(14)
-
-
0.4
V
V
CC
= 4.5V, I
OL
= 12.8mA
I
F
= 15 mA
Inverter Open-Collector OPB963,OPB973
OPB983,OPB993
V
OH
High Level Output Voltage:
Buffer Totem-Pole
Inverter Totem-Pole
OPB960,OPB970
OPB980,OPB990
OPB962,OPB972
OPB982,OPB992
V
CC
-2.1
-
-
V
V
CC
= 4.5V to 16V, I
OH
= -800µA
I
F
= 15 mA
V
CC
= 4.5V to 16V, I
OH
= -800µA
I
F
= 0 mA
(14)
V
CC
= 4.5V to 16V, V
OH
= 30V
I
F
= 15 mA
V
CC
= 4.5V to 16V, V
OH
= 30V
I
F
= 0 mA
(14)
I
OH
High Level Output Current:
Buffer Open-Collector
OPB961,OPB971
OPB981,OPB991
-
-
100
µA
Inverter Open-Collector OPB963,OPB973
OPB981,OPB991
I
F
(+)
LED Positive-Going Threshold Current
(16)
-
-
-
-
1.5
70
15
-
-
mA
-
ns
V
CC
= 5.0V, T
A
= 25° C
V
CC
= 5.0V
V
CC
= 5.0V, I
F peak
= 15 mA, T
A
= 25° C
100 kHz square wave, C = 10pF max.
R
L
= 360
Ω
to GND (Totem-Pole)
R
L
= 1K
Ω
pull-up (Open-Collector)
I
F
(+) / I
F
(-) Hysteresis Ratio
t
R
, t
F
Output Rise Time, Output Fall Time
Propagation Delay Time
Low to High, High to Low
t
PLH
, t
PHL
-
5.0
-
µs
Notes:
14) Normal application would be with light source blocked, simulated by I
F
= 0 mA.
15) All parameters are tested using pulse techniques.
16) An increasing current applied to the LED which causes the output logic state to change.
For proper application IF(+), LED current, should be more than the stated maximum.
OPTEK reserves the right to make any changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue C.1 1/10
Page 5 of 6
