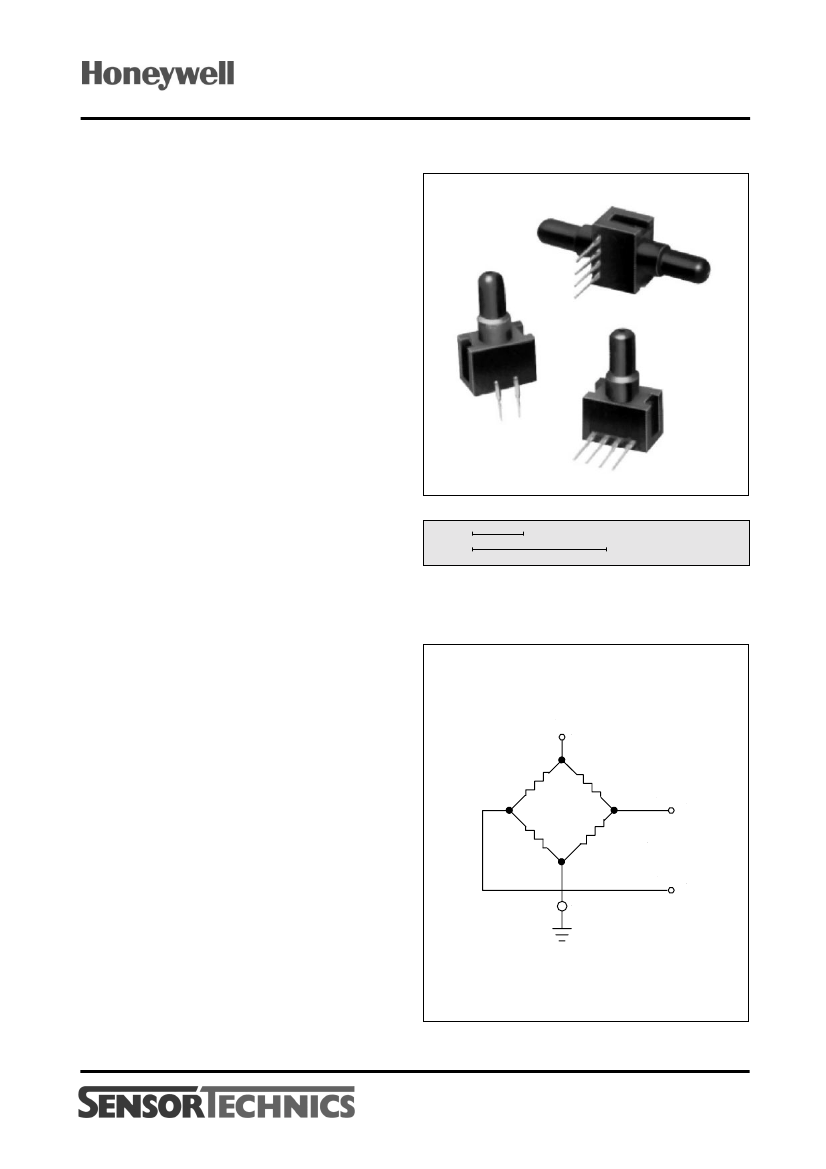

24PC Series
(psi)
Unamplified, uncompensated pressure sensors
FEATURES
· 0...0.5 to 0...250 psi gage or differential
· High impedance bridge
· Miniature package
· Different pinning configurations
· Usable for wet/wet applications
8
SERVICE
All media compatible with
port 1:
- polyetherimide
- silver-filled silicone
- silicon nitride
- polyetherimide
- fluor-silicone
- silicon
Scale:
1 cm
1 inch
port 2
9
:
SPECIFICATIONS
Maximum ratings
Supply voltage
Temperature limits
Storage
Operating
Lead temperature (10 sec. soldering)
Humidity limits
Vibration (0 to 2000 Hz)
(qualification tested)
Mechanical shock (qualification tested)
Proof pressure
all 0.5, 1 and 5 psi devices
all 15 psi devices
all 30 psi devices
all 100 psi devices
all 250 psi devices
February 2005 / 603
1
ELECTRICAL CONNECTION
12 V
-55 to +100°C
-40 to +85°C
300°C
0...100 %RH
Vs
1
4
-
Output
20 g sine
2
150 g
+
3
20 psi
45 psi
60 psi
200 psi
500 psi
1/4
www.sensortechnics.com
24PC Series
(psi)
Unamplified, uncompensated pressure sensors
PRESSURE SENSOR CHARACTERISTICS
V
s
= 10.0 ± 0.01 V, t
amb
= 25°C (unless otherwise noted)
Listing
24PCEFAxx
24PCAFAxx
24PCBFAxx
24PCCFAxx
24PCDFAxx
24PCFFAxx
24PCGFAxx
Order number
24PC0035xxA
24PC0070xxA
24PC0350xxA
24PC1000xxA
24PC2000xxA
24PC7000xxA
24PC17K0xxA
Operating pressure
0 - 0.5 psi (34.5 mbar)
0 - 1 psi (69 mbar)
0 - 5 psi (345 mbar)
0 - 15 psi (1034 mbar)
0 - 30 psi (2068 mbar)
0 - 100 psi (6.9 bar)
0 - 250 psi (17.2 bar)
Full-scale span
2
Min.
Typ.
Max.
24 mV
30 mV
85 mV
165 mV
240 mV
156 mV
145 mV
35 mV
45 mV
115 mV
225 mV
330 mV
225 mV
212 mV
46 mV
60 mV
145 mV
285 mV
420 mV
294 mV
280 mV
COMMON PERFORMANCE CHARACTERISTICS
V
s
= 10.0 ± 0.01 V, t
amb
= 25°C (unless otherwise noted)
Characteristics
Zero pressure offset
Temperature effects (0 - 50°C)
4
Temperature effects on bridge impedance
4
Linearity (P2 > P1, BSL)
3
Repeatability and hysteresis
5
Long term stability
7
Input impedance
Output impedance
Response time
6
Specification notes:
Min.
-30
Offset
Span
Typ.
±2.0
-2000
+2200
±0.25
±0.15
±0.5
5.0
5.0
Max.
+30
Unit
mV
ppm/°C
±1.0
% sp a n
6.0
6.0
1.0
4.0
4.0
kΩ
ms
1.
The maximum specified pressure which may be applied to the sensor without causing a permanent change in the output characteristics.
2.
Span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure. Span is
ratiometric to the supply voltage.
3.
Linearity (BSL), the deviation of measured output at constant temperature (25°C) from "Best Straight Line" determined by three
points, offset pressure, full-scale pressure and half full-scale pressure.
V
- V
offset
[
V
½ full scale
–
{
(full
full scale
pressure)
scale
x (½ full scale pressure) + V
offset
}]
: 2 (V
full scale
) x 100 %
where: V = measured value for each device
4.
Error band of the offset voltage, span or bridge impedance in the specified temperature range, relative to the 25°C reading.
5.
Repeatability, the deviation in output readings for successive application of any given input pressure (all other conditions
remaining constant. Hysteresis, the error defined by the deviation in output signal obtained when a specific pressure point is
approached first with increasing pressure, then with decreasing pressure or vice versa (all other conditions remaining constant).
6.
Response time for 0 to full-scale pressure step change, readings taken at 10 % and 90 % of full-scale pressure.
7.
Long term stability of offset and span over a period over one year.
8.
The sensors might be used on both ports, for media compatible with the components, specified under "Service" (page 1).
9. Other sealing materials are available on request.
Minimum order quantities might be required.
10. Other pressure port styles, like barbed ones, luers, modular, M5, needle style or flow through connection, are
available on request.
For these specials see the data sheet "24/26PC specials". Minimum order quantities might be required, call
Sensortechnics for assistance.
2/4
February 2005 / 603
www.sensortechnics.com
24PC Series
(psi)
Unamplified, uncompensated pressure sensors

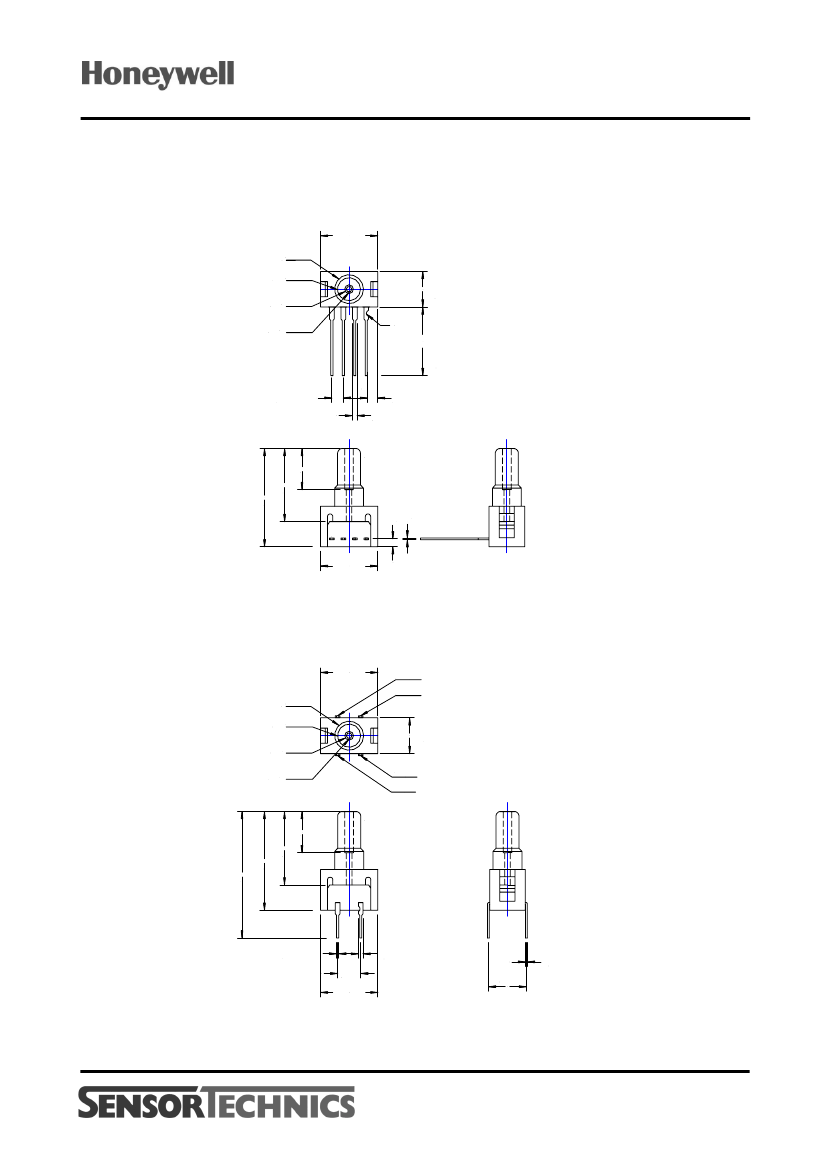

OUTLINE DRAWINGS
10
24PCxxxxD6A (single inline pinning, 1 x 4),
differential pressure devices
12,7
Ø 6,4
Ø 5,1
Ø 1,93
Ø 1,27
PIN 1
7,9
2,29
4 x 1,02
16,2
9,1
P2
1,78
4 x 0,41
4 3 2 1
3 x 2,54
34,4
21,8
11,7
mass:
2 g
P1
12,7
NOM 15,2
dimensions in mm
ORDERING INFORMATION
2
24PC series
non compensated
Pressure range
0 - 0.5 psi (34.5 mbar)
0 - 1 psi
(69 mbar)
0 - 5 psi (345 mbar)
0 - 15 psi (1034 mbar)
0 - 30 psi (2068 mbar)
0 - 100 psi (6.9 bar)
0 - 250 psi (17.2 bar)
4
PC
xxxx
x
x
A
10
Pressure port
(Ø 5.1 mm)
Pinning
2: dual inline pinning, 2 x 2
(not available for
differential devices)
6: single inline pinning, 1 x 4
Pressure mode
D: differential pressure
G: gage pressure
0035:
0070:
0350:
1000:
2000:
7000:
17K0:
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
4/4
February 2005 / 603
www.sensortechnics.com
