UbiQ-470
NEW
Features
7.0" 16:9 TFT touch panel
7.0" In-Wall Touch Panel
Supports MPEG-4 @ 30 frames/sec
Slim profile: faceplate protrudes 5 mm from the wall
Built-in IR receiver, microphone, speaker and necessary I/O
Faceplate is easily customized with various materials for unique product
identity
Supports Macromedia® Flash Player and JVM (Optional)
Introduction
The UbiQ-470 is designed for eHome/Building wall-mounted touch control applications. The Intel XScale® PXA270 processor combined with Microsoft Windows® CE 5.0 forms
a high performance, reliable, fanless platform for in-wall touch control applications. Microsoft WinCE 5.0 and Macromedia Flash Player enable a friendly attractive GUI interface for
eHome/eBuilding applications. Built-in display chip Intel 2700G with 32 MB VRAM and 7.0" 16:9 true color TFT LCD give perfect graphic performance. The built-in speaker and
microphone can act as intercom through an analog audio interface or LAN. A built-in IR receiver implements the remote control capability. The elegant outlook is suitable for home
environments and the faceplate protrudes only 5.0 mm from the wall. If the default faceplate does not fit in with your home style, we welcome faceplate customization requests. In
addition, rich I/O interfaces, such as LAN, RS-232, RS-485, USB, DI/O and hotkeys are reserved for easy peripheral integration.
Specifications
System Kernel
OS
CPU
Graphic Chip
SDRAM
Flash
RTC
Power Management
Reset
Windows CE 5.0 core version
Intel XScale PXA270 312 MHz (520 MHz as option)
Intel 2700G with 32 MB VRAM
64 MB (128 MB as option)
128 MB (256 MB as option)
Built-in with rechargeable 65 mAh coin battery
Idle mode (turns off LCD)
H/W reset buttom
Audio
Speaker
Microphone
Line-out
1 x 1.5 watt
Built-in
Line-out jack
Power
DC-in
Power Switch
10 ~ 28 V by phoenix conn. with fuse protection
Slide type
Environmental & Physical
Operating Temperature
Storage Temperature
Certification
RoHS Compliant
0 ~ 50˚ C
-20 ~ 70˚ C
UL, FCC/CE Class B
Yes
LCD & Touchscreen
Panel Type
Resolution
Brightness
Touchscreen
7.0" 18-bits TFT
16:9 800 (W) x 480 (H)
400 nits (adjustable by S/W)
4-wire resistive
Optional S/W Support
GUI Middleware
Flash: Windows CE Macromedia Flash Player 7.0
ActiveX plug-in
JVM: BSQUARE JEM-CE 1.10.41 Java Virtual Machine
UbiQ Remote Manager 1.0
I/O
SD
COM
USB
Ethernet
IR Receiver
Status LED
1 x Slot (supports memory & I/O mode)
COM1: RS-232 by DB-9 connector
COM2: RS-485 by Phoenix connector
2 x USB 1.1
1 x 10/100Base-T by RJ-45 connector
Coupled with UbiQ-310
5 x status (power status, security, message, remote
control & reminder)
50-pin box header includes COM3 (RS-232), USB host
1.1, Line-in, 4 DI, 4 DO, I2C & power (3.3 V & 5 V)
Maintenance Tool
Expansion Connector
UbiQ - Ubiquitous Computing
All product specifications are subject to change without notice
Last updated : 7-Feb-2007
UbiQ-470
227.00
110.00
170.00
143.50
6.10
35.80
43.50
191.50
200.78
207.00
190.20
INSIDE
7.90
149.60
60.00
M3 SCREW HOLE*4
WALL
WALL BOX
Ordering Information (Preliminary)
Part Number
Ubiq-470-GCE0E
UbiQ-WALLBOX-4700
Description
7.0" 800 x 480 16:9 TFT LCD & touchscreen, Intel
XScale PXA270 and 2700G with Windows CE 5.0
UbiQ-470 series standard wall box
Packing List (Preliminary)
Description
UbiQ-470 unit
Windows CE end user license agreement
CD-ROM
1) Datasheet, user manual & application notes
2) Upgrade utility (for image and boot logo) & related S/W
support packages
3) Windows CE 5.0 platforms SDK
Warranty card
Phoenix power connector
Quantity
1
1
1
1
1

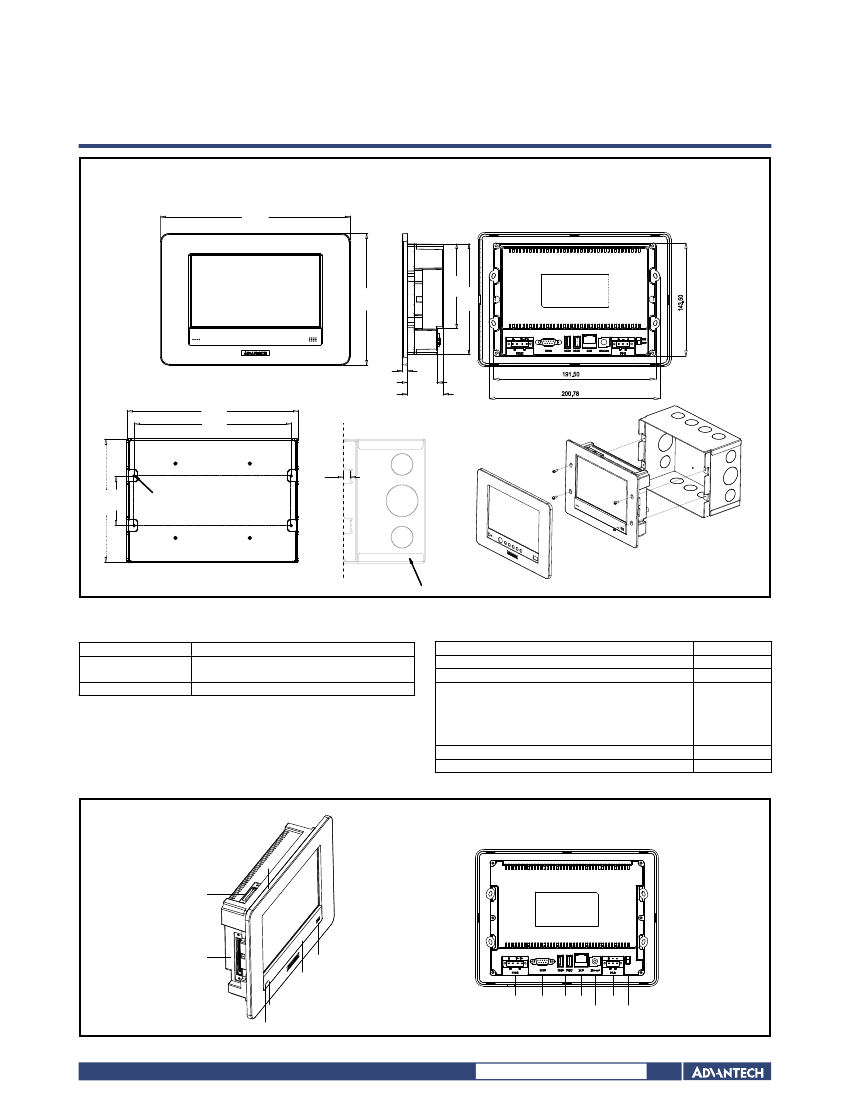

I/O Drawing
SD/MMC
Expansion conn.
Speaker
IR receiver & Status LED
RS485
H/W Reset
RS232
USB
LAN
DC-input
Power-Switch
Audio
Line-out
Microphone
Online Download
