UbiQ-230
NEW

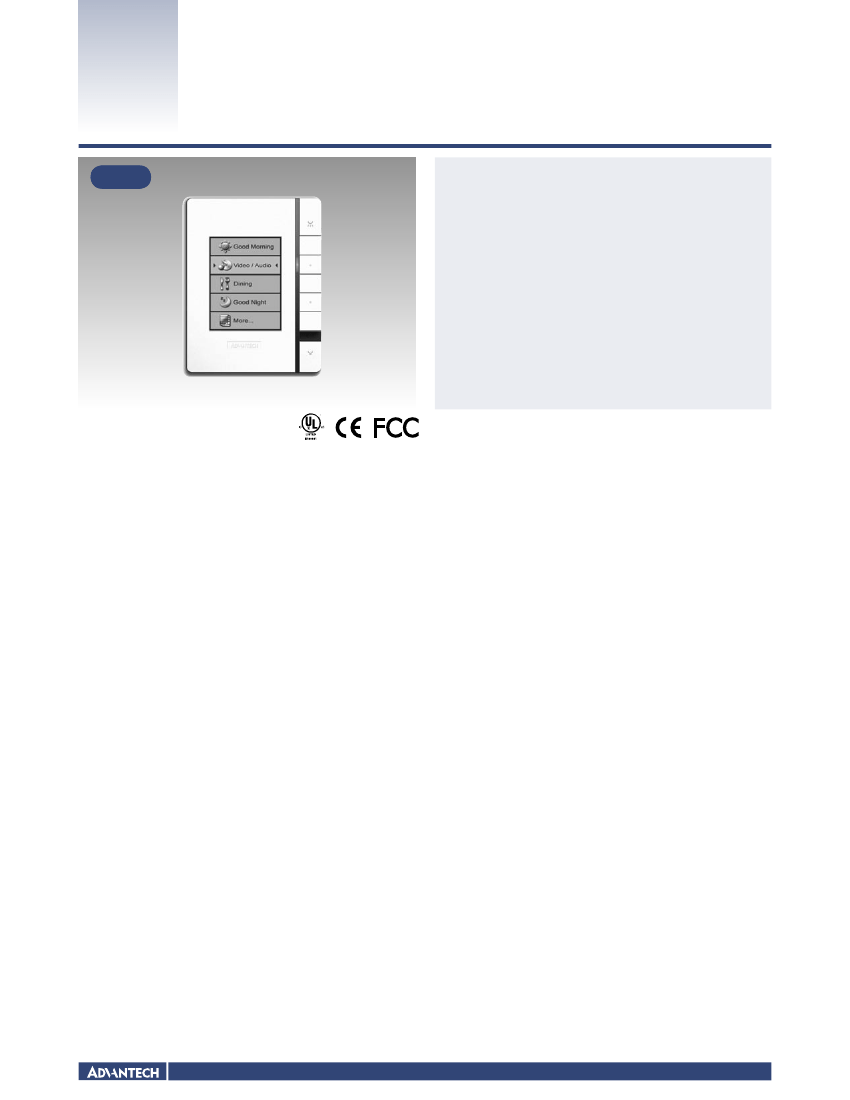

One-Touch Scenario Control Panel
with 3.5" Color LCD
Features
Seven programmable scenario keys
3.5" color TFT LCD
Built-in IR receiver
Remote Manager tool for SI development
Replaceable faceplate
Dimmer package supported
Ehternet & RS485 interface
Modbus & UPNP supported
Introduction
The UbiQ-230, a 3.5" scenario control panel with seven programmable hot keys for one-touch operation, is a new member of the Advantech control panel family that targets the Home/
Building-Residential/Commercial Automation fields. It seamlessly integrates seven front-bezel keys for intuitive selection of home scenarios; one PROG key for system programming;
and four DI/O, an RS-232, RS-422 & RS-485 ports for versatile protocol connections. Likewise, UbiQ-230 keeps the legacy of a control panel offering a simple interface with flexible
and expandible control protocols such as RS-485, LonWorks®, DALI, and Modbus to provide versatile control capacities. The UbiQ-230 offers scheduled energy management of
home lighting, HVAC, blind, dimmer and power devices to deliver the perfect way of creating a home comfort zone. Besides the UbiQ-230, dimmers and relays will be included in the
Scenario control package, so system integrators can easily build Smart Home applications.
Product Highlights
The UbiQ-230’s smart and friendly scenario keys and vivid color panel puts personal comfort zones within easy reach:
1. Seven programmable scenario keys for unlimited scenario setting
2. Home scenario modes make customized lighting, HVAC, blind, audio and video device preferences available with one touch.
3. Scenario manager tool for system integrators to further customize home scenario configuration thru PC.
Specifications
Motherboard
Kernel
32-bit ARM9 Low Voltage 200 MHz
SDRAM: 64 MB
Flash: 128 MB
Software
OS
Utility
Win® CE 5.0 (Core Version)
Advantech Scenario manager for configuration by SIs

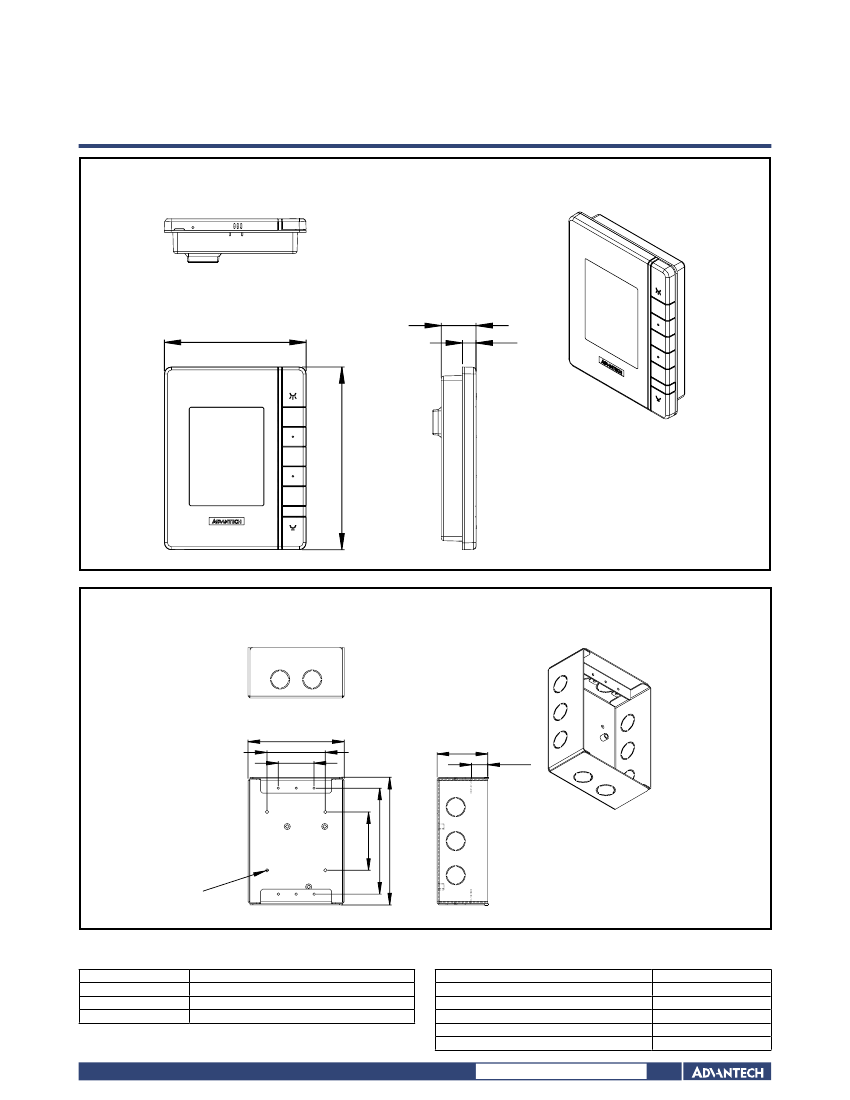

Mechanical Specifications
Wall box for Installer
Plastics Enclosure
Dimension
Weight
Reserved
Audio
2 W speaker
Line-out
9.1 x 12.1 x 1.0 cm (W x H x D)
260 g
1 x RS-485 Phoenix type connectors
Control Protocol Options
Default
RS-485
SSP is reserved for other protocols
Environment Specifications
Operating Temperature
Relative humidity
Safety
EMS
EMI
0 ~ 50° C
10 ~ 95% @ 40° C (non-condensing)
UL, CUL, CE
CE Class B
FCC, CE Class B
Display
DataImage 3.5" TFT LCD with 240 x 320 resolution
LCD Power Control
3.3 V VDD, 5 V VBK Control & Bus
I/O Ports
Ethernet
10/100Base-T
Serial ports
1 x RS-485, 1 x SSP
Consumer IR receiver for remote control, up to 10 meter
Fully compatible with UbiQ-310
7 programmable function keys as scenario buttons
10 ~ 28 V wide range DC input
Power Supply
DC-in
UbiQ - Ubiquitous Computing
All product specifications are subject to change without notice
Last updated : 7-Feb-2007
