UbiQ-230T
NEW
One-Touch Scenario Control Panel
with 3.5" Color LCD
Features
Seven programmable scenario keys
3.5" color Touch TFT LCD
Built-in IR receiver
Remote Manager tool for SI development
Replaceable faceplate
Dimmer package supported
Ethernet & RS-485 interface
Modbus & UPNP supported
Introduction

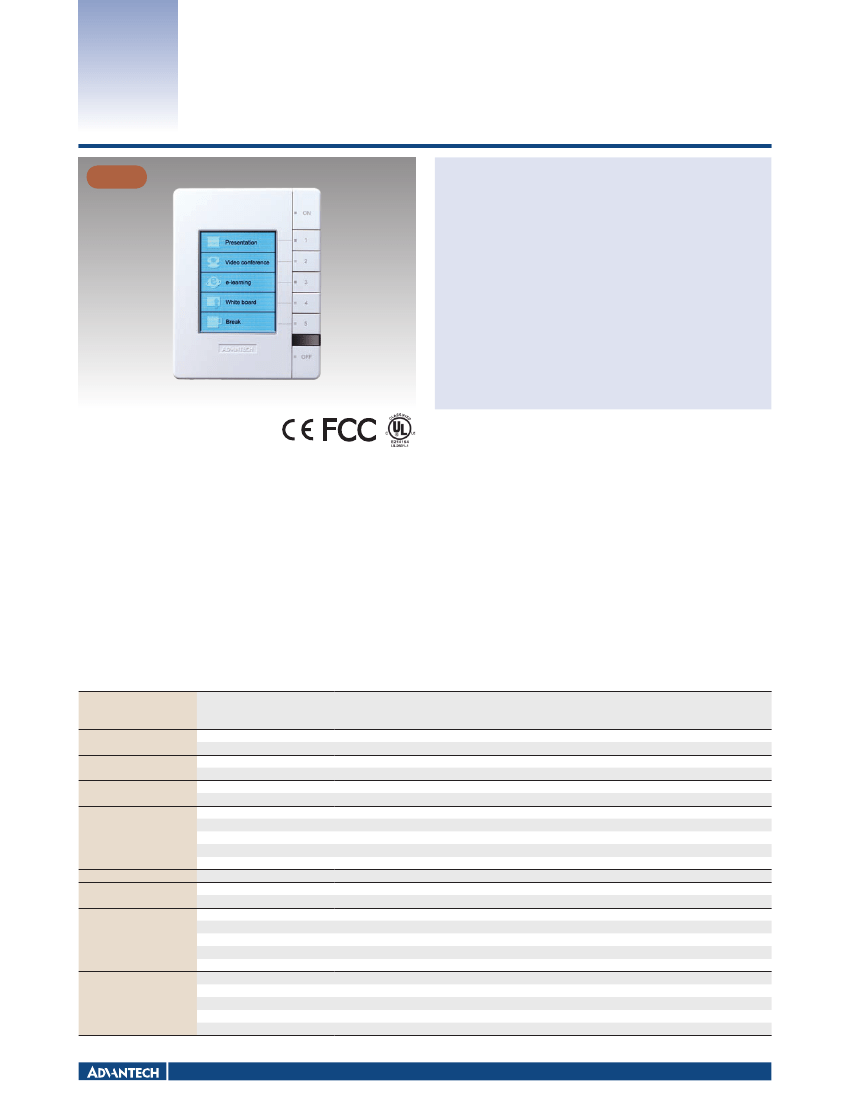

The UbiQ-230T, a 3.5" scenario control panel with seven programmable hot keys for one-touch operation, is a new member of the Advantech control panel family that targets the
Home/Building-Residential/Commercial Automation fields. It seamlessly integrates seven front-bezel keys for intuitive selection of home scenarios and four D I/O, an RS-232, RS-422
& RS-485 ports for versatile protocol connections. Also, UbiQ-230T operates like a traditional control panel offering a simple interface with flexible and expandable control protocols
such as RS-485, LonWorks®, DALI, and Modbus to provide versatile control capacities. The UbiQ-230T offers scheduled energy management of home lighting, HVAC, blind, dimmer
and power devices to deliver the perfect way of creating a home comfort zone. In addition, the UbiQ-230T dimmers and relays are included in the Scenario control package, so system
integrators can easily build Smart Home applications.
Product Highlights
The UbiQ-230T’s smart and friendly scenario keys and vivid color touch panel puts personal comfort zones within easy reach:
1. Seven programmable scenario keys and touchscreen for unlimited scenario setting
2. Home scenario modes make customized lighting, HVAC, blind, audio and video device preferences available with one touch.
3. Scenario manager tool for system integrators to further customize home scenario configuration through a PC.
Specifications
Motherboard
Audio
Control Protocol Options
Display
Kernel
32-bit ARM 9 Low Voltage 200 MHz
SDRAM: 64 MB
Flash: 128 MB
I/O Ports
Power Supply
Software
Mechanical Specifications
Environment Specifications
1 W speaker
Line-out
Default
RS-485
SSP is reserved for other protocols
DataImage 3.5" Touch TFT LCD with 240 x 320 resolution
LCD Power Control
3.3 V VDD, 5 V VBK Control & Bus
Ethernet
10/100Base-Tx
Serial ports
1 x RS-485, 1 x SSP
Consumer IR receiver for remote control, up to 10 meters
Fully compatible with UbiQ-310
7 programmable function keys as scenario buttons
DC-in
12 V
DC
OS
Windows CE 5.0 (Core Version)
Utilities
Advantech Scenario manager for configuration by SIs
Wall box for Installer
Plastic Enclosure

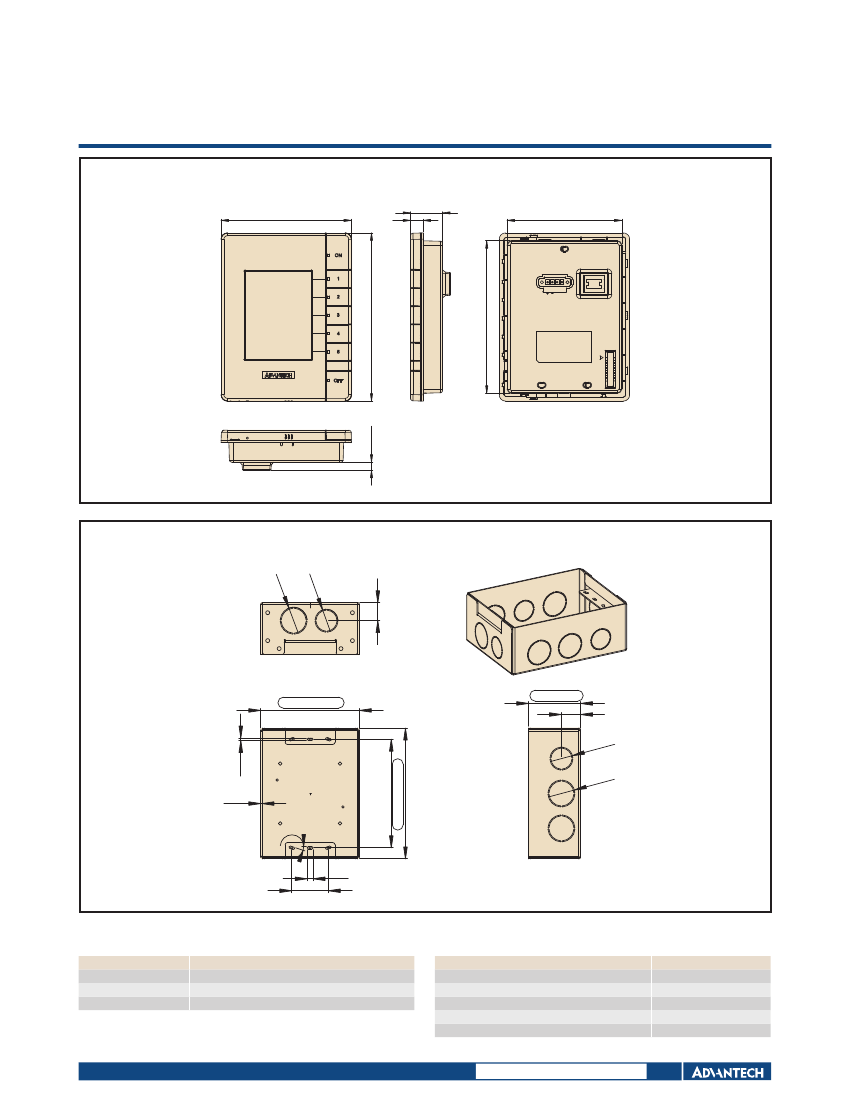

Dimensions (W x H x D)
9.1 x 12.1 x 1.0 cm (3.58" x 4.76" x 0.39")
Weight
260 g (0.57 lb)
Reserved
1 x RS-485 Phoenix type connector
Operating Temperature
32 ~ 104° F (0° C ~ 40° C)
Relative humidity
10 ~ 95% @ 40° C (non-condensing)
Safety
UL, CUL, CE
EMS
CE Class B
EMI
FCC, CE Class B
UbiQ Scenario Control
