IPC-610-F

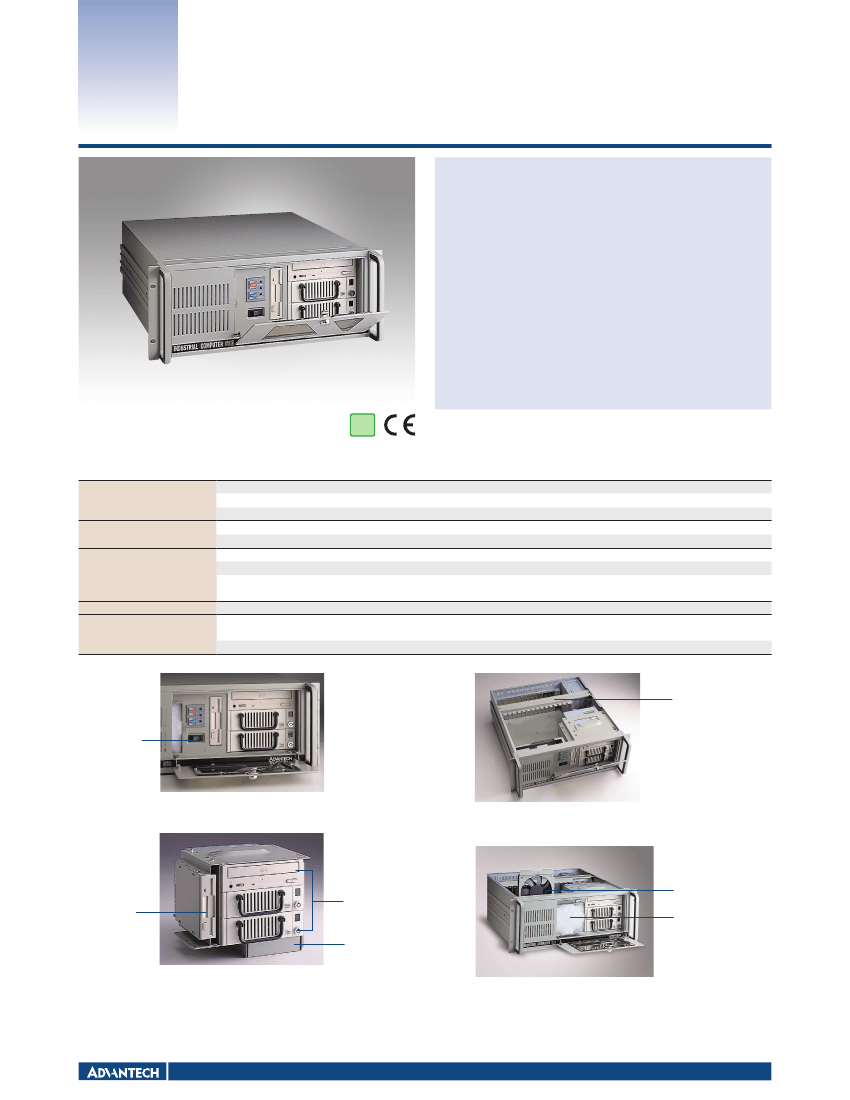

Features
4U 15-Slot Rackmount Chassis
with ATX Motherboard Option
4U rackmount chassis supports up to 15 cards
Shock-resistant disk drive bay design holds up to three 5.25" and two 3.5"
(one external & one internal) disk drives
Special hold-down clamp design with rubber cushions protects the cards from
harsh environments and shocks
Power and HDD activity notification improves system availability
User-friendly and front-accessible filter for system maintenance
Lockable front door prevents unauthorized access
300 W / 400 W AC and 300 W DC ATX power supply options
RoHS
COMPLIANT
2002/95/EC
Specifications
Drive Bay
Cooling
Miscellaneous
Environment
Physical Characteristics
3.5"
5.25"
Fan
Air Filter
Notification LEDs
Control
Rear Panel
Temperature
Dimensions (W x H x D)
Weight
Front-accessible
Internal
1
1
3
-
1 (85 CFM)
Yes
Power, HDD, keyboard lock
Power, system rest and keyboard lock switches
BP version: One D-Sub 9-pin opening
MB version: Five D-Sub 9-pin & one 68-pin SCSI openings
0 ~ 40° C (32 ~ 104° F), operating
IPC-610BP: 482 x 177 x 452 mm (19" x 7" x 17.8")
IPC-610MB: 482 x 177 x 502 mm (19" x 7" x 19.76")
16.2 kg (35.6 lb)
Hold-down clamp
Power switch
One 3.5"
drive bay
Three 5.25"
drive bays
DVD-ROM &
disk trays are
not included
One internal
3.5" drive bay
One 85-CFM
hot-swap
cooling fan
Easy-to-replace
fan filter
Industrial Computer Chassis
IPC-610-F

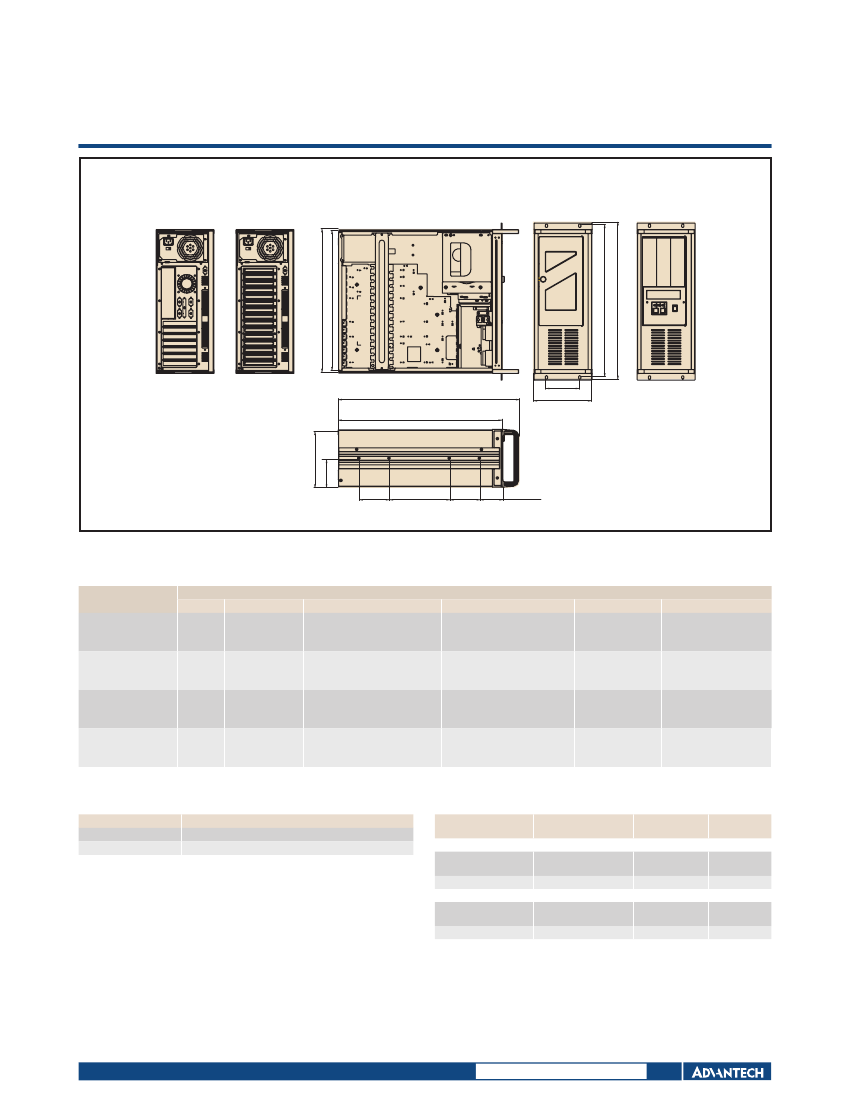

Dimensions
Unit: mm (inch)
437.4 [17.22]
426.4 [16.79]
552.4 [21.75]
502.4 [19.78]
498.9 [19.64]
448.9 [17.67]
171.5 [6.75]
86.8
[3.42]
101.6
[4.00]
177 [6.97]
92
[3.62]
184
[7.24]
92
[3.62]
70 [2.76]
45 [1.78]
Power Supply Options
Part Number
PS-300ATX-ZBE
(ATX, PFC)
PS-400ATX-ZBE
(ATX, PFC)
PS-300ATX-DC48E
(ATX)
RPS-300ATX-ZE
(ATX, PFC)
Watt
300 W
400 W
300 W
300 W
Input
AC 100 ~ 240 V
(full range)
AC 100 ~ 240 V
(full range)
DC-48 V
AC 100 ~ 240 V
(full range)
Output
+5 V @ 30 A, +3.3 V @ 28 A
+12 V @ 15 A, -12 V @ 0.8 A
-5 V @ 0.3 A, +5 Vsb @ 2 A
+5 V @ 35 A, +3.3 V @ 28 A
+12 V @ 30 A, -12 V @ 0.8 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
+3.3 V @ 28 A, +5 V @ 30 A
+12 V @ 15 A, -5 V @ 0.3 A
-12 V @ 0.8 A, +5 Vsb @ 2 A
+5 V @ 25 A, +3.3 V @ 18 A
+12 V @ 16 A, -5 V @ 0.5 A
-12 V @ 0.5 A, +5 Vsb @ 2 A
Specifications
Mini-load
+5 V @ 0.1 A, +12 V @ 0.5 A
+5 V @ 3 A, +12 V @ 1 A,
+5 Vsb @ 0.1 A
+5 V @ 0.3 A, +3.3 V @ 0.3 A
+12 V @ 0.2 A
+5 V @ 3 A, +3.3 V @ 1 A
+12 V @ 2 A, +5 Vsb @ 0.1 A
Safety
UL/TUV/CB/CCC
UL/TUV/CB/CCC
UL/TUV/CB/CCC
UL/TUV/CB/CCC
MTBF
100,000 hours @ 25° C
91,000 hours @ 25° C
100,000 hours @ 25° C
100,000 hours @ 25° C
Accessories
Part Number
1999610010
1960008140T10A
Description
Fan filter 120 x 100 x 15 mm
Embedded handle
Ordering Information
Part Number
Power Supply
Without power supply,
with ATX switch
PS-300ATX-ZBE
Without power supply,
with ATX switch
PS-300ATX-ZBE
Motherboard/
Backplane
-
-
-
-
Regulation
-
CE
-
CE
BP version
IPC-610BP-00XFCE
IPC-610BP-30ZFCE
MB version
IPC-610MB-00XFCE
IPC-610MB-30ZFCE
Online Download
www.advantech.com/products
463 [18.23]
479.7 [18.89]
