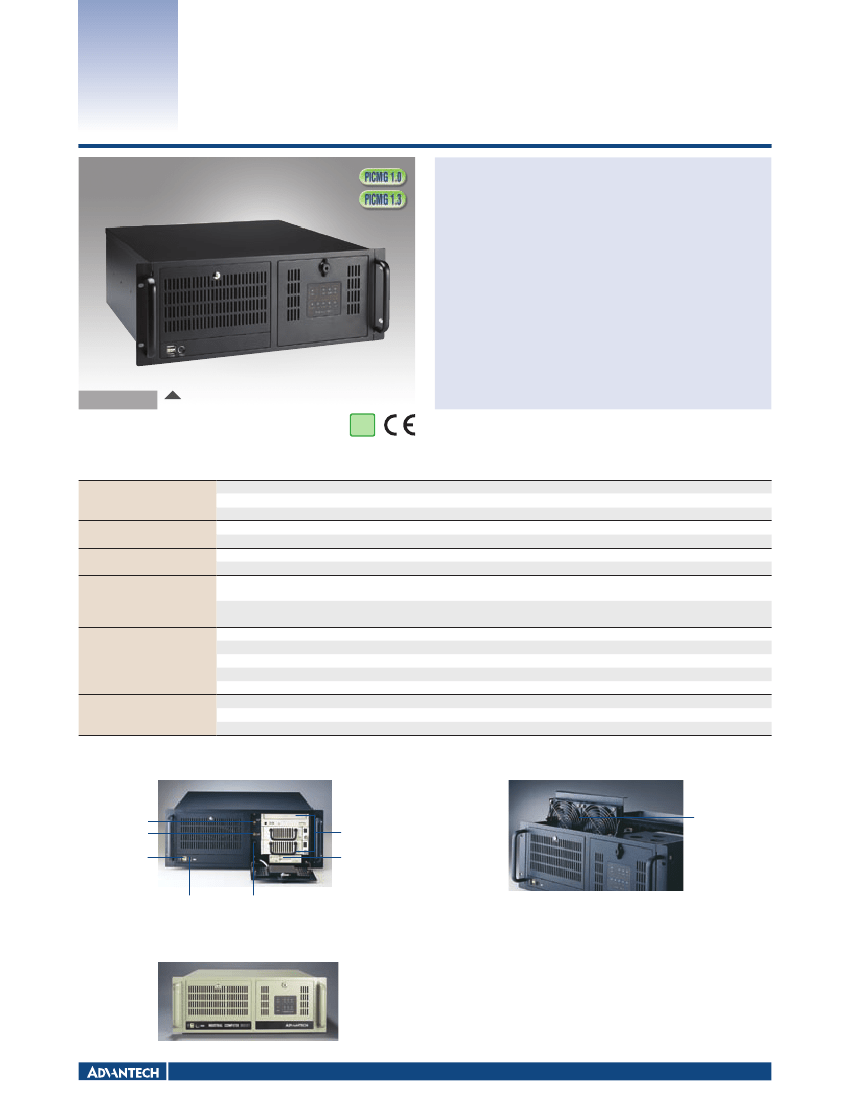

ACP-4000/
IPC-610-H
4U Rackmount Chassis with Visible
& Audible Alarm Notification
Features
4U rackmount chassis supports up to 15 add-on cards
Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5"
disk drives
Front accessible USB & PS/2 interfaces for easy data transfer
Dual front-accessible filtered cooling fans provide optimized and streamlined
airflow
ACP-4000 front LEDs indicate power status, fan operation, in chassis
temperature, and HDD activity
Lockable front door prevents unauthorized access
Supports 300 W single PS/2 and redundant ATX power supplies
ACP-4000
RoHS
COMPLIANT
2002/95/EC
Specifications
Drive Bay
Cooling
Front I/O Interface
Miscellaneous
Rear Panel
Temperature
Humidity
Vibration (5 ~ 500 Hz)
Shock
Color
Dimensions (W x H x D)
Weight
3.5"
5.25"
Fan
Air Filter
USB
PS/2
Notification LEDs
Front-accessible
1
3
2 (85 CFM each)
Yes
2
1
ACP-4000: Power, HDD, Temp, Fan, and Power voltage status
IPC-610-H: Power, HDD, and Power voltage status
BP version: One D-Sub 9-pin opening
MB version: Five D-Sub 9-pin & one 68-pin SCSI openings
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85 % @ 40° C, non-condensing
10 ~ 95 % @ 40° C, non-condensing
1 Grms
2G
10 G (with 11 ms duration, half sine wave)
30 G
ACP-4000: Black; IPC-610-H: Beige
482 x 177 x 480 mm (19" x 7" x 18.9")
15.2 kg (33.5 lb) / 15 kg (33 lb)
Environment
Physical Characteristics
Front View of ACP-4000
System reset button
Alarm reset button
USB
Three 5.25" drive bays
(DVD ROM & disk
trays are not included)
One 3.5"
drive bay
Two 85-CFM
cooling fans
PS/2 keyboard
connector
Power switch
Front View of IPC-610-H

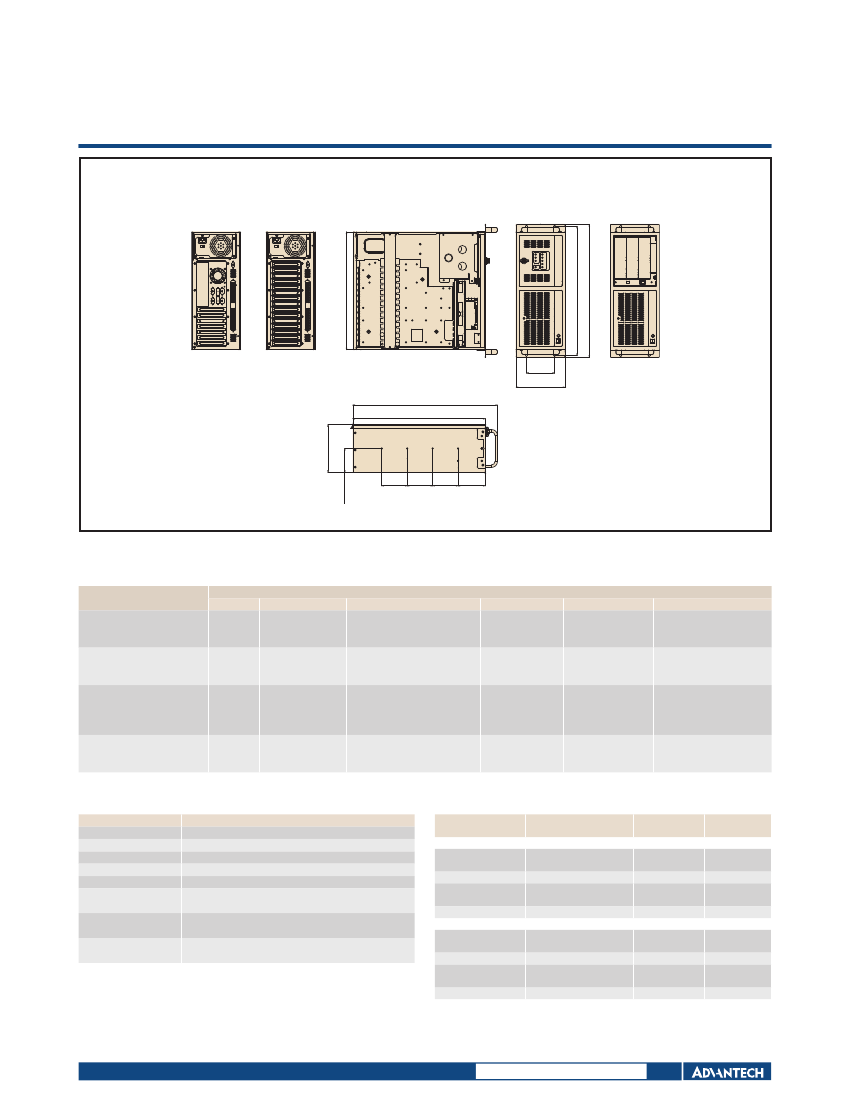

Industrial Computer Chassis
ACP-4000 / IPC-610-H
Dimensions
Unit: mm (inch)
426.0 [16.77]
101.6
[4.00]
523.1 [20.59]
478.6 [18.84]
172.7
[6.80]
177.0 [6.97]
Power Supply Options
Part Number
PS-300ATX-ZBE (ATX, PFC)
PS-400ATX-ZBE (ATX, PFC)
Watt
300 W
400 W
Input
AC 100 ~ 240 V
(full range)
AC 100 ~ 240 V
(full range)
AC 100 ~ 240 V
(full range)
DC -48 V
Specifications
Output
Mini-load
+5 V @ 30 A,+3.3 V @ 28 A
+5 V @ 0.5 A
+12 V @ 15 A,-12 V @ 0.8 A
+12 V @ 0.5 A
-5 V @ 0.3 A,+5 Vsb @ 2 A
+5 V @ 35 A, +3.3 V @ 28 A
+5 V @ 3 A
+12 V @ 30 A, -12 V @ 0.8 A
+12 V @ 1 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
+5 Vsb @ 0.1 A
+5 V @ 3 A
+5 V @ 25 A, +3.3 V @ 18 A
+3.3 V @ 1 A
+12 V @ 16 A, -12 V @ 0.5 A
+12 V @ 2 A
-5 V @ 0.5 A, +5 Vsb @ 2 A
+5 Vsb @ 0.1 A
+3.3 V @ 28 A, +5 V @ 30 A,
+5 V @ 0.3 A,
+12 V @ 15 A, -5 V @ 0.3 A,
+3.3 V @ 0.3 A,
-12 V @ 0.8 A, +5 Vsb @ 2 A
+12 V @ 0.2 A
Safety
UL/TUV/CB/CCC
UL/TUV/CB/CCC
MTBF
100,000 hours @ 25° C
91,000 hours @ 25° C
RPS-300ATX-ZE (ATX, PFC)
300 W
86.4
[3.40]
92.0 92.0 92.0 98.0
[3.62] [3.62] [3.62] [3.86]
468.0 [18.43]
482.1 [18.98]
UL/TUV/CB/CCC
100,000 hours @ 25° C
PS-300ATX-DC48E (ATX)
300 W
UL/TUV/CB/CCC
100,000 hours @ 25° C
Accessories
Description
Door filter 97.6 x 36.6 x 5 mm
Fan filter 115 x 195 x 5 mm
Black 3.5" FDD
Black 5.25" 52X CD-ROM
Black 5.25" 16X/40X/24X DVDRW-ROM
ATX 24P/20P + 4P + 8P 60cm cable (connecting from
1700006915
power supply to alarm board for ACP-4000)
ATX 24P/20P + 4P + 15P 60cm (connecting from power
1700006916
supply to LED board for IPC-610-H)
Two Mini DIN (connect to MB) / 6P (connect to front I/O
1700006917
board) PS2 KB/Mouse cable
* If users use AIMB-763 or 3rd party motherboard, they need to purchase 1700006915
or 1700006916 for the front voltage LEDs to function correctly. And they also need to
purchase 1700006917 to make front PS/2 function correctly.
Part Number
19914K0010
1999615000
96FDD-144-TE-B1
96CD-52X-I-AS-B3
96DVR-40X-I-AS-B
Ordering Information
Part Number
BP version
ACP-4000BP-00XE
ACP-4000BP-30ZE
IPC-610BP-00XHE
IPC-610BP-30ZHE
MB version
ACP-4000MB-00XE
ACP-4000MB-30ZE
IPC-610MB-00XHE
IPC-610MB-30ZHE
Power Supply
Without power supply,
with ATX switch
PS-300ATX-ZBE
Without power supply,
with ATX switch
PS-300ATX-ZBE
Without power supply, with
ATX switch
PS-300ATX-ZBE
Without power supply, with
ATX switch
PS-300ATX-ZBE
Motherboard/
Backplane
-
-
-
-
-
-
-
-
Regulation
-
CE
-
CE
-
CE
-
CE
Online Download
www.advantech.com/products
