ICD2028SL-4 datasheet, PDF - EEWORLD Datasheet

ICD2028SL-4: DescriptionProcessor Specific Clock Generator, 80MHz, CMOS, PDSO20, PLASTIC, SOIC-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size666KB，24 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

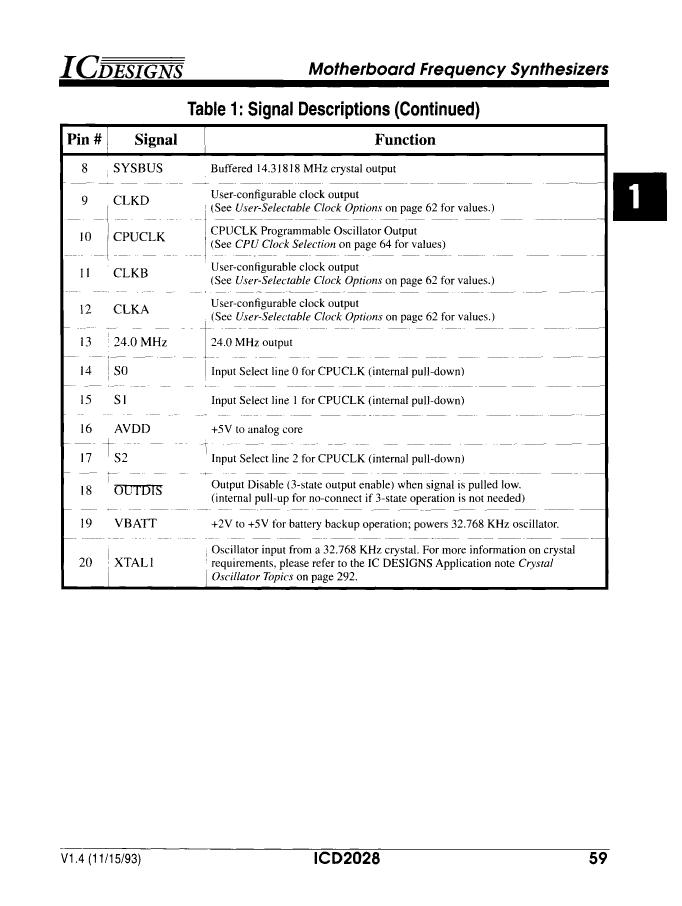

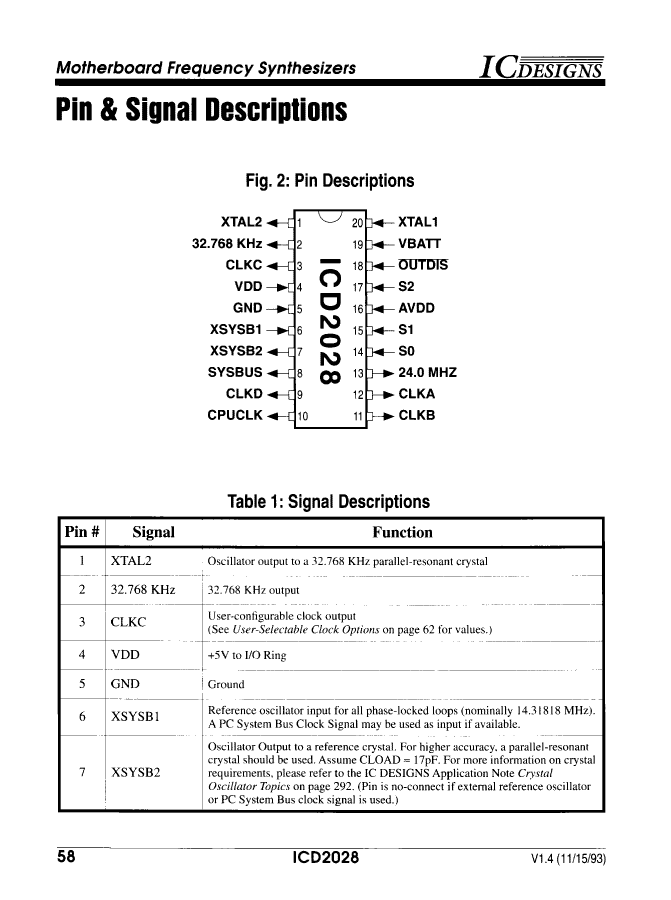

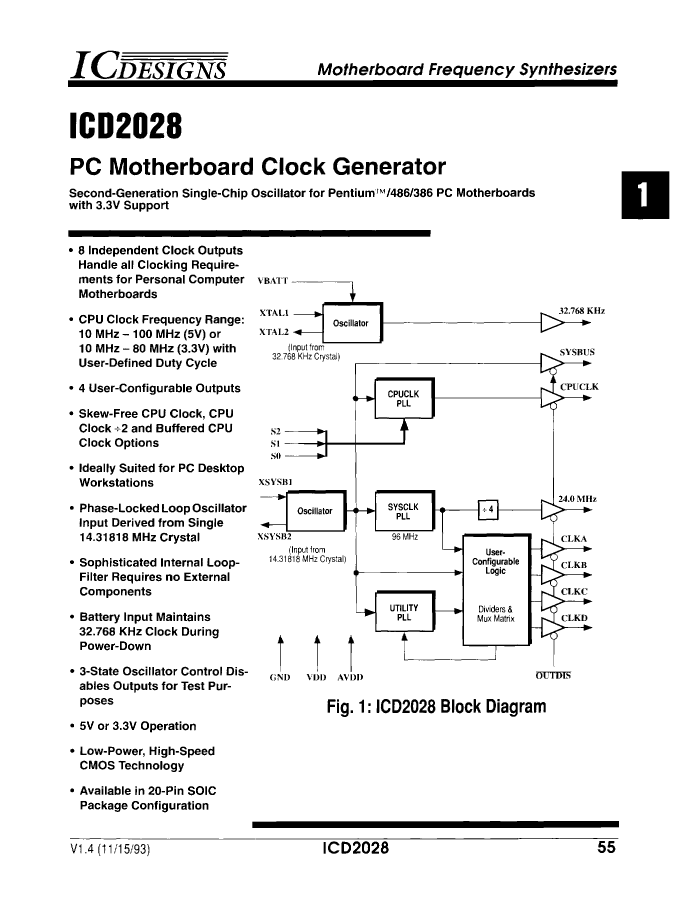

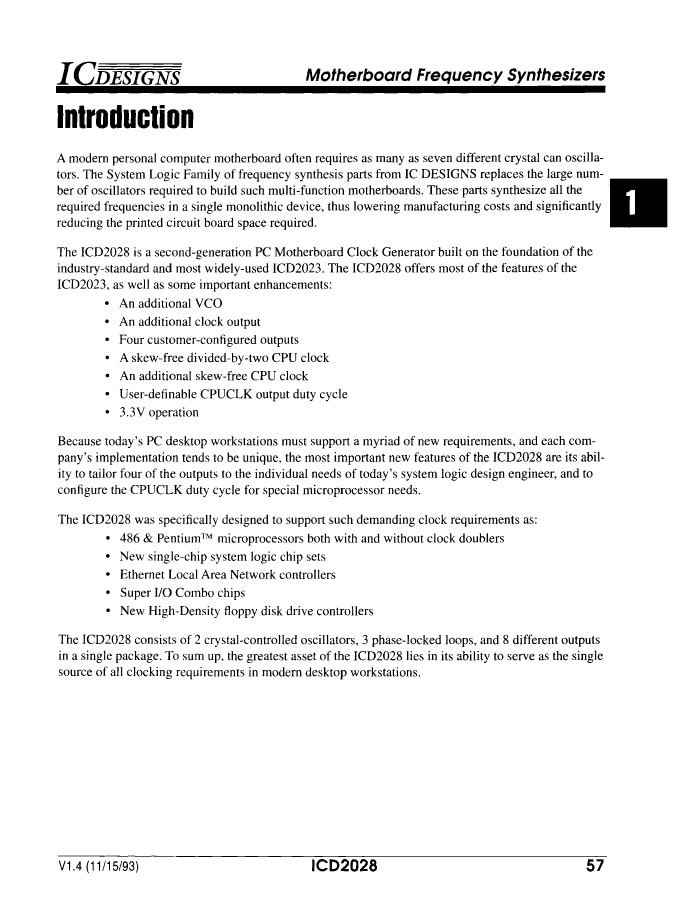

ICD2028SL-4 Overview

Processor Specific Clock Generator, 80MHz, CMOS, PDSO20, PLASTIC, SOIC-20

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PDSO-G20
length	12.9159 mm
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	80 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum slew rate	45 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5311 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1

	ICD2028SL-4	ICD2028SL-5
Description	Processor Specific Clock Generator, 80MHz, CMOS, PDSO20, PLASTIC, SOIC-20	Processor Specific Clock Generator, 80MHz, CMOS, PDSO20, PLASTIC, SOIC-20
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	12.9159 mm	12.9159 mm
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	80 MHz	80 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Master clock/crystal nominal frequency	14.318 MHz	14.318 MHz
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm
Maximum slew rate	45 mA	45 mA
Maximum supply voltage	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5311 mm	7.5311 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1	1
