20-8458-160-003-074 datasheet, PDF

20-8458-160-003-074: DescriptionBoard Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch, Plug; CategoryThe connector The connector; File Size295KB，4 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

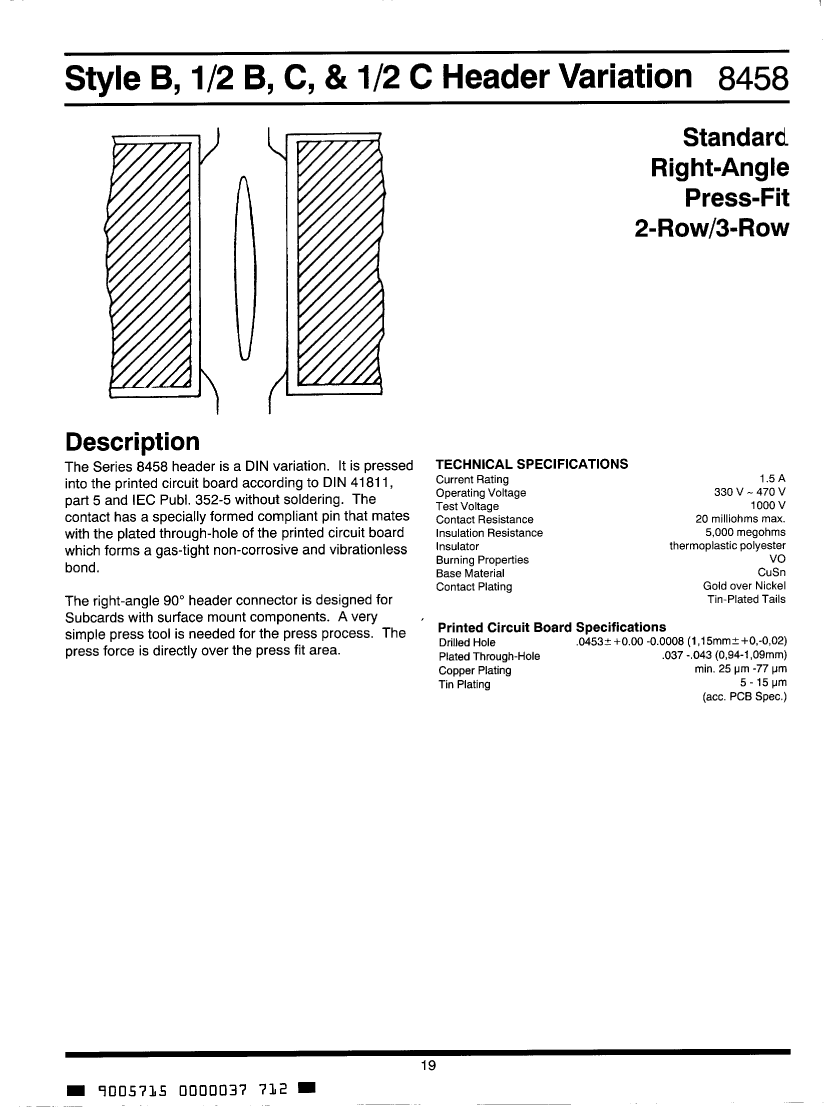

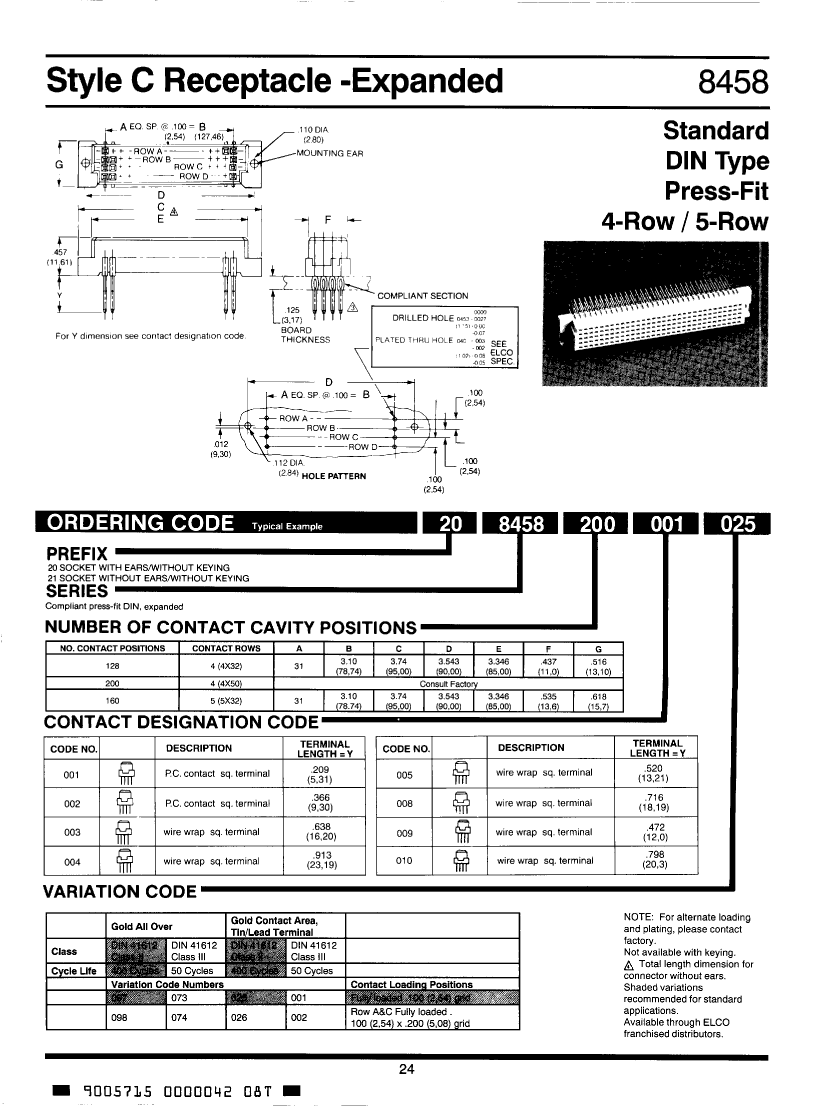

20-8458-160-003-074 Overview

Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch, Plug

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	COUPLING, FRICTION & LOCK
body width	0.618 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	8458
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	FLUSH
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.638 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	160
Evacuation force-minimum value	.139 N
Base Number Matches	1
