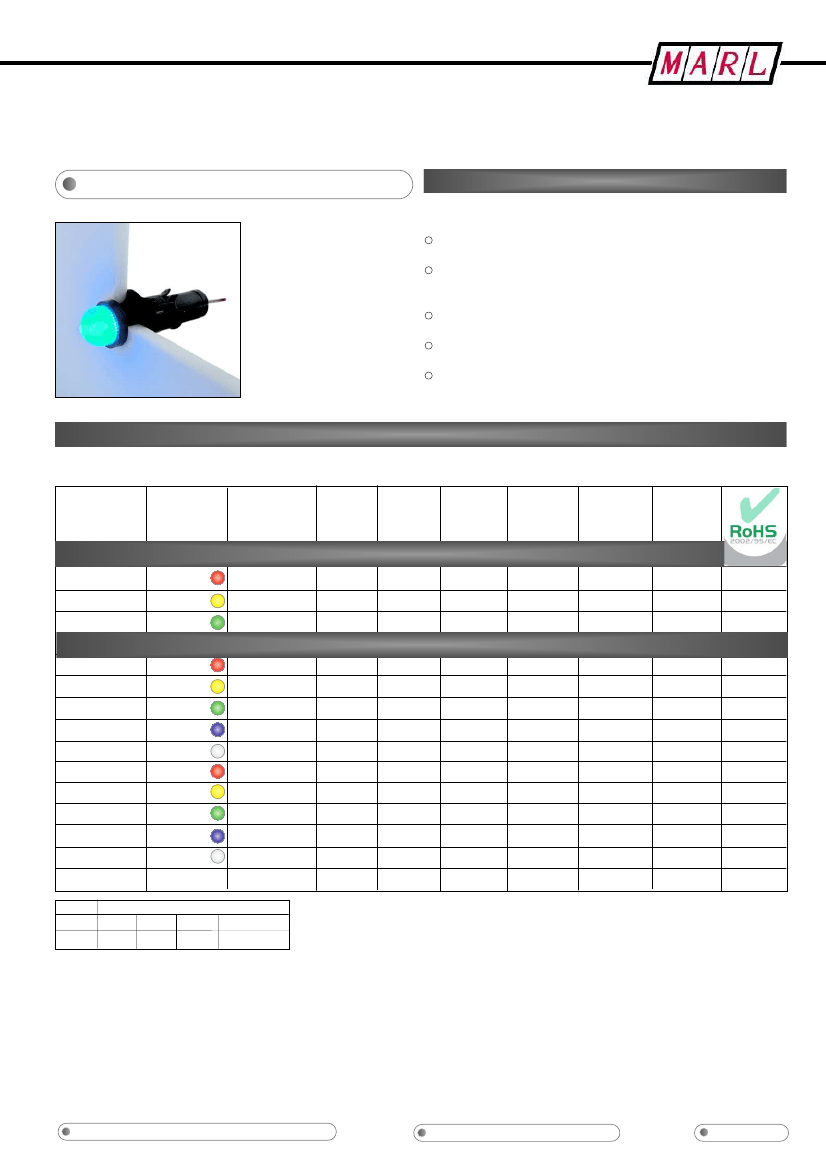

PANEL INDICATOR LEDs - Ø6.35mm Mounting
FEATURES
319
SERIES
Domed fresnel lens styling for wide viewing angle
Flying lead terminations and low current versions
available
PACK QUANTITY = 20 PIECES
Sealed to IP40
Supplied complete with mounting hardware
Product illustrated 319-930-04
SPECIFICATIONS
Ordering Information & Typical T
echnical Characteristics (T
a = 25°C)
Mean Time Between Failure Typically = 100,000 Hours.
PART NUMBER
COLOUR
LENS
Luminous intensity figures refer to the unmodified discrete LED.
VOLTAGE
Vopr
CURRENT
lopr
LUMINOUS
lv@20mA
WAVE
λp
OPERATING
T
opr
STORAGE
T
stg
DC
DC
INTENSITY
LENGTH
TEMP
TEMP
STANDARD INTENSITY
319-505-21
319-511-21
319-512-21
Red
Yellow
Green
Colour Diffused
Colour Diffused
Colour Diffused
12
12
12
20
20
20
60
40
120
627
590
565
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85
-40 ~ +85
-40 ~ +85
Yes
Yes
Yes
HIGH INTENSITY
319-501-21
319-521-21
319-532-21
319-930-21
319-997-21
319-501-23
319-521-23
319-532-23
319-930-23
319-997-23
UNITS
997
*Typical
emission colour cold white
0.283
0.330
0.330
Red
Yellow
Green
Blue
Cold White
Red
Yellow
Green
Blue
Cold White
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
12
12
12
12
12
24-28
24-28
24-28
24-28
24-28
Vdc
20
20
20
20
20
20
20
20
20
20
mA
2700
6100
11600
3460
7800
2700
6100
11600
3460
7800
mcd
660
595
525
470
*see below
660
595
525
470
*see below
nm
-40 ~ +85^
-40 ~ +85^
-30 ~ +85^
-30 ~ +85^
-30 ~ +85^
-40 ~ +85^
-40 ~ +85^
-30 ~ +85^
-30 ~ +85^
-30 ~ +85^
0
-40 ~ +85
-40 ~ +100
-40 ~ +100
-40 ~ +100
-40 ~ +100
-40 ~ +85
-40 ~ +100
-40 ~ +100
-40 ~ +100
-40 ~ +100
0
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
C
C
Intensities (lv) and colour shades of white (x,y co-ordinates) may vary between LEDs within
a batch.
x
y
0.296
0.276
0.305
0.360
0.318
^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs.
shown. Refer to page 3.
Appropriate LED numbers
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
© MARL INTERNATIONAL LTD 2007 : DS079/07
Issue 1
SAMPLES AVAILABLE
Page 1 of
4

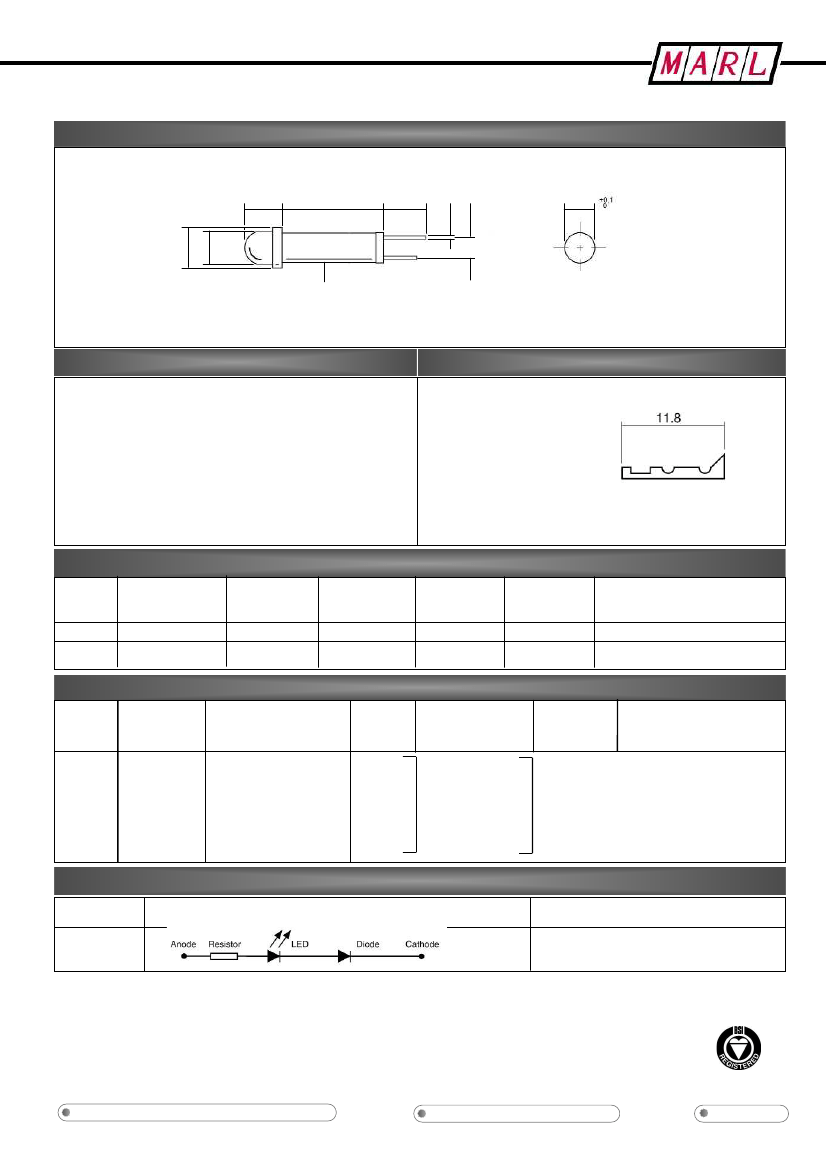

319 Series
0.7Sq
6.9
22.0
9.0
Ø6.35
4.2
Ø8.4
Ø0.7
Ø6.3
MOUNTING HOLE
Dimensions in mm (Typical)
Not to scale
Anode termination indicated by long tag.
MATERIALS
Body
Panel Washer
T
ermination Pins
Retaining Clip
Fresnel lens
Header
Nylon 6
Neoprene
Tin on Nickel Plated Phosphor Bronze
Spring steel
Polycarbonate
PTFE
PUSH-ON CONNECTORS
909-000-00 is gold plated
910-000-00 is tin plated
for use with 319 series.
Suitable for wire sizes from
0.15mm² to 0.38mm² cross
sectional area.
Dual metal contact design
provides low
contact.
and gas tight electrical
resistance
Dimensions in mm (Typical)
Not to scale
TECHNICAL CHARACTERISTICS
SERIES
POWER
MAXIMUM
REVERSE
MAXIMUM
CUTOUT
6.35
mm
PANEL
MOUNTING
MINIMUM
PANEL
MIN/MAX.
319
UNITS
500
DISSIPATION
3
VOLTAGE
CENTRES
13.0
mm
THICKNESS
9.0
mW
Vdc
mm
OPTIONAL FLYING LEAD TERMINATIONS
ORDER
SUFFIX
13
13
17
17
CODE
SUPPLY
VOLTAGE
WIRE
COLOUR
WIRE
LENGTH
NO/DIAMETER
CONDUCTORS
OF
DIAMETER
INSULATION
OVER
COMMENTS
DC Products
AC Products
DC Products
AC Products
Red-anode / Black-cathode
Brown-live / Blue-neutral
Red-anode / Black-cathode
Brown-live / Blue-neutral
150mm
150mm
1000mm
1000mm
Customised
available
7/0.2mm
1.2mm
lengths
PROTECTION DIODE
SUFFIX
01
ORDER CODE
CIRCUIT
COMMENTS
Available on all indicators except Bi-Colour
devices and when diode test is specified.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 079/07
Issue 1
SAMPLES AVAILABLE
Page 2 of 4
Diode Test Facility
ORDER CODE
SUFFIX
03
05
09
04
TERMINATION
CIRCUIT
COMMENTS
3 PINS
150mm of flying leads colours as shown
1000mm of flying leads colours as shown
3 PINS
TEST
POSITIVE
Not available
LED
with Bi-colour
06
10
150mm of flying leads colours as shown
1000mm of flying leads colours as shown
TEST
NEGATIVE
Test Positive
Cathode
Test Negative
Cathode
Anode
Anode
T
est
Identification
Mark
T
est
Identification
Mark

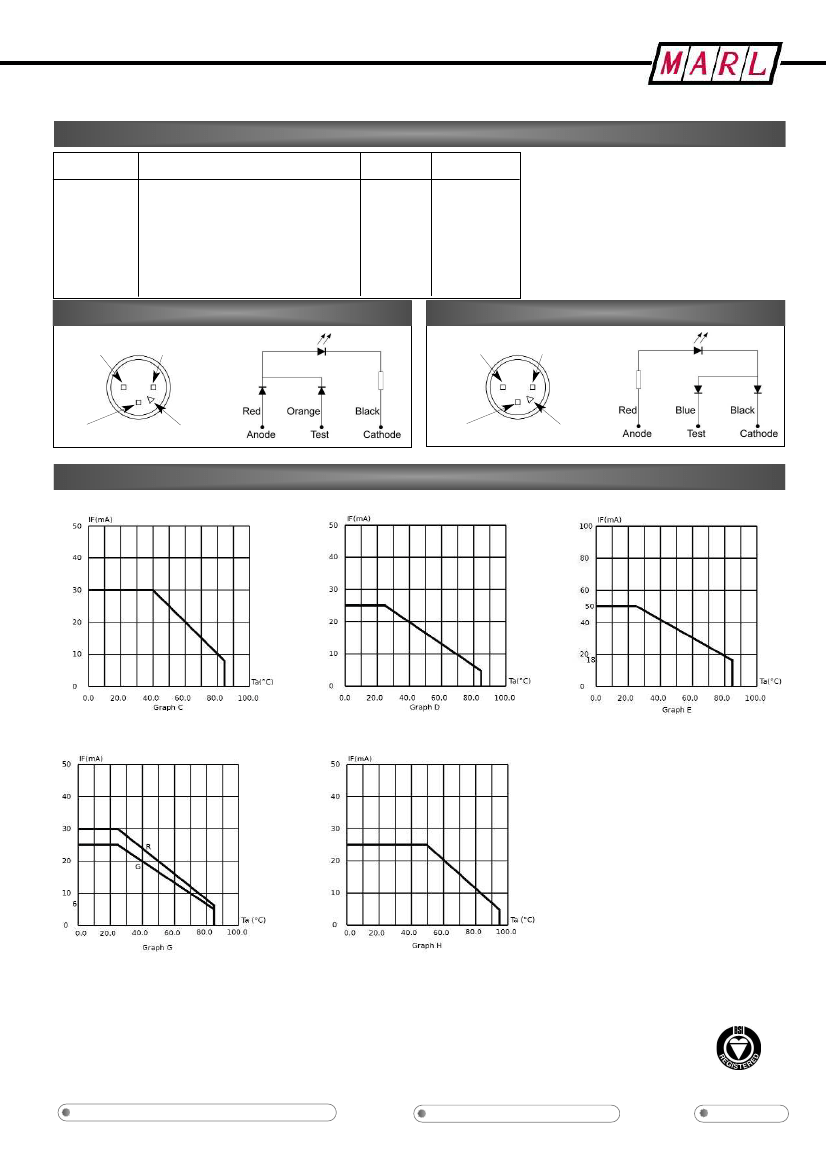

De-rating Information
505, 511, 532, 930 & 997
512 & 514
521
535
501
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 079/07
Issue 1
SAMPLES AVAILABLE
Page 3 of 4
319 Series
Part numbers also available in the 319 Series:
PART NO.
COLOUR
VOLTAGE
(Vdc) Vopr
PART NO.
COLOUR
(Vdc) Vopr
VOLTAGE
PART NO.
COLOUR
VOLTAGE
(Vdc) Vopr
319-501-04
319-501-21
319-501-22
319-501-22-03
319-501-46
319-502-21
319-502-22-03
319-503-04-03
319-503-04-04
319-503-04-50
319-503-20
319-503-21
319-503-21-04
319-503-21-17
319-503-22
319-503-22-03
319-503-22-04
319-503-22-50
319-503-22-51
319-503-22-52
319-503-22-54
319-503-23
319-503-23-04
319-503-43
319-505-04
319-505-20
319-505-21-50
319-505-22
319-505-22-03
319-506-04
319-506-22
319-506-22-03
319-506-22-50
319-506-23-04
319-506-76-15
319-509-04
UNITS
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
Yellow
20mA
12Vdc
24Vdc
24Vdc
35Vdc
12Vdc
24Vdc
20mA
20mA
20mA
5/6Vdc
12Vdc
12Vdc
12Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24-28Vdc
24-28Vdc
18Vdc
20mA
5/6Vdc
12Vdc
24Vdc
24Vdc
20mA
24Vdc
24Vdc
24Vdc
24-28Vdc
230Vac
20mA
319-509-04-03
319-509-04-04
319-509-04-51
319-509-20
319-509-21
319-509-21-04
319-509-22
319-509-22-03
319-509-22-50
319-509-22-51
319-509-22-52
319-509-22-53
319-509-23
319-509-23-03
319-509-23-04
319-509-24-03
319-511-04
319-511-21-50
319-511-22
319-511-22-03
319-512-04
319-512-20
319-512-21-04
319-512-21-50
319-512-22
319-512-22-03
319-512-22-50
319-512-22-52
319-512-22-53
319-512-22-54
319-512-23-03
319-512-23-04
319-512-25-13
319-514-22
319-519-22-03
319-519-23-03
UNITS
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Green
Blue
Blue
20mA
20mA
20mA
5/6Vdc
12Vdc
12Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24-28Vdc
24-28Vdc
24-28Vdc
48Vdc
20mA
12Vdc
24Vdc
24Vdc
20mA
5/6Vdc
12Vdc
12Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24Vdc
24-28Vdc
24-28Vdc
110Vdc
24Vdc
24Vdc
24Vdc
319-521-04
319-521-22
319-532-04
319-532-22
319-532-75-21
319-555-00-50
319-561-00-50
319-564-00-50
319-564-04
319-921-75
319-930-04
319-930-04-03
319-930-04-04
319-930-04-50
319-930-22
319-930-22-03
319-997-04
319-997-22
319-997-46
UNITS
Yellow
Yellow
Green
Green
Green
Red
Yellow
Green
Green
Green
Blue
Blue
Blue
Blue
Blue
Blue
White
White
White
20mA
24Vdc
20mA
24Vdc
110Vac
9-14Vdc
9-14Vdc
9-14Vdc
20mA
110Vac
20mA
20mA
20mA
20mA
24Vdc
24Vdc
20mA
24Vdc
35Vdc
The products listed above illustrate all of
the options available to order. These
products may have custom modifications
that alter their operation beyond the
generic information contained within this
datasheet. Please contact sales for
further information.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 079/07
Issue 1
SAMPLES AVAILABLE
Page 4 of 4
