3402FA: Description200 V - 1,000 V three phase bridge; CategoryDiscrete semiconductor diode; File Size183KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3402FA Overview

200 V - 1,000 V three phase bridge

3402FA Parametric

Parameter Name	Attribute value
Maker	VOLTAGE MULTIPLIERS INC.
package instruction	R-XUFM-D5
Reach Compliance Code	compliant
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	100 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	20 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

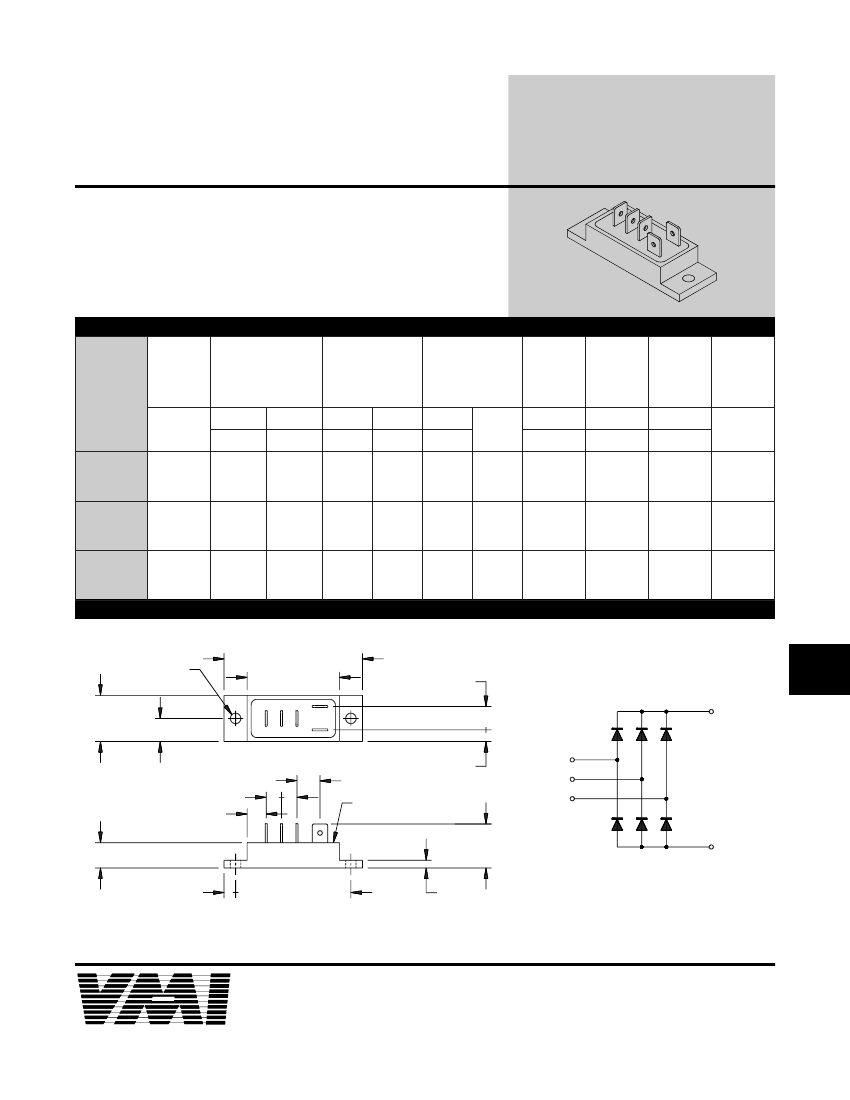

200 V - 1,000 V Three Phase Bridge

18.0 A - 20.0 A Forward Current

70 ns - 3000 ns Recovery Time

3402A - 3410A

3402FA - 3410FA

3402UFA - 3410UFA

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

3402A

3406A

3410A

3402FA

3406FA

3410FA

3402UFA

3406UFA

3410UFA

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

ns

°C / W

Thermal

Impd.

(Vf)

u

J-C

200

600

1000

200

600

1000

200

600

1000

20.0

18.0

13.0

12.5

12.0

1.0

25

1.2

1.5

1.7

2.0

9.0

150

100

25

20

3000

150

70

2.2

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V

.169(4.29)

Thru (2 PL)

.75

(19.05) .375(9.5)

2.25(57.2)

1.50(38.1)

_

.38(9.7)

+

11

AC

_

.19(4.8)

.375(9.5)

.25(6.4) (2 PL)

.31(7.9)

.41(10.4)

.187(4.8)

AC AC AC

Aluminum Case

+

.82(20.8)

MAX.

.125

(3.2)

1.875(47.6)

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com

257
