245-501-95-38 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 245-501-95-38

245-501-95-38: Descriptionfilament replacement leds - multi-led cluster; CategoryLED optoelectronic/LED photoelectric; File Size187KB，3 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk; Environmental Compliance

Download Datasheet Parametric Compare View All

245-501-95-38 Overview

filament replacement leds - multi-led cluster

245-501-95-38 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-1
Reach Compliance Code	compliant
color	RED
Configuration	COMPLEX
Display height	16 mm
Maximum forward current	0.012 A
Number of functions	1
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1

Preview

Download Datasheet

View All

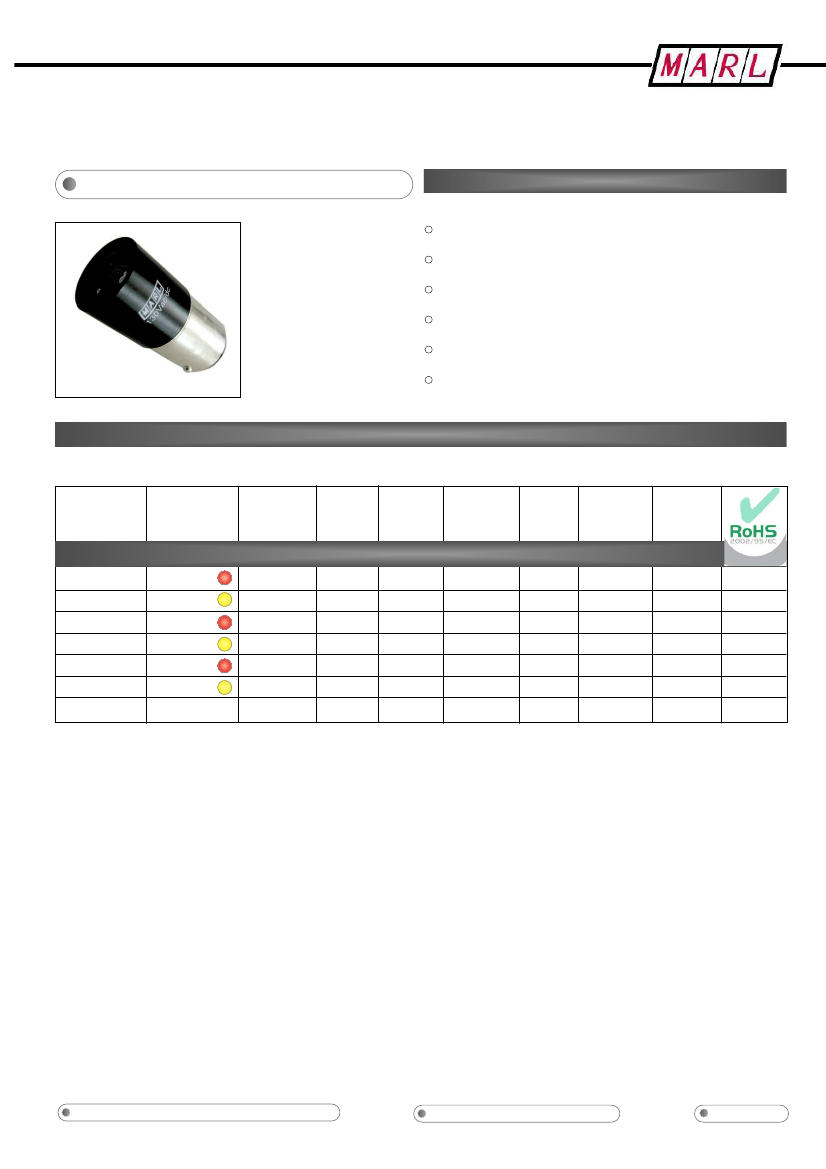

FILAMENT REPLACEMENT LEDs - Multi-LED Cluster

FEATURES

245

SERIES

Direct replacement for BA15d

Bi-Polar - AC/DC Operation

Internal potting for vibration resistance

Low heat generation

Low power requirements

Fit and Forget reliability

PACK QUANTITY = 20 PIECES

SPECIFICATIONS

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

Vopr

CURRENT

lopr

LUMINOUS

lv@20mA

WAVE

λp

OPERATING

opr

STORAGE

stg

LENS

INTENSITY

LENGTH

TEMP

HIGH INTENSITY

245-501-93-38

245-521-93-38

245-501-95-38

245-521-95-38

245-501-87-38

245-521-87-38

UNITS

Red

Yellow

Red

Yellow

Red

Yellow

Water Clear

130

Vac/dc

11000

16000

11000

16000

11000

16000

mcd

643

591

643

591

643

591

-40 ~ +95^

-40 ~ +100

Yes

Please note that this product is also available in green, blue and white. Please see DS093/06

for full details. It is also available in 230Vac/dc, contact our sales department for further

details.

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk •

•

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Issue 3

SAMPLES AVAILABLE

Page 1 of 3

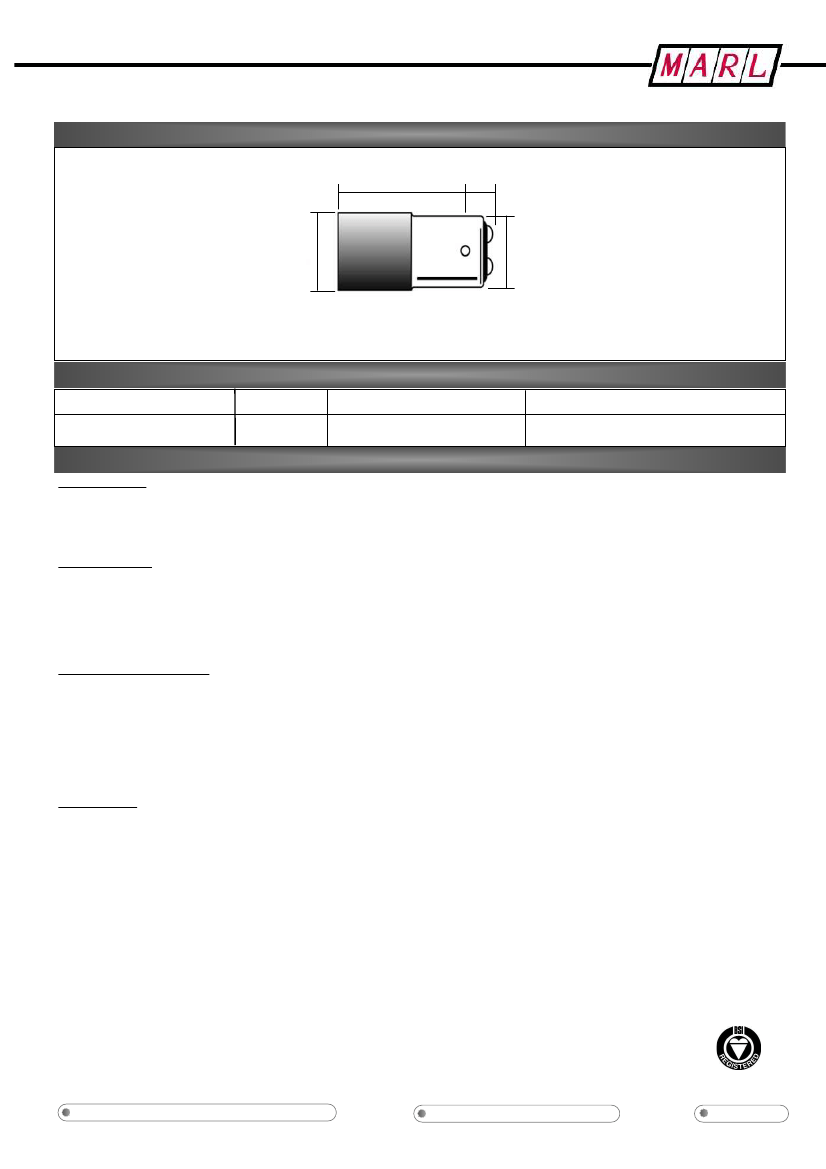

245 Series

29.5

7.5

Ø16.0

Dimensions in mm (Typical)

Not to scale

TECHNICAL INFORMATION

Lamp Base Style

BA15d Filament Base

Series

245

Metric Equivalent (mm)

Maximum Power Dissipation (mW)

1000

DESIGN CONSIDERATIONS

Single-Chip LEDs

All devices feature water clear high intensity LEDs as standard. The single chip LED devices have been modified by the removal of the domed

please contact the sales department for details.

Product Evaluation

Filament Replacement LEDs have been specifically designed to meet the primary objective of providing improved reliability. As this product range

is suitable for both new-build and retro-fit, (sometimes in very old systems), a wide range of illuminated push button switches and lamp holders

be taken to correctly simulate operating ambient light conditions to ensure that the correct device has been selected to maximise viewing

characteristics such as viewing angle, colour compatibility and on/off contrast ratio.

Electro-static Discharge (ESD)

Build up of electro-static discharge occurs in many situations involving people moving and handling products. The range of possible situations is

can be encountered. Due to subjectivity, evaluation of the LED type is recommended, (samples of all standard models are available). Care should

portion of the encapsulation (flat-topped) to provide even illumination of switches and annunciators. Non flat topped versions are also available,

very diverse but voltage levels as high as several thousand volts can and do arise in many individual situations. When an operator charged up to

these levels handles a ‘static sensitive device’, there is a very probable likelihood that the device will be irreversibly damaged. It is essential that

precautions are taken at all stages during manufacture and assembly of these products. Although LEDs were never considered to be static

sensitive devices, changes in manufacturing technology and materials used to produce higher intensity products over a large range of the

and despatch. We recommend all users of LED based products follow the guidelines of BS 100015.

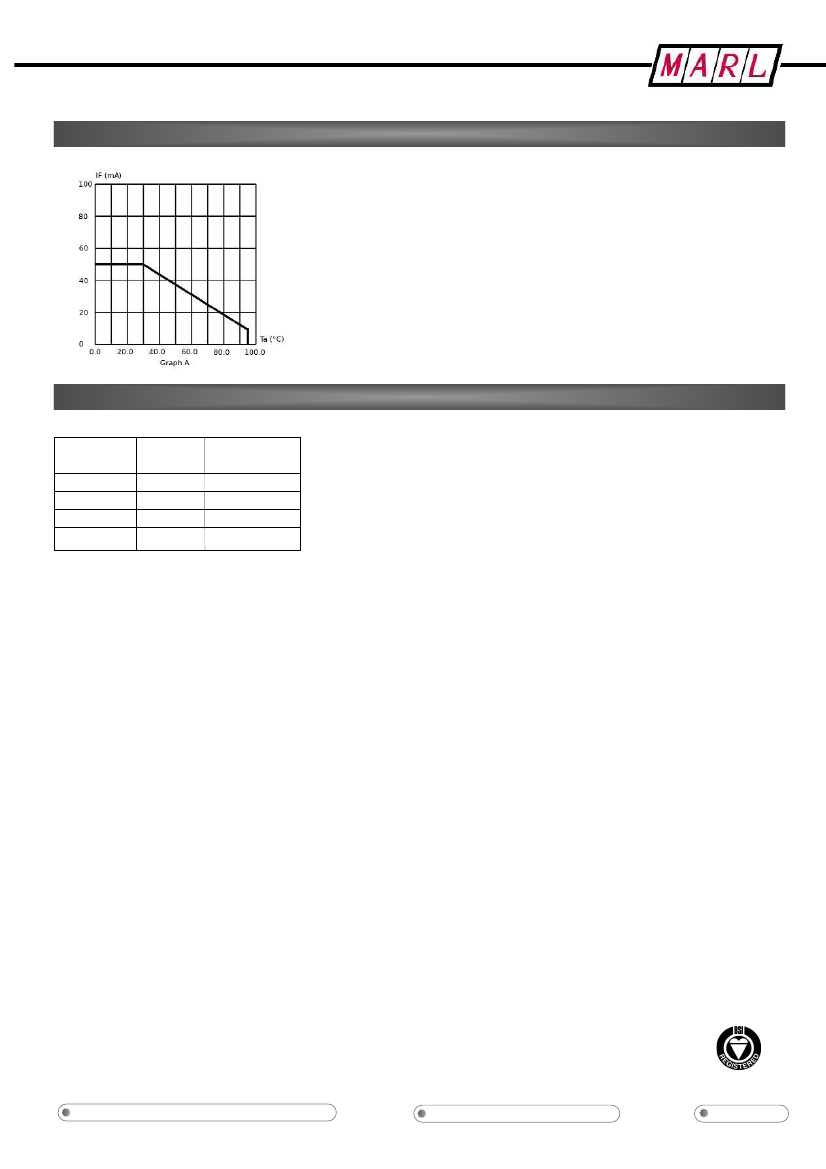

Power de-rating

wavelength spectrum have changed this. Marl has an approved system of ESD control from goods in, through production and into final packing

care must be taken to operate the LED at the correct voltage/current values, depending upon the ambient temperature. Consequently, a

termed ‘de-rating’.

The forward voltage/current value of an LED is dependant upon the ambient temperature of the environment in which it is operated. Therefore,

recommendation regarding operating voltages and currents is given in order to address these temperature effects. This recommendation is

It is usual for forward voltages and currents to be specified for ambient temperature of 25°C. However, because the values of these qualities vary

with temperature, Marl should be contacted if the device is to be operated at a temperature significantly higher than 25°C.

Marl accept no liability for any product that is operated higher than the stated voltage.

Note:

All luminous intensity figures refer to the unmodified discrete LED.

How to Order:

website: www.marl.co.uk • email: sales@marl.co.uk •

•

elephone +44 (0)1229 582430

•

Fax: +44 (0)1229 585155

relating to either products or service.

for products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

Marl International reserve the right to alter without notice the specification or any conditions of supply

Ø15.1

Colour dot on product denotes LED colour

Approved Manufacturer

BS EN ISO 9001:2000

Issue 3

SAMPLES AVAILABLE

Page 2 of 3

245-501-95-38 Related Products

	245-501-95-38	245-521-95-38	245-521-93-38	245-501-87-38	245-501-89-38	245-521-93-50	245-521-87-38	245-501-93-50	245-501-93-38
Description	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster	filament replacement leds - multi-led cluster
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	-	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-1	ROHS COMPLIANT PACKAGE-1	ROHS COMPLIANT PACKAGE-1	ROHS COMPLIANT PACKAGE-1	-	-	ROHS COMPLIANT PACKAGE-1	-	ROHS COMPLIANT PACKAGE-1
Reach Compliance Code	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant	compliant
color	RED	YELLOW	YELLOW	RED	-	-	YELLOW	-	RED
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	-	-	COMPLEX	-	COMPLEX
Display height	16 mm	16 mm	16 mm	16 mm	-	-	16 mm	-	16 mm
Maximum forward current	0.012 A	0.012 A	0.02 A	0.005 A	-	-	0.005 A	-	0.02 A
Number of functions	1	1	1	1	-	-	1	-	1
Maximum operating temperature	95 °C	95 °C	95 °C	95 °C	-	-	95 °C	-	95 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-	-40 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	-	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1	1	1	1	-	-	1	-	1
