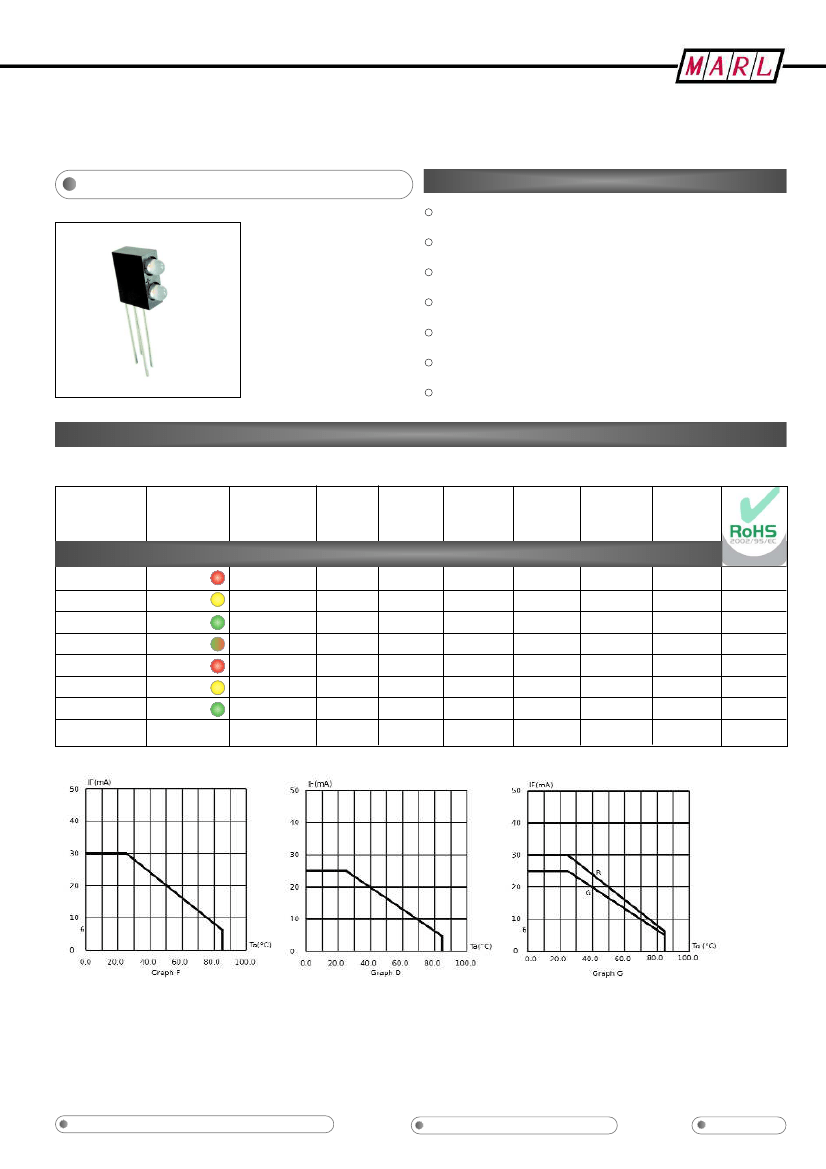

PCB MOUNTING LEDs - Ø 3mm
FEATURES
Saves board space and assembly time
109 SERIES
PACK QUANTITY = 250 PIECES
Material conforms to UL94 V-O flammability ratings
Low current versions available
Reverse polarity options available
Custom built multi-colour permutations
Product illustrated 109-330-04
Typically available ex stock
SPECIFICATIONS
Ordering Information & Typical T
echnical Characteristics (T
a = 25°C)
Mean Time Between Failure = 100,000 Hours.
PART NUMBER
COLOUR
LENS
Luminous intensity figures refer to the unmodified discrete LED.
VOLTAGE
Vopr
DC
CURRENT
lopr
DC
LUMINOUS
lv@20mA
INTENSITY
WAVE
λp
OPERATING
T
opr
TEMP
STORAGE
T
stg
TEMP
LENGTH
STANDARD INTENSITY
109-305-04
109-311-04
109-314-04
109-330-04
109-381-20
109-382-20
109-383-20
UNITS
Red
Yellow
Green
Red/Green
Red
Yellow
Green
Colour Diffused
Colour Diffused
Colour Diffused
White Diffused
Colour Diffused
Colour Diffused
Colour Diffused
2.0*
2.1*
2.2*
2.0/2.2*
5
5
5
Vdc
20
20
20
20
13
13
11.5
mA
40
30
40
20/16
20@13mA
15@13mA
20@11.5mA
mcd
627
590
565
627/565
627
590
565
nm
0
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +70
-40 ~ +70
-40 ~ +70
C
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
0
Yes
Yes
Yes
Yes
Yes
Yes
Yes
C
* = Voltage DC for 20mA product is Vf@20mA, not Vopr
305 & 311
314
330
^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
© MARL INTERNATIONAL LTD 2007 : DS 048/07
Issue 2
SAMPLES AVAILABLE
Page 1 of
3
109 Series
Anode
(Red Bi-colour)

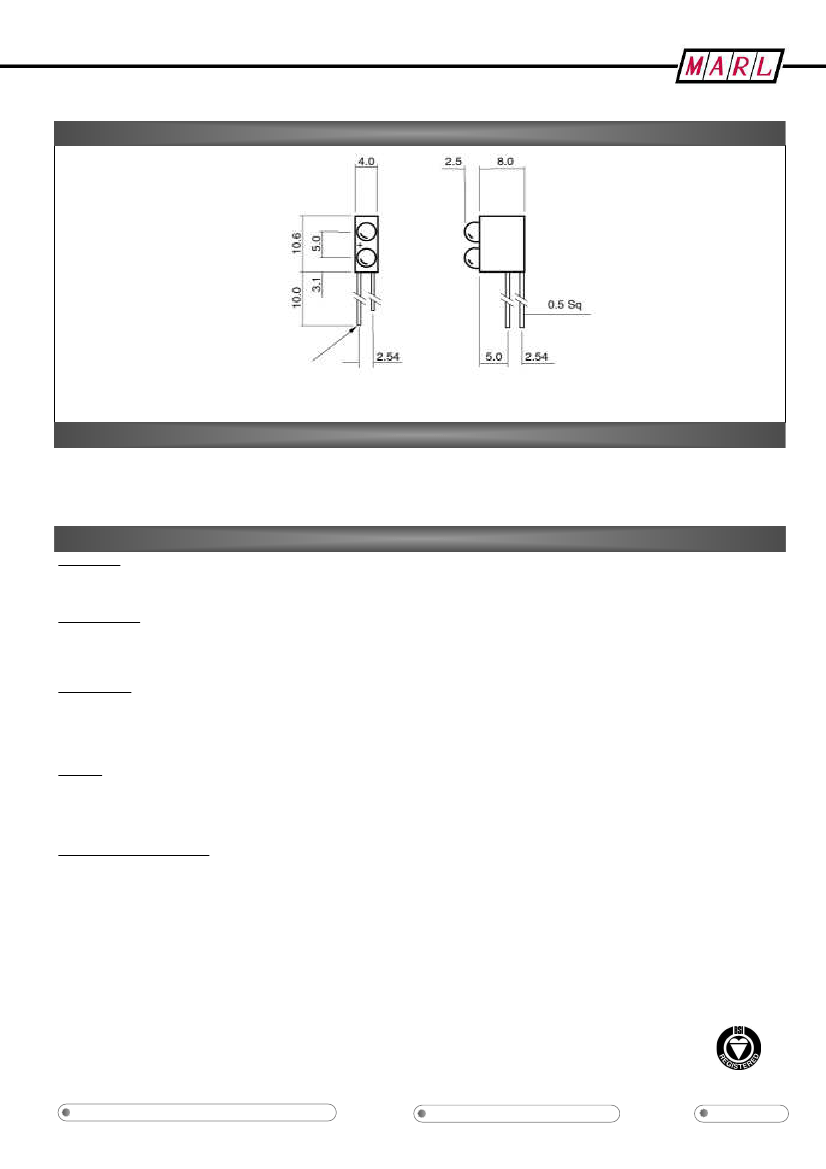

Dimensions in mm (Typical)
Not to scale
Housing Material
Polycarbonate
This material offers UL94 V-0 flame retardancy* and a high impact strength. This material has a melt point of 290-340°C and is suitable for use in
the majority of automatic soldering processes.
*Material test thickness 1.6mm
LEDs
LED Polarity
Anode identification is shown in the dimensional diagram. The long lead of a non-cropped unit can also be used to help identify the anode. For
the 2 pin Bi-colour units the standard colour configuration is red anode to the ‘+’ sign.
Reverse Polarity
This is offered on all PCB units, with the exception of the 125 series, if requested to help overcome the problem of systems with reverse polarity
reverse colour configuration.
Lead Cropping
connections. Multiple units can also be supplied in reverse polarity but not with mixed polarities. The 2 pin and 3 pin Bi-colours can be supplied in
Should lead cropping be required Marl offer two standard lengths, either by request or by adding one of the following codes to the end of the part
number:-
-24 = 3mm
-26 = 5mm (E.g
109-305-04-26)
Other non-standard lead lengths are available on request.
Bi-colour
2 Pin Operation
T
o acheive the second colour for a 2 pin Bi-colour unit the supply must be reversed, standard colour configuration for these units is red anode to
the ‘+’ sign.
Electro-static Discharge (ESD)
Build up of electrostatic discharge occurs in many situations involving people moving and handling products. The range of possible situations is
very diverse but voltage levels as high as several thousand volts can and do arise in many individual situations. When an operator charged up to
these levels handles a ‘static sensitive device’, there is a very probable likelihood that the device will be irreversibly damaged. It is essential that
precautions are taken at all stages during manufacture and assembly of these products. Although LEDs were never considered to be static
sensitive devices, changes in manufacturing technology and materials used to produce higher intensityproducts over a large range of the
and despatch. We recommend all users of LED based products follow the guidelines of BS 100015.
Note:
All luminous intensity figures refer to the unmodified discrete LED.
wavelength spectrum have changed this. Marl has an approved system of ESD control from goods in, through production and into final packing
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 048/07
Issue 2
SAMPLES AVAILABLE
Page 2 of
3
109 Series
Part numbers also available in the 109 Series:
PART NO.
COLOUR
(Vdc) Vopr
VOLTAGE DC
PART NO.
COLOUR
(Vdc) Vopr
VOLTAGE DC
109-000-01-50
109-000-01-51
109-000-01-53
109-000-01-54
109-000-01-57
109-000-01-58
109-000-02-50
109-000-04-50
109-000-04-51
109-000-04-52
109-000-04-53
109-000-04-54
109-000-04-56
109-000-04-57
109-000-04-58
109-000-04-60
109-000-04-61
109-000-04-62
109-000-04-63
109-000-04-65
109-000-04-66
109-000-13-50
109-000-20-50
109-000-20-51
109-000-20-52
109-000-20-53
UNITS
Red over Green
Green over Red
Red over Yellow
Green over Yellow
Red over Green
Yellow over Green
Red over Green
Red over Green
Yellow over Red
Green over Yellow
Yellow over Green
Green over Red
Red over Yellow
Yellow over Blue
Yellow over Red/Green
Red over Yellow
Yellow over Blue
Red/Yellow over Green
Red/Green over Blank
Green over Yellow
Green over Yellow
Yellow over Green
Yellow over Red
Green over Red
Red over Green
Yellow over Green
2mA
2mA
2mA
2mA
2mA
2mA
10mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA RP
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
VDC
109-301-04
109-305-01
109-305-01-24
109-305-04-24
109-305-13
109-311-01
109-311-01-24
109-311-04-24
109-314-01
109-314-01-24
109-314-01-50
109-314-01-51
109-314-04-24
109-314-04-26
109-320-04-50
109-330-01
109-330-01-24
109-330-04-24
109-330-13
109-332-04
109-332-13
UNITS
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Green
Green
Green
Green
Green
Green
Blue over Blank
Red/Green
Red/Green
Red/Green
Red/Green
Grn/Ylw Bi-colour
Grn/Ylw Bi-colour
20mA
2mA
2mA
20mA
20mA RP
2mA
2mA
20mA
2mA
2mA
2mA
2mA
20mA
20mA
20mA
2mA
2mA
20mA
20mA RP
20mA
20mA RP
VDC
The products listed above illustrate all of the options available to order. These products may have custom modifications that alter
their operation beyond the generic information contained within this datasheet. Please contact sales for further information.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 048/07
Issue 2
SAMPLES AVAILABLE
Page 3 of
3
