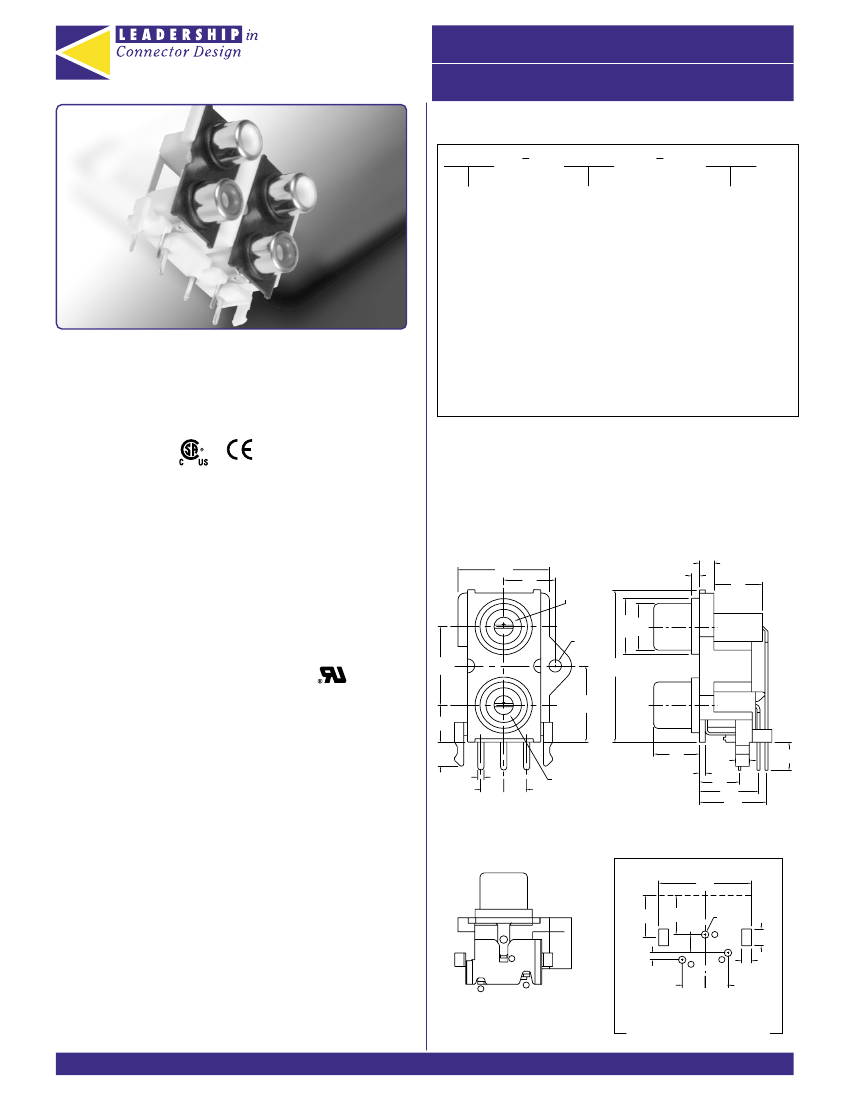

RCA PHONO JACKS

KYCON

KLP42 Series

Ordering Information

KLP42

Series

Type

WW/RR/YY

Color

Series

KLP42 - Stacked RCA Phono Jack

Type

60 - Single Column, Double Row

61 - Double Column, Double Row

62 - Triple Column, Double Row

Color Layout

60 - X / Z

61 - X, X1 / Z, Z1

62 - X, Z / X1, Z1 / X2, Z2

Color Options

B - Black

R - Red

W - White

Y - Yellow

KLP42 Series

Stacked RCA Phono Jack

PCB Mount

Features

LR78160

• Audio Applications for Computers and Multimedia

• Gold Plating Available Upon Request

• Various Color and Stacking Options Available

• CSA/NRTL Certified File No. LR78160

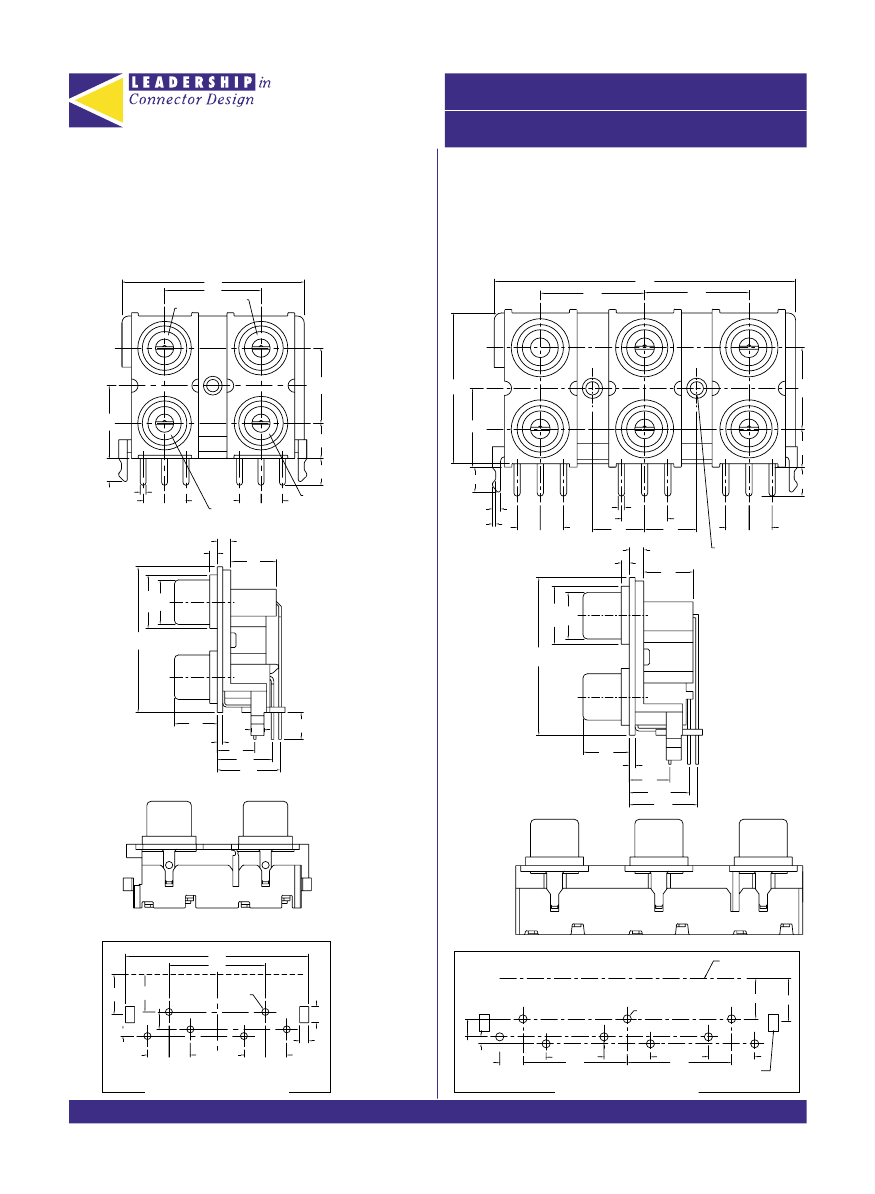

KLP42 Series Dimensions

Dimensions in mm

KLP42-60

16.0

9.0

2.5

1.4

8.5

Ø10.0

Ø8.3

Performance Specifications

Materials and Finish

Housing:

KLP42 - ABS Thermoplastic

, UL94V-0 Rated,

Black, Red, Yellow, and White Colors

Terminals:

Copper Alloy, Tin over Nickel Plating

14.0

Ø2.2

27.2

13.6

4.3

6.6

Mechanical Characteristics

Insertion Force:

0.3kg - 5.0kg

Extraction Force:

0.3kg - 3.0kg

Durability:

5000 Mating Cycles

2.4

1.0

7.0

10.3

11.7

1.1

4.0

Electrical Characteristics

Contact Resistance

Before Durability Test:

30 Milliohms Max

After Durability Test:

60 Milliohms Max

Insulation Resistance:

100 Megohms Min. at 500V DC

Dielectric Strength:

250V AC for 1 Minute

Operating Temperature:

-25˚C to +80˚C

*Not Recommended For Wave Solder Process

2002

16.2

7.5

7.0

3.25

3-Ø1.3

1.25

4.0

(Bottom View)

Recommended PCB Layout

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

117

3.0

1.7

5.0

8.0

KLP42-61-RW/RW Related Products
