KBPC10/15/25/35/50ASERIES
SILICON BRIDGE RECTIFIERS
REVERSE VOLTAGE
- 50
to
1000Volts
FORWARD CURRENT
- 10/15/25/35/50
Amperes
FEATURES
●
Surge overload -240~500 Amperes peak
●
Low forward voltage drop
●
Mounting Position : Any
●
Electrically isolated base -2000 Volts
●
Solderable 0.25" FASTON terminals
●
Materials used carries U/L recognition
.254(6.45)
.242(6.15)
1.130(28.7)
1.114(28.3)
.661(16.8)
.648(16.4)
0.94
(2.4)
diam
KBPC
.442(11.23)
.424(10.77)
.921(23.4)
.882(22.4)
.035(0.9)
.028(0.7)
Hole for
No.8 screw
193"(4.9)diam
.720(18.3)
.705(17.9)
.661(16.8)
.648(16.4)
1.130(28.7)
1.114(28.3)
.571(14.5)
.555(14.1)
Dimensions in inches and (milimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Resistive or inductive load 60Hz.
For capacitive load current by 20%
KBPC
10005
KBPC
1001
1501
2501
3501
5001
100
70
10
KBPC
10
I
FSM
240
KBPC
15
300
KBPC
1002
1502
2502
3502
5002
200
140
15
KBPC
25
400
KBPC
1004
1504
2504
3504
5004
400
280
25
KBPC
35
400
KBPC
1006
1506
2506
3506
5006
600
420
KBPC
1008
1508
2508
3508
5008
800
560
35
KBPC
50
500
A
KBPC
1010
1510
2510
3510
5010
1000
700
50
V
V
A
UNIT
CHARACTERISTICS
SYMBOL
15005
25005
35005
50005
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum Average Forward
Rectified Output Current @T
C
=55℃
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load
Maximum Forward Voltage Drop Per Element
at 5.0/7.5/12.5/17.5/25.0A Peak
Maximum Reverse Current at Rate
DC Blocking Voltage Per Element @T
A
=25℃
Operating Temperature Range
Storage Temperature Range
V
RRM
V
RMS
I
(AV)
50
35
V
F
I
R
T
J
T
STG
1.1
10
-55 to +125
-55 to +125
V
uA
℃
℃
NOTES:Also available on KBPC 10W/15W/25W/35W/50W series.
~ 355 ~

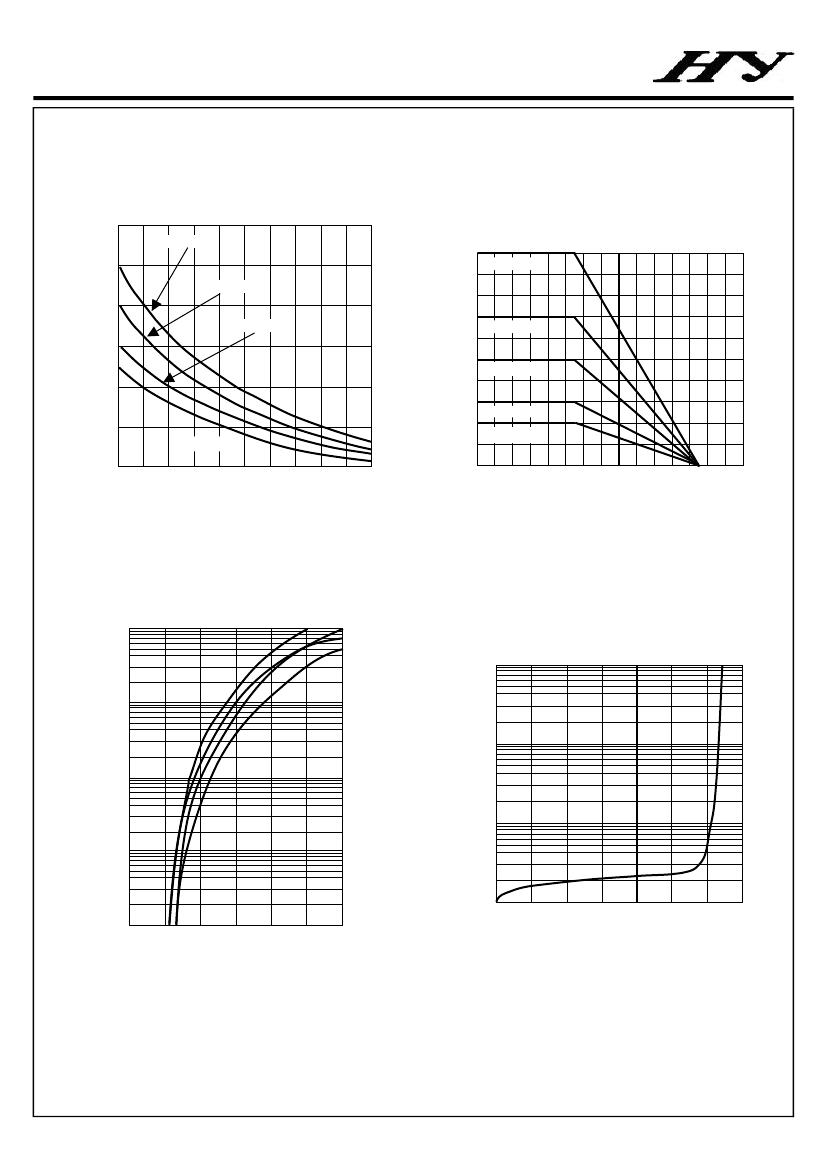

RATING AND CHARACTERISTIC CURVES
KBPC10/15/25/35/50A SERIES
FIG.1-MAXIMUM FORWARD SURGE CURRENT
600
PEAK FORWARD SURGE CURRENT ,
AMPERES
KBPC50
FIG.2- DERATING CURVE
OUTPUT RECTIFIED CURRENT
50
KBPC50
500
KBPC25/35
AVERAGE FORWARD OUTPUT CURRENT ,
AMPERES
40
30
KBPC35
400
KBPC15
300
20
KBPC25
200
10
KBPC15
KBPC10
100
KBPC10
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0
50
100
150
CASE TEMPERATURE,℃
FIG.3-TYPICAL FORWARD
CHARACTERISTICS
KBPC35/50
KBPC15
KBPC25
KBPC10
100
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT ,
AMPERES
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
1.0
1.0
T
J
=25
℃
0.1
0.1
0.01
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
PERCENT OF RATED PEAK REVERSE VOLTAGE
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
~ 356 ~
