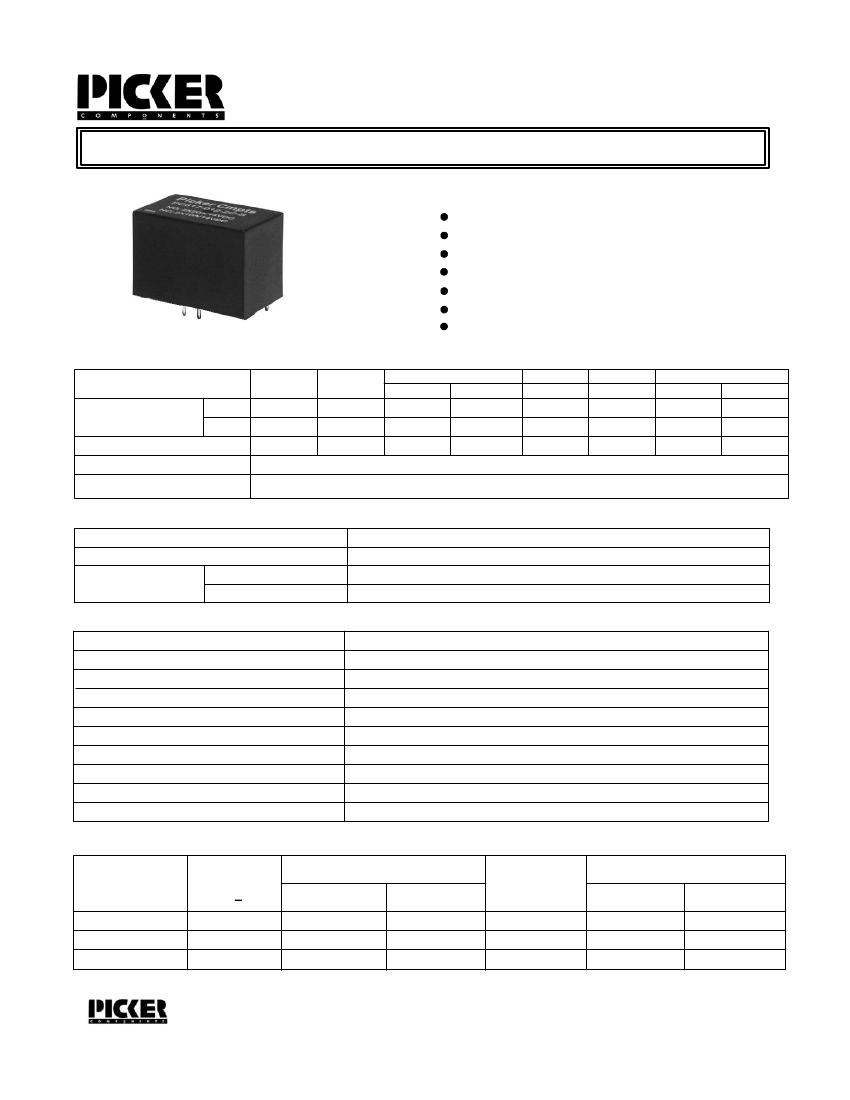

Automotive Twin PCB Power Relay
PC617
FEATURES
20 Amp continuous current capacity
Up to 60 amp switching capacity
Six different contact forms
Designed for high inrush applications
Four different contact materials available
UL Class F insulation available
Dust cover or sealed version available
CONTACT RATINGS
Form
Max Switching Current
Max. Continuous Current
Minimum Load
Max. Switching Voltage
Make
Motor
1 Form A
(SPST NO)
60 Amps
20 Amps
20 Amps
1 Form B
(SPST NC)
12 Amps
10 Amps
10 Amps
1 Form C (DPDT)
NO
NC
60 Amps
20 Amps
20 Amps
12 Amps
10 Amps
10 Amps
1 Form U
1 Form V
1 Form W (SPDT-DB-DM)
NO
NC
(SPST-NO-DM) (SPST-NC-DB)
2 X 40 Amps
2 X 20 Amps
2 X 10 Amps
2 X 8 Amps 2 X 30 Amps
2 X 7 Amps 2 X 15 Amps
2 X 7 Amps 2 X 7 Amps
2 X 5 Amps
2 X 5 Amps
2 X 5 Amps
.05 Amps @ 5 VDC
See curve page 2, current dependant
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgNiO 15 (Silver Nickel Oxide 15%), AgSnOInO (Silver Tin Oxide Indium Oxide)
100 milliohms max @ 0.1A, 6VDC
1 X 10
7
1 X 10
5
Operations
Operations
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Drop Resistance
Power Consumption
Ambient Temperature Range
Weight
10 ms. typical
5 ms. typical
100 megohms min, at 500VDC, 50%RH
1500 Vrms, 1 min. between coil and contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5 mm, 20 - 200 Hz functional
1 Meter height drop on concrete in final enclosure
2 x 1.1 W approx.
-40 to 85 degrees C operating, -40 to 125 storage
20 grams approx.
COIL DATA
Coil Voltage
6
12
24
Resistance
ohms + 10%
36 X 2
145 X 2
576 X 2
Must Operate Voltage Max.
(VDC)
A, B, C, U, V
3.75
7.50
15.0
W
4.5
9.0
18.0
Allowable
Voltage Max
(VDC)
8
16
31
Must Release Voltage Min.
(VDC)
B, V
0.35
0.70
1.40
A, C, U, W
0.7
1.4
2.8
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC617 Rev B 4-14-04
PAGE 1
PC617

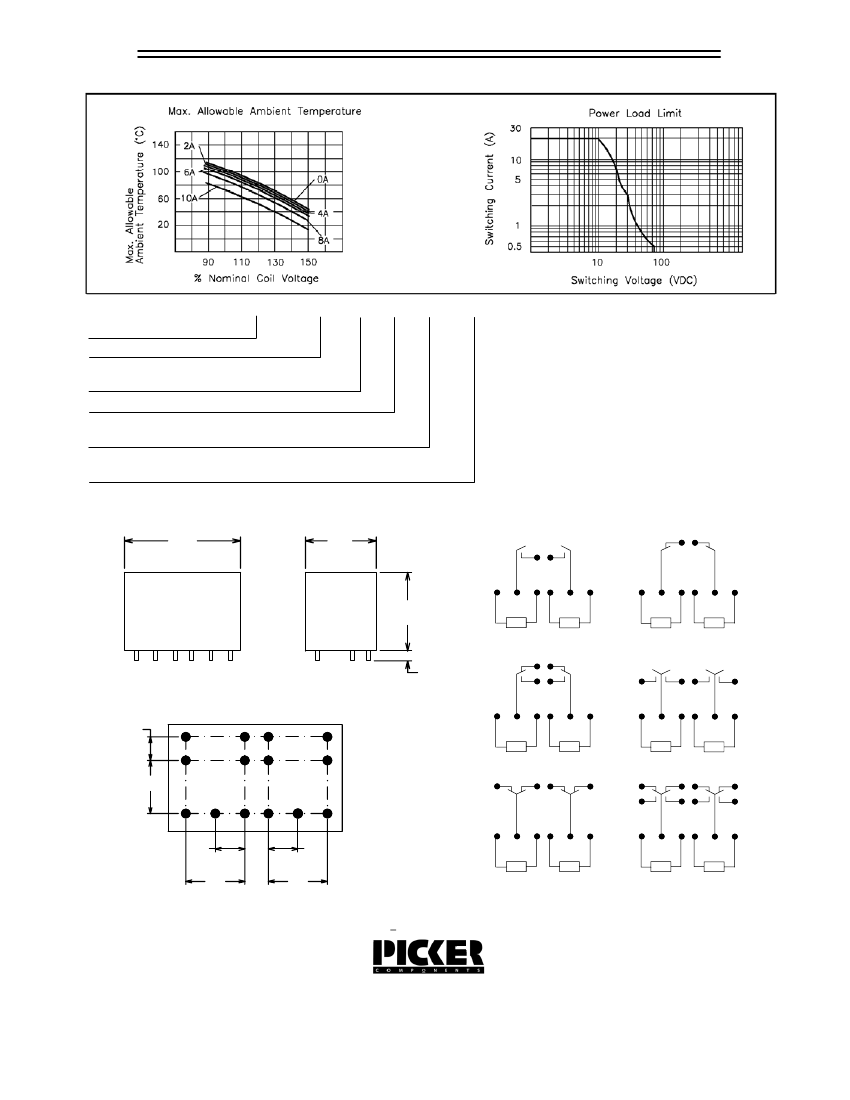

REFERENCE CURVES
PC617
ORDERING INFORMATION
Example:
Model
Contact Form
2A, 2B, 2C, 2U, 2V or 2W
Coil Voltage
Enclosure
Nil: Open Frame; S: Sealed; C: Dust Cover
Contact Material
Nil: AgSnO; C: AgCdO; T: AgSnOInO
PC617
-2C
-12
S
T
Dimensions in Inches (millimeters) drawings are 2 X scale
1.165
(29.6)
.709
(18)
.787
(20)
2 Form A
.094
(2.4)
2 Form B
.083
(2.1)
2 Form C
.350
(8.89)
2 Form U
.200
(5.08)
.200
(5.08)
.157
(4.0)
.200
(5.08)
.200
(5.08)
2 Form V
Notes:
Tolerances + .010 unless otherwise noted
2 Form W
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
