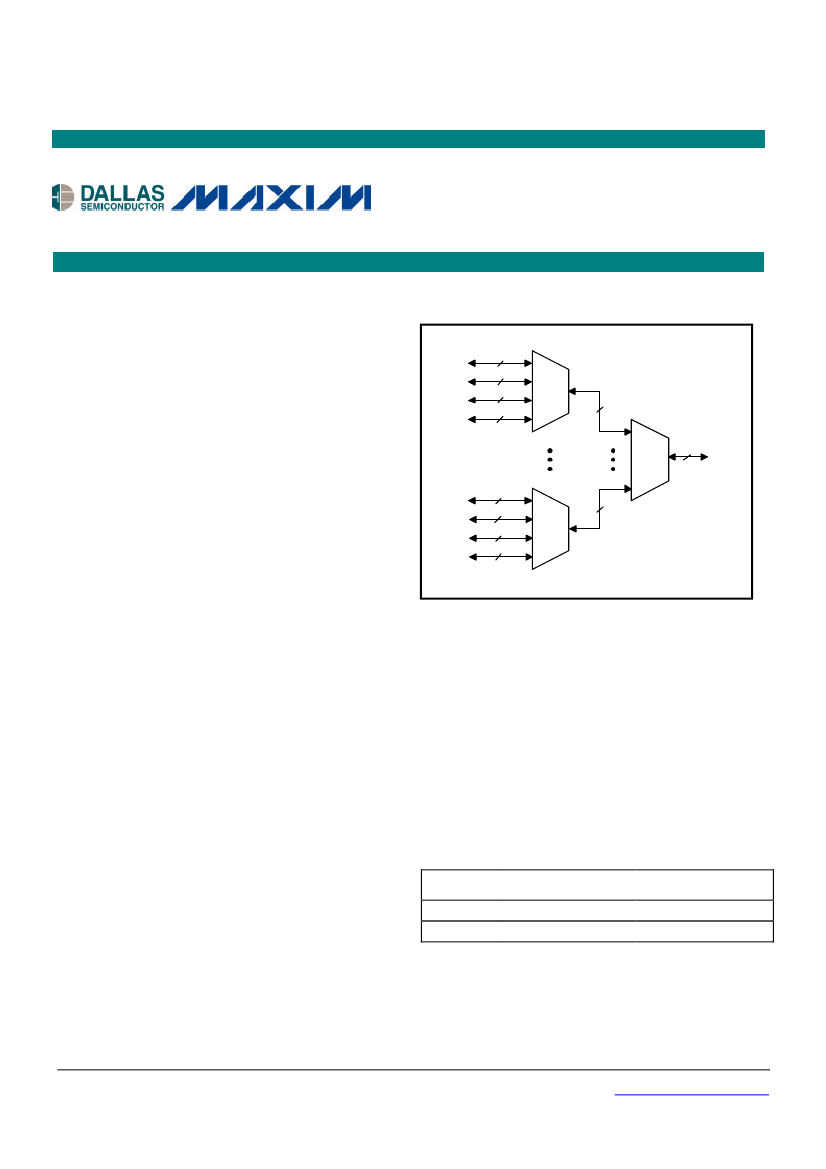

DS3112

TEMPE T3/E3 Multiplexer

3.3V T3/E3 Framer and M13/E13/G.747 Mux

www.maxim-ic.com

FEATURES

Operates as M13 or E13 multiplexer or as

standalone T3 or E3 framer

Flexible multiplexer can be programmed for

multiple configurations including:

−

M13 multiplexing (28 T1 lines into a T3 data

stream)

−

E13 multiplexing (16 E1 lines into an E3 data

stream)

−

E1 to T3 multiplexing (21 E1 lines into a T3

data stream)

Two T1/E1 drop and insert ports

Supports T3 C-bit parity mode

B3ZS/HDB3 encoder and decoder

Generates and detects T3/E3 alarms

Generates and detects T2/E2 alarms

Integrated HDLC controller handles LAPD

messages without host intervention

Integrated FEAC controller

Integrated BERT supports performance

monitoring

T3/E3 and T1/E1 diagnostic (Tx to Rx), line

(Rx to Tx), and payload loopback supported

Nonmultiplexed or multiplexed 16-bit control

port (with optional 8-bit mode)

3.3V supply with 5V tolerant I/O

Available in 256-pin 1.27mm pitch BGA

package

IEEE 1149.1 JTAG support

FUNCTIONAL DIAGRAM

T1/E1

T3/E3

T2/E2

T1/E1

T2/E2

APPLICATIONS

Wide Area Network Access Equipment

PBXs

Access Concentrators

Digital Cross-Connect Systems

Switches

Routers

Optical Multiplexers

ADMs

Test Equipment

ORDERING INFORMATION

PART

PIN-PACKAGE

DS3112

256 BGA

DS3112N

256 BGA

TEMP RANGE

0°C to +70°C

-40°C to +85°C

Note:

Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device

may be simultaneously available through various sales channels. For information about device errata, click here:

http://www.maxim-ic.com/errata.

1 of 135

081902

DS3112

TABLE OF CONTENTS

1. INTRODUCTION ................................................................................................................................4

2. SIGNAL DESCRIPTION

..................................................................................................................11

2.1 OVERVIEW/SIGNAL PIN LIST...................................................................................................11

2.2 CPU BUS SIGNAL DESCRIPTION..............................................................................................17

2.3 T3/E3 RECEIVE FRAMER SIGNAL DESCRIPTION .................................................................19

2.4 T3/E3 TRANSMIT FORMATTER SIGNAL DESCRIPTION......................................................21

2.5 LOW SPEED (T1 OR E1) RECEIVE PORT SIGNAL DESCRIPTION.......................................23

2.6 LOW SPEED (T1 OR E1) TRANSMIT PORT SIGNAL DESCRIPTION ...................................24

2.7 HIGH SPEED (T3 OR E3) RECEIVE PORT SIGNAL DESCRIPTION......................................26

2.8 HIGH SPEED (T3 OR E3) TRANSMIT PORT SIGNAL DESCRIPTION ..................................26

2.9 JTAG SIGNAL DESCRIPTION.....................................................................................................27

2.10 SUPPLY, TEST, RESET, AND MODE SIGNAL DESCRIPTION ............................................27

3. MEMORY MAP .................................................................................................................................29

4. MASTER DEVICE CONFIGURATION AND STATUS/INTERRUPT......................................31

4.1 MASTER RESET AND ID REGISTER DESCRIPTION..............................................................31

4.2 MASTER CONFIGURATION REGISTERS DESCRIPTION......................................................32

4.3 MASTER STATUS AND INTERRUPT REGISTER DESCRIPTION.........................................37

4.4 TEST REGISTER DESCRIPTION ................................................................................................46

5. T3/E3 FRAMER .................................................................................................................................47

5.1 GENERAL DESCRIPTION ...........................................................................................................47

5.2 T3/E3 FRAMER CONTROL REGISTER DESCRIPTION...........................................................48

5.3 T3/E3 FRAMER STATUS AND INTERRUPT REGISTER DESCRIPTION..............................53

5.4 T3/E3 PERFORMANCE ERROR COUNTERS ............................................................................60

6. M13/E13/G.747 MULTIPLEXER AND T2/E2/G.747 FRAMER ..................................................64

6.1 GENERAL DESCRIPTION ...........................................................................................................64

6.2 T2/E2/G.747 FRAMER CONTROL REGISTER DESCRIPTION................................................64

6.3 T2/E2/G.747 FRAMER STATUS AND INTERRUPT REGISTER DESCRIPTION...................66

6.4 T1/E1 AIS GENERATION CONTROL REGISTER DESCRIPTION..........................................70

7. T1/E1 LOOPBACK AND DROP AND INSERT FUNCTIONALITY .........................................73

7.1 GENERAL DESCRIPTION ...........................................................................................................73

7.2 T1/E1 LOOPBACK CONTROL REGISTER DESCRIPTION......................................................74

7.3 T1 LINE LOOPBACK COMMAND STATUS REGISTER DESCRIPTION ..............................78

7.4 T1/E1 DROP AND INSERT CONTROL REGISTER DESCRIPTION........................................79

8. BERT ...................................................................................................................................................81

8.1 GENERAL DESCRIPTION ...........................................................................................................81

8.2 BERT REGISTER DESCRIPTION................................................................................................81

2 of 135

DS3112

9. HDLC CONTROLLER .....................................................................................................................90

9.1 GENERAL DESCRIPTION ...........................................................................................................90

9.2 HDLC CONTROL AND FIFO REGISTER DESCRIPTION........................................................91

9.3 HDLC STATUS AND INTERRUPT REGISTER DESCRIPTION ..............................................95

10. FEAC CONTROLLER ..................................................................................................................100

10.1 GENERAL DESCRIPTION .......................................................................................................100

10.2 FEAC CONTROL REGISTER DESCRIPTION........................................................................100

10.3 FEAC STATUS REGISTER DESCRIPTION............................................................................102

11. JTAG................................................................................................................................................103

11.1 JTAG DESCRIPTION ................................................................................................................103

11.2 TAP CONTROLLER STATE MACHINE DESCRIPTION......................................................104

11.3 INSTRUCTION REGISTER AND INSTRUCTIONS...............................................................106

11.4 TEST REGISTERS .....................................................................................................................107

12. ELECTRICAL CHARACTERISTICS ........................................................................................113

13. MECHANICAL DIMENSIONS ...................................................................................................124

14. APPLICATIONS AND STANDARDS OVERVIEW .................................................................125

14.1 APPLICATION EXAMPLES .....................................................................................................125

14.2 M13 BASICS...............................................................................................................................126

14.3 E13 BASICS................................................................................................................................132

14.4 G.747 BASICS ............................................................................................................................134

3 of 135

DS3112

1. INTRODUCTION

The DS3112 TEMPE (T3

E3 MultiPlexEr)

device can be used either as a multiplexer or a T3/E3 framer.

When the device is used as a multiplexer, it can be operated in one of three modes:

M13 – multiplex 28 T1 lines into a T3 data stream

E13 – multiplex 16 E1 lines into a E3 data stream

G.747 – multiplex 21 E1 lines into a T3 data stream

See Figures 1A, 1B, and 1C for block diagrams of these three modes. In each of the block diagrams, the

receive section is at the bottom and the transmit section is at the top. The receive path is defined as

incoming T3/E3 data and the transmit path is defined as outgoing T3/E3 data. When the device is

operated solely as a T3 or E3 framer, the multiplexer portion of the device is disabled and the raw T3/E3

payload will be output at the FRD output and input at the FTD input. See Figures 1A and 1B for details.

In the receive path, raw T3/E3 data is clocked into the device (either in a bipolar or unipolar fashion) with

the HRCLK at the HRPOS and HRNEG inputs. The data is then framed by the T3/E3 framer and passed

through the two-step demultiplexing process to yield the resultant T1 and E1 data streams, which are

output at the LRCLK and LRDAT outputs. In the transmit path, the reverse occurs. The T1 and E1 data

streams are input to the device at the LTCLK and LTDAT inputs. The device will sample these inputs

and then multiplex the T1 and E1 data streams through a two-step multiplexing process to yield the

resultant T3 or E3 data stream. The n this data stream is passed through the T3/E3 formatter to have the

framing overhead added, and the final data stream to be transmitted is output at the HTPOS and HTNEG

outputs using the HTCLK output.

The DS3112 has been designed to meet all of the latest telecommunications standards. Table 1A lists all

of the applicable standards for the device.

The TEMPE device has a number of advanced features such as:

the ability to drop and insert up to two T1 or E1 ports

an onboard HDLC controller with 256-byte buffers

an onboard Bit Error Rate Tester (BERT)

advanced diagnostics to create and detect many different types of errors

See Table 1B for a complete list of main features within the device.

4 of 135
