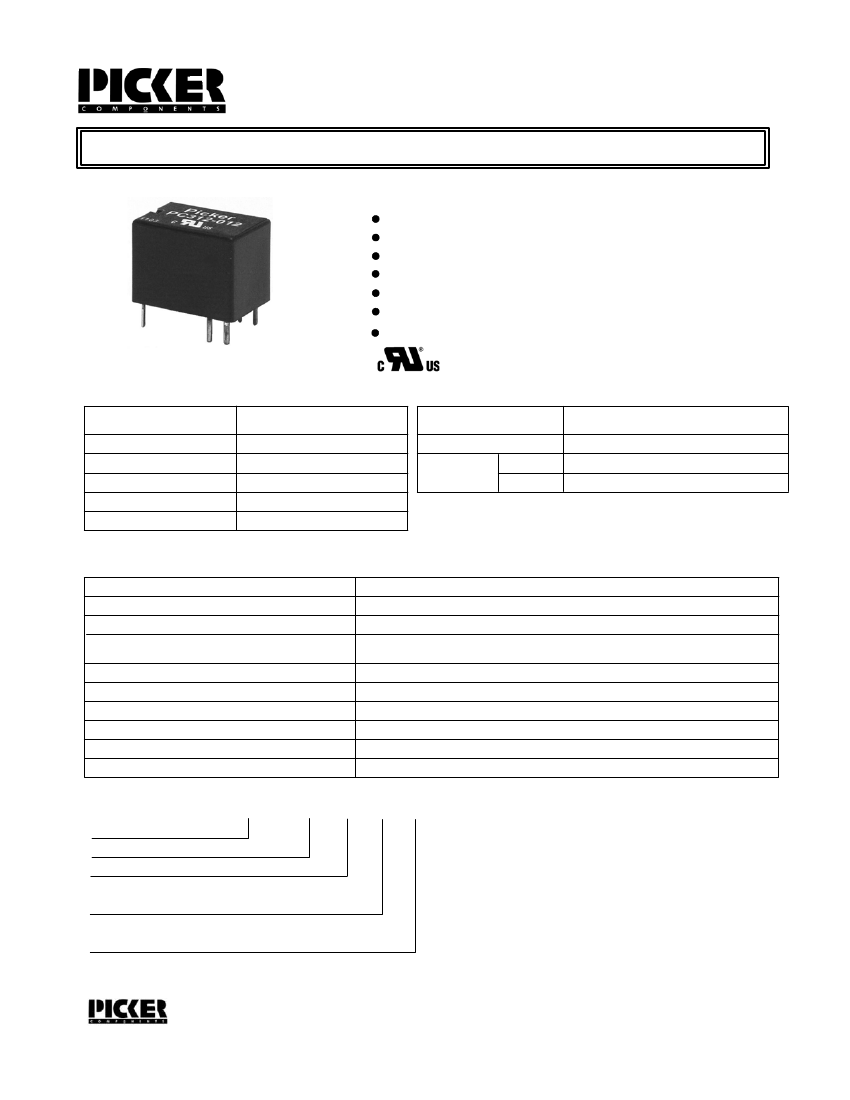

Subminiature PCB Telecom Relay

FEATURES

Subminiature design

PC Terminals on .1 in. grid pattern

Contact capacity from 1 mA to 5A

Meets FCC part 68 voltage surge

Class "B" insulation standard

Three coil sensitivities available

Sealed, immersion cleanable

File # E86876

UL/CSA RATINGS

Contact Form

Rated Load

Rated Load (Special)

Max. Switching Current

Max. Switching Current (S)

Minimum Load (Gold Plated)

1 Form C

SPDT

1A @ 120VAC / 30 VDC

3A & 5A @ 120VAC / 30VDC

2 Amps

5 Amps

1 mA @ 1 VDC

PC312

CONTACT DATA

Material

Initial Contact Resistance

Service Life

Mechanical

Electrical

Ag (Fine Silver), Ag+Au (Fine Silver Gold Clad)

AgNi (Silver Nickel), AgCdO (Silver Cadmium Oxide)

100 milliohms max @ 0.1A, 6VDC (with Gold Plate)

1 X 10 Operations

1 X 10

Operations

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Surge Resistance

Shock Resistance

Vibration Resistance

Power Consumption

Ambient Temperature Range

Weight

5 ms. Max.

100 megohms min, at 500VDC, 50%RH

1250 Vrms, 1 min. between coil and contacts

500 Vrms, 1 min. between open contacts: 750 Vrms, 1 min for S version

1500 V, between coil and contacts (FCC Part 68)

10 g, 11ms, functional; 100 g, destructive

DA 1.5 mm, 10 - 55 Hz

0.45 W, 0.36 W or 0.2 W

-25 to 70 C operating, -30 to 130 storage

3.5 grams approx.

ORDERING INFORMATION

Example:

Model

Coil Voltage

Coil Sensitivity

Nil: 0.36 W; B: 0.45 W; H: 0.2 W

Current Rating

Nil: Standard, 2 Amp; S: Special 5 Amp

PC312

-12

3220 Commander Drive, Suite 102, Carrollton, Texas 75006

Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com

PC312 Rev D 4-8-04

PAGE 1
