BL-HD1X1B433T-TRB
●
Features:
1. Emitted Color : Super Red, Hi-Eff Green
and Super Blue.
2. Lens Appearance : Water Clear
3. Multi-color type.
4. 3.2x2.7x1.1mm(1210) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
GREEN
ANODE
MARK
●

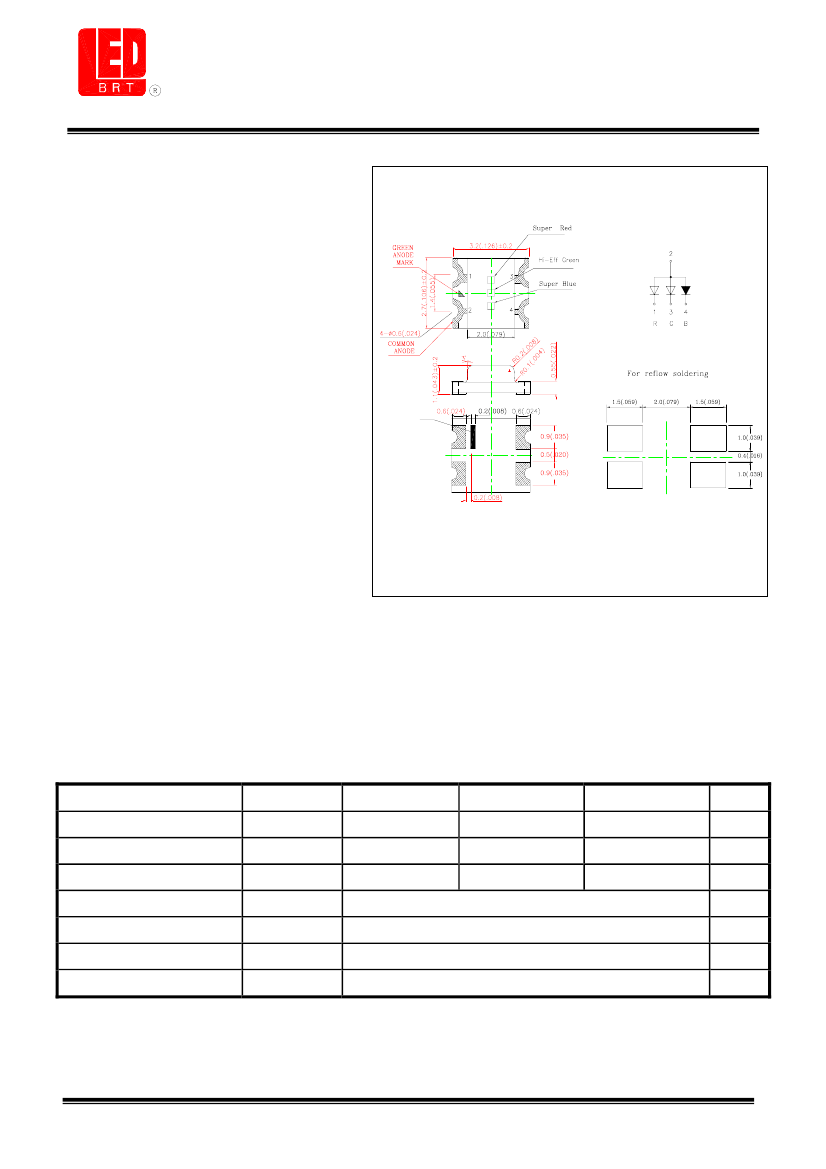

Package Dimensions:
●
Applications:
1.
2.
3.
Automotive : Dashboards
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Super Red
60
30
100
Hi-Eff Green
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page 7
Super Blue
120
30
100
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.2.0 Page 1 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD1X1B433T-TRB
Typ.
1.8
2.2
3.2
25
20
50
-
660
568
470
-
20
30
30
120
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Super Red
Hi-Eff Green
Super Blue
Min.
-
12.3
8.2
28
-
-
638
566
465
-
-
Max.
2.6
2.6
3.6
-
100
100
1
-
648
576
470
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
λd
Δλ
2θ
1/2
●

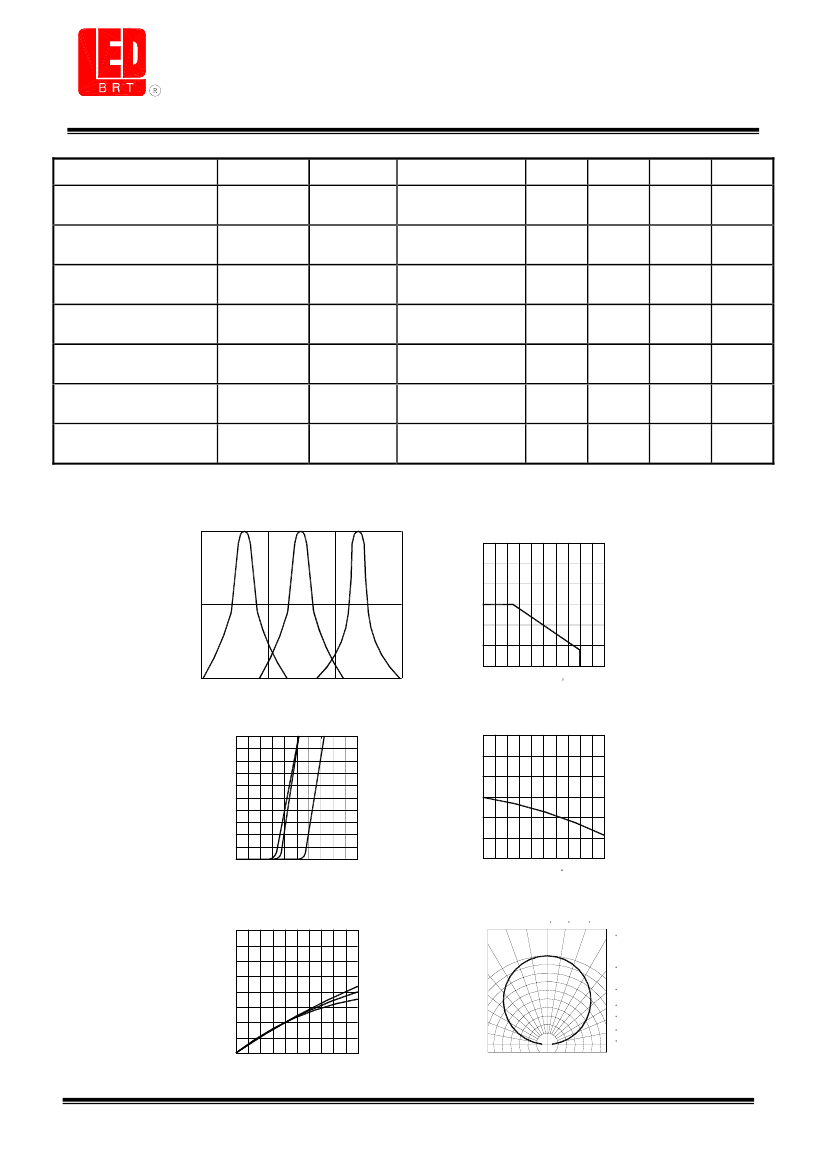

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
(B)
1.0
(G)
(R)
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
Relative radiant intensity
Forward Current (mA)
40
0.5
30
20
10
0
0
420
520
620
720
20
40
60
80
100
Ambient temperature Ta( C)
Wavelength (nm)
Fig.4 Relative luminous intensity vs.
ambient temperature
3.0
Fig.3 Forward current vs. forward voltage
50
40
Relative luminous intensity
2.5
(Normalized @ 20mA)
Forward current (mA)
2.0
30
1.5
20
(R)
(G)
(B)
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
A
Ambient temperature Ta( C)
Fig.5 Relative luminous intensity vs. forward current
4.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
Relative radlant intensity
3.0
40
1.0
0.9
0.8
50
60
70
0.7
80
90
(R)
2.0
(G)
(B)
1.0
0
5
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.2.1 Page 2 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD1X1B433T-TRB
●

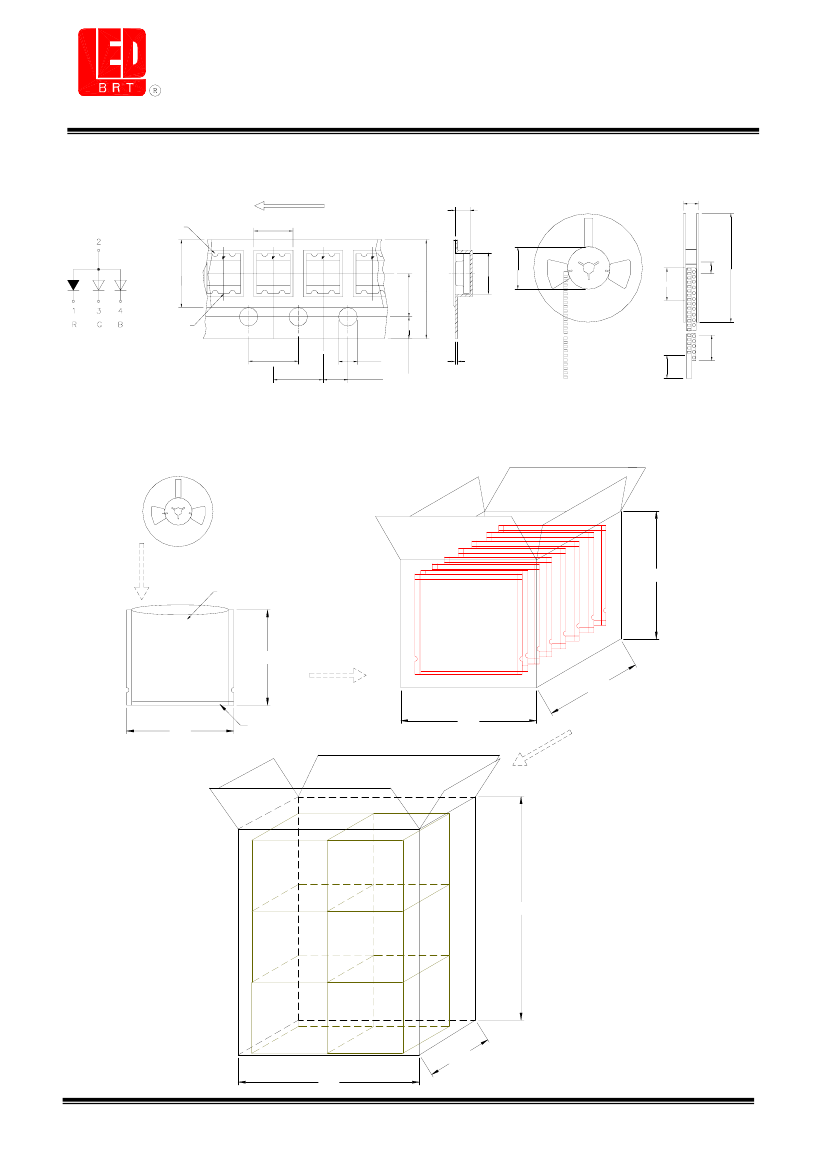

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.27±0.1
13.0±0.5
COMMON
ANODE
2.82 ± 0.1
START
END
71.0±1
13.0± 0.5
3.35±1
5.3 ± 0.05
8.0 ± 0.3
cathode
1.75 ± 0.1
LEADER
0.3
FIXING TAPE
4.0 ± 0.1
4.0 ± 0.1
1.5±0.1
2.0±0.05
●
Package Method:(unit:mm)Vacuum
3.5 ± 0.05
TRAILER
NOTE: 3000 pcs PER REEL
12 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.2.0 Page 3 of 8
179±1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD1X1B433T-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( D 1 ) ( 2 0 m A )
BIN CODE
K
L
M
N
Min. (mcd)
12.3
18.5
28.0
42.0
Max. (mcd)
18.5
28.0
42.0
63.0
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
I n t e n s i t y B i n L i m i ts ( X 1 ) ( 2 0 m A )
BIN CODE
J
K
L
M
Min. (mcd)
8.2
12.3
18.5
28.0
Max. (mcd)
12.3
18.5
28.0
42.0
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( X 1 ) ( 2 0 m A )
BIN CODE
4
5
6
7
8
Min. (nm)
566
568
570
572
574
Max. (nm)
568
570
572
574
576
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
Ver.1.0 Page 4 of 8
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD1X1B433T-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( B 4 ) ( 2 0 m A )
BIN CODE
M
N
P
Q
Min. (mcd)
28.0
42.0
63.0
94.0
Max. (mcd)
42.0
63.0
94.0
140.0
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( B 4 ) ( 2 0 m A )
BIN CODE
4
Min. (nm)
465
Max. (nm)
470
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
V
F
B i n L i m i ts ( B 4 ) ( 2 0 m A )
BIN CODE
G
H
J
K
Min.(v)
2.8
3.0
3.2
3.4
Max.(v)
3.0
3.2
3.4
3.6
To l e r a n c e f o r e a c h B i n l i m i t i s ± 0 . 0 5 V.
●
B IN：
x-x x-x x x
V
F
BIN CODE(B4)
Color BIN CODE(B4)
Intensity BIN CODE(B4)
Color BIN CODE(X1)
Intensity BIN CODE(X1)
Intensity BIN CODE(D1)
Ver.2.1 Page 5 of 8
