SR550

Description
5.0 amp schottky barrier rectifiers
CategoryDiscrete semiconductor    diode
File Size165KB,2 Pages
ManufacturerUniohm Corp.
Websitehttp://www.uniohm.com.tw/
Environmental Compliance

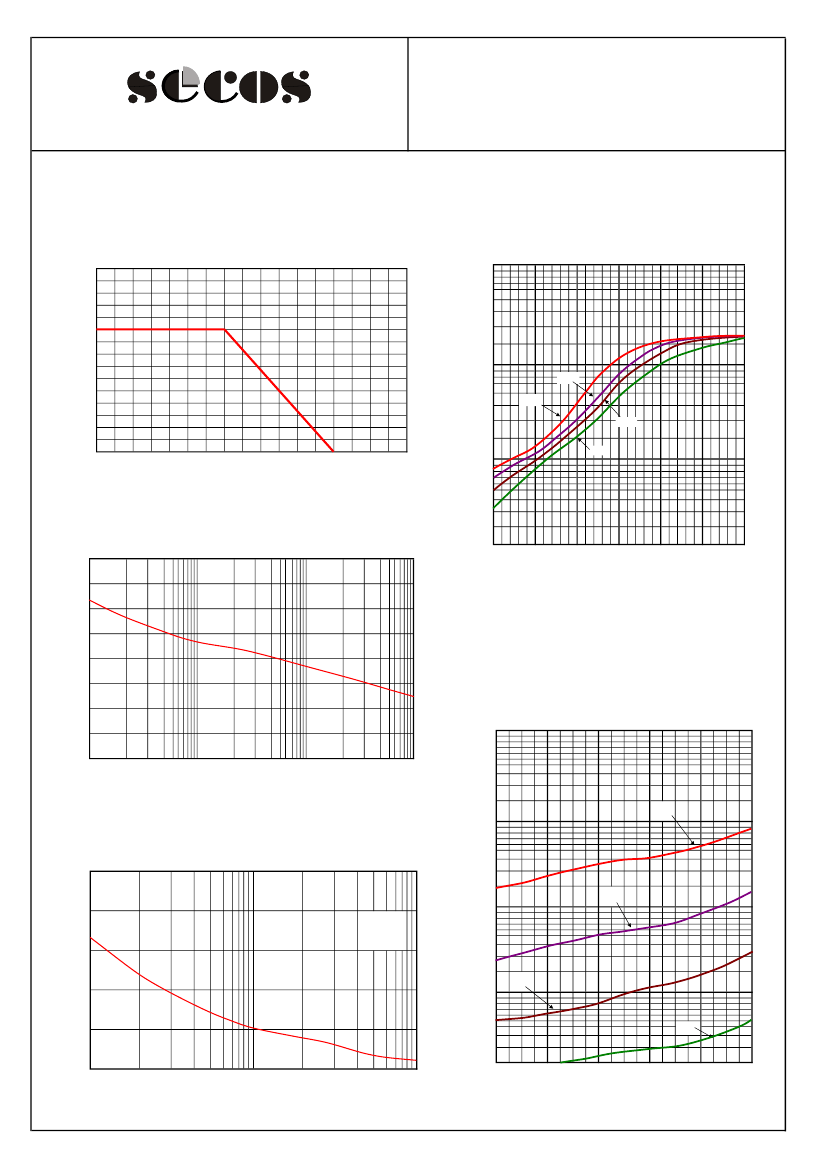

Download Datasheet Parametric Compare View All

SR550 Overview

5.0 amp schottky barrier rectifiers

SR550 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerUniohm Corp.
Parts packaging codeDO-27
package instructionO-PALF-W2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationGENERAL PURPOSE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.7 V
JEDEC-95 codeDO-27
JESD-30 codeO-PALF-W2
Maximum non-repetitive peak forward current150 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage50 V
Maximum reverse current5000 µA
surface mountNO
technologySCHOTTKY
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED

SR550 Related Products

SR550 SR530 SR520
Description 5.0 amp schottky barrier rectifiers 5.0 amp schottky barrier rectifiers 5.0 amp schottky barrier rectifiers
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Uniohm Corp. Uniohm Corp. Uniohm Corp.
Parts packaging code DO-27 DO-27 DO-27
package instruction O-PALF-W2 O-PALF-W2 PLASTIC PACKAGE-2
Contacts 2 2 2
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
application GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell connection ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.7 V 0.55 V 0.55 V
JEDEC-95 code DO-27 DO-27 DO-27
JESD-30 code O-PALF-W2 O-PALF-W2 O-PALF-W2
Maximum non-repetitive peak forward current 150 A 150 A 150 A
Number of components 1 1 1
Phase 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 150 °C 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C -65 °C
Maximum output current 5 A 5 A 5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum repetitive peak reverse voltage 50 V 30 V 20 V
Maximum reverse current 5000 µA 5000 µA 5000 µA
surface mount NO NO NO
technology SCHOTTKY SCHOTTKY SCHOTTKY
Terminal form WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
