Datasheet> All Categories > Discrete semiconductor> diode> SR580

Preview

SR580: Description5.0 amp schottky barrier rectifiers; CategoryDiscrete semiconductor diode; File Size62KB，2 Pages; ManufacturerUniohm Corp.; Websitehttp://www.uniohm.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

SR580 Overview

5.0 amp schottky barrier rectifiers

SR580 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Uniohm Corp.
Parts packaging code	DO-27
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	DO-27
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	5000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SR520

THRU

SR5100

5.0 AMP SCHOTTKY BARRIER RECTIFIERS

VOLTAGE RANGE

20 to 100 Volts

CURRENT

FEATURES

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability

* Epitaxial construction

5.0 Amperes

DO-27

.220(5.6)

.197(5.0)

DIA.

1.0(25.4)

MIN.

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202,

method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 1.10 grams

.375(9.5)

.285(7.2)

.052(1.3)

.048(1.2)

DIA.

1.0(25.4)

MIN.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

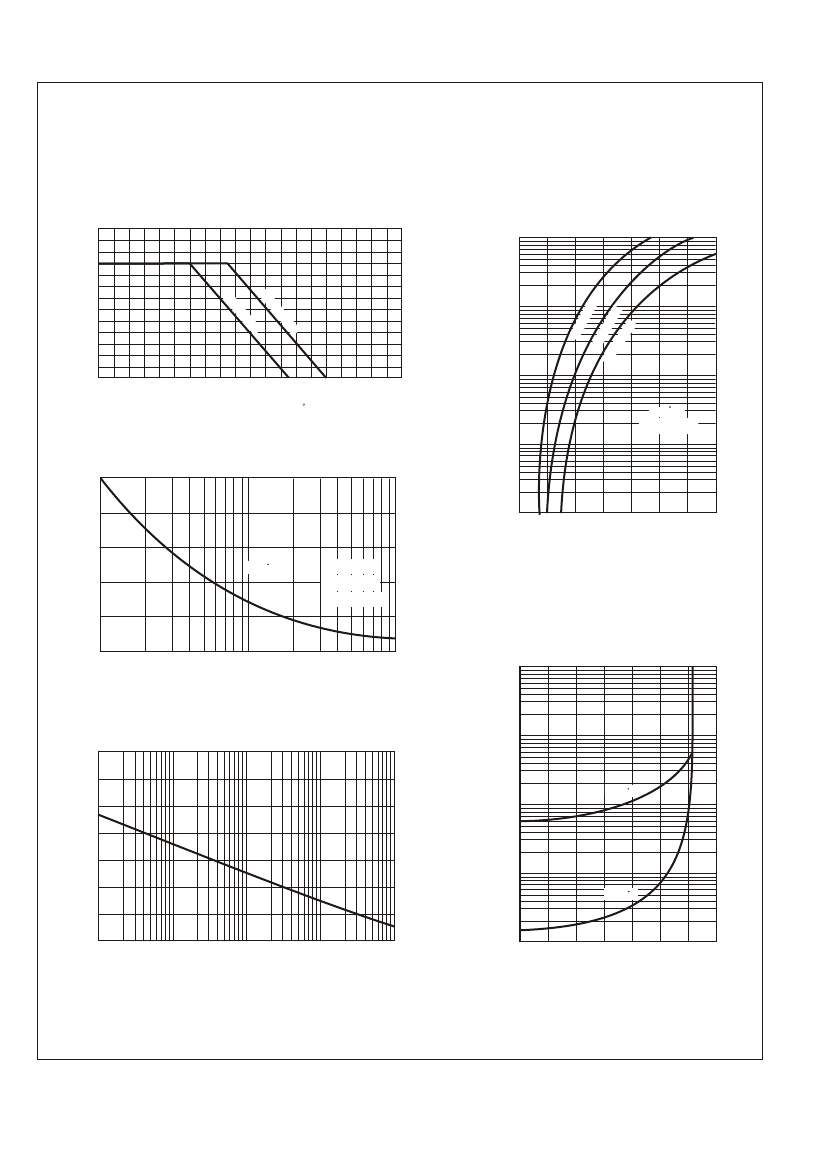

See Fig. 1

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Instantaneous Forward Voltage at 5.0A

Maximum DC Reverse Current

Ta=25 C

at Rated DC Blocking Voltage

Typical Junction Capacitance (Note1)

Typical Thermal Resistance RqJA (Note 2)

Operating Temperature Range T

J

Storage Temperature Range T

STG

NOTES:

SR520 SR530 SR540 SR550 SR560 SR580 SR5100 UNITS

20

14

20

30

21

30

40

28

40

50

35

50

5.0

150

0.55

5.0

50

380

10

-65

+125

-65

+150

-65

+150

0.70

0.85

60

42

60

80

56

80

100

70

100

V

A

V

mA

pF

C/W

C

Ta=100 C

1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length.
