PNN6028 , PNN7045 , PNN1030 ,
PNN1045
&
PNN1305
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

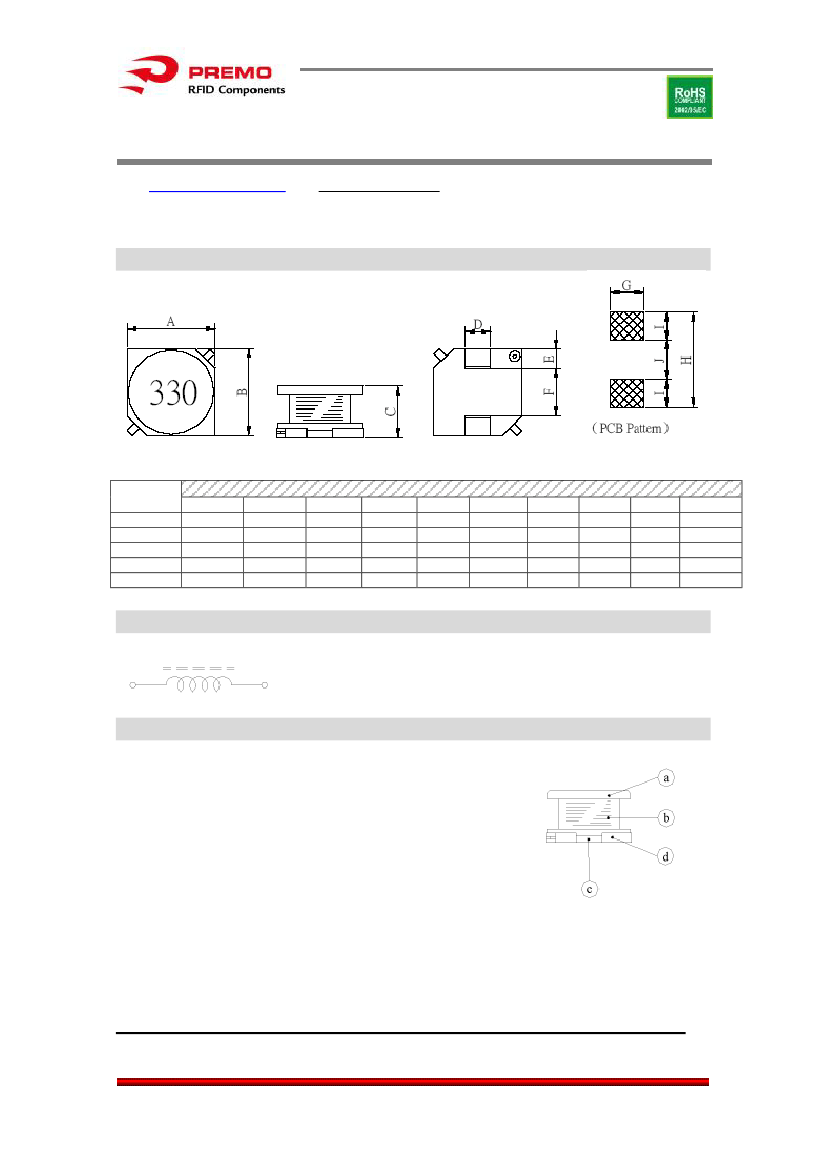

1. Configuration & Dimensions
Series
PNN6028
PNN7045
PNN1030
PNN1045
PNN1305
Dimensions [mm]
A
6.0±0.3
7.0±0.3
10.0±0.3
10.0±0.3
12.7±0.3
B
6.0±0.3
7.0±0.3
10.0±0.3
10.0±0.3
12.7±0.3
C
2.8±0.3
4.5±0.3
3.0±0.3
4.5±0.3
4.8±0.3
D
2.0±0.3
2.0 typ.
2.4 typ.
2.4 typ.
3.0 typ.
E(typ.)
1.9
1.5
2.0
2.0
2.0
F
2.2 ref.
4.0 typ.
6.0 typ.
6.0 typ.
8.6 typ.
G(ref.)
2.4
2.4
2.8
2.8
3.6
H(ref.)
6.7
7.8
10.4
10.4
13.6
I(ref.)
2.3
1.8
2.4
2.4
2.6
J(ref.)
2.1
4.2
5.6
5.6
8.4
2. Schematic Diagram
3. Materials
a.- Core : Ferrite DR Core
b.- Wire : Enamelled copper wire (class F)
c.- Terminal : Cu/Ni/Sn
d.- Base : LCP Base
e.- Adhesive : Epoxy resin
f.- Remark : Lead content 200ppm max. include ferrite
1
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN6028 , PNN7045 , PNN1030 ,
PNN1045
&
PNN1305
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

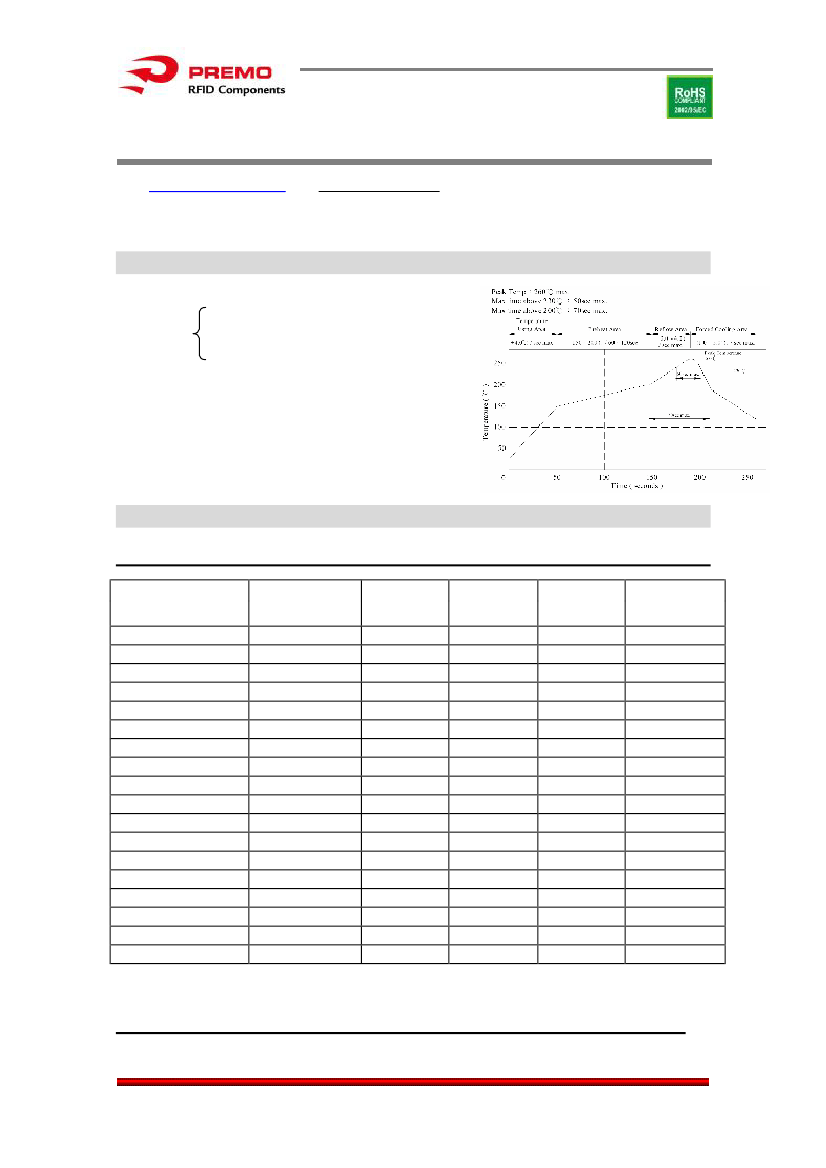

4. General Specification
30ºC max. (PNN1030)
a.- Temp. rise
40ºC max. (PNN6028,PNN7045,PNN1045,PNN1305)
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp. : -40ºC ~ +125ºC
(Temp. rise included)
d.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PNN6028
(1.5µH – 1000µH)
DWG No.
PNN6028 – 1R5M
PNN6028 – 2R2M
PNN6028 – 3R3M
PNN6028 – 4R7M
PNN6028 – 6R8M
PNN6028 – 100M
PNN6028 – 150M
PNN6028 – 220M
PNN6028 – 330M
PNN6028 – 470K
PNN6028 – 680K
PNN6028 – 101K
PNN6028 – 151K
PNN6028 – 221K
PNN6028 – 331K
PNN6028 – 471K
PNN6028 – 681K
PNN6028 – 102K
Inductance
(µH)
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
RDC
(Ω)
max.
0.028
0.030
0.058
0.065
0.085
0.115
0.160
0.210
0.320
0.450
0.650
0.880
1.280
1.920
2.850
4.350
6.500
12.500
Irms
(A)
max.
4.00
3.30
2.50
2.20
2.00
1.70
1.40
1.25
1.00
0.75
0.65
0.52
0.40
0.33
0.28
0.22
0.18
0.13
Isat
(A)
max.
3.50
2.80
2.30
2.00
1.70
1.50
1.15
0.95
0.80
0.70
0.60
0.50
0.38
0.30
0.26
0.21
0.18
0.14
2
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN6028 , PNN7045 , PNN1030 ,
PNN1045
&
PNN1305
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PNN7045
(1.2µH – 1000µH)
DWG No.
PNN7045 – 1R2M
PNN7045 – 1R5M
PNN7045 – 2R2M
PNN7045 – 3R3M
PNN7045 – 4R7M
PNN7045 – 6R8M
PNN7045 – 100M
PNN7045 – 150M
PNN7045 – 220M
PNN7045 – 330M
PNN7045 – 470K
PNN7045 – 680K
PNN7045 – 101K
PNN7045 – 151K
PNN7045 – 221K
PNN7045 – 331K
PNN7045 – 471K
PNN7045 – 681K
PNN7045 – 102K
Inductance
(µH)
1.2±20%
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Q
ref.
25
26
24
23
23
22
28
24
26
20
21
17
17
17
22
20
20
18
48
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
(MHz)
typ.
90
109
79
47
38
35
23
19
18
18
11
11
10
8
6
6
4
4
3
RDC
(Ω)
max.
0.022
0.027
0.032
0.036
0.042
0.054
0.070
0.086
0.125
0.150
0.230
0.280
0.430
0.580
0.930
1.240
1.850
2.400
4.000
Irms
(A)
max.
3.80
3.50
3.30
2.80
2.60
2.25
2.00
1.60
1.40
1.22
1.00
0.90
0.75
0.62
0.50
0.42
0.34
0.30
0.22
Isat
(A)
typ.
5.00
4.50
4.00
3.70
3.40
2.70
2.30
1.90
1.62
1.32
1.10
0.92
0.72
0.58
0.48
0.40
0.30
0.26
0.20
3
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN6028 , PNN7045 , PNN1030 ,
PNN1045
&
PNN1305
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PNN1030
(2.7µH – 1000µH)
DWG No.
PNN1030 – 2R7M
PNN1030 – 4R7M
PNN1030 – 6R8M
PNN1030 – 100M
PNN1030 – 150M
PNN1030 – 220M
PNN1030 – 330M
PNN1030 – 470M
PNN1030 – 680M
PNN1030 – 101K
PNN1030 – 151K
PNN1030 – 221K
PNN1030 – 331K
PNN1030 – 471K
PNN1030 – 681K
PNN1030 – 102K
Inductance
(µH)
2.7±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Q
ref.
13
13
15
15
18
20
16
10
12
14
23
23
25
20
18
42
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
(MHz)
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
(MHz)
typ.
73.6
49.5
38.1
33.1
25.7
22.3
16.4
14.2
12.2
9.3
7.9
6.2
5.1
3.8
3.2
2.5
RDC
(Ω)
max.
0.028
0.040
0.052
0.064
0.100
0.145
0.200
0.270
0.360
0.540
0.700
1.150
1.700
2.250
3.300
4.700
Irms
(A)
max.
3.00
2.60
2.20
2.00
1.65
1.38
1.10
0.96
0.82
0.70
0.60
0.46
0.38
0.28
0.23
0.20
Isat
(A)
typ.
4.20
3.50
2.80
2.40
1.85
1.60
1.25
1.10
0.90
0.75
0.58
0.48
0.40
0.32
0.27
0.23
PNN1045
(2.7µH – 1000µH)
DWG No.
PNN1045 – 2R7M
PNN1045 – 4R5M
PNN1045 – 6R8M
PNN1045 – 100M
PNN1045 – 150M
PNN1045 – 220M
PNN1045 – 330M
PNN1045 – 470M
PNN1045 – 680M
PNN1045 – 101K
PNN1045 – 151K
PNN1045 – 221K
PNN1045 – 331K
PNN1045 – 471K
PNN1045 – 681K
PNN1045 – 102K
Inductance
(µH)
2.7±20%
4.5±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Q
ref.
25
25
22
26
26
22
20
21
21
14
16
15
12
12
13
25
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
(MHz)
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
(MHz)
typ.
68.7
44.2
35.8
27.8
23.7
19.4
15.8
13.6
11.1
9.7
7.1
6.4
4.6
4.2
3.6
2.9
RDC
(Ω)
max.
0.026
0.033
0.040
0.050
0.068
0.088
0.110
0.165
0.225
0.300
0.500
0.680
0.950
1.280
1.920
2.700
Irms
(A)
max.
4.80
4.20
3.50
3.20
2.50
2.20
1.90
1.60
1.30
1.10
0.85
0.72
0.62
0.52
0.43
0.38
Isat
(A)
typ.
6.20
5.20
4.20
3.60
3.00
2.60
2.10
1.85
1.50
1.30
1.05
0.85
0.70
0.58
0.46
0.40
4
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PNN6028 , PNN7045 , PNN1030 ,
PNN1045
&
PNN1305
SMD Power Inductors Unshielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PNN1305
(2.5µH – 1000µH)
DWG No.
PNN1305 – 2R5
PNN1305 – 3R5
PNN1305 – 4R6
PNN1305 – 6R8
PNN1305 – 100M
PNN1305 – 150M
PNN1305 – 220M
PNN1305 – 330M
PNN1305 – 470M
PNN1305 – 680M
PNN1305 – 101K
PNN1305 – 151K
PNN1305 – 221K
PNN1305 – 331K
PNN1305 – 471K
PNN1305 – 681K
PNN1305 – 102K
Inductance
(µH)
2.5±25%
3.5±25%
4.6±25%
6.8±25%
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Q
ref.
20
18
20
18
25
25
26
22
20
20
18
15
15
10
10
10
32
Test Freq.
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
(MHz)
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.252
SRF
(MHz)
typ.
61.0
43.0
35.0
32.0
27.0
24.0
20.0
16.0
13.0
11.0
11.0
8.0
7.0
6.0
4.0
3.5
2.7
RDC
(mΩ)
max.
14
16
18
24
37
46
62
85
130
165
255
380
500
700
1150
1400
2350
Irms
(A)
max.
7.20
6.00
5.20
4.30
3.60
3.30
2.90
2.50
1.90
1.65
1.40
1.20
1.00
0.85
0.67
0.60
0.46
Isat
(A)
typ.
8.00
7.00
6.00
5.20
4.40
3.70
3.00
2.60
2.00
1.80
1.40
1.15
0.95
0.80
0.70
0.58
0.47

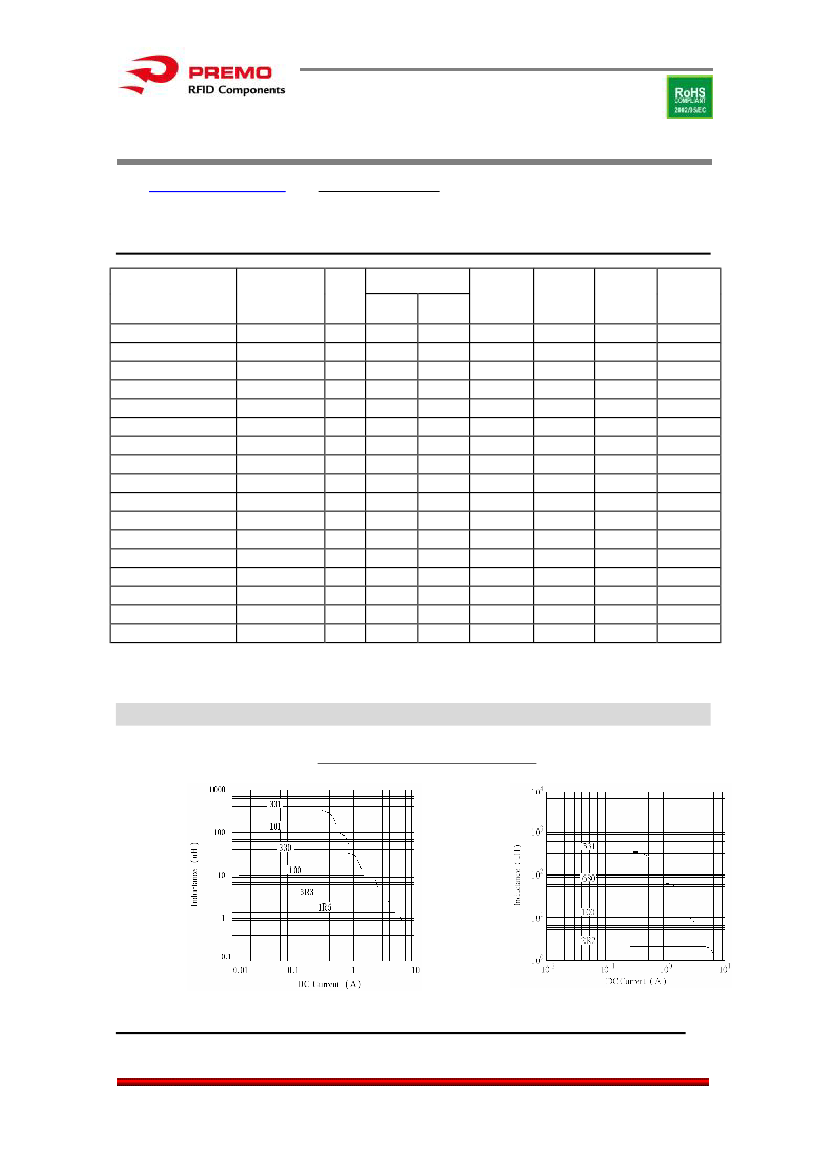

[Inductance tested at : 0.1V(PNN6028…PNN1045), 10mV(PNN1305)]
[Irms base on temp. rise : 30ºC(PNN1030), 40ºC(PNN6028,PNN7045,PNN1045,PNN1305)]
[Isat base on
∆L/L0A
= 10%(PNN6028…PNN1045), 25%(PNN1305)]
6. Curve
Inductance VS. DC Current Curve
PNN6028
PNN7045
5
SMD Power Inductors
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
京公网安备 11010802033920号
EEWORLD
