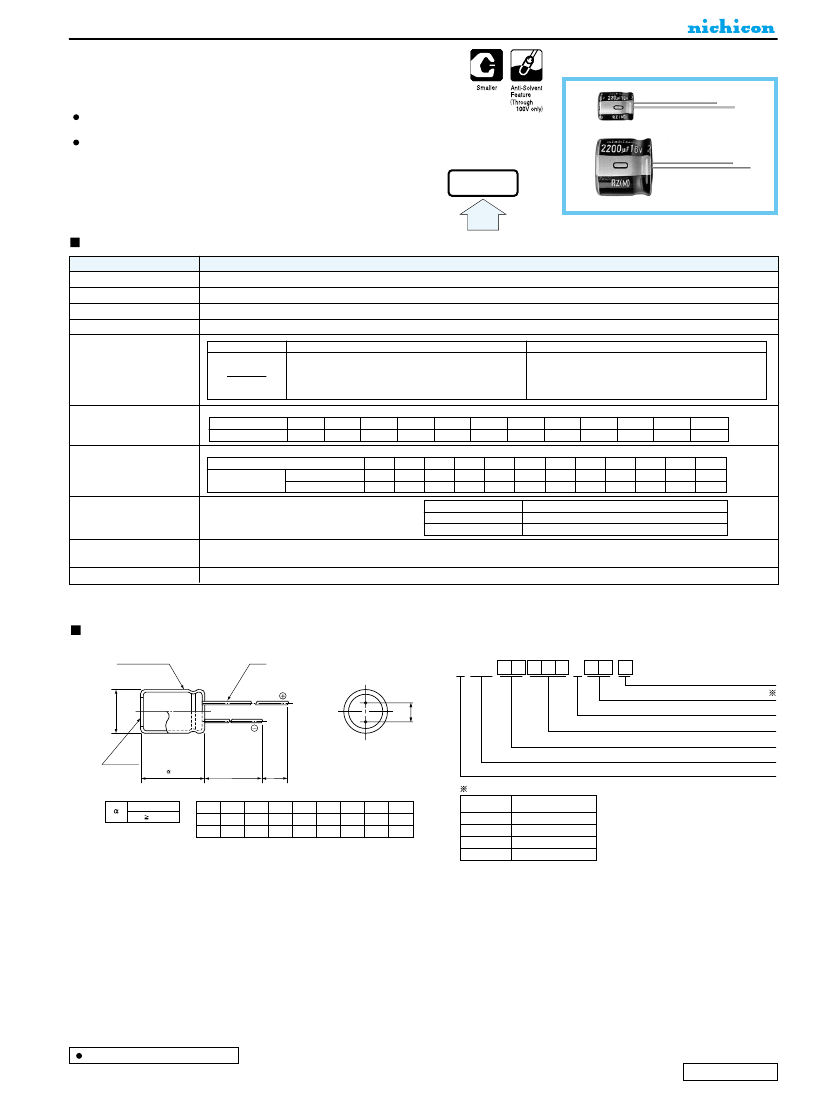

ALUMINUM ELECTROLYTIC CAPACITORS

RZ

Compact & Low-Profile Sized, Wide Temperature Range

series

Very small case sizes same as RS series, but operating over wide

temperature range of – 55 (– 40) ~ +105˚C.

Adapted to the RoHS directive (2002/95/EC).

(Through 100V only)

RZ

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

RS

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V) , – 40 ~ +105˚C (160 ~ 400V)

6.3 ~ 400V

0.1 ~ 10000µF

± 20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

160 ~ 400

After 1 minute's application of rated voltage,

I

= 0.04CV+100 (µA) or less

Leakage Current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20˚C

tan

δ

Rated voltage (V)

tan

δ

(

MAX.

)

6.3

0.28

10

0.24

16

0.20

6.3

5

10

25

0.16

10

4

8

35

0.14

16

3

6

25

2

4

50

0.12

35

2

3

63

0.10

50

2

3

100

0.08

63

2

3

160

0.20

100

2

3

200

0.20

160

3

4

200

3

4

250

0.20

250

3

6

400

0.25

400

6

10

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

After 1000 hours' application of rated voltage

at 105˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

δ

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours, and after performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

φ

d

1

2

3

4

5

6

7

8

9 10 11

12

Size code

UR Z 1 A 3 3 1 MPD

Configuration

P ±

0.5

φD

+

0.5 MAX

Capacitance tolerance (±20%)

Rated Capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

L

+

MAX

15

MIN

4

MIN

Type

Configuration

(mm)

(φD < 20) 1.5

(φD 20) 2.0

φD

P

φd

5

2.0

0.5

6.3

2.5

0.5

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

20

10.0

1.0

φ

D

5 · 6.3

8 · 10

12.5 ~ 18

20

Pb-free leadwire

Pb-free PET sleeve

DD

PD

HD

RD

•

Please refer to page 21 about the end seal configulation.

Please refer to page 21, 22, 23 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.
