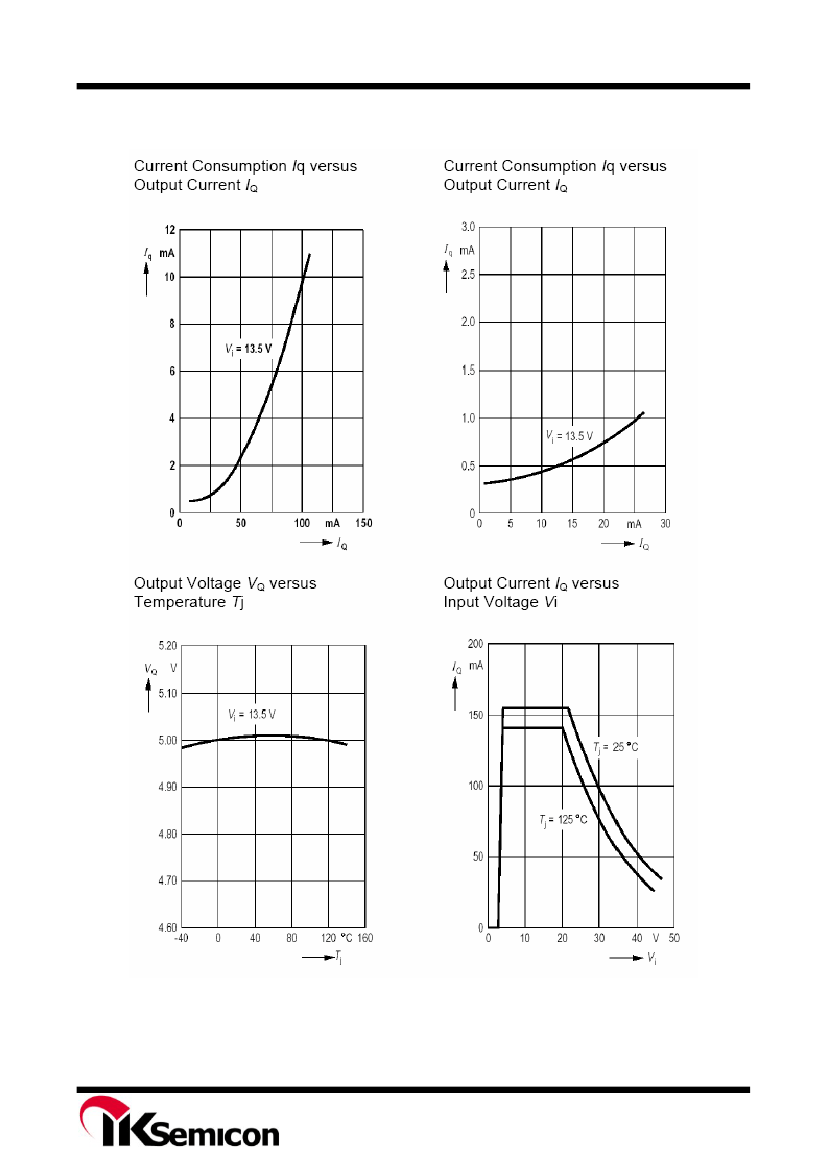

5-V Low-Drop Fixed-Voltage Regulator
ILE 4264 G is a 5-V low-drop fixed-voltage regulator
in an SOT-223 package. The IC regulates an input
voltage
V
I
in the range 5.5 V <
V
I
< 45 V to
V
Qrated
= 5.0 V. The maximum output current is more
than 120 mA. This IC is shortcircuit-proof and features
temperature protection that disables the circuit at
overtemperature.
Features:
Output voltage tolerance
≤
±
2 %
Low-drop voltage
Very low current consumption
Overtemperature protection
Short-circuit proof
Suitable for use in automotive electronics
Reverse polarity.
ILE 4264G
P-SOT223-4-1
ILE4264G

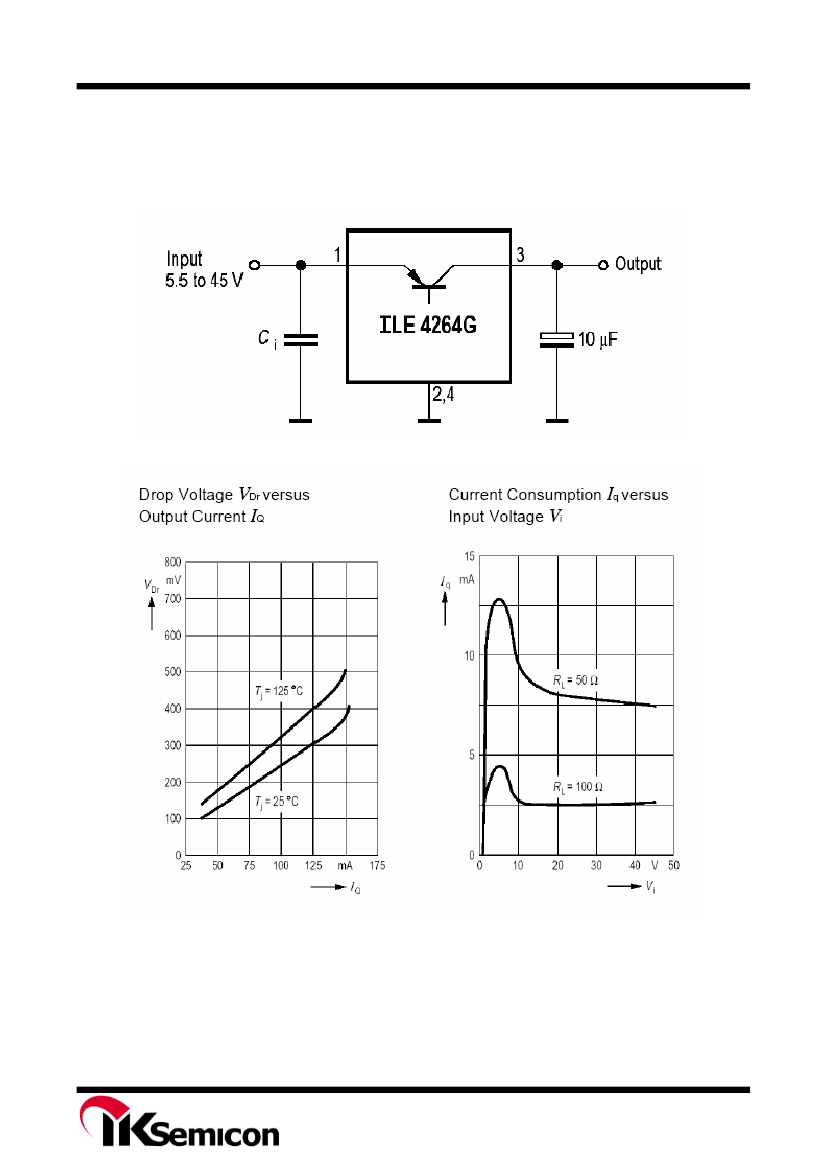

Dimensioning Information on External Components
The input capacitor
C
i
is necessary for compensating line influences. Using a resistor of
approx. 1
Ω
in series with
C
i
, the oscillating of input inductivity and input capacitance
can be clamped. The output capacitor
C
Q
is necessary for the stability of the regulating
circuit. Stability is guaranteed at values
C
Q
≥
10µF and an ESR
≤
10Ω within the
operating temperature range.
Pin Definitions and Functions
Pin
1
2, 4
3
Symbol
Function
Input voltage;
block to
ground directly on IC with
ceramic capacitor
Ground
5-V output voltage;
block
to ground with
≥
10-µF
Ω
capacitor, ESR < 10
Ω
V
I
GND
V
Q

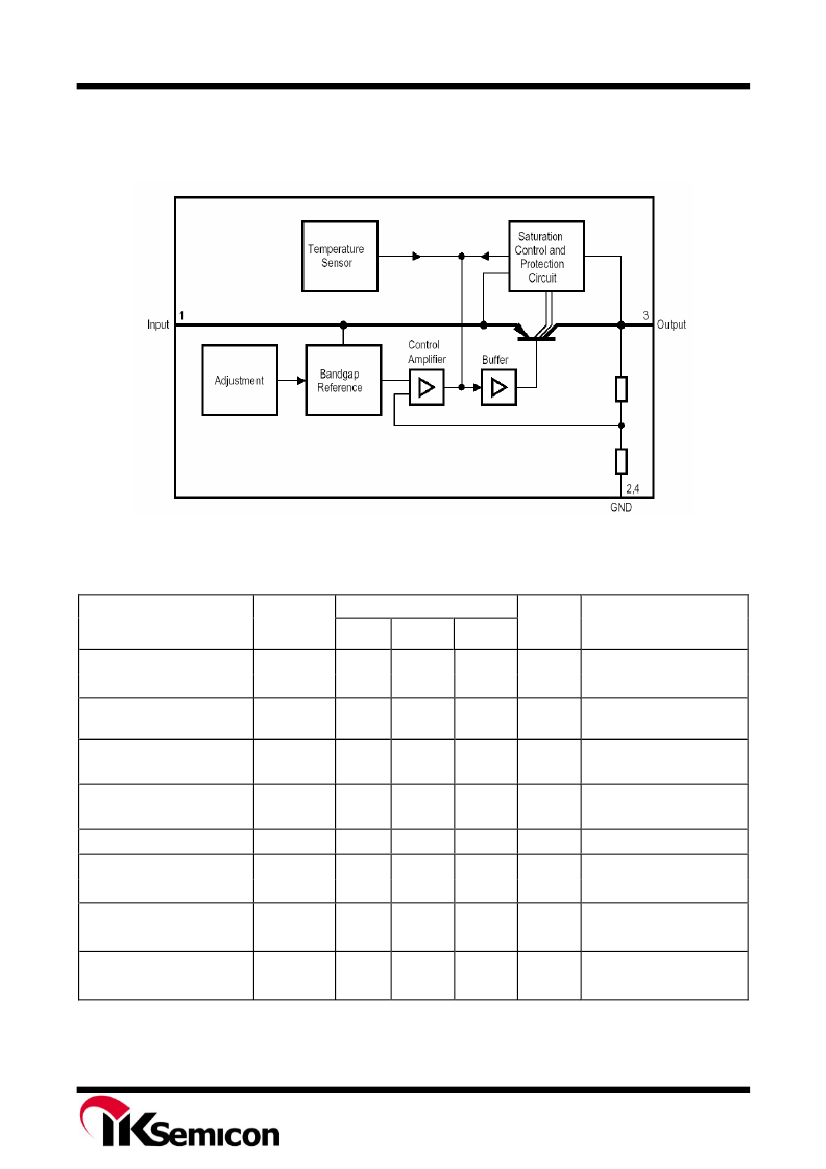

Circuit Description
The control amplifier compares a reference voltage, which is kept highly precise by resistance adjustment, to
a voltage that is proportional to the output voltage and drives the base of the series transistor via a buffer.
Saturation control, working as a function of load current, prevents any over-saturation of the power element.
The IC is additionally protected against overload, overtemperature and reverse polarity.
1
