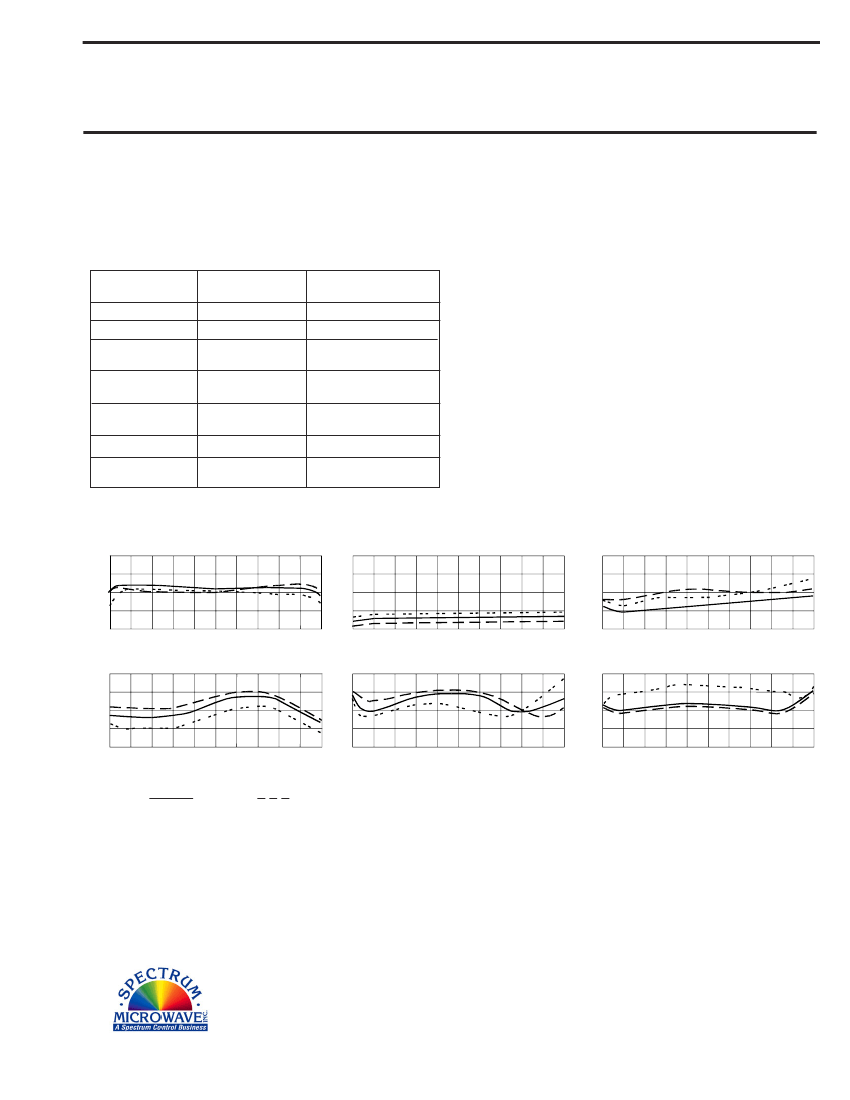

RF AMPLIFIER
MODEL
BXMP1002
Features
!
!
!
!
High Output Power: +30.5 dBm Typical
High Third Order Intercept: +45 dBm Typical
Operating Temp. - 55 ºC
to +85
ºC
Environmental Screening Available
Medium Power Amplifier
Available as:
FPMP1002, 4 Pin .5” Sq. Flatpack
WPMP1002, 8 Pin .5” Sq. Surface Mount - Gullwing
BXMP1002, SMA Connectorized Housing
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +60 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +54 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +45 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
10 - 100 MHz
10
+30.5
-17
1.8:1
1.8:1
5.5
+15
320
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 100 MHz
8.5
+30 Min.
-16 Max.
2.0:1 Max.
2.0:1 Max.
6.0 Max.
+15
365
Maximum (No Damage) Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 20 dBm
Short Term RF Input Power .... 500 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
12
11
10
9
8
Start 10 MHz
Stop 100 MHz
Reverse Isolation (dB)
0
- 5
- 10
- 15
- 20
Start 10 MHz
Stop 100 MHz
Noise Figure (dB)
6.5
6
5.5
5
4.5
Start 10 MHz
Stop 100 MHz
1 dB Comp. (dBm)
31
30.8
30.6
30.4
30.2
Start 10 MHz
Stop 100 MHz
Input VSWR
2.0
1.5
1.0
Start 10 MHz
Stop 100 MHz
Output VSWR
2.0
1.5
1.0
Start 10 MHz
Stop 100 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
3/25/04
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
