ISSUED DATE :2005/08/31
REVISED DATE :
GSM BT 5089
Description

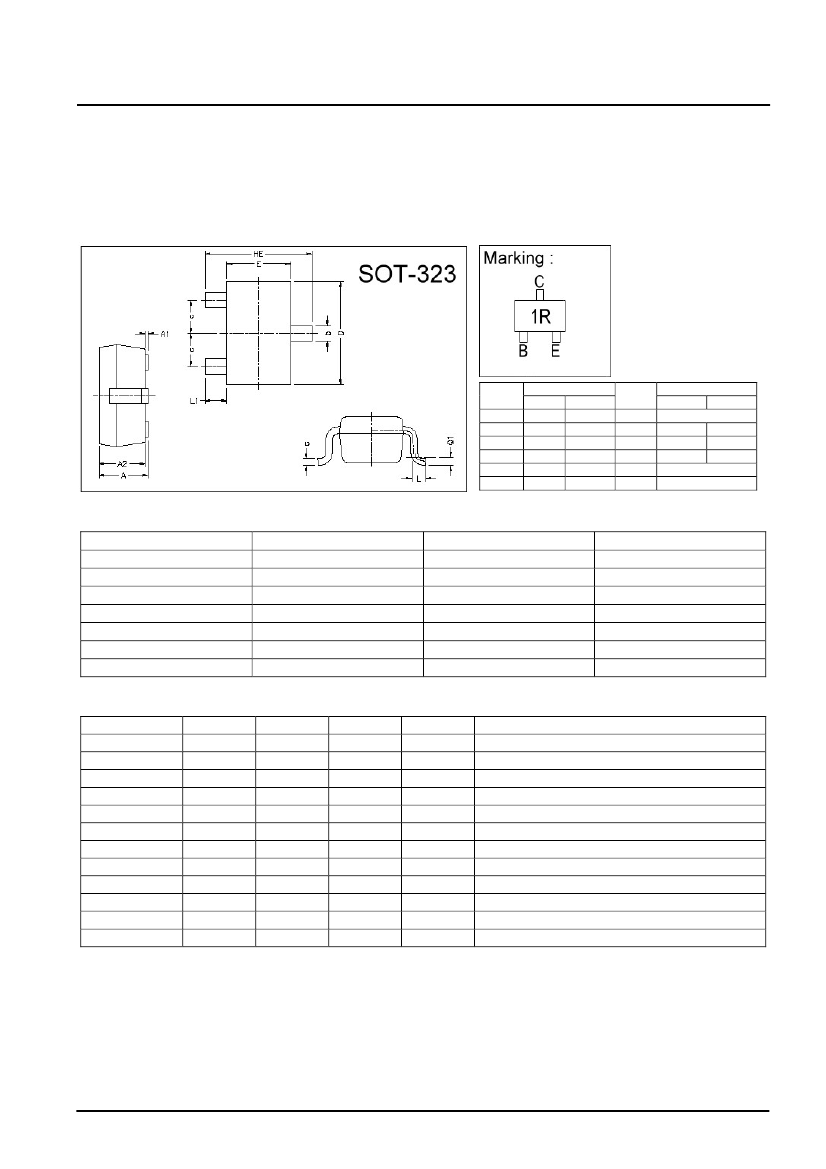

Package Dimensions
NP N EP ITAXI AL P L ANAR T RANS ISTO R
The GSMBT5089 is designed for low noise, high gain and general purpose amplifier applications.
REF.
A
A1
A2
D
E
HE
Millimeter
Min.
Max.
0.80
1.10
0
0.10
0.80
1.00
1.80
2.20
1.15
1.35
1.80
2.40
REF.
L1
L
b
c
e
Q1
Millimeter
Min.
Max.
0.42 REF.
0.15
0.35
0.25
0.40
0.10
0.25
0.65 REF.
0.15 BSC.
Absolute Maximum Ratings at Ta = 25 :
Parameter
Junction Temperature
Storage Temperature
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Total Power Dissipation
Symbol
Tj
Tstg
V
CBO
V
CEO
V
EBO
I
C
P
D
Ratings
+150
-55~+150
30
25
4.5
50
225
Unit
V
V
V
mA
mW
Electrical Characteristics (Ta = 25
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
*V
CE(sat)
*V
BE(sat)
*h
FE
1
*h
FE
2
*h
FE
3
fT
Cob
Min.
30
25
4.5
-
-
-
-
400
450
400
50
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
)
Max.
-
-
-
50
100
500
800
1200
-
-
-
4.0
Unit
V
V
V
nA
nA
mV
mV
Test Conditions
I
C
=100uA , I
E
=0
I
C
=1mA, I
B
=0
I
E
=10uA ,I
C
=0
V
CB
=15V, I
E
=0
V
EB
=4.5V, I
C
=0
I
C
=10mA, I
B
=1mA
I
C
=10mA, I
B
=1mA
V
CE
=5V, I
C
=0.1mA
V
CE
=5V, I
C
=1mA
V
CE
=5V, I
C
=10mA
V
CE
=5V, I
C
=0.5mA, f=20MHz
V
CB
=5V, I
E
=0, f=1MHz
* Pulse Test: Pulse Width
380 s, Duty Cycle
2%
MHz
pF
1/2
ISSUED DATE :2005/08/31
REVISED DATE :

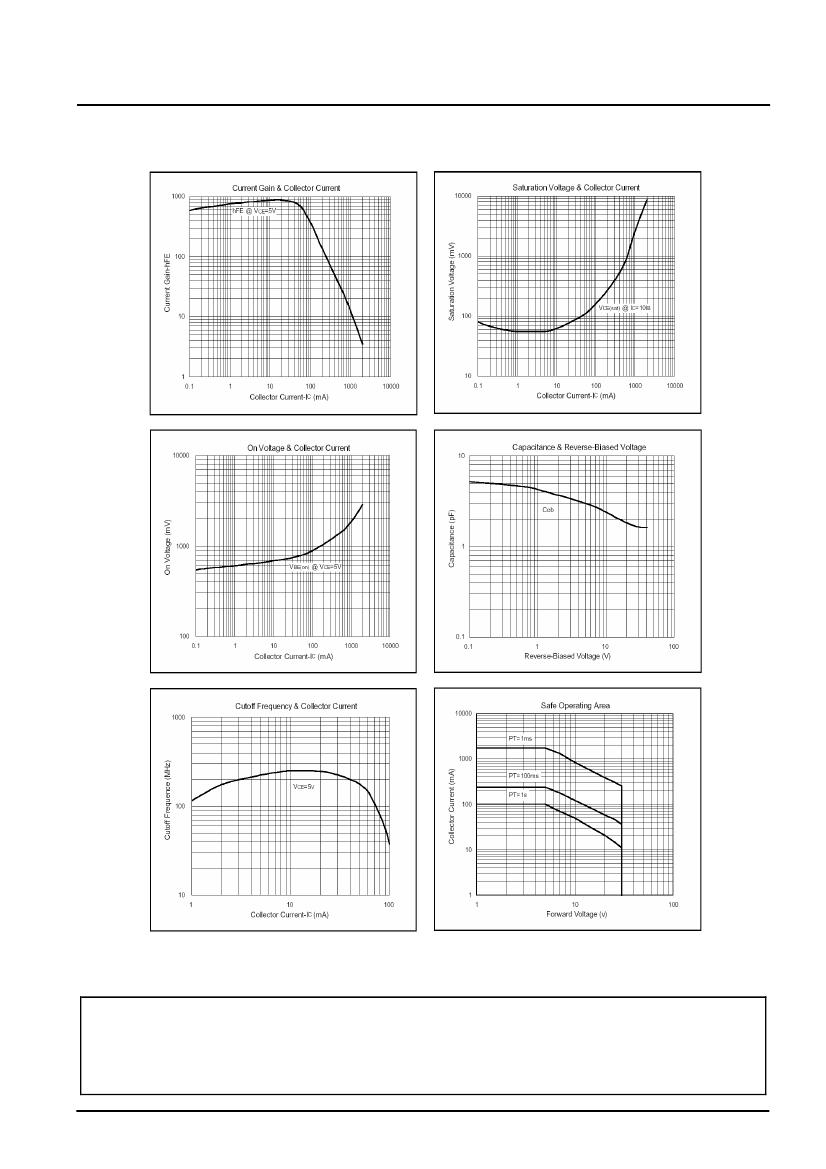

Characteristics Curve
Important Notice:
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of GTM.
GTM reserves the right to make changes to its products without notice.
GTM semiconductor products are not warranted to be suitable for use in life-support Applications, or systems.
GTM assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
Taiwan:
No. 17-1 Tatung Rd. Fu Kou Hsin-Chu Industrial Park, Hsin-Chu, Taiwan, R. O. C.
TEL : 886-3-597-7061 FAX : 886-3-597-9220, 597-0785
China:
(201203) No.255, Jang-Jiang Tsai-Lueng RD. , Pu-Dung-Hsin District, Shang-Hai City, China
TEL : 86-21-5895-7671 ~ 4 FAX : 86-21-38950165
2/2
