BL-HKB35A-TRB
●
Features:
1. Emitted Color : Super Yellow
2. Lens Appearance : Water Clear
3. Mono-color type.
●
Package Dimensions:
2.0(.079)± 0.2
Cathode Mark
1.2(.047)
LED die
4. 2.0x1.25x1.0mm(0805) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
1.25(.049)± 0.2
3°
1.0(.039)± 0.2
2-R0.05(.002) MAX.
2-R0.05(.002) MAX
For reflow soldering
0.3(.012)
1.4(.055)
1.2(.047)
0.9(.035)
1.2(.047)
1.00
1.25(.049)
Cathode Mark
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
0.4(.016)
0.4(.016)
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
28
-
-
582
-
-
Typ.
2.1
50
-
590
-
15
120
Max.
2.6
-
100
-
592
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

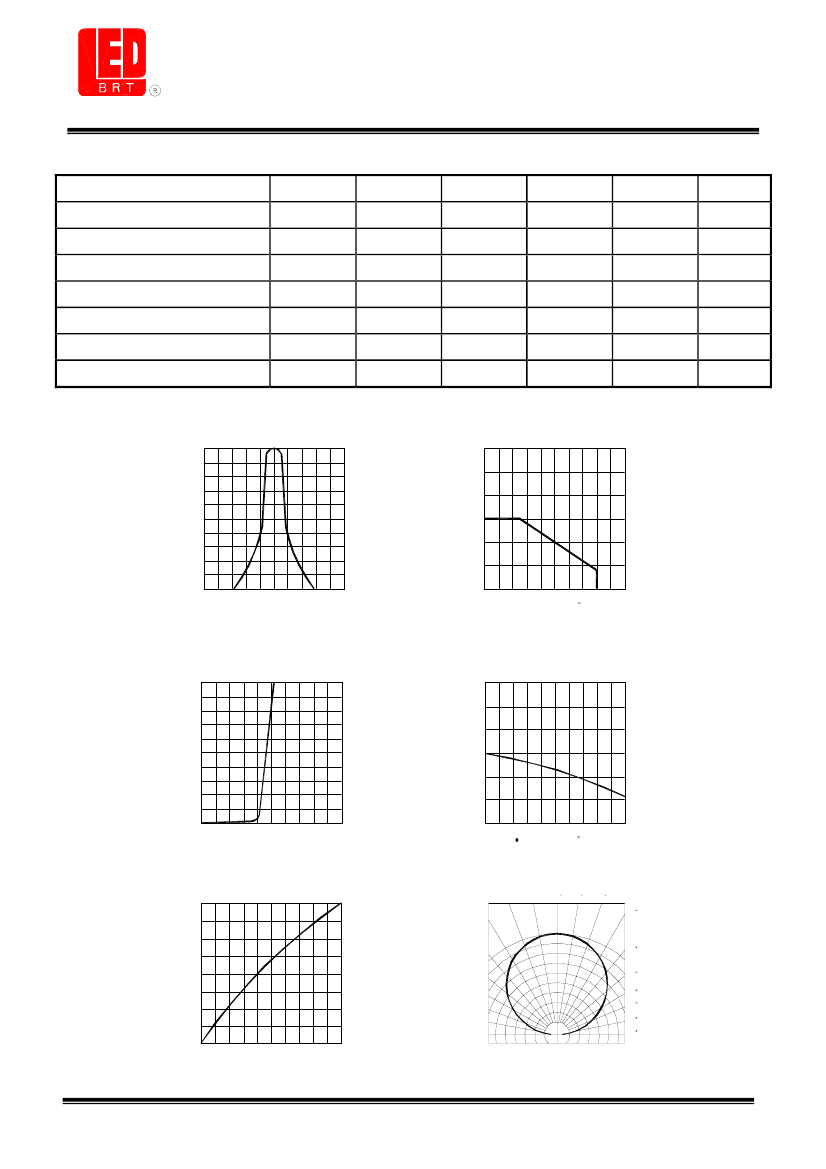

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relativ e intens ity vs . wavelength
1 .0
60
vs . ambient temperature
50
Relat iv e radiant intensity
Forward c urrent (mA)
590
640
40
0 .5
30
20
10
0
540
0
20
40
60
80
1 00
Wav elength (nm)
A mb i e n t te mp e ra ture Ta( C)
Fig.3 Forward c urrent v s. f orward voltage
50
3 .0
Fig.4 Relativ e luminous intensity vs.
ambient t emperature
40
2 .5
Forward c urrent (mA)
(No rmal iz ed @ 20 mA)
30
R el ativ e Lu mi no us i ntensity
2 .0
1 .5
20
1 .0
10
0 .5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward v oltage(V)
A mb i e n t te mp e ra ture Ta( C)
Fig.5 Relativ e luminous intensity v s. f orward current
2 .0
Fig.6 Radiation diagram
0
10
20
30
Relat iv e luminous int ensity (@20mA)
Relativ e radiant intensity
1 .5
40
1 .0
0 .9
0 .8
50
60
70
0 .7
80
90
1 .0
0 .5
0
10
20
30
40
50
0 .5
0 .3
0 .1
0 .2
0 .4
0 .6
Forward c urrent (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRB
●
Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.3± 0.1
1.42 ±0.1
ANODE
START
END
13.0± 0.5
13.0± 0.5
71.0± 1
5.3 ± 0.05
8.0 ± 0.3
2.26± 0.1
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
1.75 ± 0.1
3.5 ± 0.05
TRAILER
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
M
N
P
Q
24
37
55
82
Max. (mcd)
48
72
11 0
160
●
B IN：
x
Intensity BIN CODE
Ver.1.0 Page 4 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB35A-TRB
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
:B-12
Temperature JIS-C-7021
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating：
140℃-160℃,within 2 minutes.
Operation heating：
260℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.1.0 Page 5 of 7
