BL-PDC-CJS-C10: Descriptiondomiled ingan; CategoryLED optoelectronic/LED photoelectric; File Size372KB，12 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PDC-CJS-C10 Overview

domiled ingan

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	CYAN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	WATER CLEAR
Nominal luminous intensity	198.75 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg

DomiLED InGaN

•

High brightness surface mount LED.

Based on InGaN technology.

120° viewing angle.

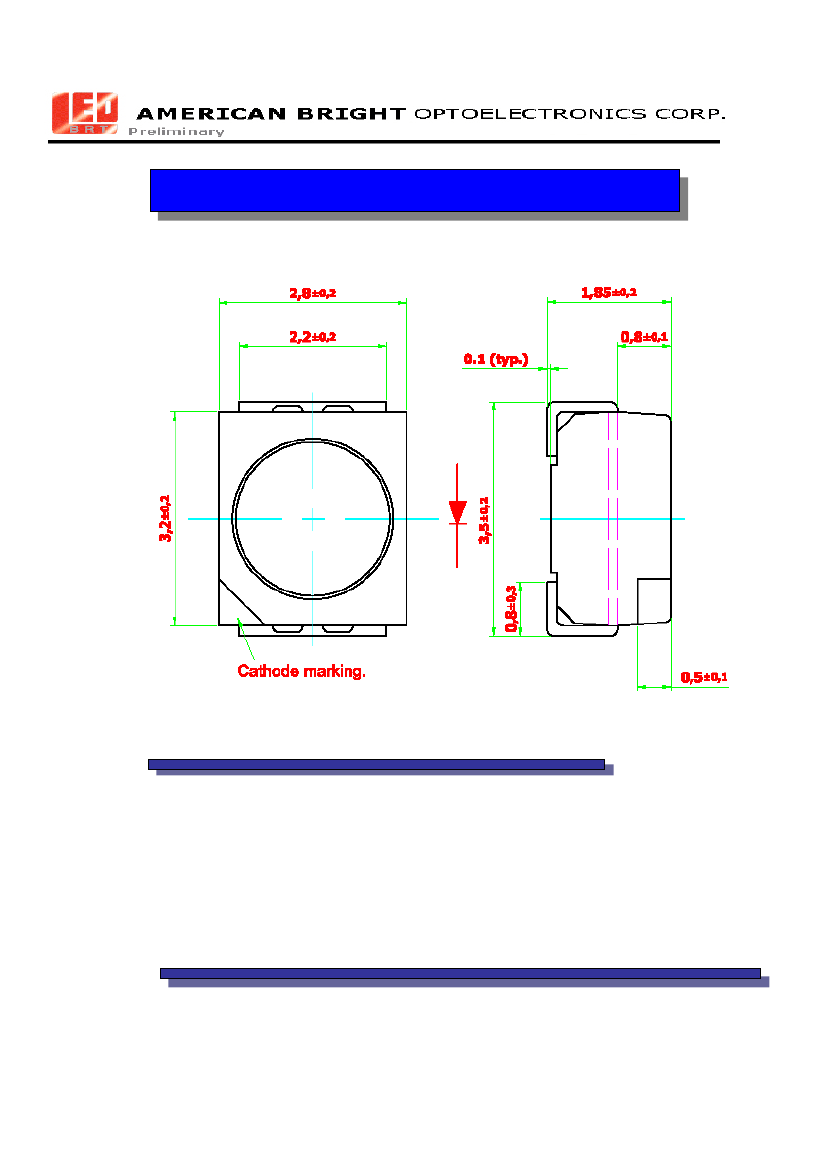

Small package outline (LxWxH) of 2.8 x 3.2 x 1.8 mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to both IR reflow soldering and TTW soldering.

06/06/05

DomiLED InGaN DDx-xJx - Catalogue-v8

Page 1 of 1

	BL-PDC-CJS-C10	BL-PDB-UJS-C10	BL-PDB-CJS-C10	BL-PDB-SJS-C10
Description	domiled ingan	domiled ingan	domiled ingan	domiled ingan
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown
color	CYAN	BLUE	BLUE	BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	198.75 mcd	168.25 mcd	78.75 mcd	125.75 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm	1.75 mm	1.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND	ROUND
size	2.4 mm	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg	120 deg
