BYD33D - BYD33M
PRV : 200 - 1000 Volts
Io : 1.3 Amperes
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Pb / RoHS Free
AVALANCHE FAST SOFT-RECOVERY
RECTIFIER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum Continuous Reverse Voltage
Min. Reverse Avalanche Breakdown Voltage @ I
R
= 0.1 mA
Maximum Average Forward Current
T
tp
= 55
°C
(Note 1)
SYMBOL
V
RRM
V
R
V
(BR)R-min
I
F(AV)
I
FSM
I
FRM
V
F
I
R
I
R(H)
Trr
R
θ
JA
T
J
T
STG
BYD
33D
200
200
300
BYD
33G
400
400
500
BYD
33J
600
600
700
1.3
20
12
1.3
1.0
100
BYD
33K
800
800
900
BYD
33M
1000
1000
1100
UNIT
V
V
V
A
A
A
V
µA
µA
Maximum Non-Repetitive Peak Forward Surge Current
Maximum Repetitive Peak Forward Current
Maximum Forward Voltage at 1.0 Amp.
Maximum Reverse Current at Reverse Voltage
Maximum Reverse Current at Reverse Voltage Tj = 165
°C
Maximum Reverse Recovery Time (Note 2)
Thermal Resistance - Junction to Ambient
Junction Temperature Range
Storage Temperature Range
Notes :
(1) Lead Length 10 mm.
(2) Measured with I
F
= 1 Amp to V
R
≥
30V
250
120
- 65 to + 175
- 65 to + 175
300
ns
K/W
°C
°C
Page 1 of 2
Rev. 02 : March 25, 2005

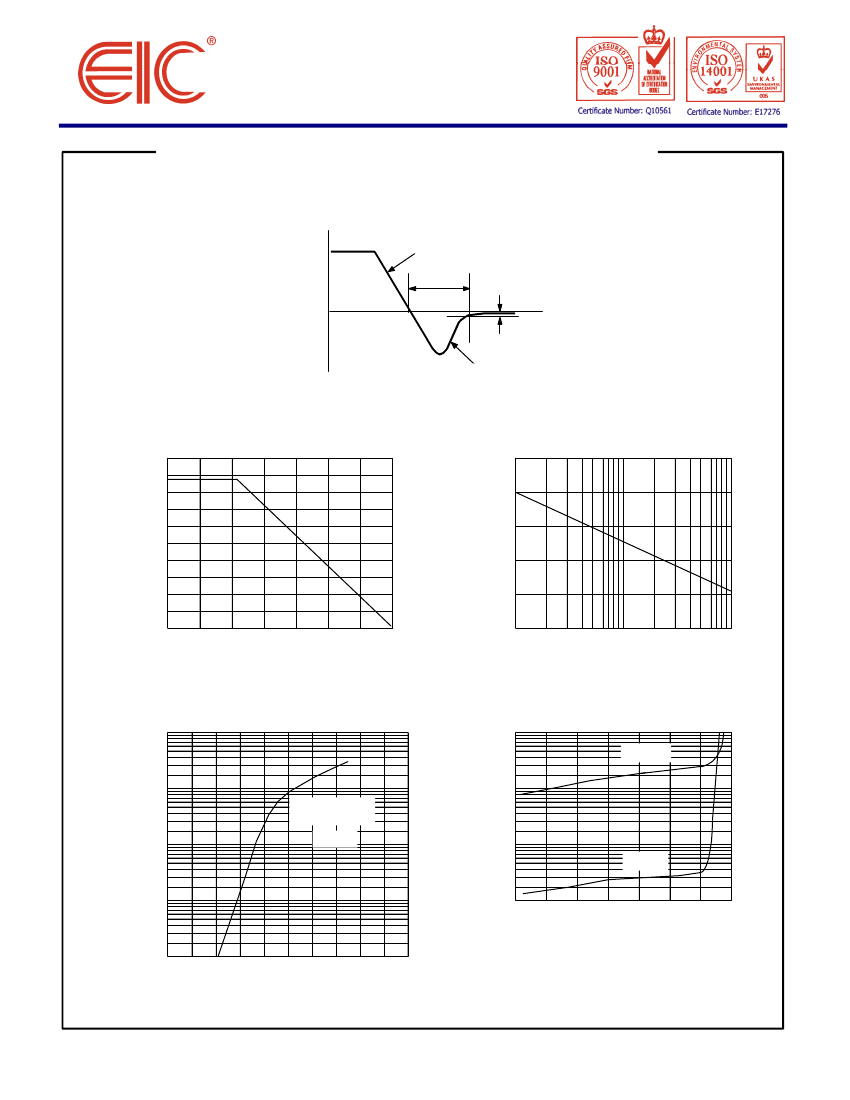

RATING AND CHARACTERISTIC CURVES ( BYD33D - BYD33M )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC
I
F
dI
F
/dt
Trr
t
10 %
I
R
dI
R
/dt
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
1.5
25
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
1.2
20
0.9
15
0.6
10
0.3
5
0
0
0
25
50
75
100
125
150
175
1
2
4
6
10
20
40
60
100
TIE-POINT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
100
10
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
T
J
= 100
°
C
FORWARD CURRENT, AMPERES
REVERSE CURRENT,
MICROAMPERES
10
Pulse Width = 300
µs
2% Duty Cycle
T
J
= 25
°C
1.0
1.0
0.1
T
J
= 25
°
C
0.1
0.01
0
20
40
60
80
100
120
140
0.01
0
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.0
PERCENT OF RATED REVERSE
VOLTAGE, (%)
FORWARD VOLTAGE, VOLTS
Page 2 of 2
Rev. 02 : March 25, 2005
