P6SMBJ85A datasheet, PDF - EEWORLD Datasheet

P6SMBJ85A: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA; CategoryDiscrete semiconductor diode; File Size167KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

P6SMBJ85A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6SMBJ85A	-	-	View	Buy Now

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum breakdown voltage	105 V
Minimum breakdown voltage	94.4 V
Breakdown voltage nominal value	99.7 V
Maximum clamping voltage	137 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

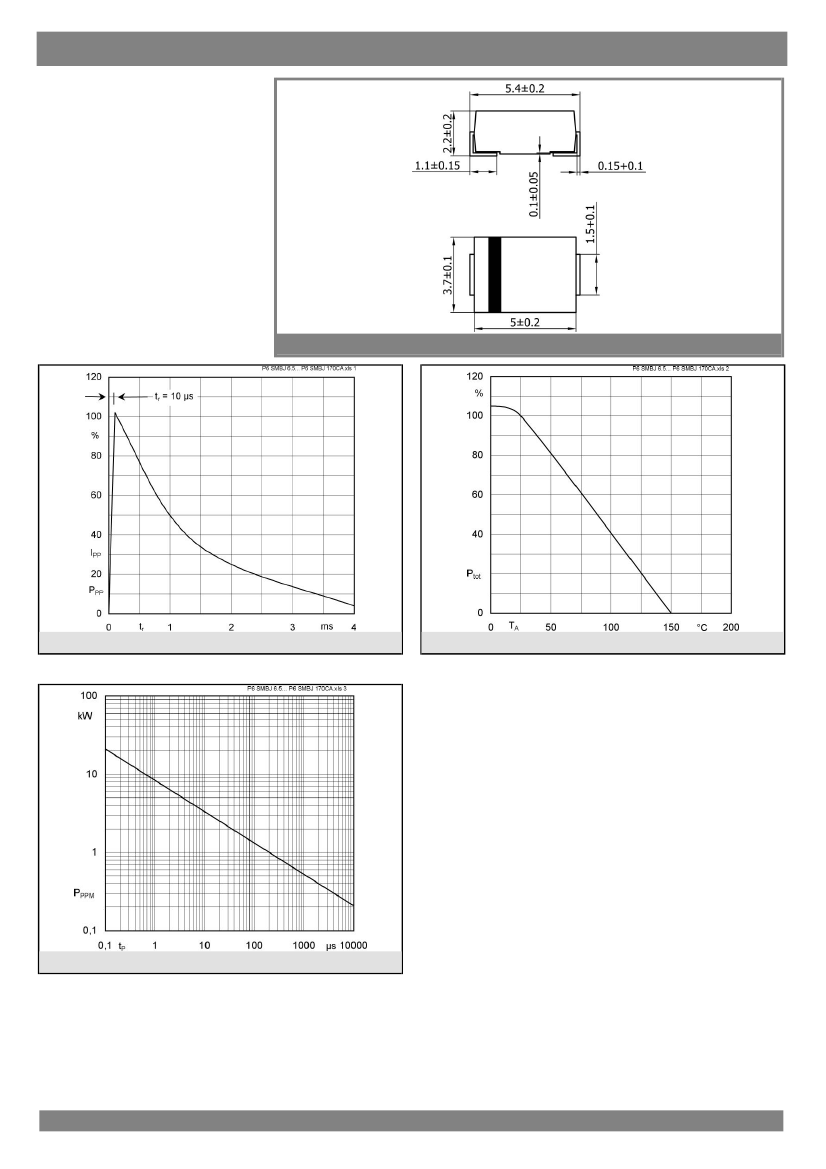

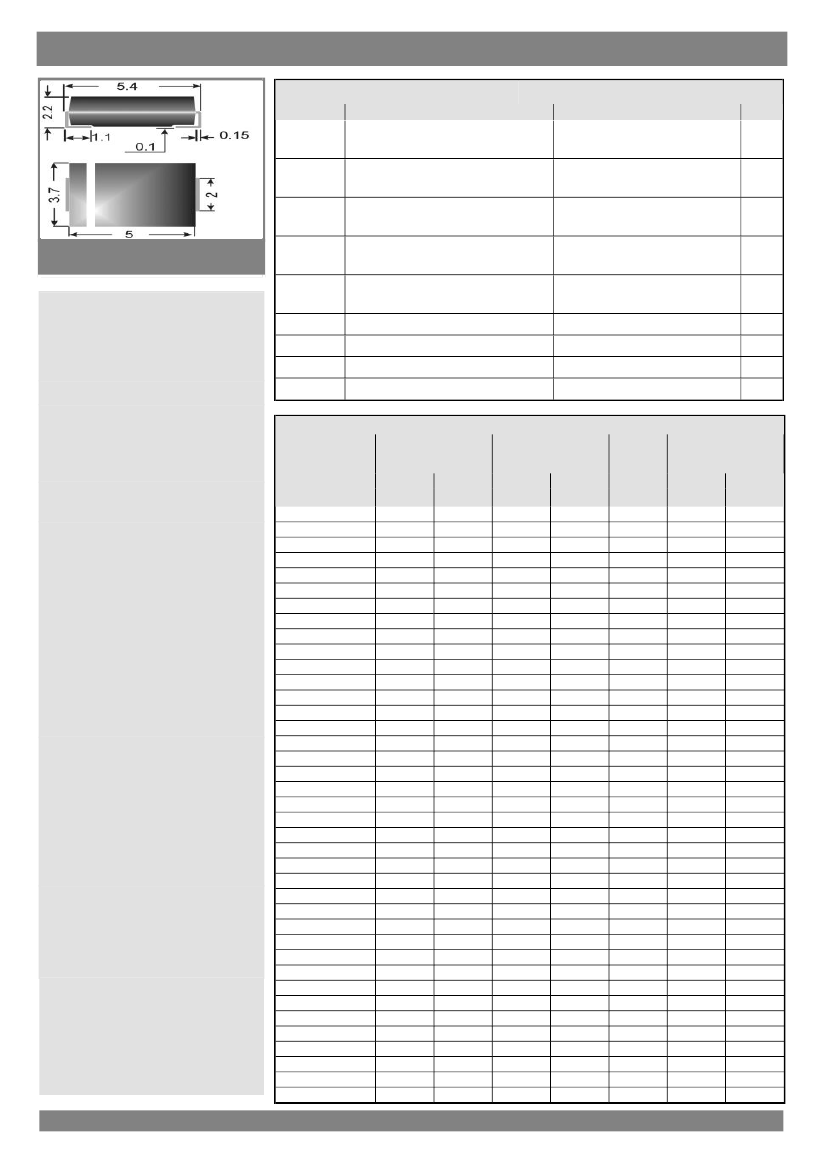

P6 SMBJ 6.5...P6 SMBJ 130CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

P6 SMBJ 6.5...P6 SMBJ 130CA

Pulse Power

Dissipation: 600 W

Maximum Stand-off

voltage: 6,5...130 V

Features

Mechanical Data

1)

2)

3)

1

24-03-2005 SCT
