PRODUCT SPECIFICATION
Model No
CSM-57031S/CSM-57041S
Descriptions:
0.7Inch Dot-Matrix Display
5*7 Array with X-Y Select.
CSM-57031: Column Anode, Row Cathode
CSM-57041: Column Cathode, Row Anode
Emitting Color Super-Bright Red
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
CHINA SEMICONDUCTOR CORPORATION
Address:2FL. NO.909,Chung-Cheng Road,
Chung-Ho City Taipei Hsien,Taiwan.
Tel:886-2-2223-9696
Fax:886-2-2223-9377
OPTO PLUS TECHNOLOGIES CO.,LTD
Address:696 Shun jiang Rd.,Ji Shan St.Shaoxing,
ZheJiang,China
Tel:86-0575-88623888
Fax:86-0575-88623112
http://www.csctw.com.tw
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CSM-57031S/CSM-57041S
Spec. No.
Rev.
PS-ND-0710
A
Features -
1. 0.7 inch (17.2mm) Matrix height.
2. Case mold type.
3. RoHs compliant.
4. Low power consumption.
5. Easy mounting on P.C. board or socket.
Device Selection Guide -
Chip
Material
AIGaAs
Emitted Color
Super-Bright Red
Column
Anode
Cathode
Part No.
CSM-57031S
CSM-57041S
Description
Row
Cathode
Anode

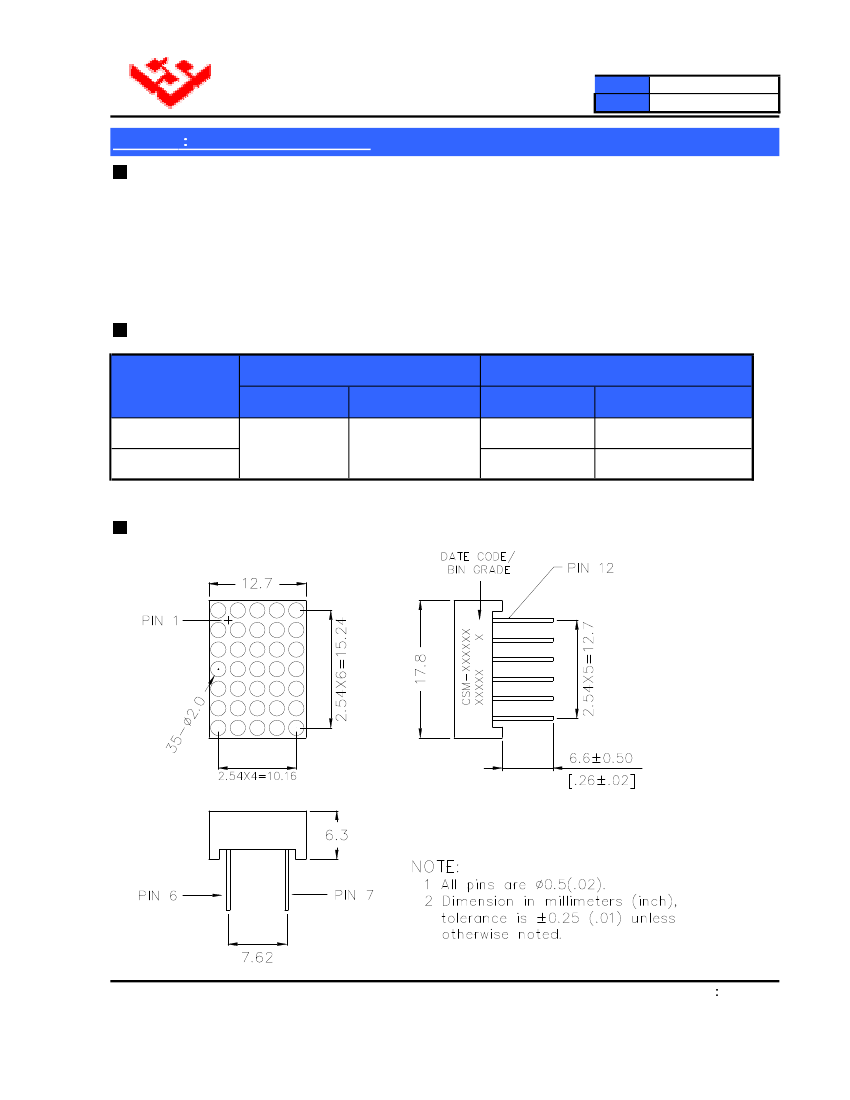

Package Dimensions -
http://www.csctw.com.tw
Page
1/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CSM-57031S/CSM-57041S
Spec. No.
Rev.
PS-ND-0710
A

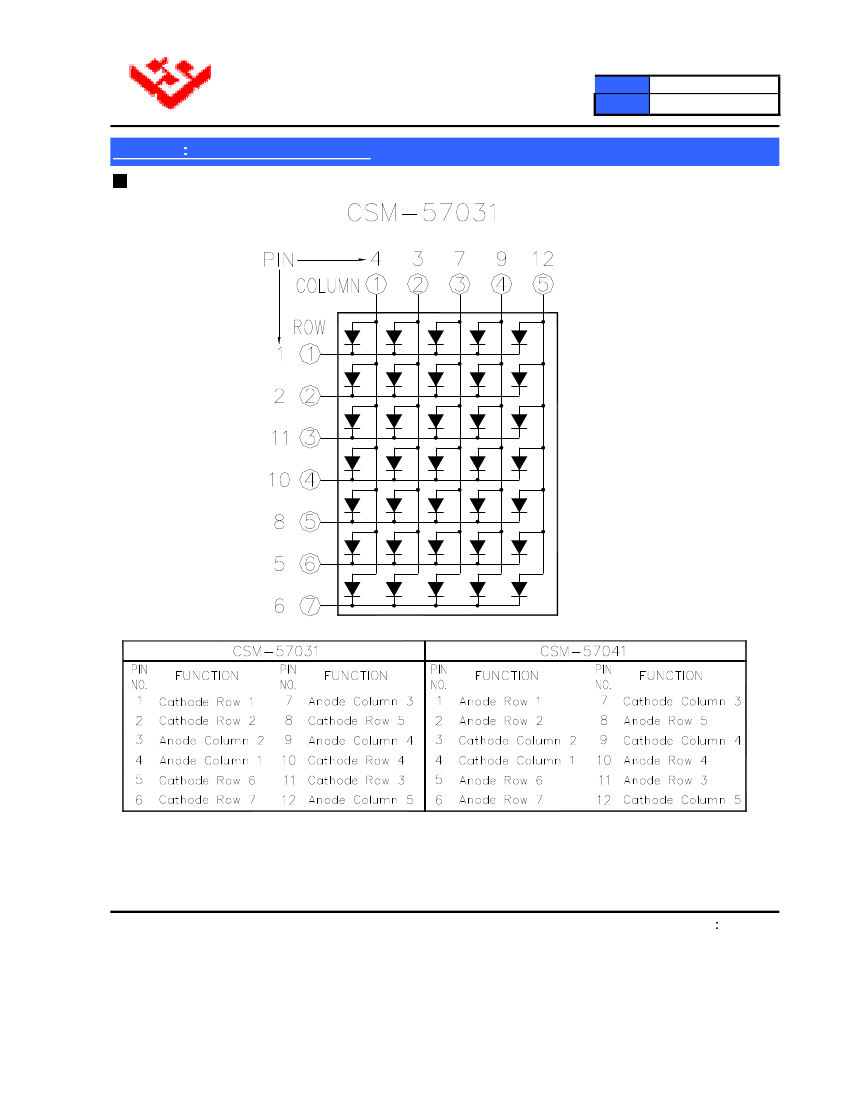

Internal Circuit Diagrams -
http://www.csctw.com.tw
Page
2/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CSM-57031S/CSM-57041S
Spec. No.
Rev.
PS-ND-0710
A
Absolute Maximum Rating -
Parameter
Power Dissipation Per Dice
Continuous Forward Current Per Dice
Peak Current Per Dice(duty cycle 1/10, 1kHz)
Derating Linear From 25
Reverse Voltage Per Dice
Operating Temp.
Storage Temp.
Per Dice
Symbol
P
AD
I
AF
I
PF
-
V
R
Topr
Tstg
Rating
75
30
120
0.42
5
-35 ~ +85
-35 ~ +85
(Ta=25 )
Unit
mW
mA
mA
mA/
V
Solder temperature 1/16 inch below seating plane for 3 seconds at 260
Electro-optical Characteristics -
(Ta=25 )
Parameter
Forward Voltage Per Segment
Luminous Intensity Per Segment
Peak Emission Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Reverse Current
Luminous Intensity Matching Ratio
Symbol
V
F
Iv
Min.
-
-
-
-
-
Typ.
1.8
7000
660
644
20
-
-
Max.
2.5
-
-
-
-
100
2:1
Unit
V
ucd
nm
nm
nm
A
Condition
I
F
=20mA
I
F
=10mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Ip=80mA 1/16Duty
q
Od
JS
IV-m
-
-
http://www.csctw.com.tw
Page
3/5
CHINA
SEMICONDUCTOR
CORPORATION
Model No
CSM-57031S/CSM-57041S
Spec. No.
Rev.
PS-ND-0710
A

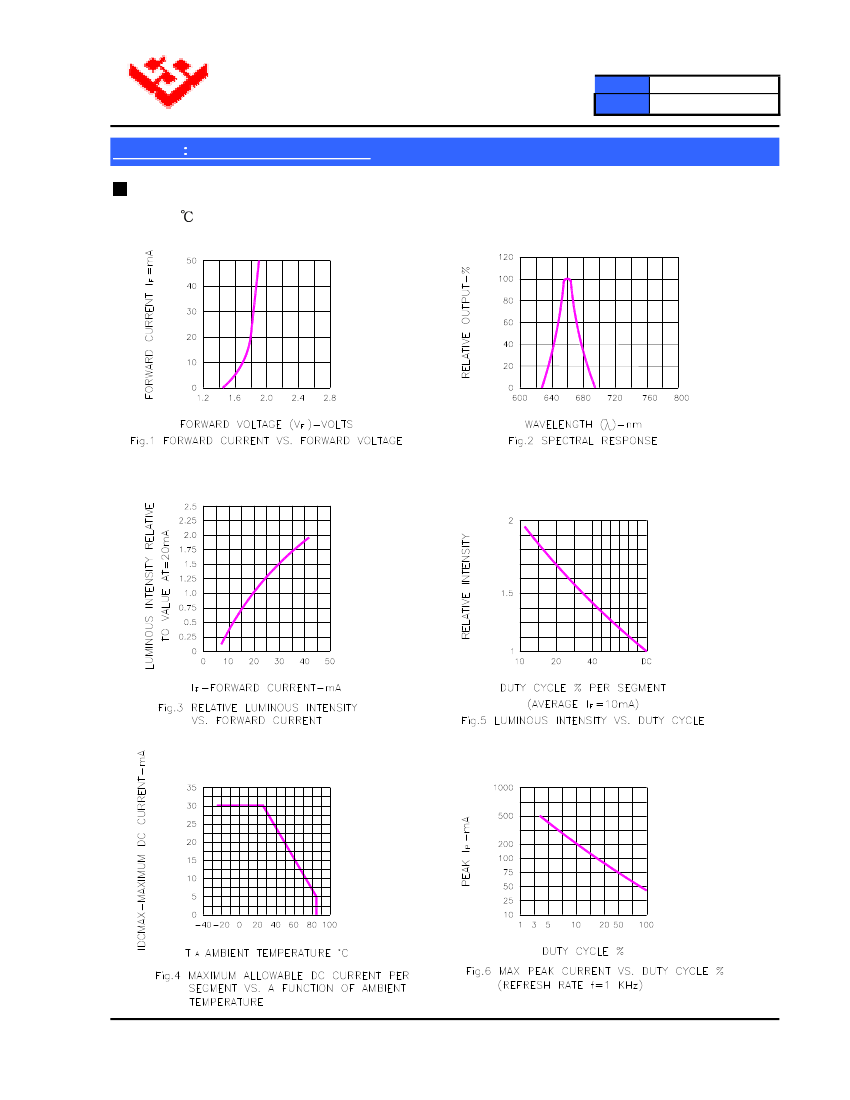

Typical Electrical / Optical Charateristics Curves -
(Ta = 25
Unless Otherwise Noted)
