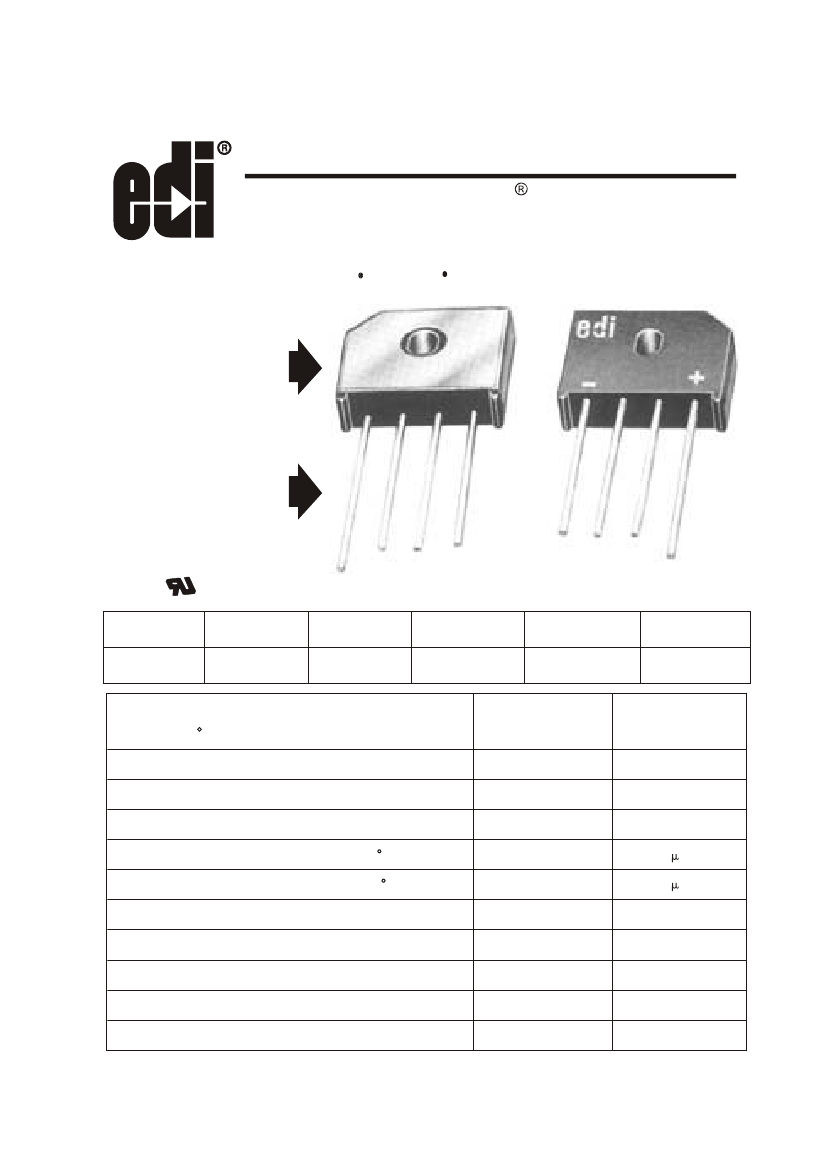

BRUS6
MINIBRIDGE
50 ns. ULTRA-FAST RECOVERY
8 AMPERES*
SINGLE-PHASE, FULL-WAVE BRIDGES
HEAT SINK CHASSIS P .C. BOARD MOUNTING
INTEGRALLY MOLDED
HEAT SINKS
PROVIDE LOW
THERMAL RESISTANCE
SPACE SAVING
IN-LINE DESIGN
This product has recognition under the component program of Underwriters Laboratories, inc.
PRV/LEG
TYPE No.
100V
BRUS610
200V
BRUS620
400V
BRUS640
500V
BRUS650
600V
BRUS660
ELECTRICAL CHARACTERISTICS PER LEG
(at T
A
=25 C U nle ss O the rwis e Sp eci fie d)
Average Output Current, lo @ 65 C T
C
(Fig.1)
Average Output Current, lo @ 65 C T
L
(Fig.1)
Max.Forward Voltage Drop, V
F
@
I
F
=4.0A
Max.DC Reverse Current @ PRV and 25
C
, I
R
Max.DC Reverse Current @ PRV and 100
C
,I
R
Max.Reverse Recovery Time,T
rr
(Fig.3)
Max.Peak Surge Current, l
FSM
(8.3ms) (Fig.2)
-
Thermal Resistance (Total Bridge), R
0
j
-
c
O
O
BRUS6
8
6
1.3
10
200
50
240
6.0 typ.
-55 to+150
-55 to+150
UNITS
Amps
Amps
Volts
A
A
Nanosec.
Amps
o
C/W
o
Storage Temperature Range, T
STG
Ambient Operating Temperature Range,T
A
Note 1:Derate Io by 20% for capacitive loads
C
C
o
EDI reserves the right to change these specifications at any time without notice.
BRUS6
FIG.1
CURRENT DERATING
12
l O.AVERAGE FORWARD CURRENT
(AMP)
L
Derate current by 20% for capacitive loads
FIG.2
NON-REPETITIVE SURGE CURRENT
1000
500
MAX.PEAK SURGE CURRENT I
FSM
10
T
HS
BRIDGE OUTPUT
RES.-IND. LOADS
8
200
6
T
PC
T
HS
HEAT SINK MOUNTING
100
4
T
PC
PC BOARD MOUNTING
3
/
8
"
LEADS
WITH
50
2
20
0
0
25
50
75
O
10
100
125
150
1
2
5
10
20
50
100
TEMPERATURE
( C)
NUMBER OF CYCLES AT 60 CPS
FIG.3
REVERSE RECOVERY TEST METHOD
T RR
ZERO
0.5A
REFERENCE
R1
50 OHM
D.U.T.
PULSE
GENERATOR
R2
1 OHM
SCOPE
1.0A
0.25A
-
R1, R2 NON-INDUCTIVE RESISTORS
PULSE GENERATOR - HEWLETT
PACKARD 214A OR EQUIV.
IKC REP.RA
TE, 10 SEC. PULSE WIDTH
ADJUST PULSE AMPLITUDE FOR PEAK IR
BRUS6 MECHANICAL OUTLINE
Dielectric test voltage 2,500 V rms.,max. 50-60Hz
.935
.895
.185
.165
.085
.065
.075R.Typ.
(2 Places)
+
.160
.140
.700
.660
.760Max.
.280
.260
INTEGRAL HEAT SINK
.455
.405
1.0Min.
.260
.180
.205
.185
.052
.048
NOTE Maximum lead and terminal temperature for soldering, 3/8 inch from case 5 seconds at
250
.220
.180
C
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
Ee-mail:sales@edidiodes.com
*
Wwebsite:
http://www.edidiodes.com
