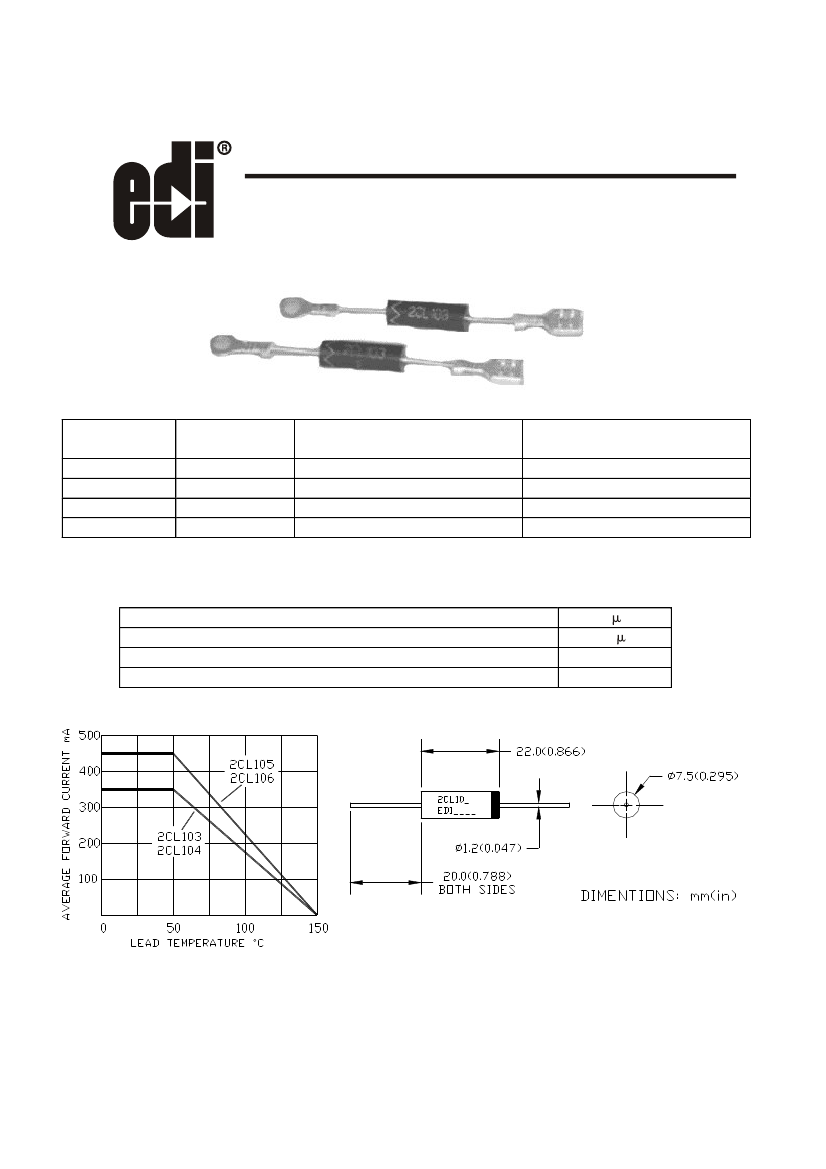

2CL1
HIGH VOLTAGE, HIGH CURRENT
SILICON RECTIFIER DIODES
EDI TYPE #
2CL103
2CL104
2CL105
2CL106
PRV VOLTS
9,000
12,000
9,000
12,000
AVERAGE FORWARD
CURRENT, I
O
350 mA
350 mA
450 mA
450 mA
MAX FORWARD VOLTAGE
DROP (@PRV),
10V
12V
10V
12V
Electrical Characteristics (at T
A
= 25°C Unless Otherwise Specified)
ELECTRICAL CHARACTERISTIC
MAX DC REVERSE CURRENT (25ºC)
MAX DC REVERSE CURRENT (100ºC)
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
2CL10 Series
5 A
20 A
-55 To 150°C
-55 To 150°C
NOTES: It is recommended that a proper heat sink be used on the terminals of this device between the
body and the soldering point to prevent damage from excess heat.
EDI reserves the right to change these specifications at any time whthout notice.
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
Ee-mail:sales@edidiodes.com
*
Wwebsite:
http://www.edidiodes.com
