"High Frequency Ceramic Solutions"
Preliminary
3.55 GHz High Pass Filter
Detail Specification: 12/16/08
P/N 3550HP15A0500
Page 1 of 2
General Specifications
Part Number
Freq Range (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
3550HP15A0500
3300 - 3800
0.6 dB max. @ 25°C
0.8 dB max. @ -40~85°C
9.5 dB min.
40 dB @ 1710-1910 MHz
Impedance
Operating Temperature
Storage Temperature
Reel Quantity
Input Power
50
Ω
-40 to +85°C
+5 ~ +35°C, Humidity
45~75%RH, 12 mos. Max
4,000
2W max.
Terminal Configuration
Termination
Style
100% Tin
Tin / Lead
Suffix = "None"
Suffix = "/Pb"
eg. 5200HP15A4200
eg. 5200HP15A4200/Pb
No.
Function
GND
OUT
GND
IN
1
2
3

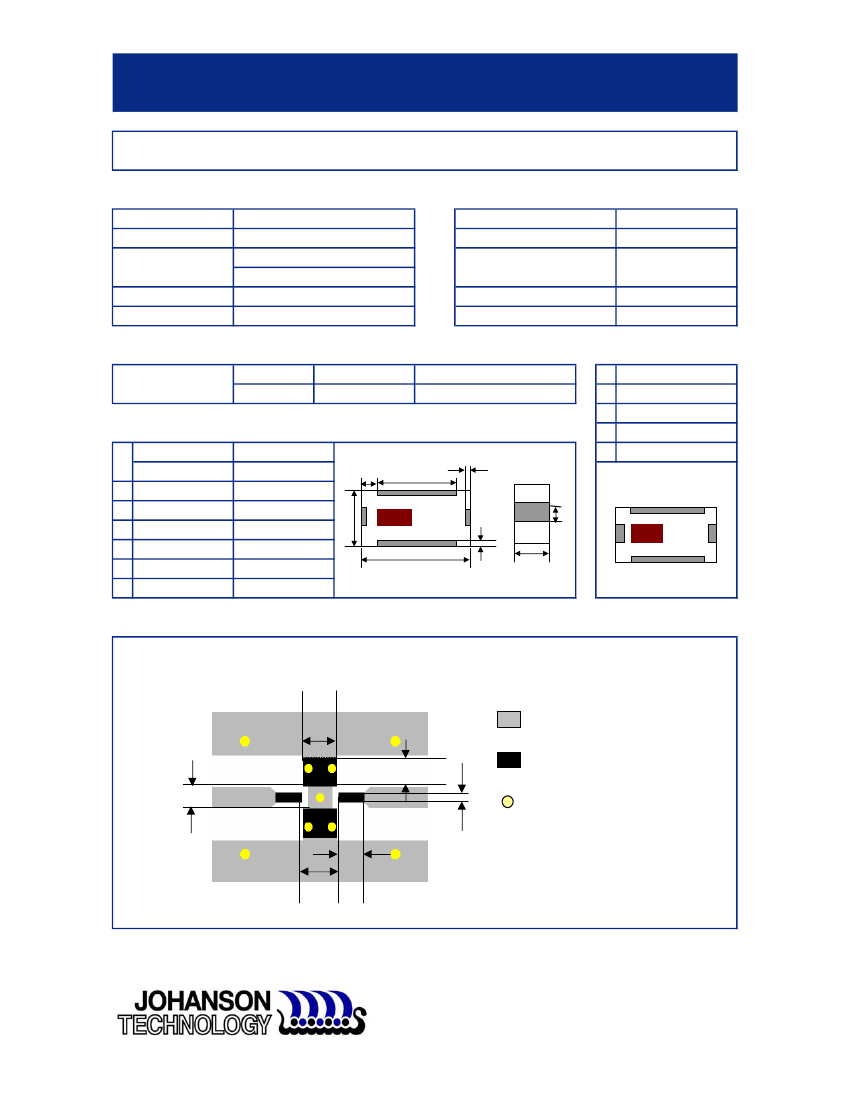

Mechanical Dimensions
In
L
W
T
a
b
c
d
0.079 ± 0.006
0.049 ± 0.004
0.037 ± 0.004
0.051 ± 0.006
0.012 ± 0.006
0.010 ± 0.006
0.014 ± 0.006
mm
2.00 ± 0.15
1.25 ± 0.10
0.95 ± 0.10
1.30 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
L
W
c
T
b
d
a
c
4
1
4
2
3
Mounting Considerations
Mount these devices with brown mark facing up.
*Line
width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
1.30
Solder Resist
Land
1.00
0.80
*
*
0.35
Through-hole (
φ0.35)
1.00
1.40
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
Preliminary
3.55 GHz High Pass Filter
Detail Specification: 12/16/08
P/N 3550HP15A0500
Page 2 of 2

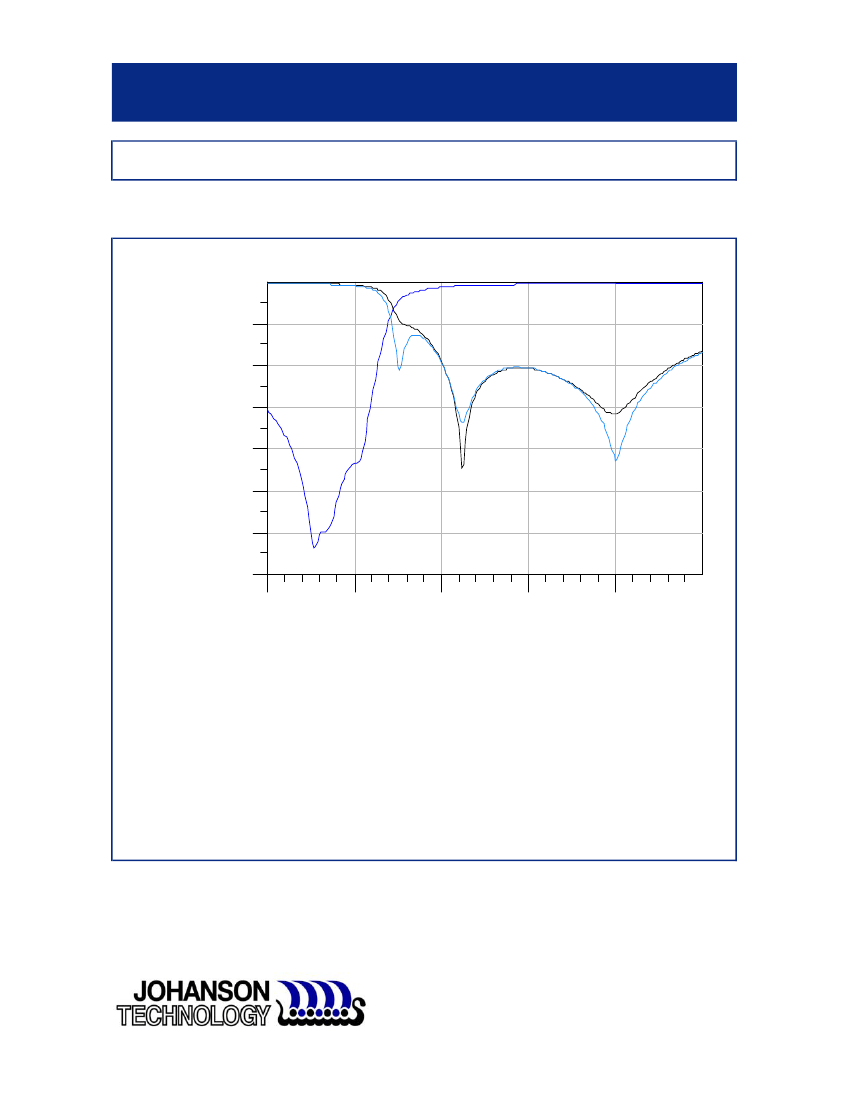

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0
-10
-20
-30
-40
-50
-60
-70
1.5
)
)
)
)
)
)
)
)
d
dB(S(2,2))
B (S (2,2))
d
dB(S(1,1))
B (S (1,1))
d
dB(S(1,2))
B (S (1,2))
)
2.0
)
2.5
)
)
)
)
)
)
)
)
3.0
3.5
4.0
)
freq, GHz
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
