3550LP14B0500: Description3.55 ghz low pass filter; CategoryAnalog mixed-signal IC filter; File Size109KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric Compare View All

3550LP14B0500 Overview

3.55 ghz low pass filter

3550LP14B0500 Parametric

Parameter Name	Attribute value
Maker	Johanson Technology
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL
average input power	2 W
Center frequency or cutoff frequency (fo/fc)	3550 MHz
filter type	CERAMIC LPF
high	0.6 mm
Input/output impedance	50 OHM
Maximum insertion loss	0.55 dB
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	3550LP14B0500
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L1.6XB0.8XH0.6 (mm)/L0.063XB0.031XH0.024 (inch)
Terminal surface	TIN
Base Number Matches	1

Preview

Download Datasheet

View All

"High Frequency Ceramic Solutions"

Preliminary

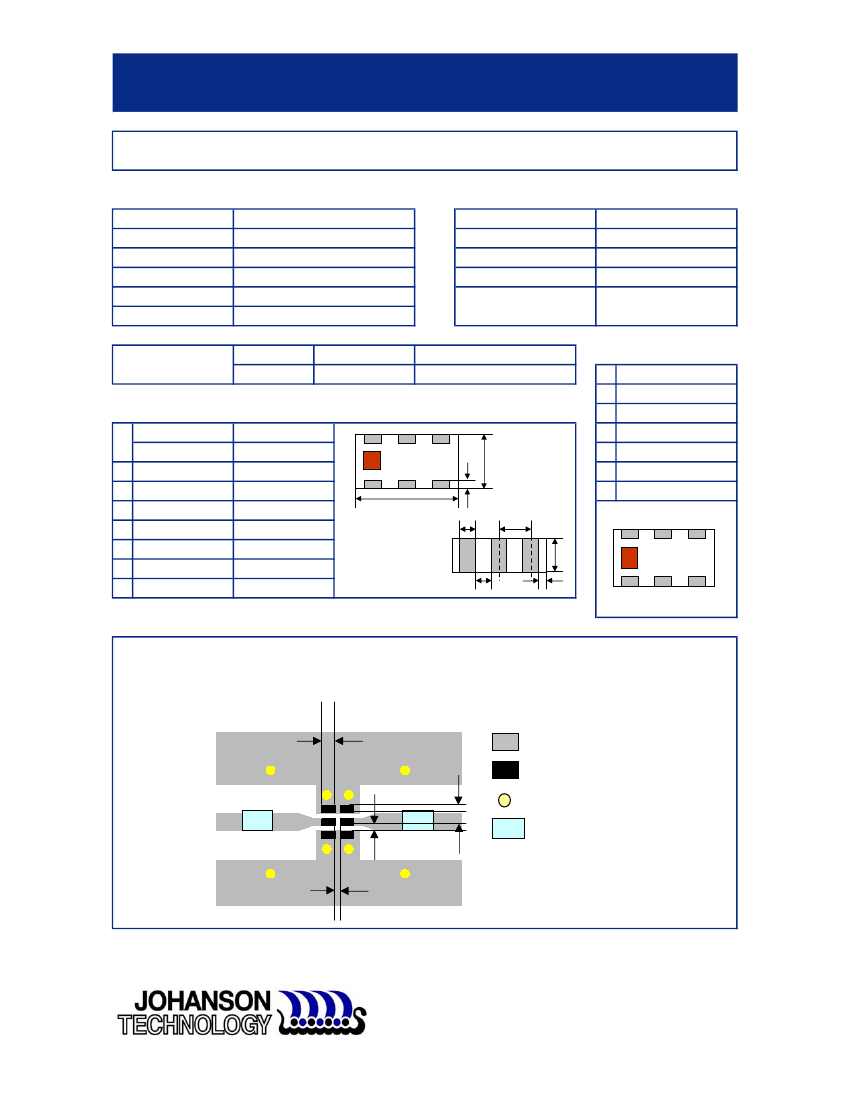

3.55 GHz Low Pass Filter

Detail Specification: 12/16/08

P/N 3550LP14B0500

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

3550LP14B0500

3300 - 3800

0.55 dB max.

11.7 dB min.

35 dB @ 2 x fo

25 dB @ 3 x fo

100% Tin

Tin / Lead

Suffix = "None"

Suffix = "/Pb"

Impedance

Reel Quantity

Input Power

Operating Temperature

Storage Temperature

50

Ω

4,000

2 Watts max.

-40 to +85°C

+5 to +35°C, Humidity:

45-75%RH, 12 mos. Max

Termination

Style

eg. 3550LP14B0500

eg. 3550LP14B0500/Pb

Terminal Configuration

No.

Function

GND

IN

GND

OUT

GND

3

2

1

Mechanical Dimensions

In

L

W

T

a

b

c

g

p

0.063 ± 0.004

0.031 ± 0.004

0.024 ± 0.004

0.008 ± 0.004

0.008 +.004/-.006

0.006 ± 0.004

0.012 ± 0.004

0.020 ± 0.002

2

mm

1.60 ± 0.10

0.80 ± 0.10

0.60 ± 0.10

0.20 ± 0.10

0.20 +0.1/-0.15

0.15 ± 0.10

0.30 ± 0.10

0.50 ± 0.05

g

b

L

c

a

p

W

3

4

5

6

T

4

5

6

Mounting Considerations

Mount these devices with brown mark facing up.

*

Line width should be designed to provide 50

Ω

impedance matching characteristics, depending on PCB material and thickness.

**

DC Blocking capacitor is connected in series at each In/Out Port.

Solder Resist

0.55

Land

0.25

Through-hole (ø 0.35)

*

0.25

*

DC Blocking Capacitor

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
