CYStech Electronics Corp.
General Purpose PNP Epitaxial Planar Transistor
Spec. No. : C305N3
Issued Date : 2002.06.11
Revised Date :2005.03.28
Page No. : 1/ 5
BTA1036N3
Description
•
The BTA1036N3 is designed for using in driver stage of AF amplifier and general purpose amplification.
•
Large I
C
, I
C(Max)
= -0.6A
•
Low V
CE(sat)
, ideal for low-voltage operation.
•
Complementary to BTC2411N3
.
•
Pb-free package

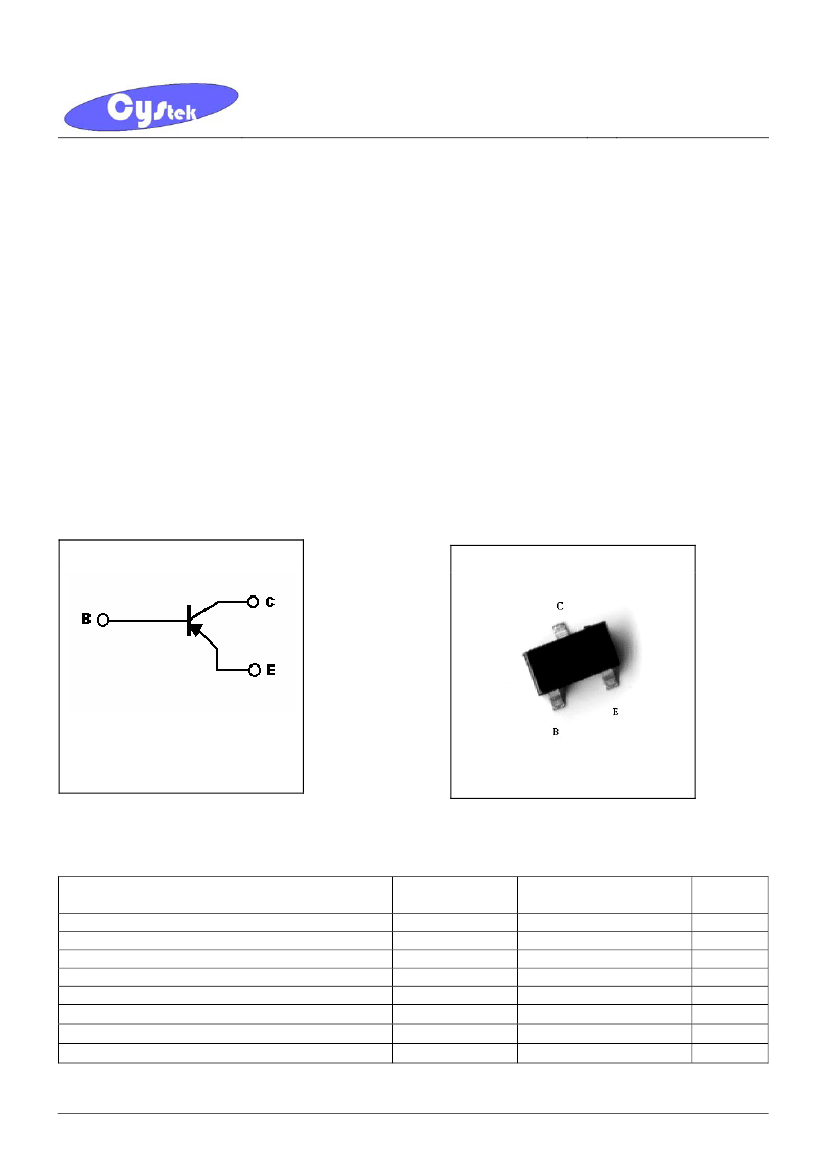

Symbol
BTA1036N3
Outline
SOT-23
B：Base
C：Collector
E：Emitter
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Thermal Resistance, Junction to Ambient
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
Pd
R
θJA
Tj
Tstg
Limits
-60
-60
-5
-0.6
225
556
150
-55~+150
Unit
V
V
V
A
mW
°C/W
°C
°C
BTA1036N3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
CEX
*V
CE(sat)
1
*V
CE(sat)
2
*V
BE(sat)
1
*V
BE(sat)
2
h
FE
1
h
FE
2
h
FE
3
*h
FE
4
*h
FE
5
f
T
Cob
Min.
-60
-60
-5
-
-
-
-
-
-
75
100
100
82
50
200
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max.
-
-
-
-10
-50
-0.4
-0.75
-0.95
-1.3
-
-
-
390
-
-
8
Unit
V
V
V
nA
nA
V
V
V
V
-
-
-
-
-
MHz
pF
Spec. No. : C305N3
Issued Date : 2002.06.11
Revised Date :2005.03.28
Page No. : 2/ 5
Test Conditions
I
C
=-10µA
I
C
=-10mA
I
E
=-10µA
V
CB
=-50V
V
CE
=-30V, V
EB
=-0.5V
I
C
=-150mA, I
B
=-15mA
I
C
=-500mA, I
B
=-50mA
I
C
=-150mA, I
B
=-15mA
I
C
=-500mA, I
B
=-50mA
V
CE
=-10V, I
C
=-0.1mA
V
CE
=-10V, I
C
=-1mA
V
CE
=-10V, I
C
=-10mA
V
CE
=-10V, I
C
=-150mA
V
CE
=-10V, I
C
=-500mA
V
CE
=-5V, I
C
=-50mA, f=100MHz
V
CB
=-10V, f=1MHz
*Pulse Test: Pulse Width
≤380µs,
Duty Cycle≤2%
Classification Of h
FE
4
Rank
Range
P
82~180
Q
120~270
R
180~390
BTA1036N3
CYStek Product Specification
CYStech Electronics Corp.

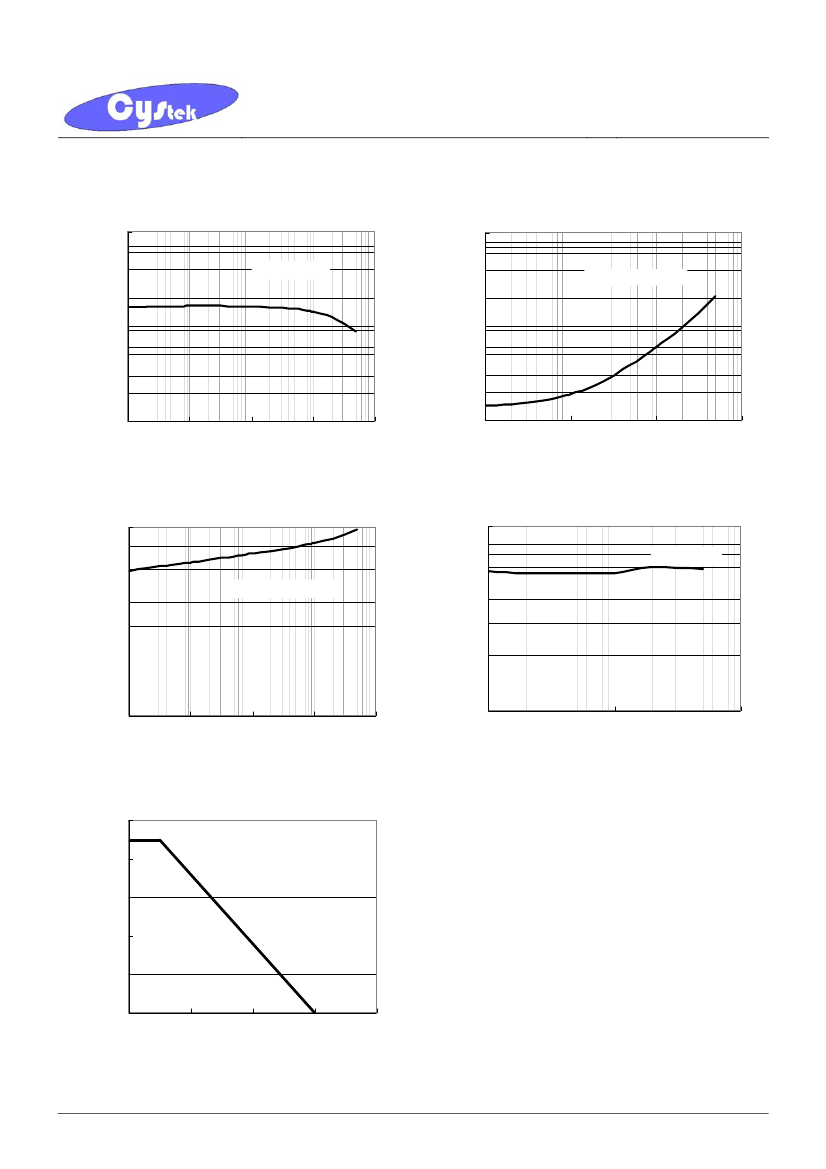

Characteristic Curves
Current Gain vs Collector Current
1000
Saturation Voltage---(mV)
HFE@VCE=3V
Spec. No. : C305N3
Issued Date : 2002.06.11
Revised Date :2005.03.28
Page No. : 3/ 5
Saturation Voltage vs Collector Current
1000
Current Gain---
HFE
VCE(SAT)@IC=10IB
100
100
10
0.1
1
10
100
1000
Collector Current---IC(mA)
10
1
10
100
1000
Collector Current---IC(mA)
Saturation Voltage vs Collector Current
1000
Cutoff Frequency-FT(GHZ)
Saturation Voltage---(mV)
1
Cutoff Frequency vs Collector Current
FT@VCE=5V
VBE(SAT)@IC=10IB
100
0.1
1
10
100
Collector Current---IC(mA)
1000
0.1
1
10
Collector Current---IC(mA)
100
Power Derating Curve
250
Power Dissipation---PD(mW)
200
150
100
50
0
0
50
100
150
200
Ambient Temperature --- Ta(℃ )
BTA1036N3
CYStek Product Specification
CYStech Electronics Corp.

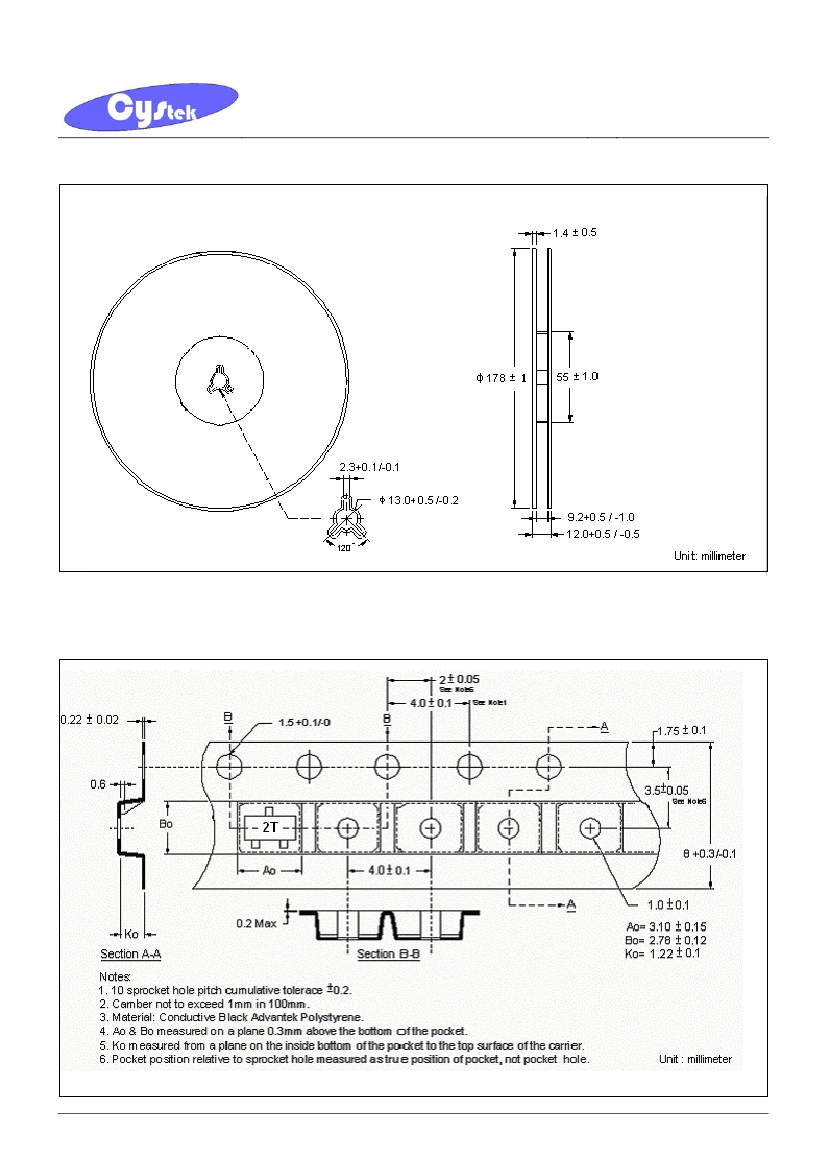

Reel Dimension
Spec. No. : C305N3
Issued Date : 2002.06.11
Revised Date :2005.03.28
Page No. : 4/ 5
Carrier Tape Dimension
BTA1036N3
CYStek Product Specification
CYStech Electronics Corp.

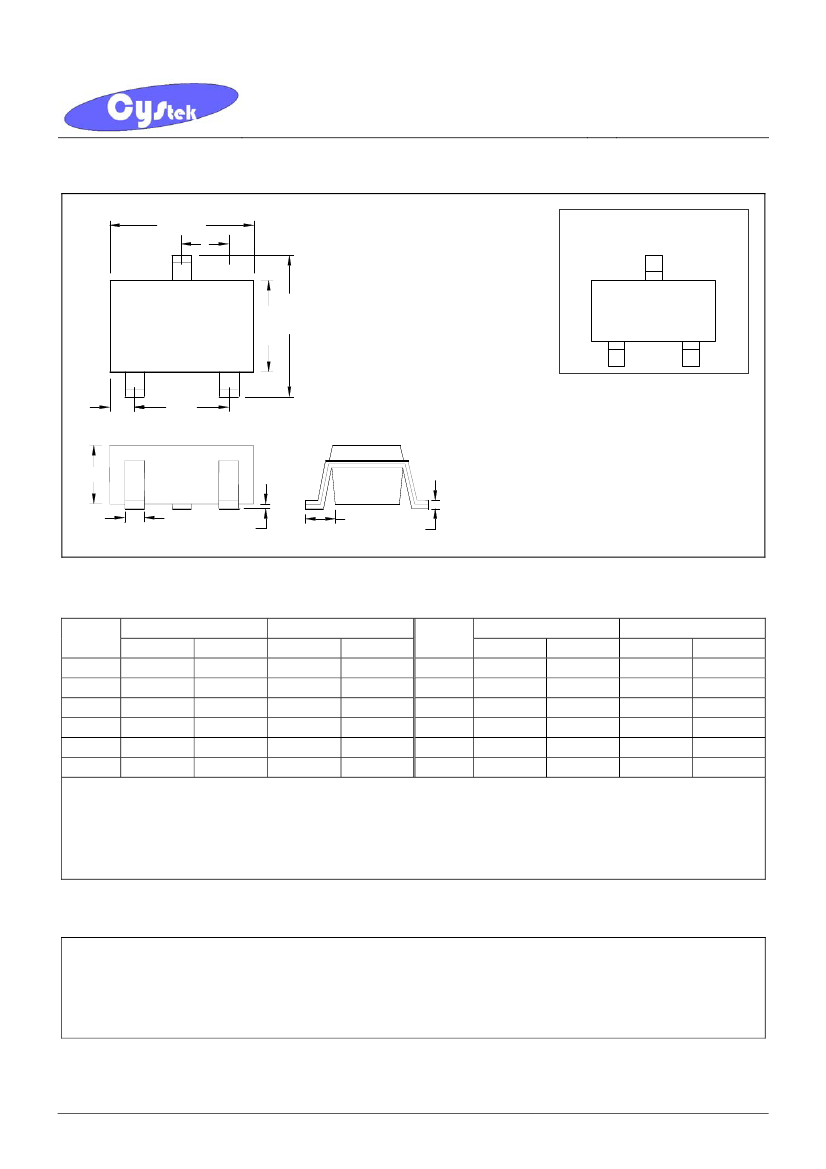

SOT-23 Dimension
A
L
3
B
1
2
S
Spec. No. : C305N3
Issued Date : 2002.06.11
Revised Date :2005.03.28
Page No. : 5/ 5
Marking:
TE
2T
V
G
3-Lead SOT-23 Plastic
Surface Mounted Package
CYStek Package Code: N3
Style: Pin 1.Base 2.Emitter 3.Collector
C
D
K
H
J
*: Typical
DIM
A
B
C
D
G
H
Inches
Min.
Max.
0.1102 0.1204
0.0472 0.0630
0.0335 0.0512
0.0118 0.0197
0.0669 0.0910
0.0005 0.0040
Millimeters
Min.
Max.
2.80
3.04
1.20
1.60
0.89
1.30
0.30
0.50
1.70
2.30
0.013
0.10
DIM
J
K
L
S
V
Inches
Min.
Max.
0.0034 0.0070
0.0128 0.0266
0.0335 0.0453
0.0830 0.1083
0.0098 0.0256
Millimeters
Min.
Max.
0.085
0.177
0.32
0.67
0.85
1.15
2.10
2.75
0.25
0.65
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTA1036N3
CYStek Product Specification
