KIA7820AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KIA7820AF

KIA7820AF: Descriptionbipolar linear integrated circuit; CategoryPower/power management The power supply circuit; File Size482KB，17 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric Compare View All

KIA7820AF Overview

bipolar linear integrated circuit

KIA7820AF Parametric

Parameter Name	Attribute value
Maker	KEC
Parts packaging code	TO-252
package instruction	DPAK-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	35 V
Minimum input voltage	23 V
JESD-30 code	R-PSSO-G3
length	6.6 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1 A
Maximum output voltage 1	21 V
Minimum output voltage 1	19 V
Nominal output voltage 1	20 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.5 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
width	6.1 mm

Preview

Download Datasheet

View All

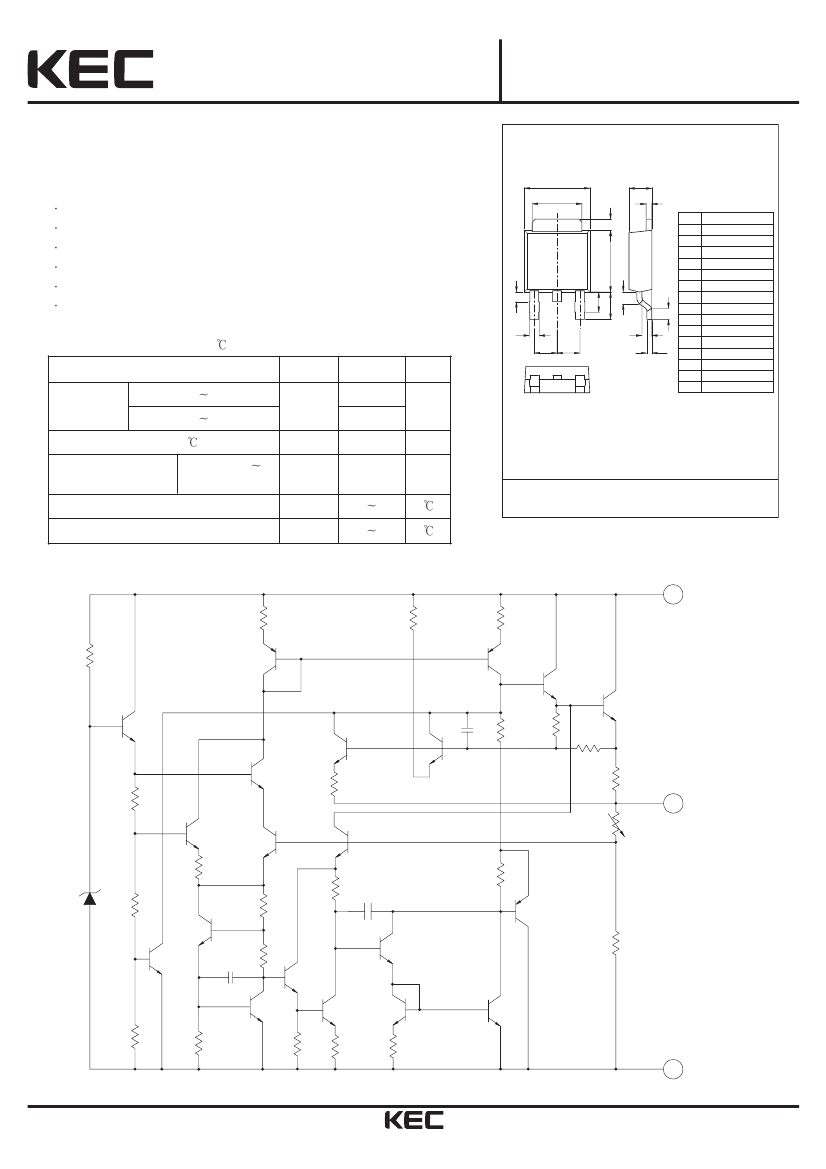

SEMICONDUCTOR

TECHNICAL DATA

THREE TERMINAL POSITIVE VOLTAGE REGULATORS

5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V.

FEATURES

Suitable for C-MOS, TTL, the Other Digital IC's Power Supply.

Internal Thermal Overload Protection.

Internal Short Circuit Current Limiting.

Output Current in Excess of 1A.

Satisfies IEC-65 Specification. (International Electronical Commission).

Package is DPAK.

MAXIMUM RATINGS (Ta=25

CHARACTERISTIC

Input Voltage

KIA7805AF

KIA7818AF

)

KIA7805AF

KIA7824AF

KIA7815AF

KIA7824AF

)

SYMBOL

stg

RATING

1.3

-30 150

-55 150

UNIT

KIA7805AF~KIA7824AF

BIPOLAR LINEAR INTEGRATED CIRCUIT

DIM

MILLIMETERS

6.60 + 0.2

6.10 + 0.2

5.0 + 0.2

1.10 + 0.2

2.70 + 0.2

_ 0.1

2.30 +

1.00 MAX

2.30 + 0.2

0.50 + 0.1

2.00 + 0.20

_ 0.10

0.50 +

0.91 + 0.10

0.90 + 0.1

1.00 + 0.10

0.95 MAX

1. INPUT

2. COMMON

3. OUTPUT

Power Dissipation (Tc=25

Power Dissipation

(Without Heatsink)

Operating Junction Temperature

Storage Temperature

EQUIVALENT CIRCUIT

DPAK

R22

R17

R23

INPUT

Q11

Q11-1

Q15

Q16

R15

Q12

Q14

R19

Q17

R12

Q19

R10

R14

R16

Q18

R18

R20

OUTPUT

R11

Q10

R21

Q13

R13

COMMON (GND)

2002. 9. 24

Revision No : 2

1/17

KIA7820AF Related Products

	KIA7820AF	KIA7815AF	KIA7818AF
Description	bipolar linear integrated circuit	bipolar linear integrated circuit	bipolar linear integrated circuit
Maker	KEC	KEC	KEC
Parts packaging code	TO-252	TO-252	TO-252
package instruction	DPAK-3	DPAK-3	DPAK-3
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum input voltage	35 V	30 V	33 V
Minimum input voltage	23 V	17.5 V	21 V
JESD-30 code	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3
length	6.6 mm	6.6 mm	6.6 mm
Number of functions	1	1	1
Number of terminals	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C
Maximum output current 1	1 A	1 A	1 A
Maximum output voltage 1	21 V	15.75 V	18.9 V
Minimum output voltage 1	19 V	14.25 V	17.1 V
Nominal output voltage 1	20 V	15 V	18 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.5 mm	2.5 mm	2.5 mm
surface mount	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	2.3 mm	2.3 mm	2.3 mm
Terminal location	SINGLE	SINGLE	SINGLE
width	6.1 mm	6.1 mm	6.1 mm
