1 3 0 Wa t t De skt op Sw itching Power Adapters
spu130
Universal 85-265VAC Input
3.3 to 48 VDC Outputs
Regulated, Single & Dual Outputs
3000V Isolation
IEC320-C14 Input Inlet
series
7.7”W x 3.46”L x2.0”H
Model Number
sINGLE OuTpuT
SPU130-101(M)
SPU130-102(M)
SPU130-103(M)
SPU130-104(M)
SPU130-105(M)
SPU130-106(M)
SPU130-107(M)
SPU130-108(M)
SPU130-109(M)
SPU130-110(M)
SPU130-111(M)
DuAL OuTpuT
SPU130-200(M)
SPU130-201(M)
SPU130-202(M)
SPU130-203(M)
Output VDC
Output Amps
Min Load
Regulation
Output power (max)
Output Connector
3.3
5
6
10
12
15
18
24
30
36
48
3.3/12
5/12
5/15
5/24
27.27
23
21.6
13
10.8
8.66
7.22
5.41
4.33
3.61
2.7
20/2 max.
20/2 max.
20/2 max.
20/2 max.
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
4/0A
4/0A
4/0A
4/0A
7%
7%
5%
5%
5%
5%
5%
5%
3%
3%
3%
7/5% max.
7/5% max.
7/5% max.
7/5% max.
90W
115W
130W
130W
130W
130W
130W
130W
130W
130W
130W
90W
120W
120W
120W
8 Pin DIN
8 Pin DIN
8 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
2.1mm Coax
2.1mm Coax
2.1mm Coax
8 Pin DIN
8 Pin DIN
8 Pin DIN
8 Pin DIN
Note: “(M)” Denotes that there is a Mounting Plate option available for the SPU130 family of products. To order an SPU130 product with the optional Mounting
Plate, simply add an “M” to the end of the standard Part Number. For example SPU130-101M.
Order On-Line!
WWW.AsTRODYNE.COM
astrodyne.com
300 Myles standish Blvd., Taunton, MA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
1 3 0 Wa t t De skt op Sw itching Power Adapters
INpuT spECIFICATIONs
Input Voltage Range
Frequency Range
Power Factor Correction
Input Current @ Low Line
Input Current @ High Line
Inrush Current @ Low Line
Inrush Current @ High Line
Leakage Current
85-265 VAC
47-63 Hz
0.95 min. 0.99 max.
3.2A
1.7A
30A max., 15A typ.
60A max., 30A typ.
0.5-0.75mA
spu130
pHYsICAL spECIFICATIONs
Size
Construction
Weight
7.7”x3.46”x2.0”
Desktop Style
1.9 lb (860g)
series
ENVIRONMENTAL spECIFICATIONs
Oper. Temperature
Storage Temperature
Relative Humidity
EMC
0 to +70°C w. Derate
See Curve
-40 to +85°C
*
5 to + 95%, non-cond
*
Vin = 220VAC
CISPR-22 B
Vin = 110VAC
FCC Part 15B
100,000 Hrs
OuTpuT spECIFICATIONs
Voltage and Current
Load Regulation
Line Regulation
Temperature Coefficient
Ripple/Noise
Over Voltage Protection
Over Current Protection
Transient Response
Start Up Time (min./typ./max.)
Hold Up Time
See Selection Charts
See Selection Charts
+/- 0.5%, typ (1% Max.)
+/-0.04%/°C, typ
1% Pk-Pk, typ (2% Max.)
112-132% (O/P 1 only)
*
110-150% of Rated Current
50% to 100% Load
0.3/1/2 Seconds
75-85mS at 110VAC Input
MTBF
OuTpuT DERATING CuRVE
4mS
GENERAL spECIFICATIONs
Isolation
Isolation Resistance
Efficiency
Switching Frequency
SPU130-1xx
SPU130-2xx
Safety
I/P-O/P: 3000VAC
I/P-Ground: 1500VAC
50 Mohm
80-85% typ.
54.5 KHz
74 KHz
cUL60950-1, EN60950
NOTE: Low cost 3 Wire IEC320/C13 (Part Number ACCRD-C13) Input Power
Cords are available for these products. Inquire to the Astrodyne Sales Depart.
All specifications are typical at nominal input, full load, and 25°C unless other-
wise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.AsTRODYNE.COM
300 Myles standish Blvd., Taunton, MA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
1 3 0 Wa t t De skt op Sw itching Power Adapters

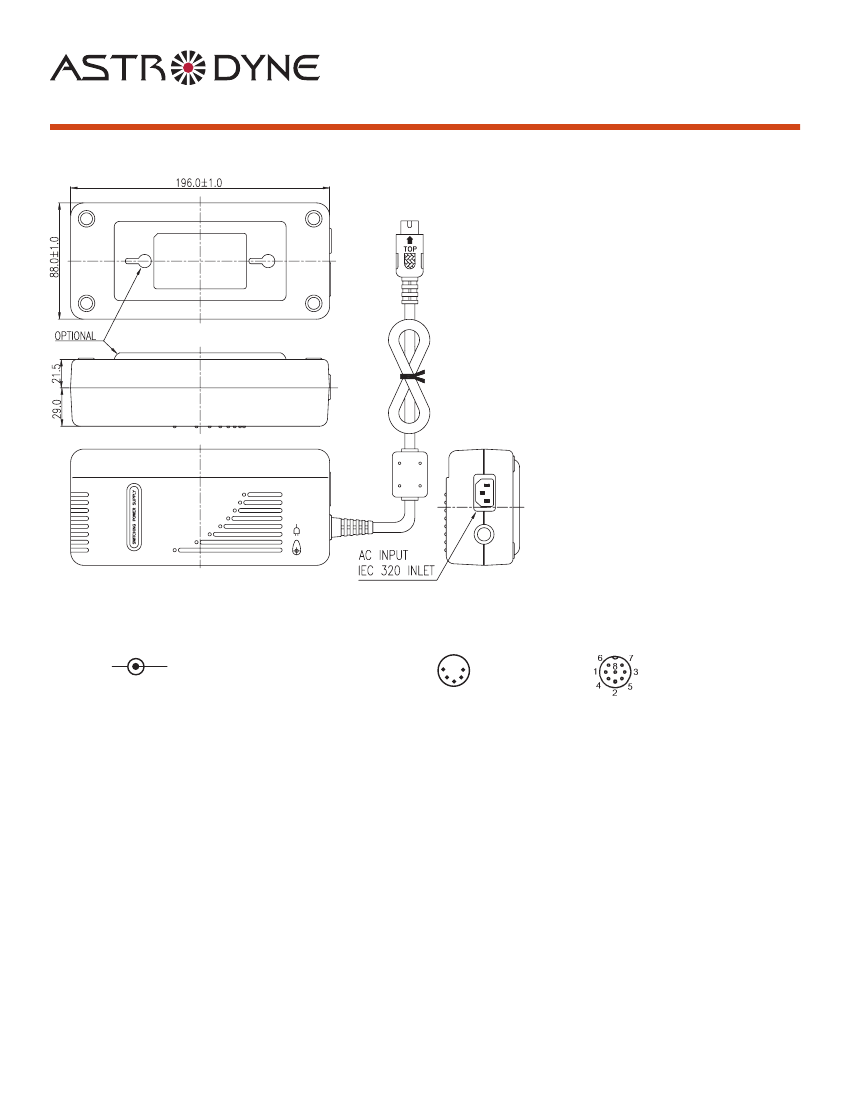

MECHANICAL DIMENsIONs
spu130
series
Output Cord Length 72” typ.
DC OuTpuT CONNECTIONs
Coaxial plug (single Output Models)
-Vout
5.5mm outer diameter
2.1mm inner diameter, female
11mm length, center “+”
+Vout
5 pin DIN
1. COM
1
2. COM
4
3. Vout
4. COM
5. Vout
Shell = GND
3
5
2
8 pin DIN
single Output
1. COM
2. COM
3. Vout
4. COM
5. Vout
6. COM
7. Vout
8. Vout
Shell = GND
Dual Output
1. COM
2. Vout2
3. Vout1
4. Vout2
5. Vout1
6. COM
7. Vout1
8. COM
Shell = GND
WWW.AsTRODYNE.COM
300 Myles standish Blvd., Taunton, MA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
