D45TT000-16502TB-G datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> D45TT000-16502TB-G

D45TT000-16502TB-G: DescriptionParallel - 3Rd Overtone Quartz Crystal, 45MHz Nom,; CategoryPassive components Crystal/resonator; File Size514KB，3 Pages; ManufacturerDB Lectro Inc; Environmental Compliance

Download Datasheet Parametric View All

D45TT000-16502TB-G Overview

Parallel - 3Rd Overtone Quartz Crystal, 45MHz Nom,

D45TT000-16502TB-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	AT-CUT; BULK
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	50 ppm
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	45 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Series resistance	60 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

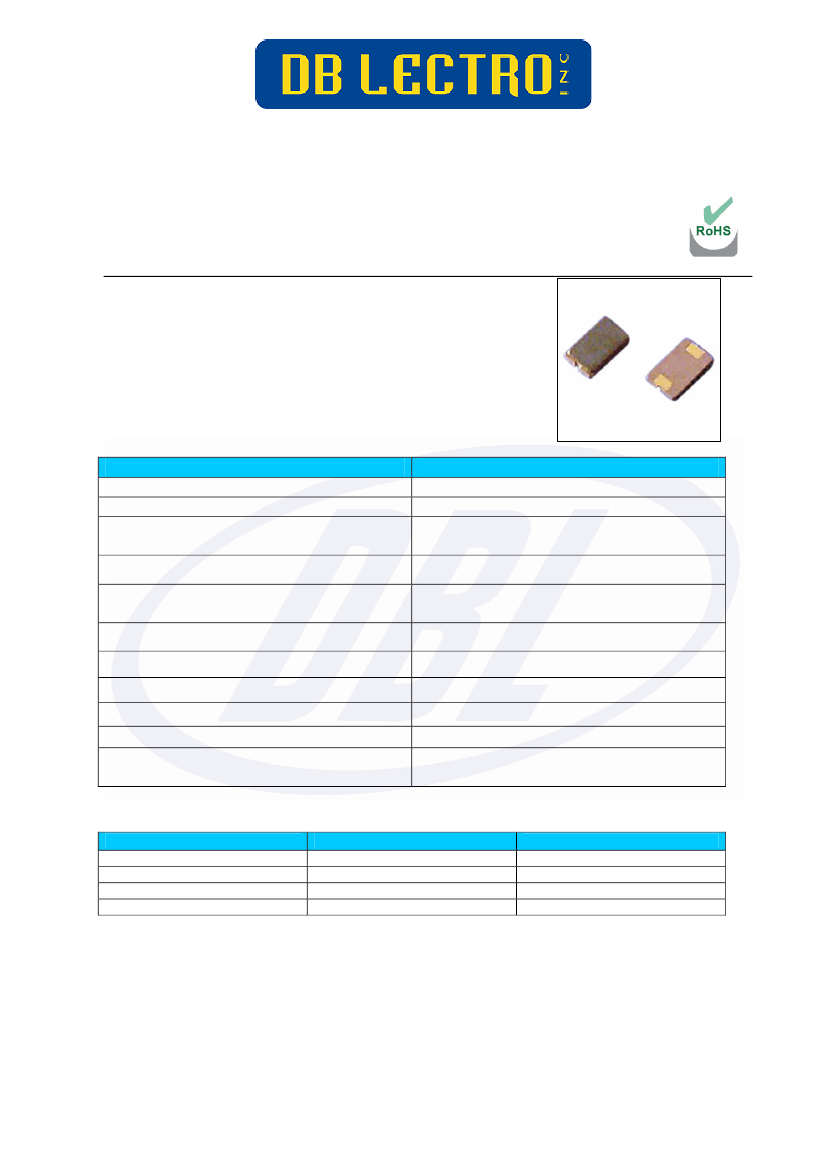

QUARTZ CRYSTAL UNIT

FEATURE



Holder Code TT,

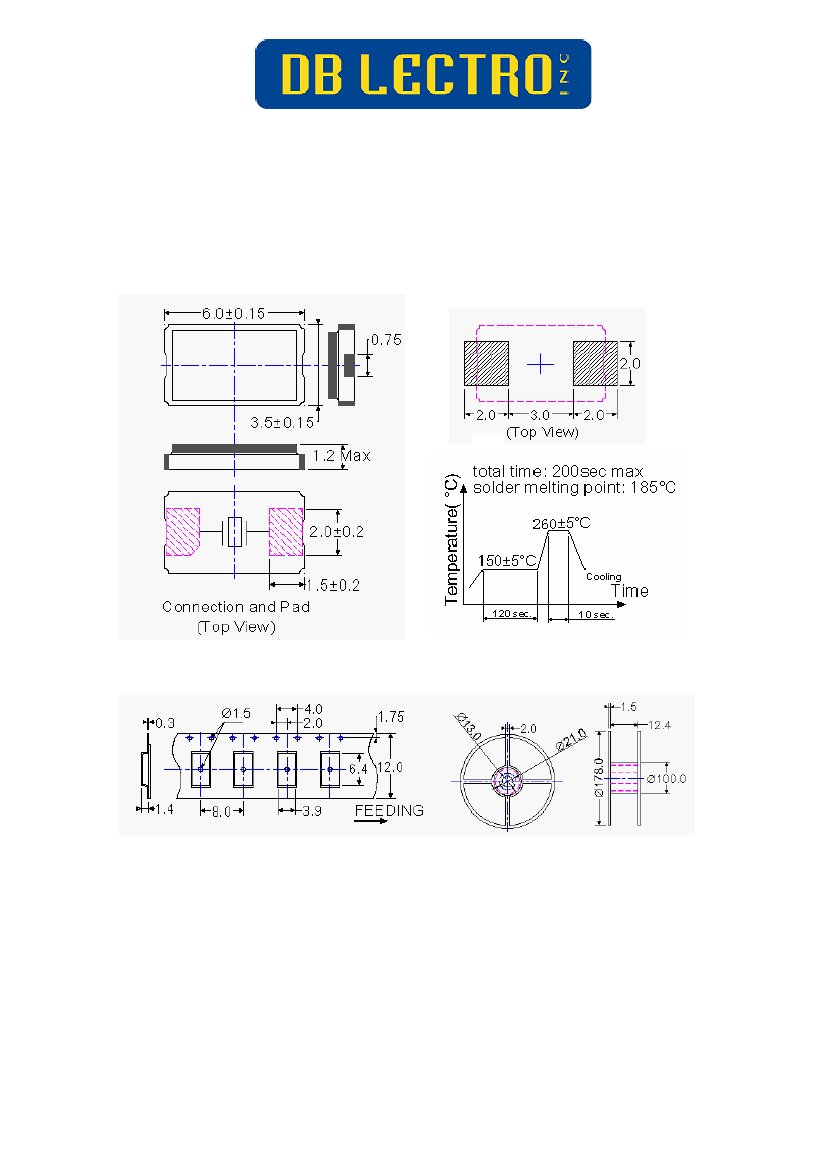

GLASS SEALED CERAMIC 6 X 3.5MM SURFACE MOUNT PACKAGE

Leadless type.

High reliable environmental performance

Designed for automatic mounting and reflow soldering.

Tight tolerance and stability parts are available

Emboss taping specification.



Lead Free & RoHS Compliant

ELECTRICAL SPECIFICATIONS

Output Frequency Range

Mode

Frequency Tolerance (at 25°C)

Frequency Stability Over Operating

Temperature Characteristics

Storage Temperature Range

Operating Temperature Range

Shunt Capacitance (C

)

Driver Level (Typical)

Load Capacitance(C

)

Equivalent Seri

R s tn eE R( )

e e ia c S Ω

Aging @25°C

year (Max)

Shock Resistance

8.000MHz to 80.000MHz

See Table 1

±30ppm, ±50ppm, or specify

±30ppm, ±50ppm or specify

-55

°C

to +125

°C

-10

°C

to + 60

°C,

-20

°C

to + 70

°C,

-40

°C

to + 85

°C,

5.0 pF Max

10µW ~ 100µW

Series, 16pF, 20pF, 30pF, 32pF, or specify

See Table 1

±3ppm/year

Drop test of 3 times on 2mm stainless plate

from 75cm height

REMARK:

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER.

Frequencies and Equivalent Series Resistant

Frequency Range

8.000 MHz ~ 10.000 MHz

10.000 MHz ~ 30.000 MHz

30.000 MHz ~ 45.000 MHz

45.000 MHz ~ 80.000 MHz

E.S.R. (Ω)

70 Max

40 Max

60 Max

50 Max

Mode

Fundamental / AT

Third Overtone / AT
