2SC4168 datasheet, PDF - EEWORLD Datasheet

2SC4168: DescriptionRF Small Signal Bipolar Transistor, 0.15A I(C), 1-Element, Silicon, NPN, CP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size118KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

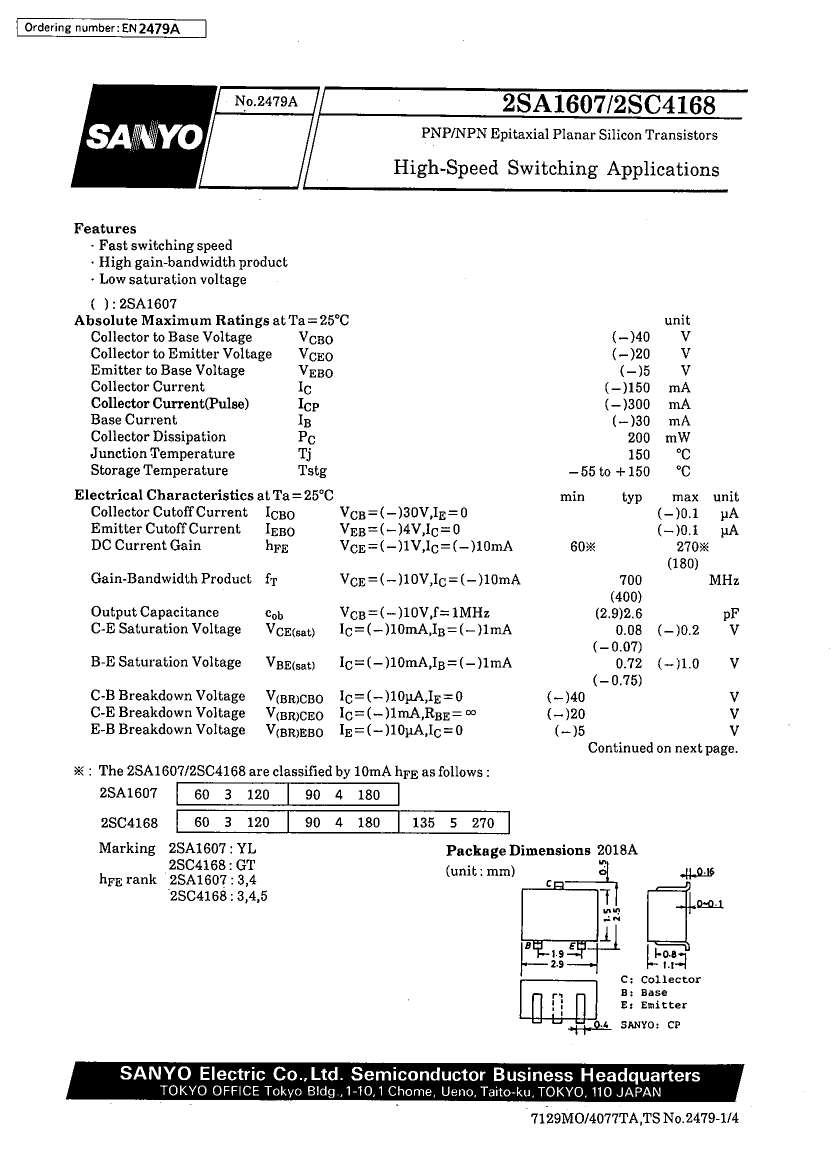

2SC4168 Overview

RF Small Signal Bipolar Transistor, 0.15A I(C), 1-Element, Silicon, NPN, CP, 3 PIN

Parameter Name	Attribute value
Objectid	1483106430
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.15 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE

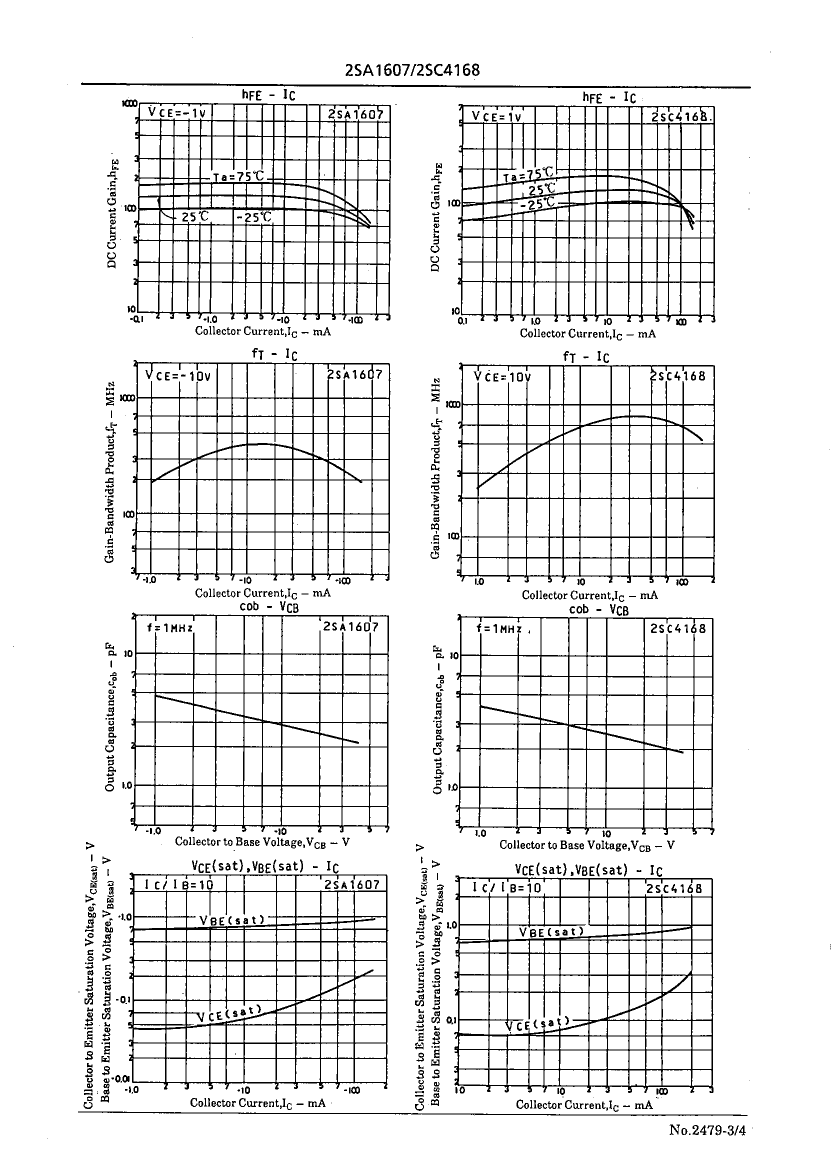

Minimum DC current gain (hFE)	60
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN

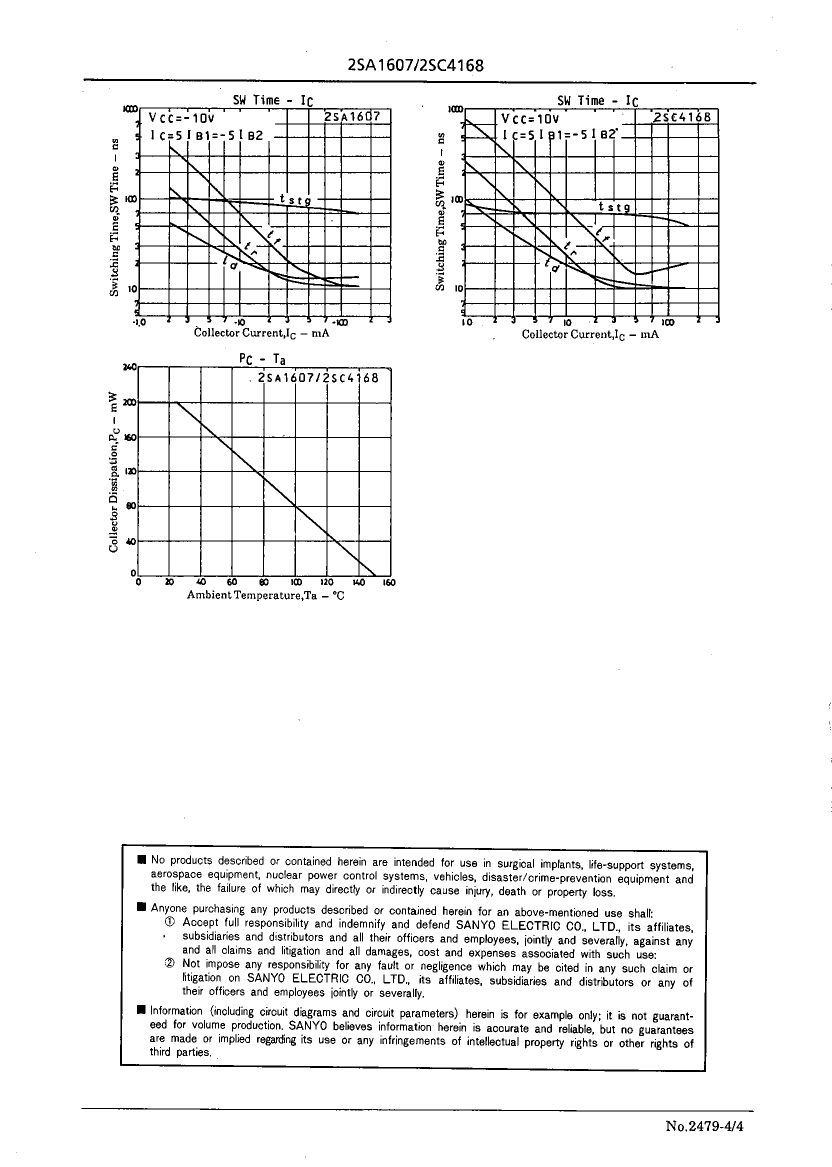

Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	700 MHz

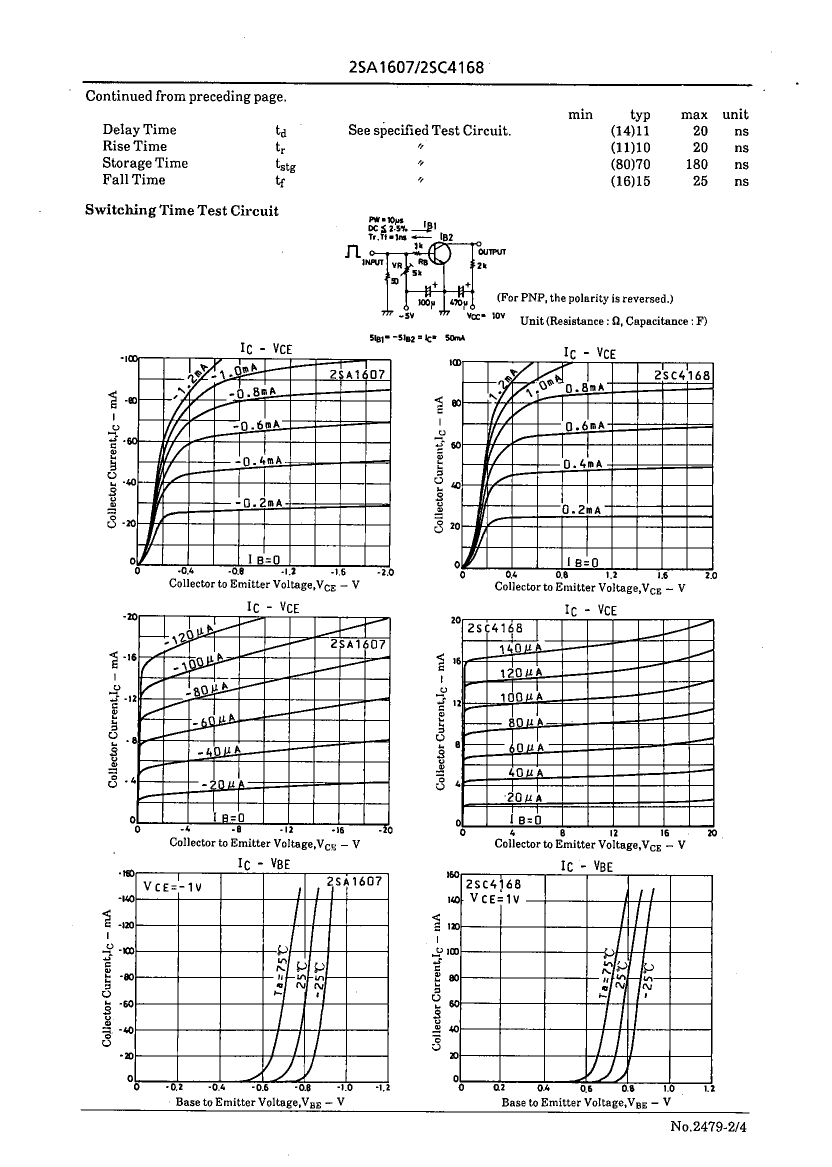

Maximum off time (toff)	205 ns
Maximum opening time (tons)	40 ns
VCEsat-Max	0.2 V
