2SC5140 datasheet, PDF - EEWORLD Datasheet

2SC5140: Descriptionvhf / uhf wide band amplifier; CategoryDiscrete semiconductor The transistor; File Size56KB，8 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

2SC5140 Overview

vhf / uhf wide band amplifier

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	COLLECTOR
Maximum collector current (IC)	0.02 A
Collector-based maximum capacity	0.85 pF
Collector-emitter maximum voltage	9 V
Configuration	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	9000 MHz
Base Number Matches	1

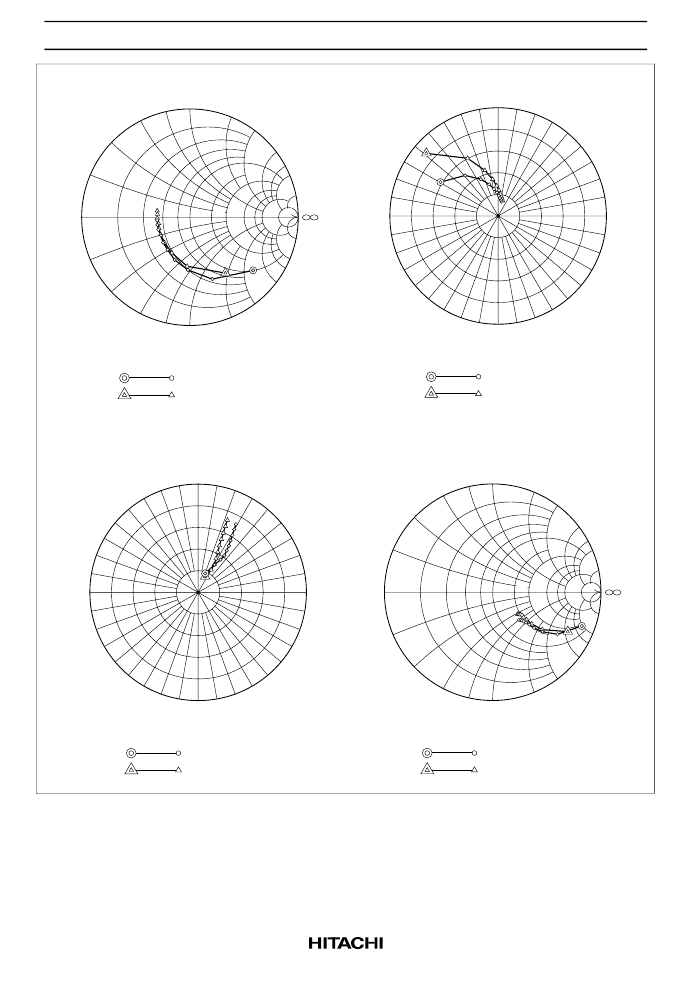

2SC5140

Silicon NPN Epitaxial

ADE-208-227A (Z)

2nd. Edition

Mar. 2001

Application

VHF / UHF wide band amplifier

Features

•

High gain bandwidth product

= 9 GHz typ

•

High gain, low noise figure

PG = 15 dB typ, NF = 1.6 dB typ at f = 900 MHz

Outline

SMPAK

1. Emitter

2. Base

3. Collector

Note:

Marking is “YH–”.

Attention: This device is very sensitive to electro static discharge.

It is recommended to adopt appropriate cautions when handling this transistor.
