BYV36EGP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV36EGP

BYV36EGP: Descriptionsintered glass junction fast switching plastic rectifier voltage？？?200 - 1000v current: 1.5A; CategoryDiscrete semiconductor diode; File Size224KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

BYV36EGP Overview

sintered glass junction fast switching plastic rectifier voltage？？?200 - 1000v current: 1.5A

BYV36EGP Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.45 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

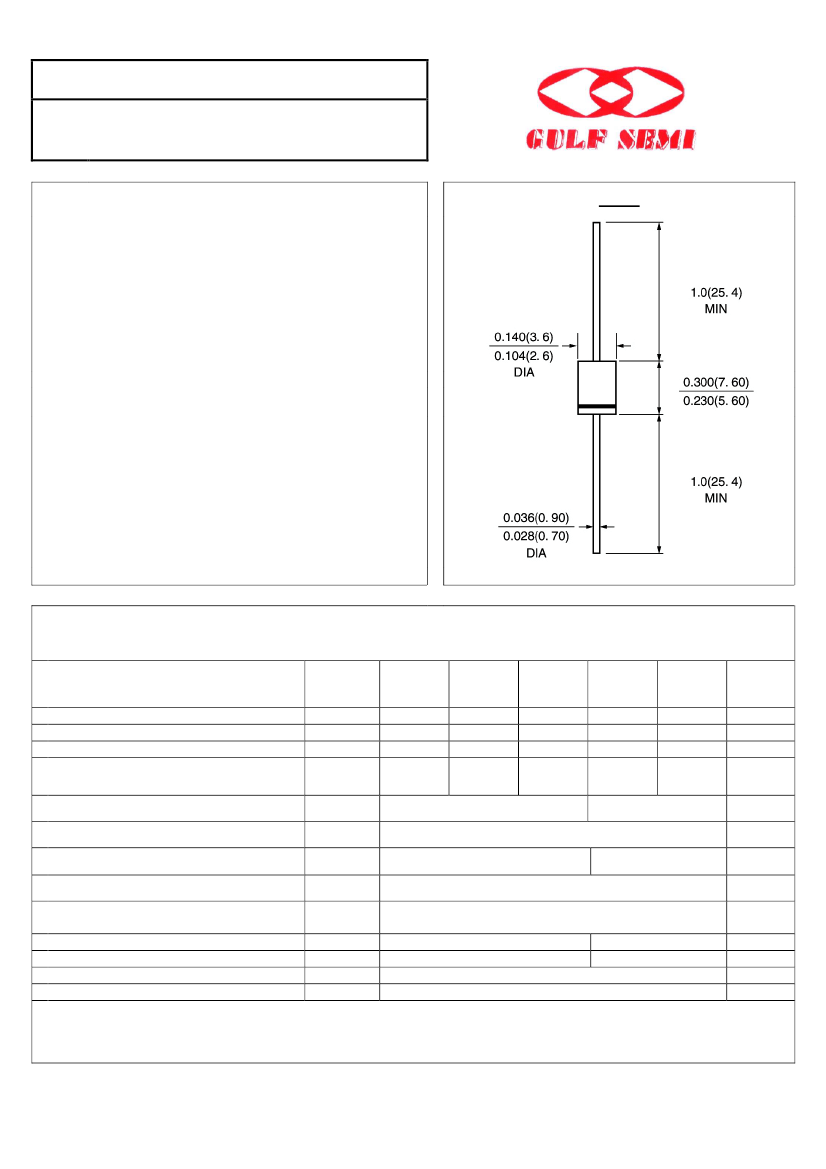

BYV36AGP THRU BYV36EGP

SINTERED GLASS JUNCTION

FAST SWITCHING PLASTIC RECTIFIER

VOLTAGE：200 - 1000V

：

CURRENT: 1.5A

FEATURE

High temperature metallurgic ally bonded construction

Sintered glass cavity free junction

Capability of meeting environmental standard of

MIL-S-19500

High temperature soldering guaranteed

350°C /10sec/0.375”lead length at 5 lbs tension

Operate at Ta

=35°C

with no thermal run away

Typical Ir<0.1µA

DO-15

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Reverse avalanche breakdown voltage

at IR = 0.1 mA

Maximum Average Forward Rectified

Ttp = 60



C; lead length = 10 mm;

Peak Forward Surge Currentt = 10 ms half sine

wave; Tj = Tj max

Maximum Forward Voltage at rated Forward

Current and 50°C

Non-repetitive peak reverse avalanche energy

(Note 1)

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Ta =150°C

Maximum Reverse Recovery Time (Note 2)

Typical Junction Capacitance

(Note 3)

Typical Thermal Resistance

(Note 4)

Storage and Operating Junction Temperature

Vrrm

Vrms

Vdc

BYV36A

200

140

200

300

BYV36B

400

280

400

500

1.6

BYV36C

600

420

600

700

BYV36D

800

560

800

900

1.5

BYV36E

1000

700

1000

1100

units

(BR)R

(min)

If(av)

Ifsm

ERSM

Trr

Rθja

Tstg, Tj

1.35

5.0

150.0

100

55.0

-65 to +175

150

1.45

µA

°C

Note: 1.R=400mA; Tj=Tjmax prior to surge; inductive load switched off

2.Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

3.Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

4.Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

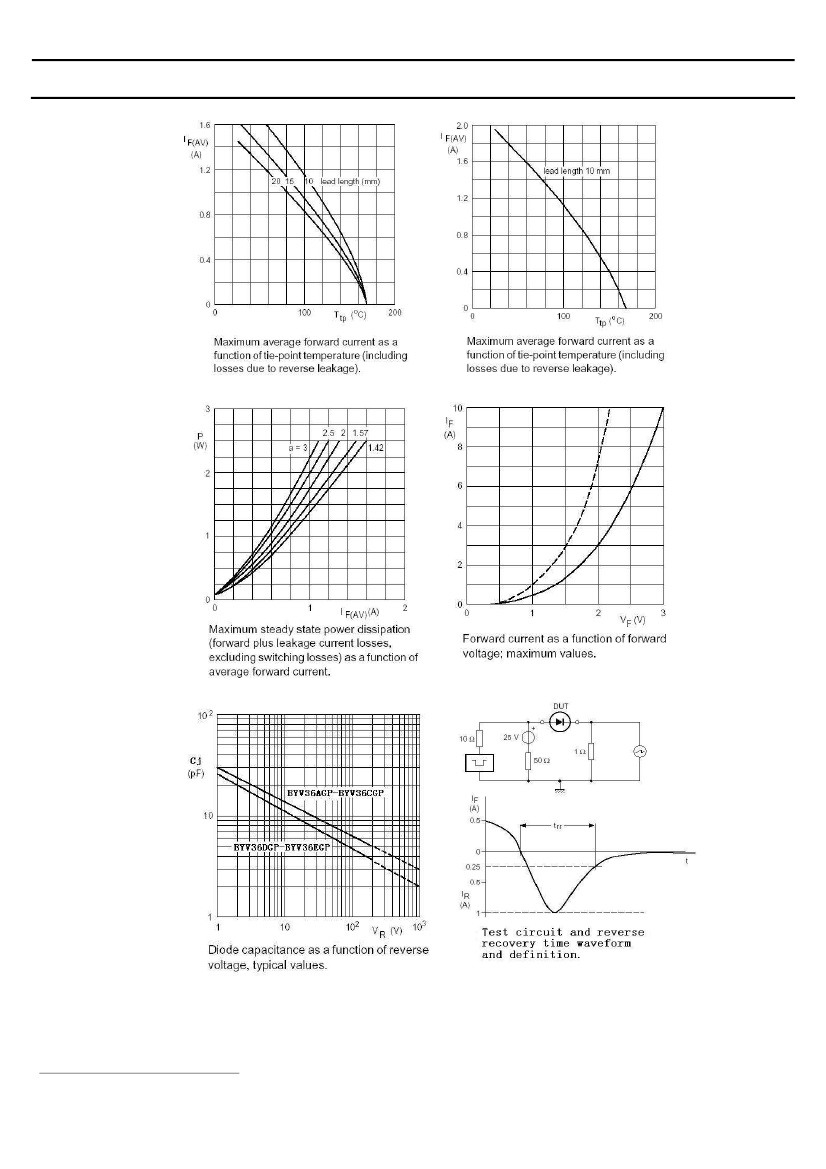

Rev.A6

www.gulfsemi.com
