DomiLED – GaP : DDx-GJS-I1
•
•
•
•
•
Low current surface mount LED.
120° viewing angle.

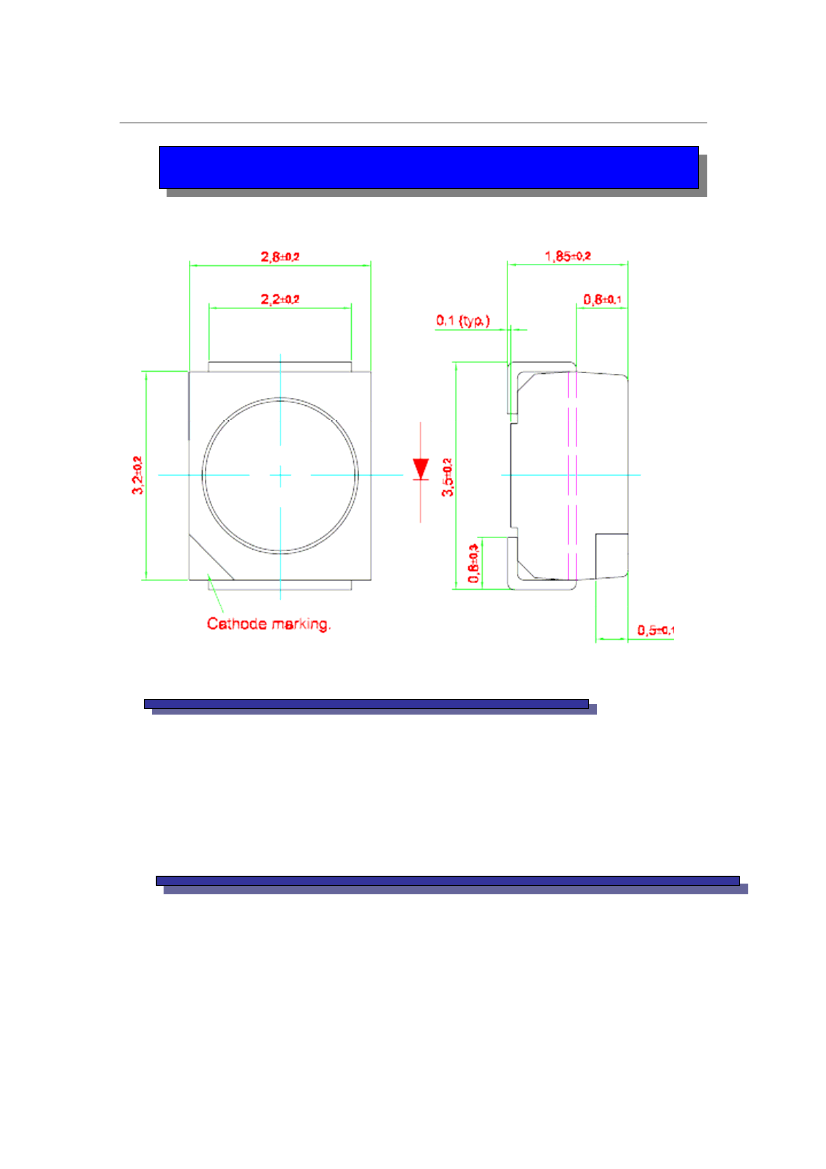

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8 mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
30/04/04
DomiLED Gap DDx-GJS -I1 Catalogue-v3.doc
Page 1 of 1
DOMINANT
Semiconductors
Part Ordering Number
DDR-GJS-J2L1-1-I1
•
•
•
DDR-GJS-J2
DDR-GJS-K1
DDR-GJS-K2
DDR-GJS-L1
Chip Technology /
Color
GaP /
Red, 625 nm
Luminous Intensity @ If = 10mA
Iv ( mcd )
5.6 … 14.0
5.6 … 7.2
7.2 … 9.0
9.0 … 11.2
11.2 … 14.0
•
DDO-GJS-H2K1-1-I1
•
•
•
DDO-GJS-H2
DDO-GJS-J1
DDO-GJS-J2
DDO-GJS-K1
GaP /
Orange, 605 nm
3.55 … 9.0
3.55
4.5
5.6
7.2
… 4.5
… 5.6
… 7.2
… 9.0
•
DDY-GJS- H2K1-1-I1
•
•
•
DDY-GJS-H2
DDY-GJS-J1
DDY-GJS-J2
DDY-GJS-K1
GaP /
Yellow, 587 nm
3.55 … 9.0
3.55
4.5
5.6
7.2
… 4.5
… 5.6
… 7.2
… 9.0
•
DDG-GJS- KL2-1-I1
•
•
•
DDG-GJS-K1
DDG-GJS-K2
DDG-GJS-L1
DDG-GJS-L2
GaP /
Green, 570 nm
7.2 … 18.0
7.2 … 9.0
9.0 … 11.2
11.2 … 14.0
14.0 … 18.0
•
DDP-GJS-GH2-1-I1
•
•
•
DDP-GJS-G1
DDP-GJS-G2
DDP-GJS-H1
DDP-GJS-H2
GaP /
Green, 560 nm
1.80 … 4.50
1.80 … 2.24
2.24 … 2.80
2.80 … 3.55
3.55 … 4.50
•
NOTE:
1. All part number above comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of
±11%.
3. Wavelength binning is carried for all units as per the wavelength-binning table. Only one
wavelength group is allowed for each reel.
30/04/04
DomiLED Gap DDx-GJS -I1 Catalogue-v3.doc
Page 2 of 2
DOMINANT
Semiconductors
Characteristics.
Forward voltage
@ If=10 mA.
2.05 V (typ.); 2.45 V (max)
GaP
Chip Type
Viewing angle Max reverse current, I
R
at 50% Iv
120°
@ V
R
= 5V.
100
μA
All forward voltages are measured using a current pulse of 1 ms and has an accuracy of
±0.1
V.
Wavelength Grouping.
Color
DDR; Red
DDO; Orange
Group
Full
Full
W
X
Y
Z
Wavelength distribution (nm)
620 – 635
600 – 612
600 - 603
603 - 606
606 - 609
609 - 612
582 – 594
582 – 585
585 – 588
588 - 591
591 - 594
564.5 – 576.5
564.5 – 567.5
567.5 – 570.5
570.5 – 573.5
573.5 – 576.5
552.5 – 564.5
552.5 – 555.5
555.5 – 558.5
558.5 – 561.5
561.5 – 564.5
DDY; Yellow
Full
W
X
Y
Z
DDG; Green
Full
W
X
Y
Z
DDP; Pure Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of
±1
nm.
30/04/04
DomiLED Gap DDx-GJS -I1 Catalogue-v3.doc
Page 3 of 3
DOMINANT
Semiconductors
Absolute Maximum Ratings.
Maximum Value
DC forward current.
Peak pulse current; (tp
≤
10
μs,
Duty cycle = 0.005)
Reverse voltage.
LED junction temperature.
Operating temperature.
Storage temperature.
Power dissipation ( at room temperature )
30
500
5
100
-40 … +100
-40 … +100
75
Unit
mA
mA
V
°C
°C
°C
mW
Recommended Solder Pad
30/04/04
DomiLED Gap DDx-GJS -I1 Catalogue-v3.doc
Page 4 of 4
DOMINANT
Semiconductors

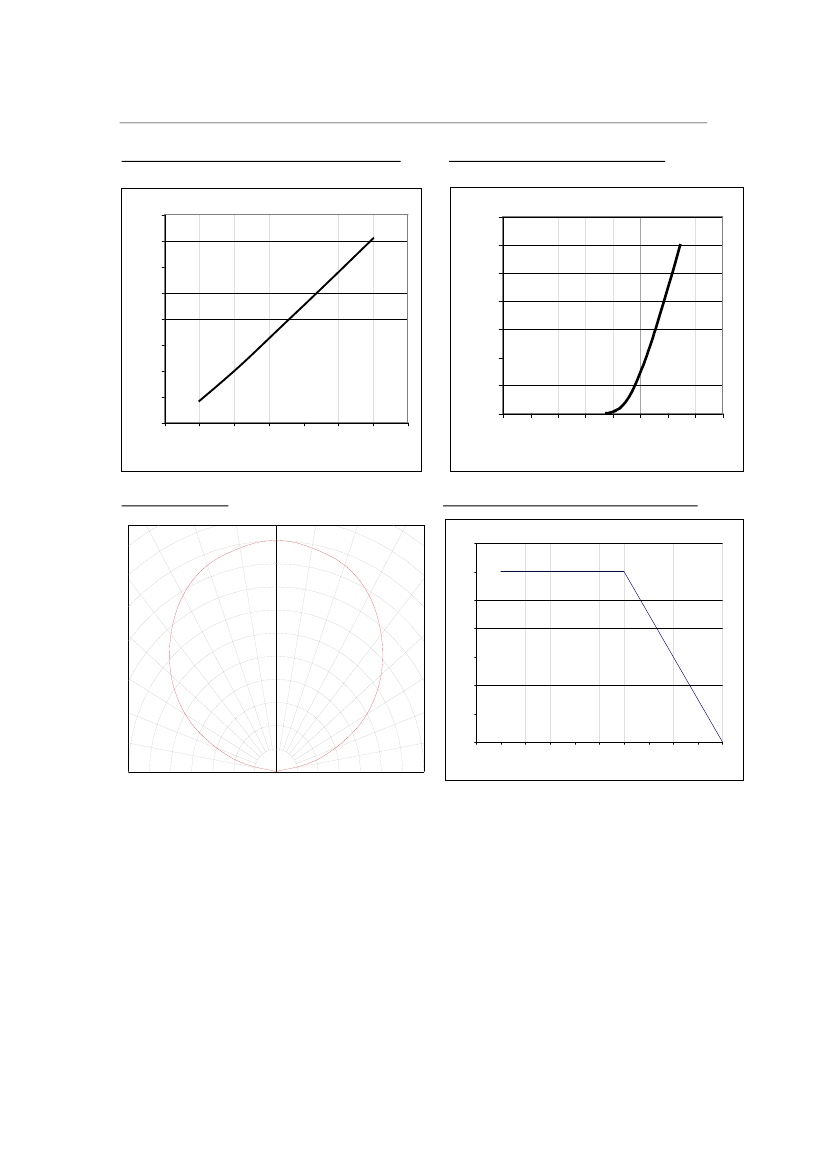

Relative luminous intensity vs. forward current.
Forward current vs. forward voltage.
4.0
Relative intensity. Normalized at 10 mA.
35
Forward Current (mA)
0
5
10
15
20
25
30
35
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
Forward Current (mA)
30
25
20
15
10
5
0
1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6
Forward Voltage (V)
Radiation pattern.
30°
20°
10°
0°
1.0
Maximum forward current vs. temperature.
35
40°
0.8
30
50°
0.6
60°
70°
80°
90°
0.4
Forward Current, If
25
20
15
10
0.2
5
0
0
10
20
30
40
50
60
70
80
90
100
0
A bient Tem
m
perature
30/04/04
DomiLED Gap DDx-GJS -I1 Catalogue-v3.doc
Page 5 of 5
