DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
DomiLED
TM
GaP : DDx-GJS
DomiLED
TM
TM

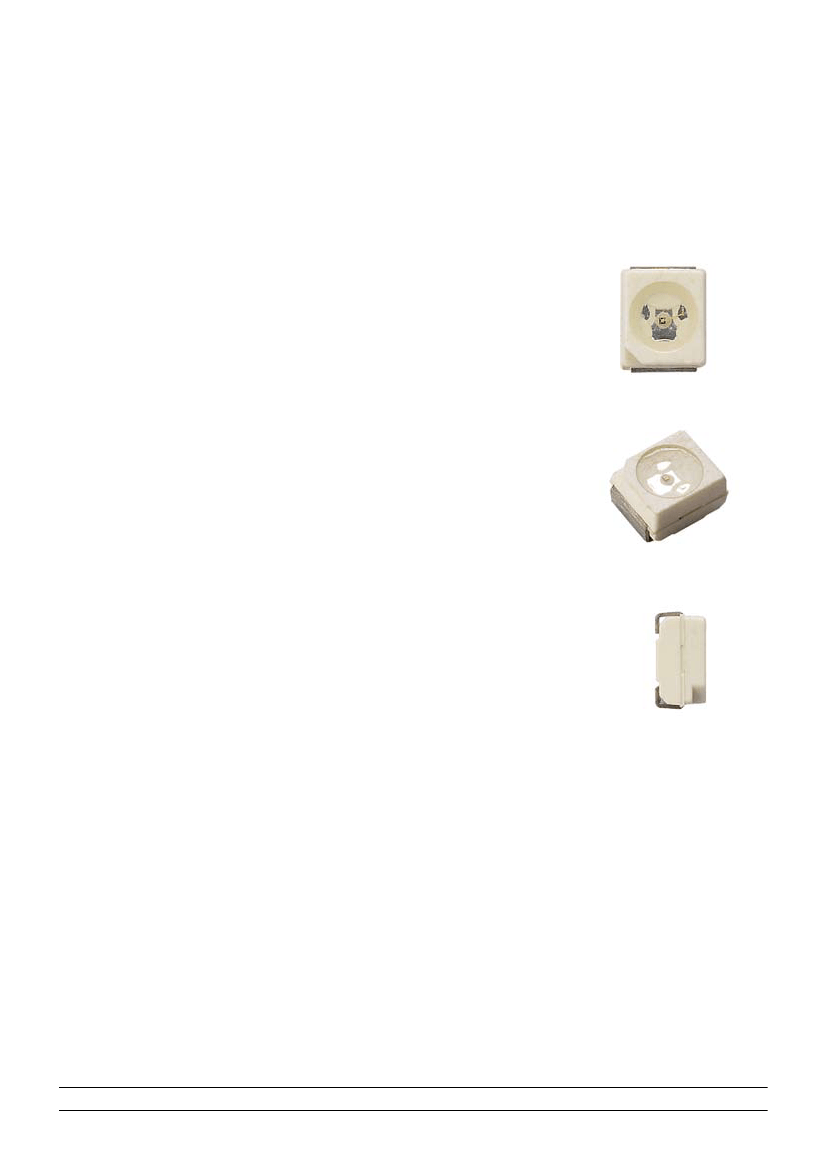

Synonymous with function and performance, the
DomiLED
series is
perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
High brightness surface mount LED.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
06/09/2005 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Gap : DDx-GJS
Part Ordering
Number
DDR-GJS-LM2-1
• DDR-GJS-L1
• DDR-GJS-L2
• DDR-GJS-M1
• DDR-GJS-M2
DDR-GJS-MN2-1
• DDR-GJS-M1
• DDR-GJS-M2
• DDR-GJS-N1
• DDR-GJS-N2
DDO-GJS-LM2-1
• DDO-GJS-L1
• DDO-GJS-L2
• DDO-GJS-M1
• DDO-GJS-M2
DDY-GJS-LM2-1
• DDY-GJS-L1
• DDY-GJS-L2
• DDY-GJS-M1
• DDY-GJS-M2
DDG-GJS-LM2-1
• DDG-GJS-L1
• DDG-GJS-L2
• DDG-GJS-M1
• DDG-GJS-M2
DDG-GJS-MN2-1
• DDG-GJS-M1
• DDG-GJS-M2
• DDG-GJS-N1
• DDG-GJS-N2
Chip Technology
/ Color
Gap
Red, 625nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
11.2 - 28.5
11.2 - 14.0
14.0 - 18.0
18.0 - 22.4
22.4 - 28.5
18.0 - 45.0
18.0 - 22.4
22.4 - 28.5
28.5 - 35.5
35.5 - 45.0
Gap
Orange, 605nm
120
11.2 - 28.5
11.2 - 14.0
14.0 - 18.0
18.0 - 22.4
22.4 - 28.5
Gap
Yellow, 587nm
120
11.2 - 28.5
11.2 - 14.0
14.0 - 18.0
18.0 - 22.4
22.4 - 28.5
Gap
Green, 570nm
120
11.2 - 28.5
11.2 - 14.0
14.0 - 18.0
18.0 - 22.4
22.4 - 28.5
18.0 - 45.0
18.0 - 22.4
22.4 - 28.5
28.5 - 35.5
35.5 - 45.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Other luminous intensity groups are also available upon request.
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
5. An optional Vf binning is also available upon request. Binning scheme is as per following table.
2
06/09/2005 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Gap : DDx-GJS
Electrical Characteristics at Ta=25˚C
Chip Type
GaP
Vf @ If = 20mA
Typ. (V)
2.2
V
r @
I
r
= 10
µ
A
Min(V)
5
Max. (V)
2.6
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Vf Binning (Optional)
Vf Bin @ 20mA
01
02
03
04
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Please consult sales and marketing for special part number to incorporate Vf bining.
Forward Voltage (V)
1.55 … 1.85
1.85 … 2.15
2.15 … 2.45
2.45 … 2.75
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
ESD Thereshold (HBM)
LED juction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
30
500
5
2
100
-40 … +100
-40 … +100
75
Unit
mA
mA
V
kV
˚C
˚C
˚C
mW
4
06/09/2005 V4.0
DOMINANT
TM
Semiconductors
Innovating Illumination
Gap : DDx-GJS

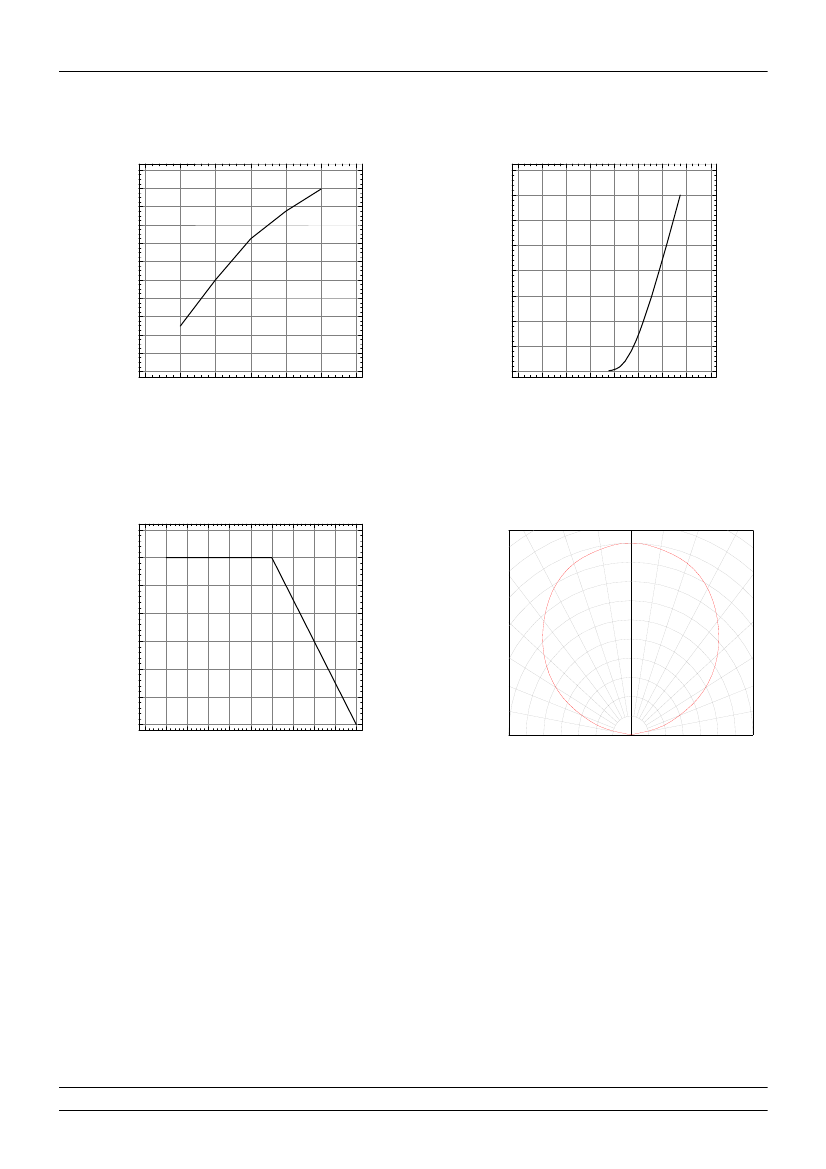

Relative Intensity Vs Forward Current
2.2
2
1.8
40
35
Forward Current Vs Forward Voltage
Relative Intensity
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
Forward Current, mA
30
25
20
15
10
5
0
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
Forward Current, mA
Forward Voltage, V
Maximum Forward Current Vs Temperature
35
30
Radiation Pattern
30°
20°
10°
0°
1.0
Forward Current, If
40°
25
20
15
0.8
50°
0.6
60°
10
0.4
70°
5
0.2
80°
0
0
10
20
30
40
50
60
70
80
90 100
90°
0
Ambient Temperature
5
06/09/2005 V4.0
LED Zone
